TC-138B: Target Idle Not Reached

Fig 1: TC-138B: Target Idle Not Reached (1 Of 2)
G00063433Courtesy of DAIMLERCHRYSLER CORPORATION

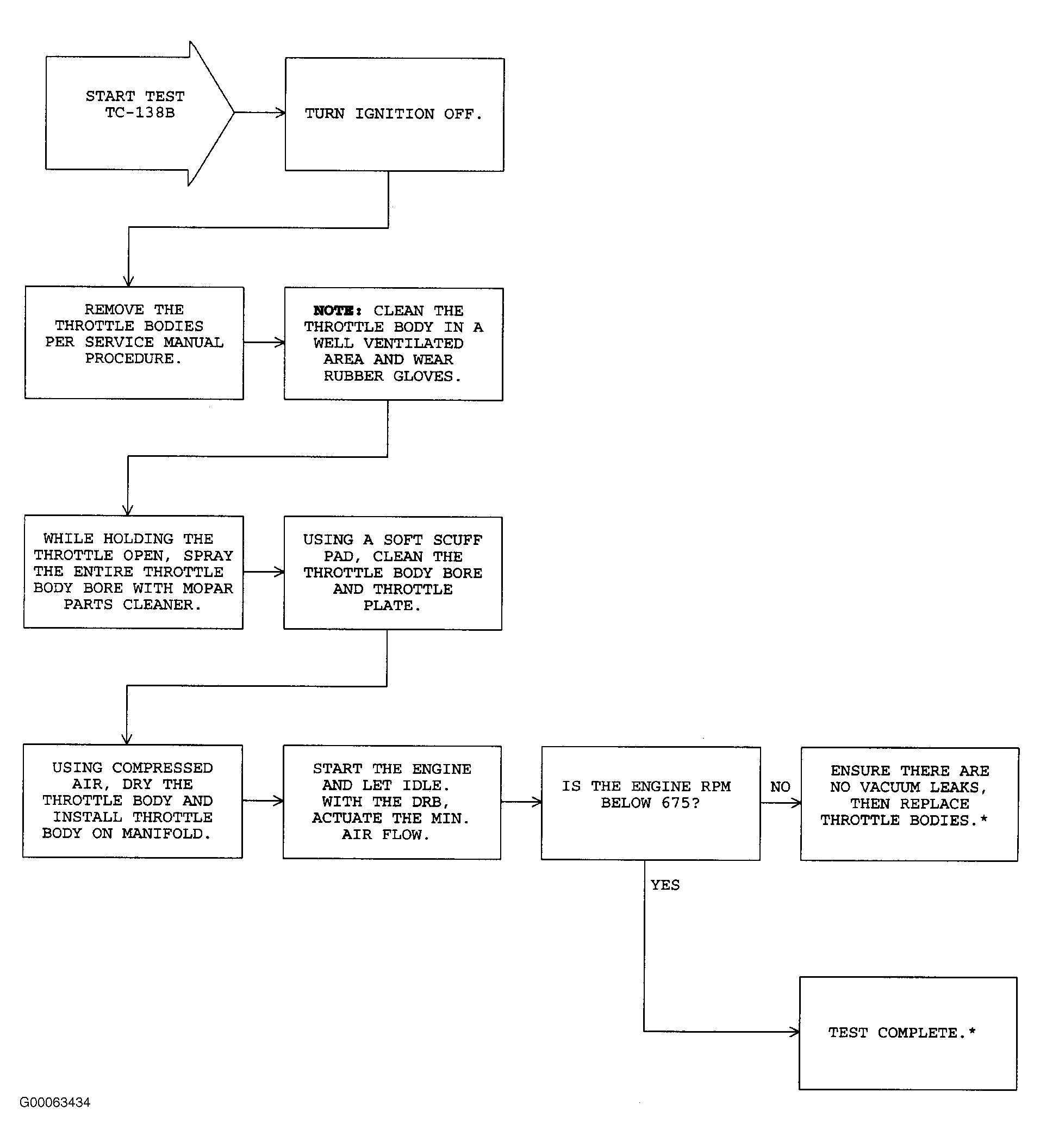

Fig 2: TC-138B: Target Idle Not Reached (2 Of 2)
G00063434Courtesy of DAIMLERCHRYSLER CORPORATION
