TC-119B: Fuel System 1/1 Lean

NOTE: Perform Test TC-119A Before Proceeding

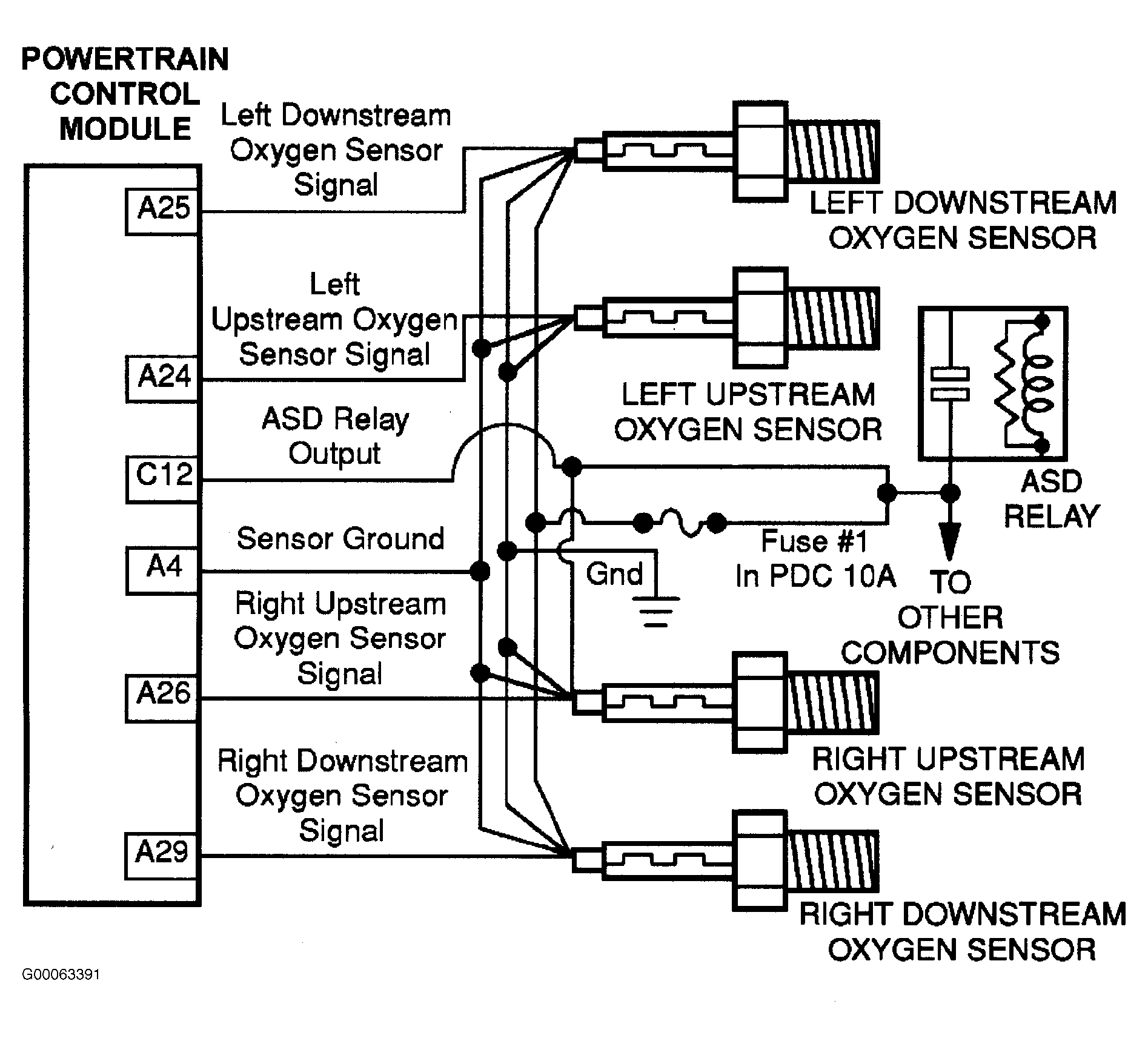

Fig 1: TC-119B: Fuel System 1/1 Lean (1 Of 2)
G00063391Courtesy of DAIMLERCHRYSLER CORPORATION

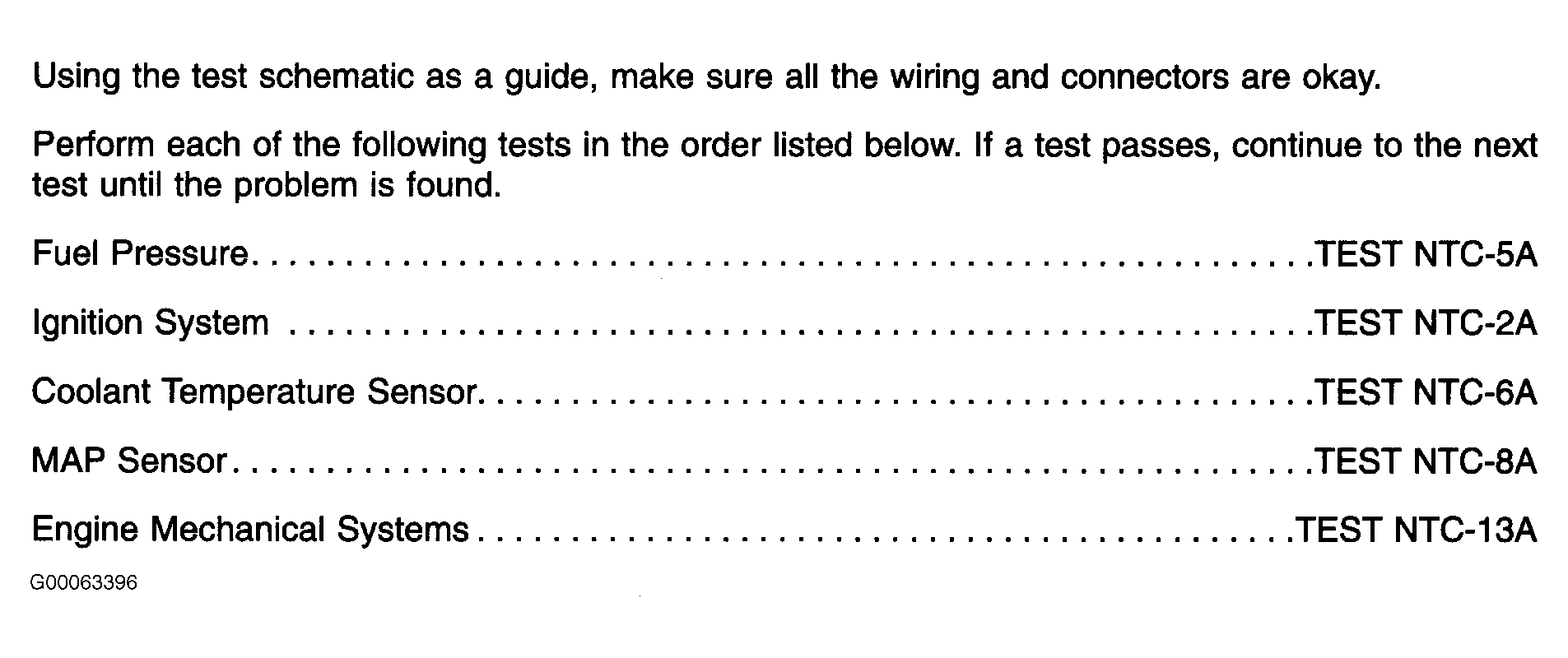

Fig 2: TC-119B: Fuel System 1/1 Lean (2 Of 2)
G00063396Courtesy of DAIMLERCHRYSLER CORPORATION
