TC-119A: Fuel System 1/1 Lean

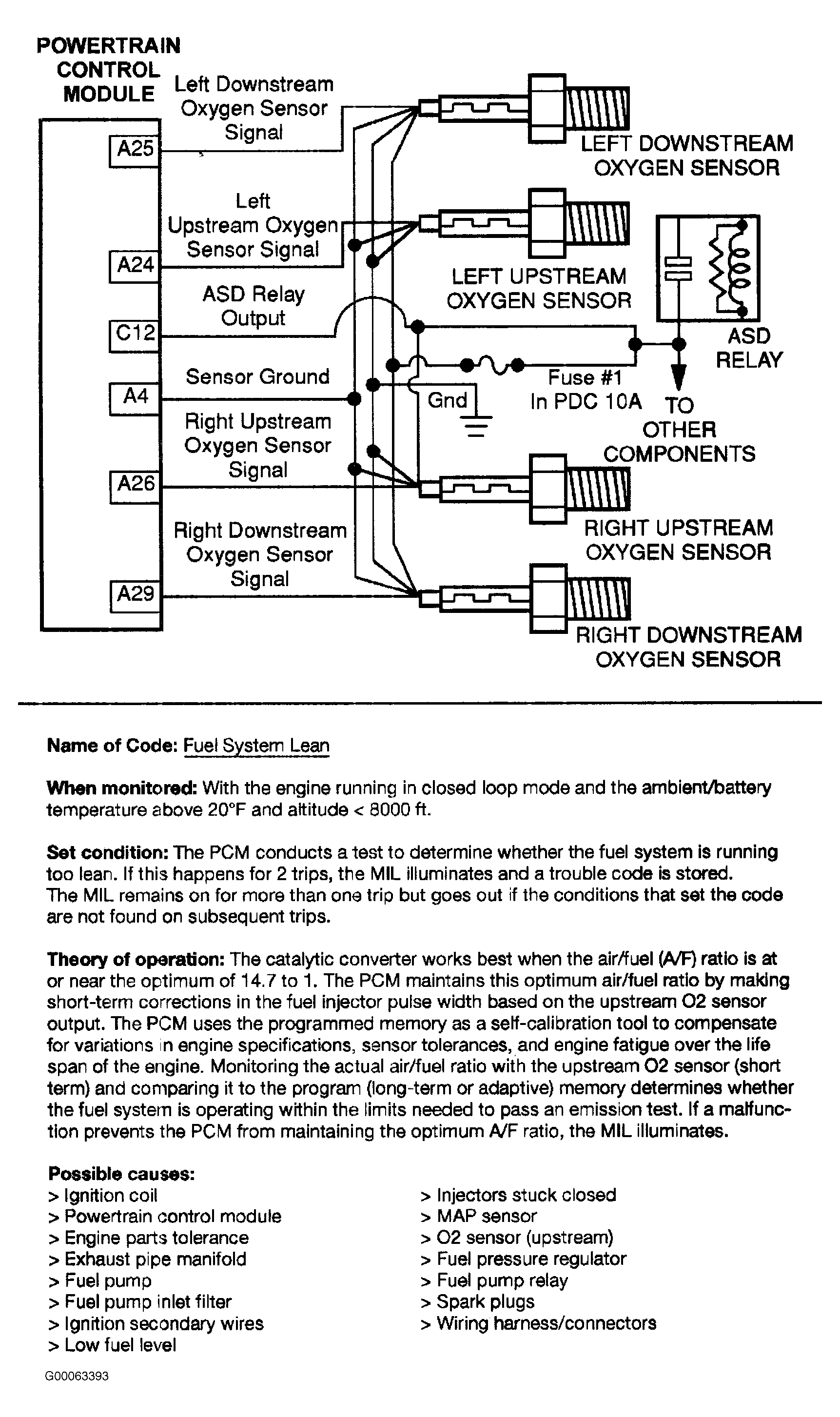

Fig 1: TC-119A: Fuel System 1/1 Lean (1 Of 3)
G00063393Courtesy of DAIMLERCHRYSLER CORPORATION

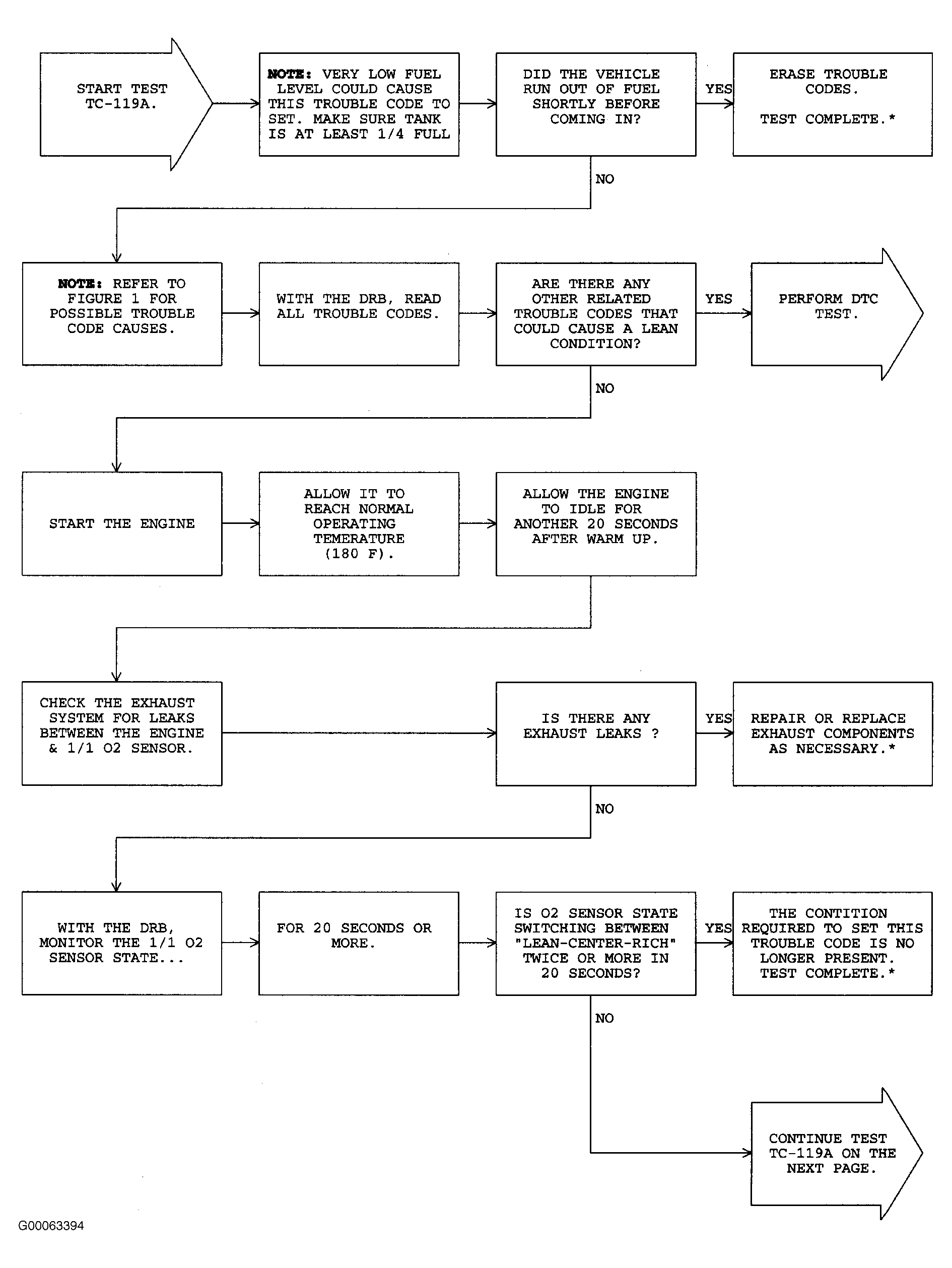

Fig 2: TC-119A: Fuel System 1/1 Lean (2 Of 3)
G00063394Courtesy of DAIMLERCHRYSLER CORPORATION

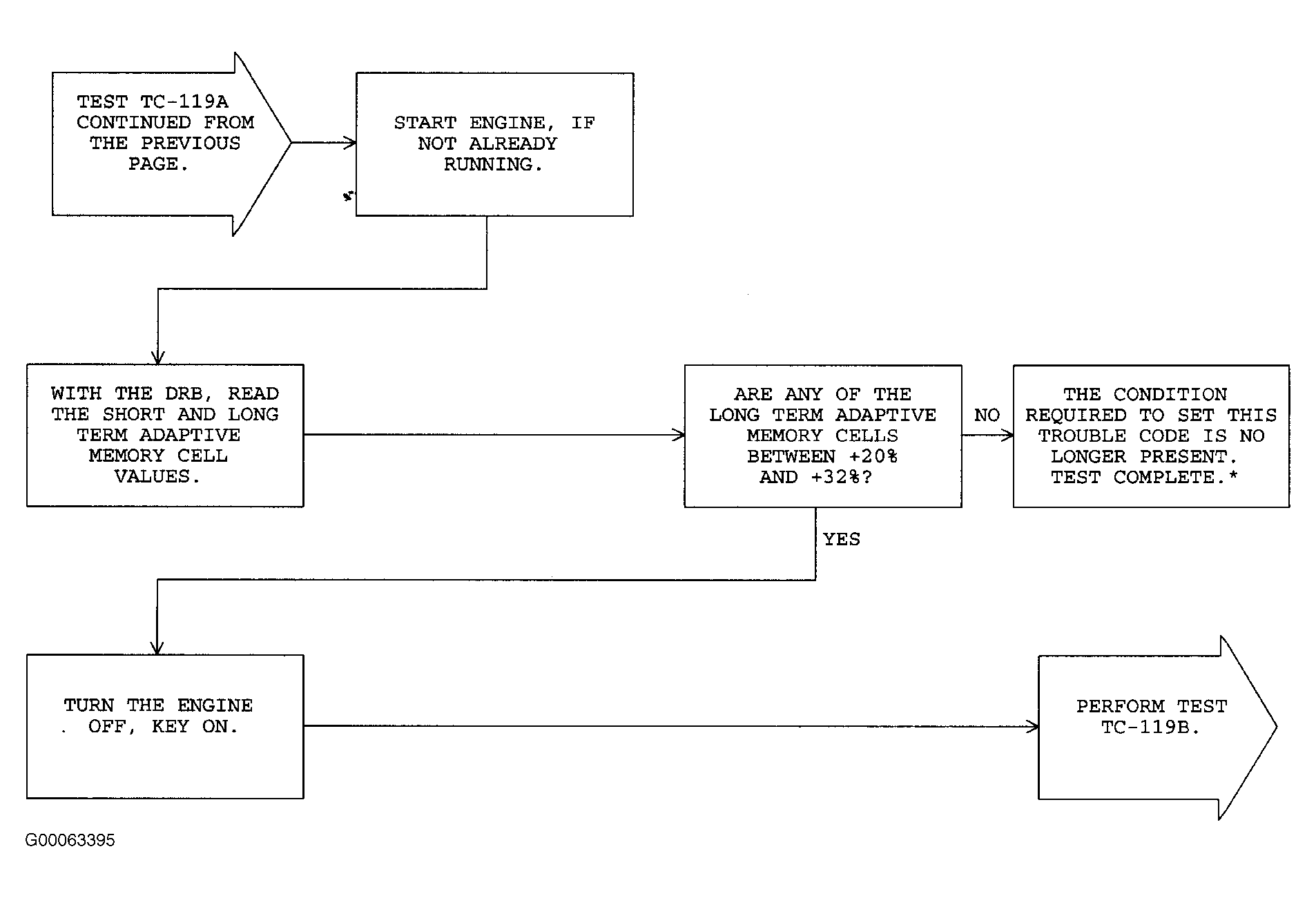

Fig 3: TC-119A: Fuel System 1/1 Lean (3 Of 3)
G00063395Courtesy of DAIMLERCHRYSLER CORPORATION
