NTC-8A: Checking Map Sensor Calibration

NOTE: Perform Test NTC-1A Or NTC-7A Before Proceeding

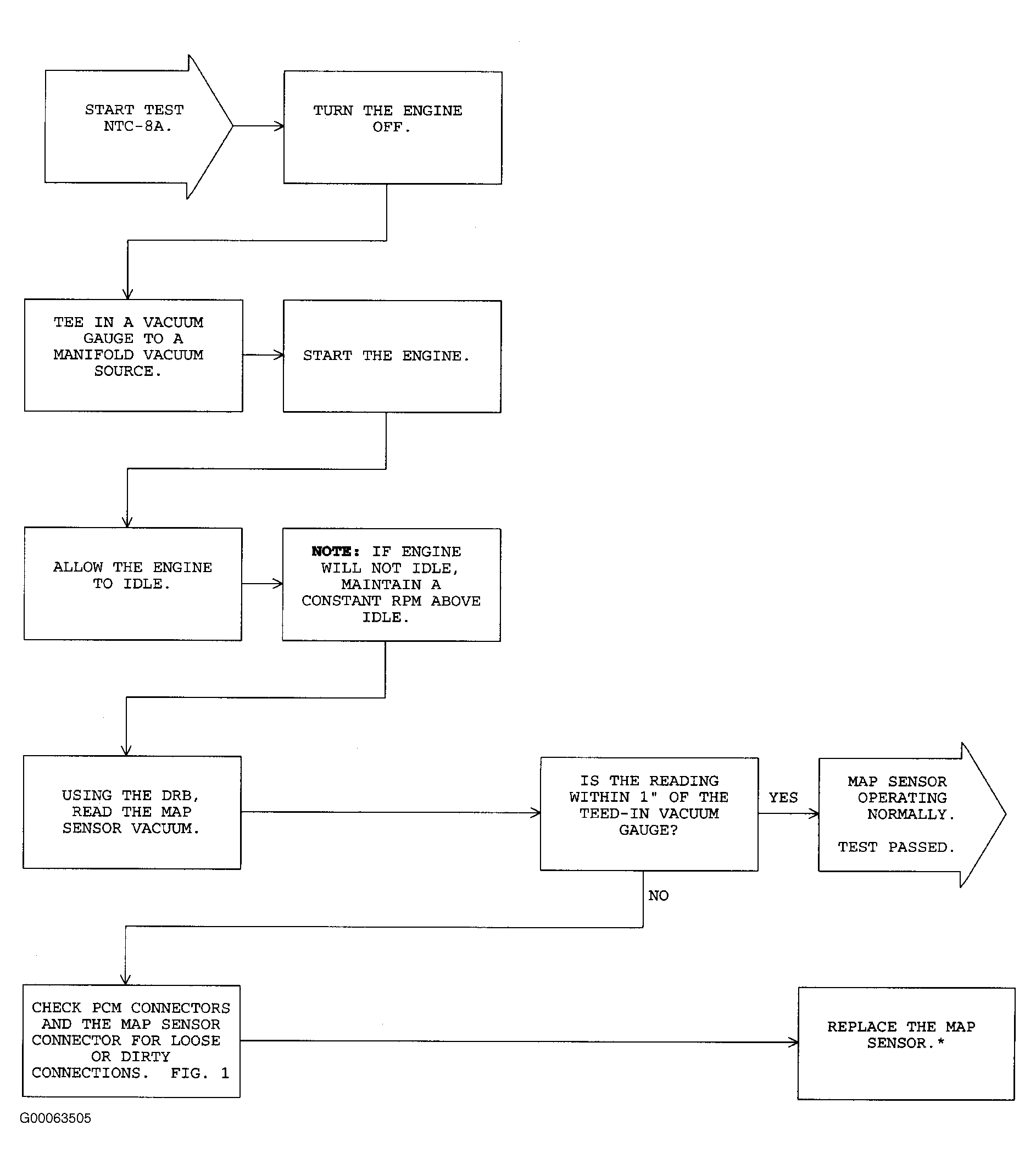

Fig 1: NTC-8A: Checking MAP Sensor Calibration (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

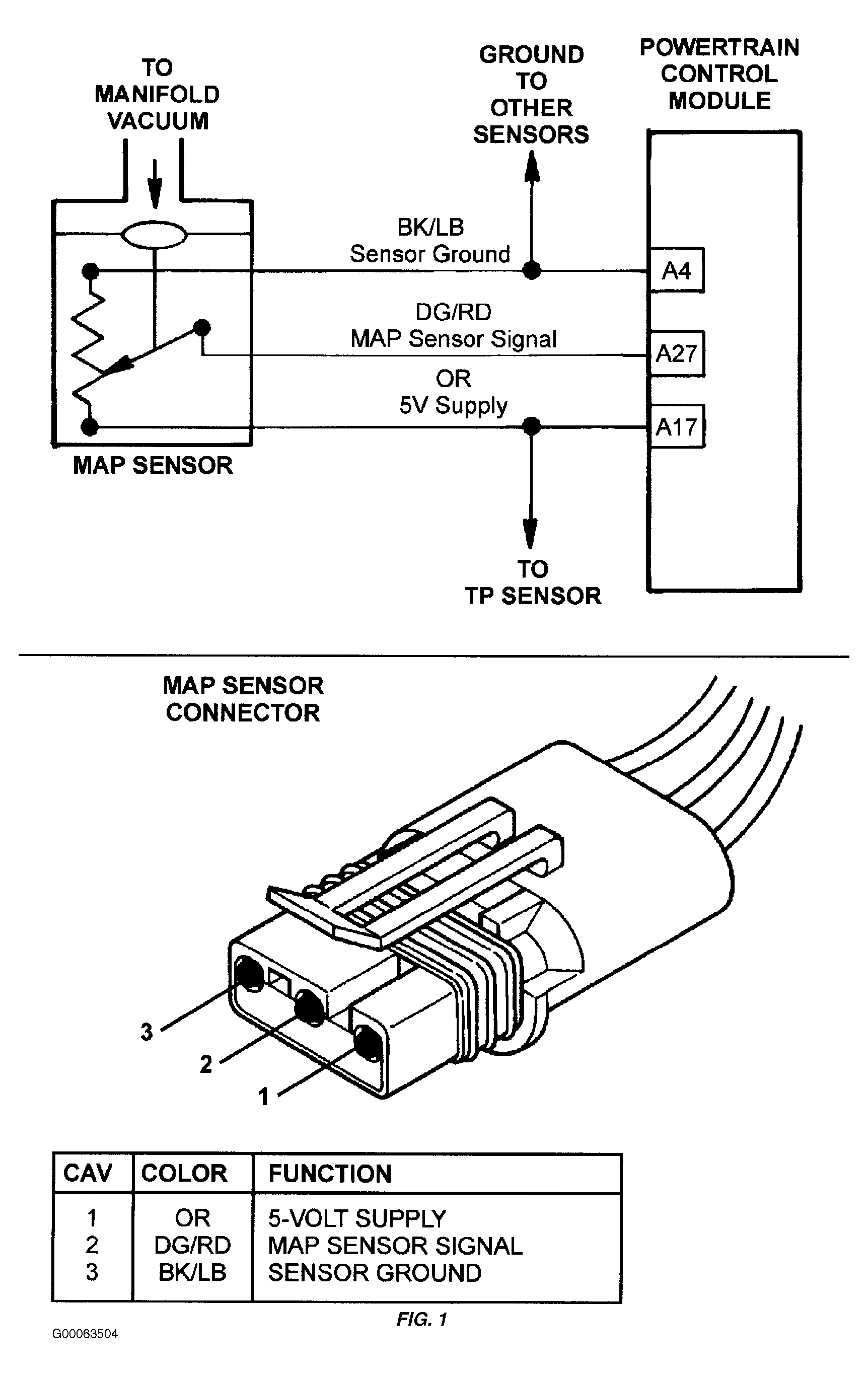

Fig 2: NTC-8A: Checking MAP Sensor Calibration (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
