Control Units
CONTROL UNITS
| Component | Location |
|---|---|

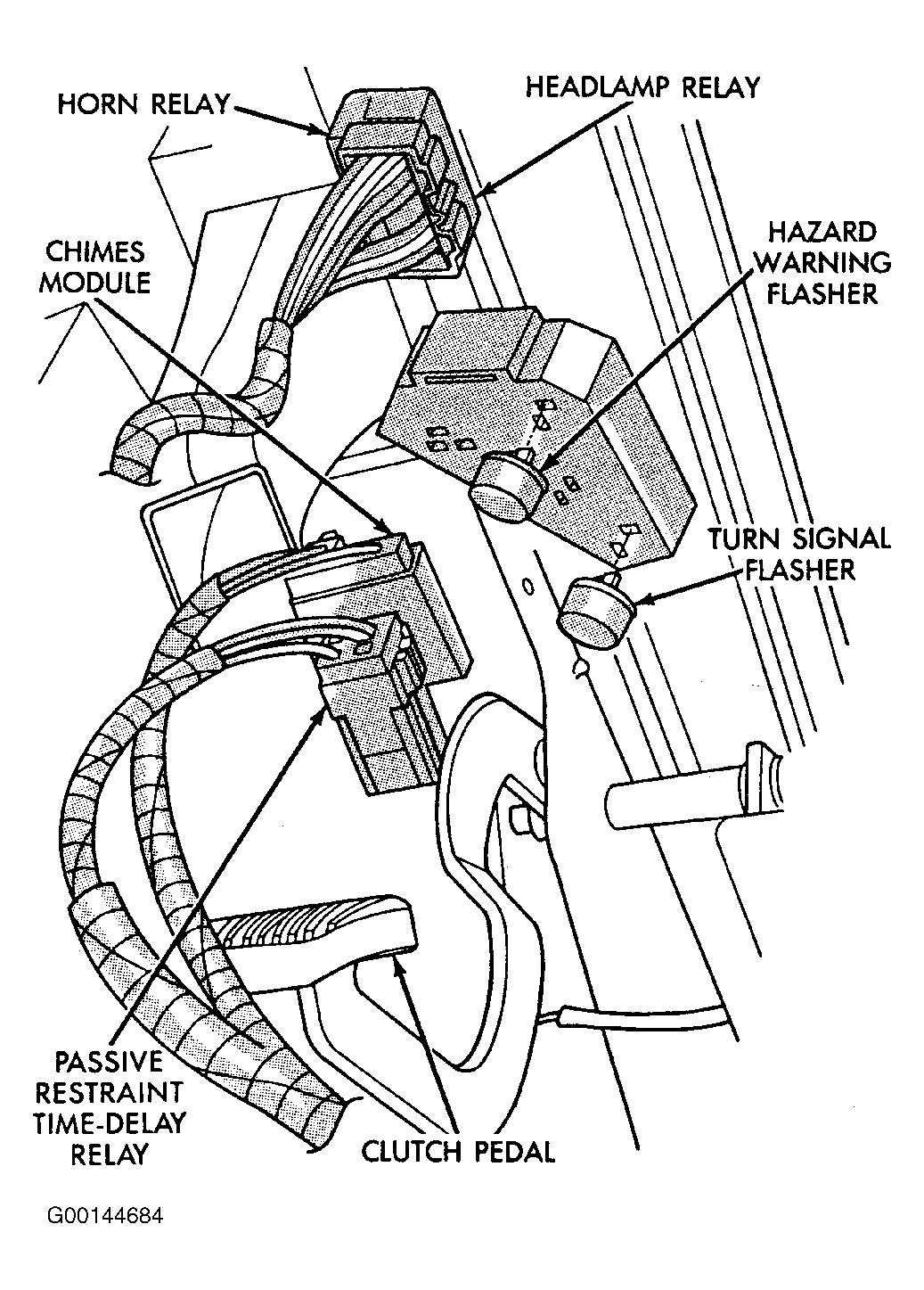

| Chimes Module | Left of steering column, above clutch pedal bracket. See Figure . |

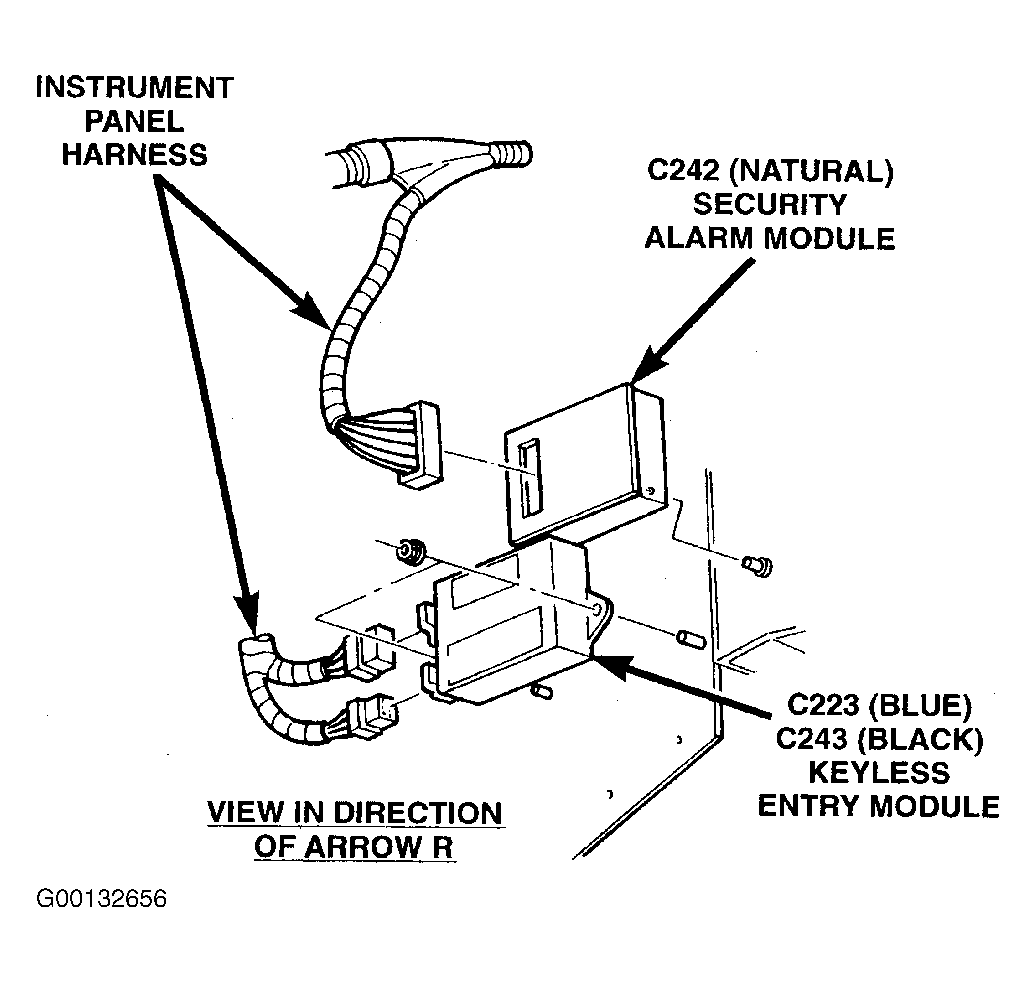

| Keyless Entry Module | On toe box, below security alarm module. See Figure . |

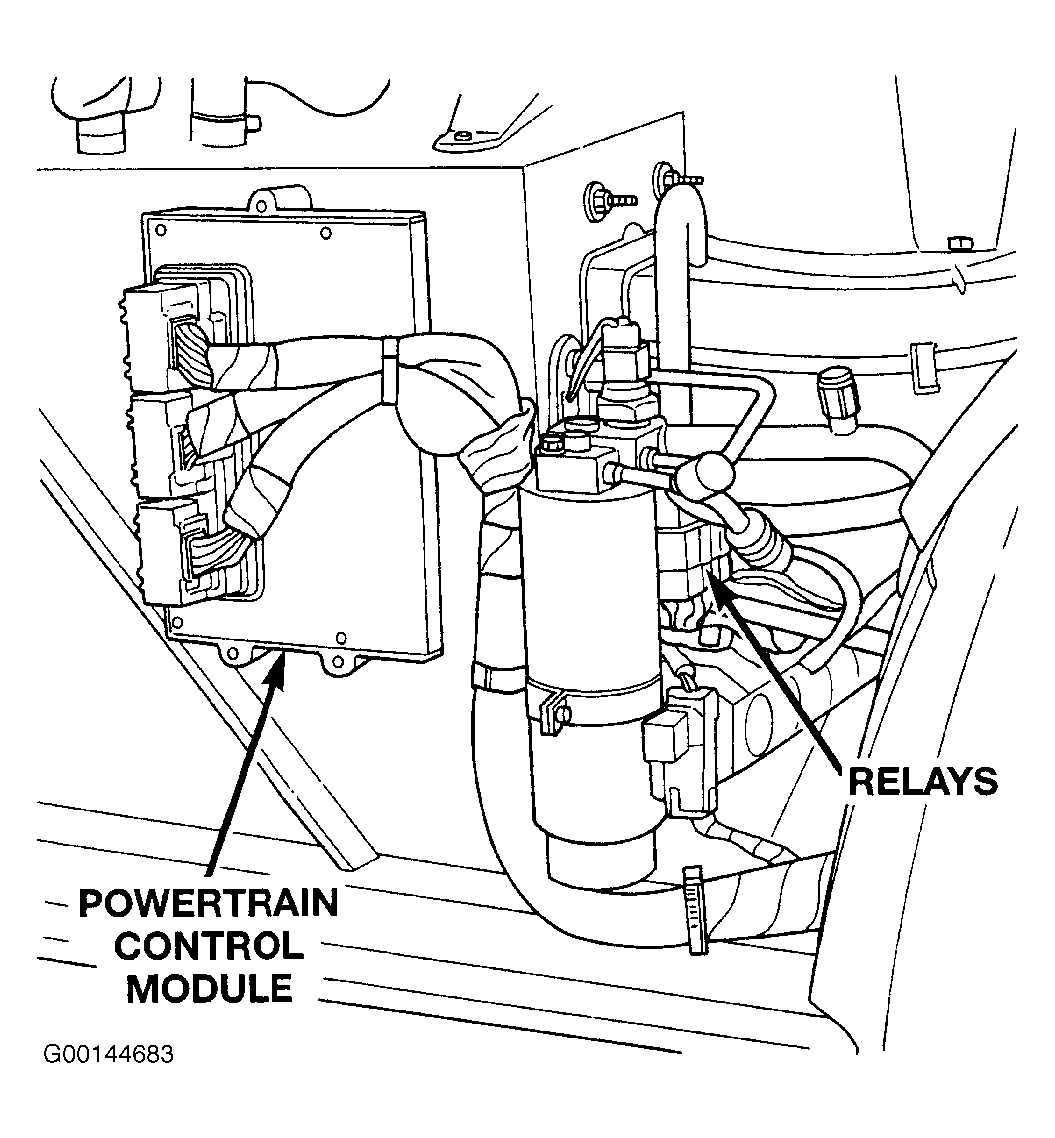

| Powertrain Control Module (PCM) | In engine compartment. See Figure . |

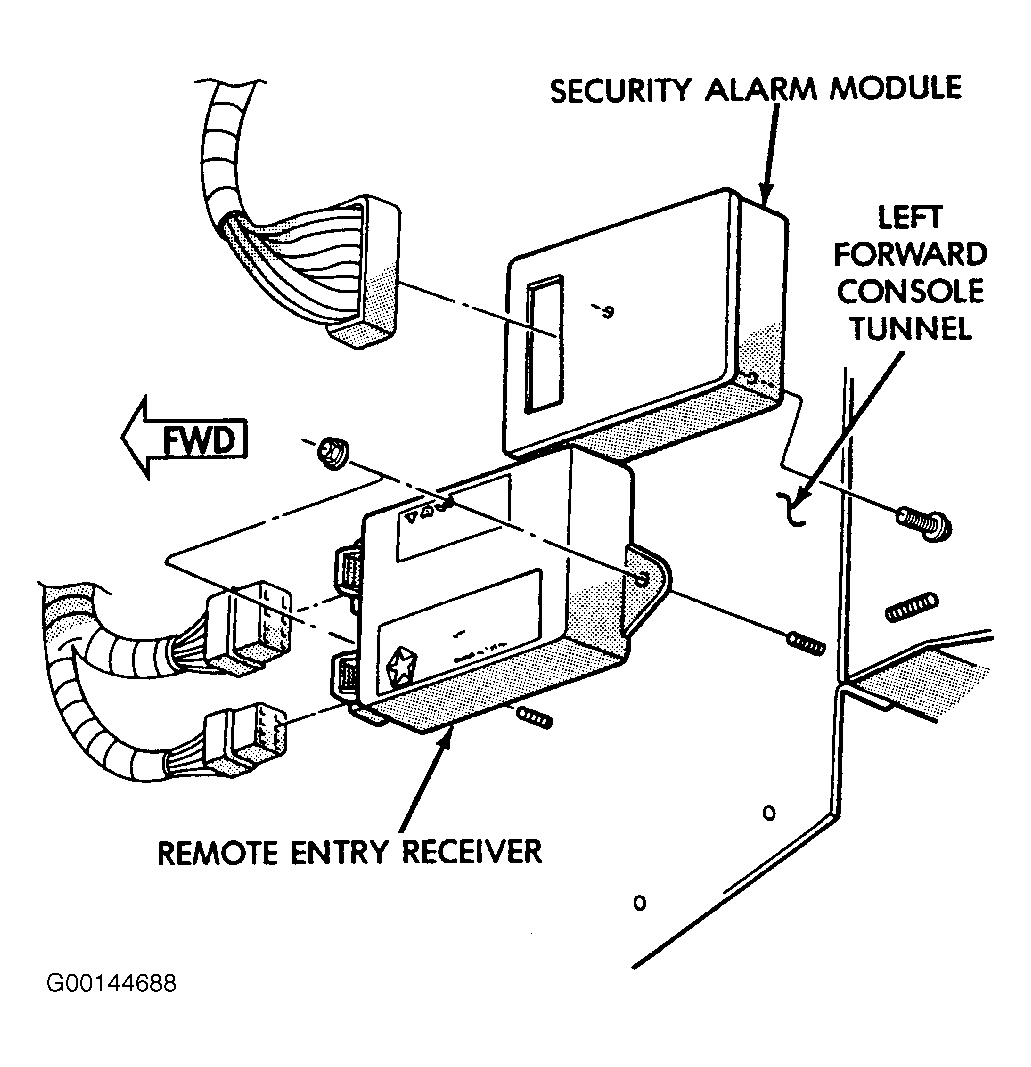

| Security Alarm Module | Behind left knee panel. See Figure . |

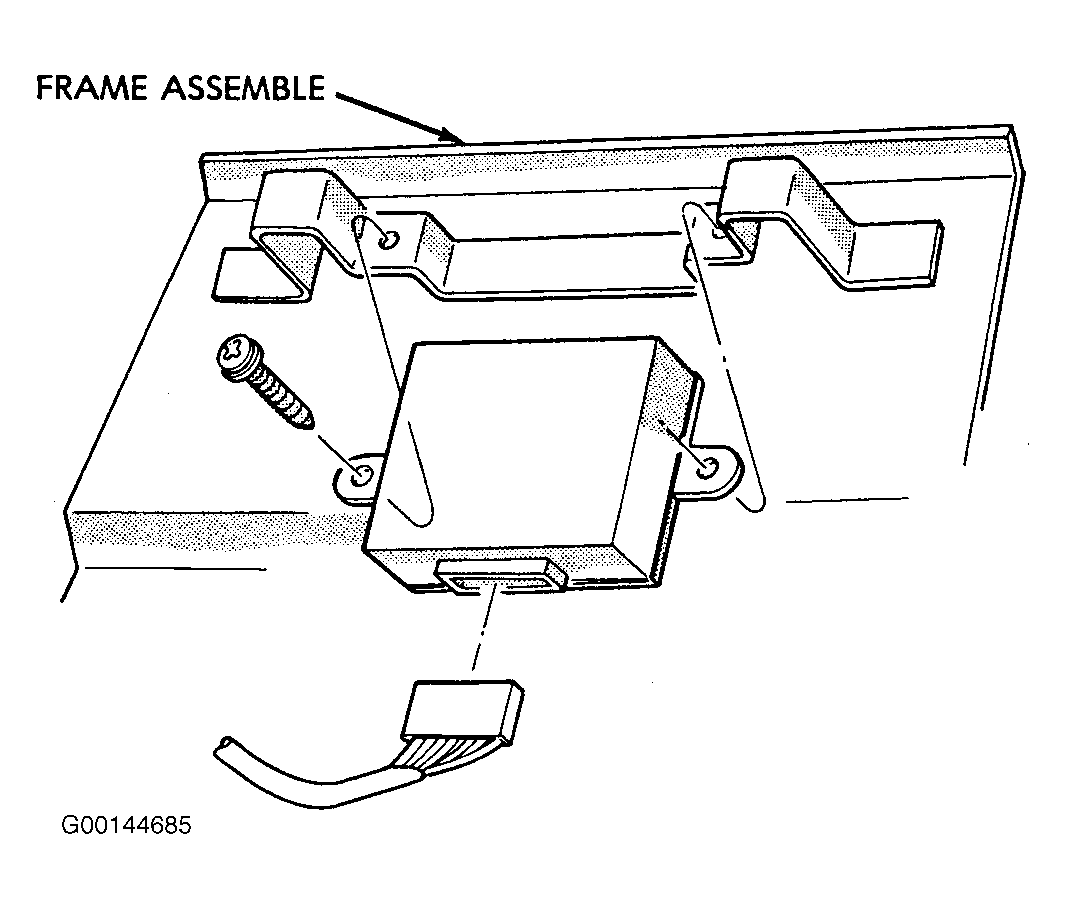

| Wiper Module | On frame assembly under passenger side floor pan. See Figure . |
