Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

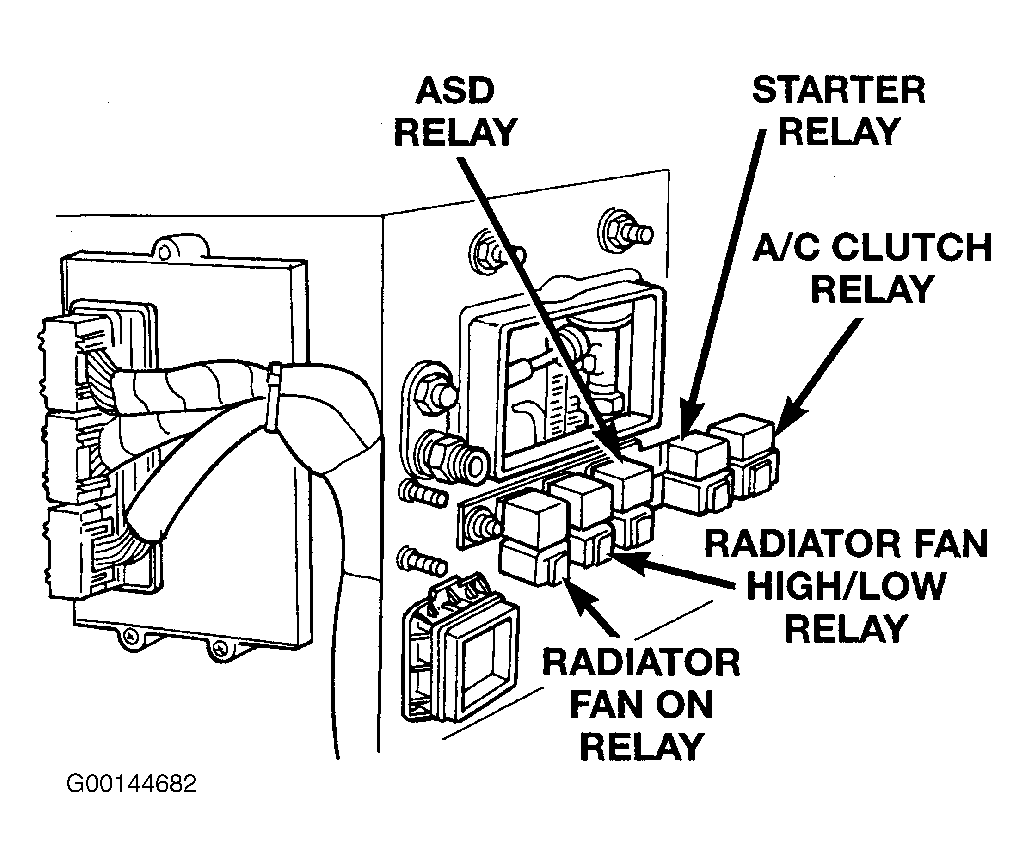

Fig 1: Locating A/C Relay, ASD Relay, Radiator Fan High/Low Relay, & Radiator Fan ON Relay

G00144682

Courtesy of CHRYSLER CORP.

Fig 2: Locating Headlamp Relay, Horn Relay, Passive Restraint Time-Delay Relay, & Chimes Module

G00144684

Courtesy of CHRYSLER CORP.

Fig 3: Locating Keyless Entry Module

G00132656

Courtesy of CHRYSLER CORP.

Fig 4: Locating Power Control Module (PCM)

G00144683

Courtesy of CHRYSLER CORP.

Fig 5: Locating Security Alarm Module

G00144688

Courtesy of CHRYSLER CORP.

Fig 6: Locating Wiper Module

G00144685

Courtesy of CHRYSLER CORP.

Fig 7: Locating Camshaft Position Sensor

G00059421

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 8: Locating Crankshaft Position Sensor

G00059383

Courtesy of DAIMLERCHRYSLER CORPORATION

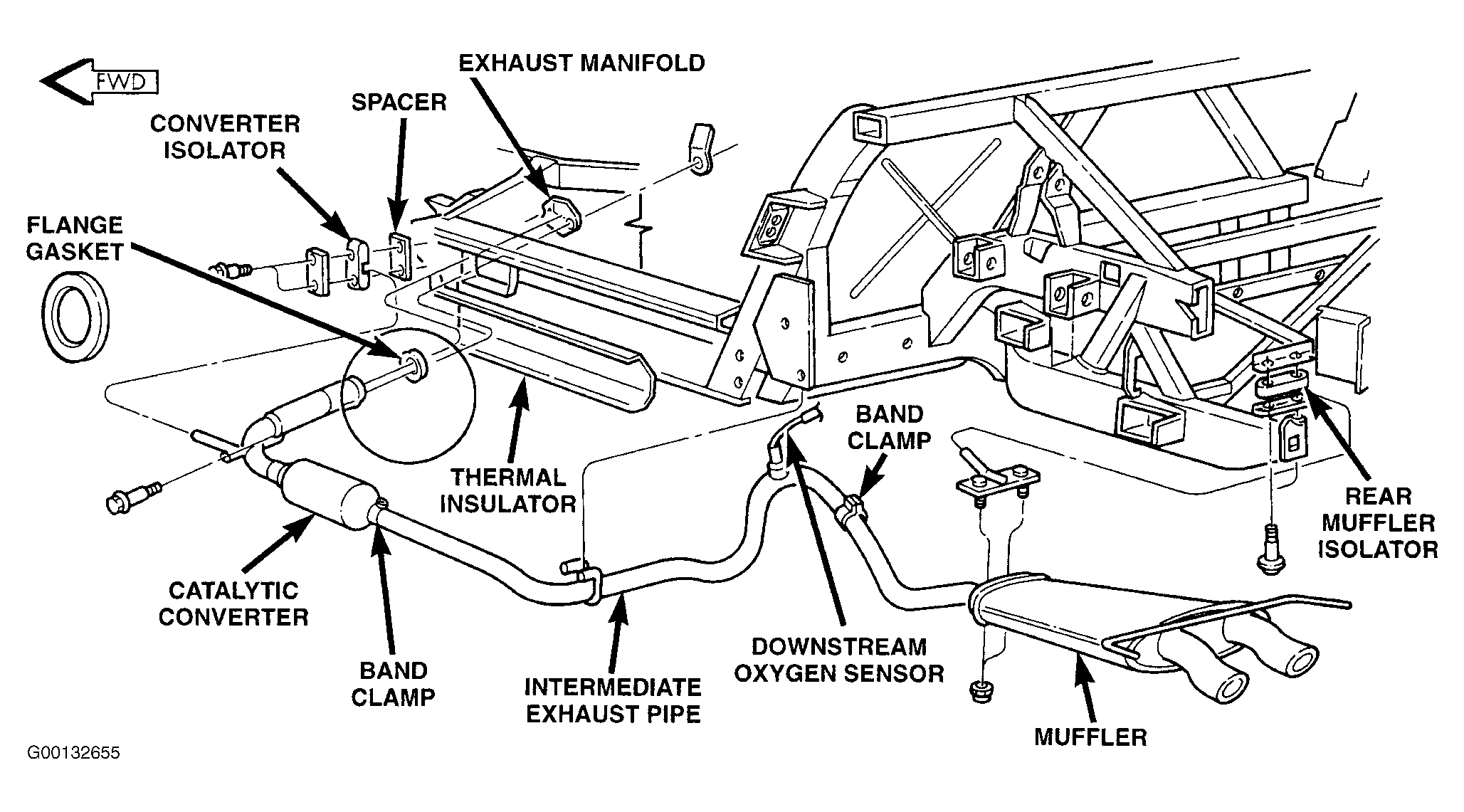

Fig 9: Locating Downstream Oxygen Sensor

G00132655

Courtesy of CHRYSLER CORP.

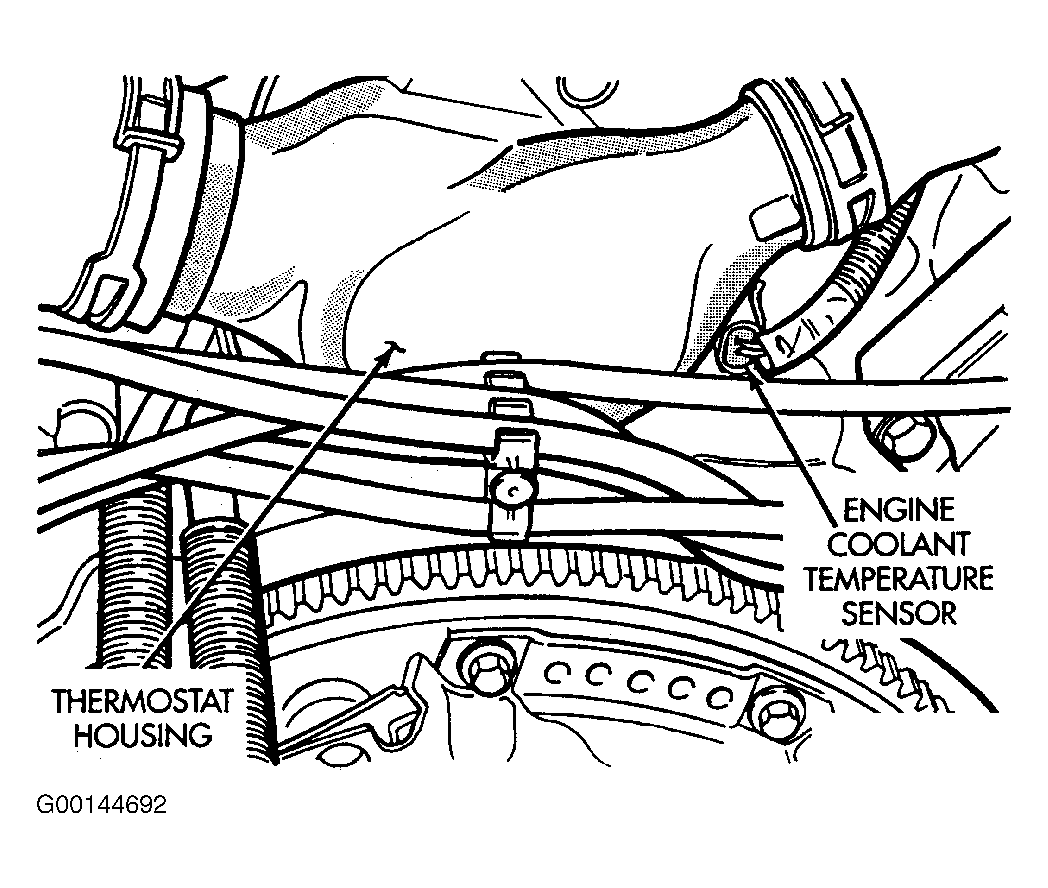

Fig 10: Locating Engine Coolant Temperature Sensor

G00144692

Courtesy of CHRYSLER CORP.

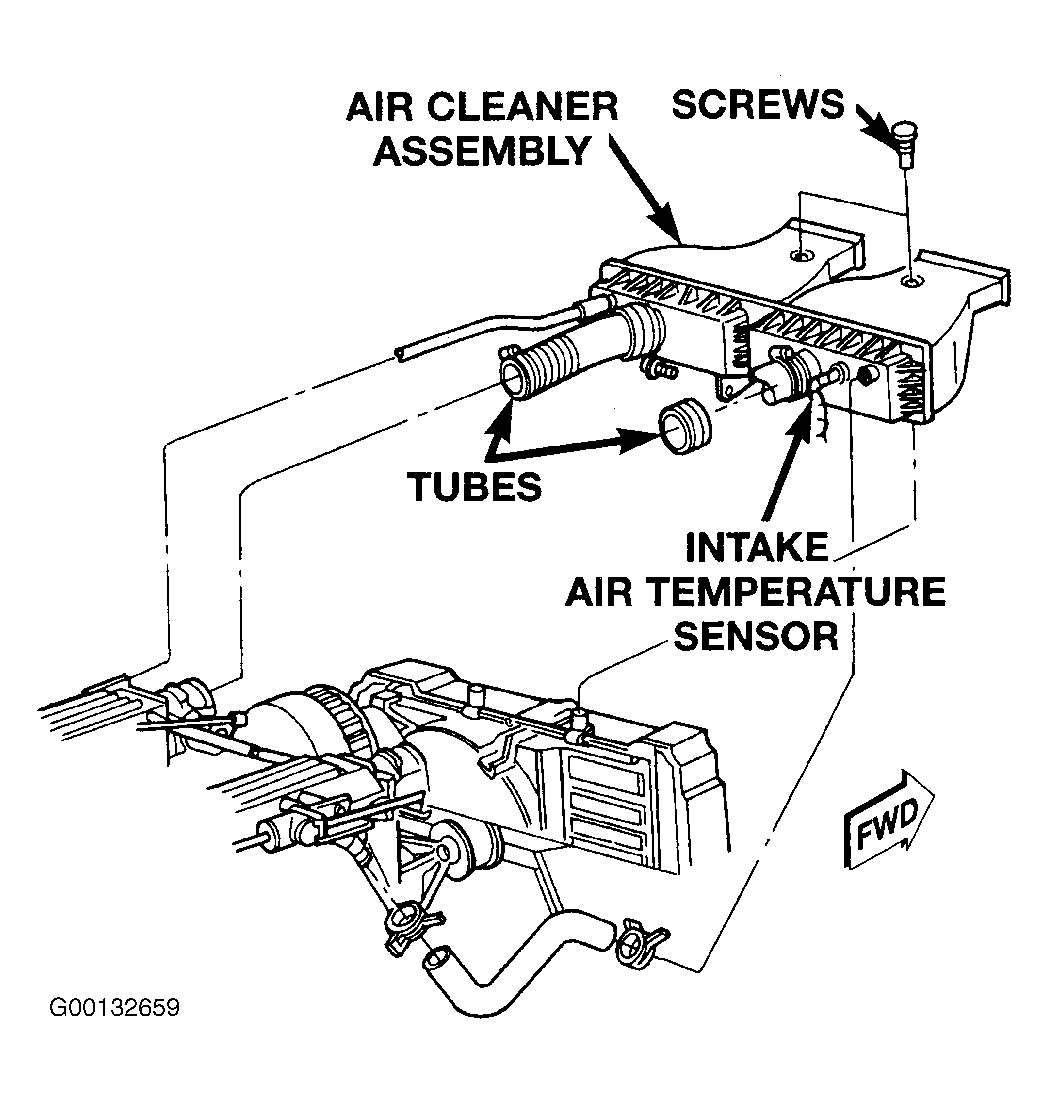

Fig 11: Locating Intake Air Temperature Sensor

G00132659

Courtesy of CHRYSLER CORP.

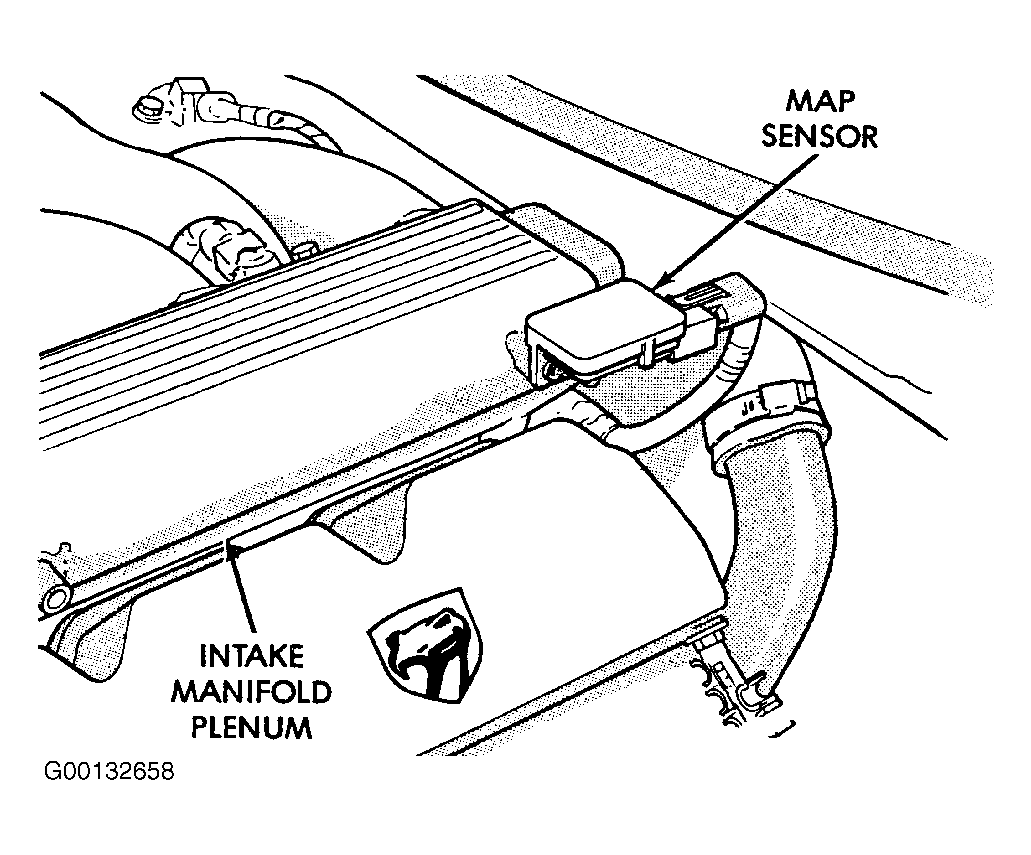

Fig 12: Locating Manifold Absolute Pressure (MAP) Sensor

G00132658

Courtesy of CHRYSLER CORP.

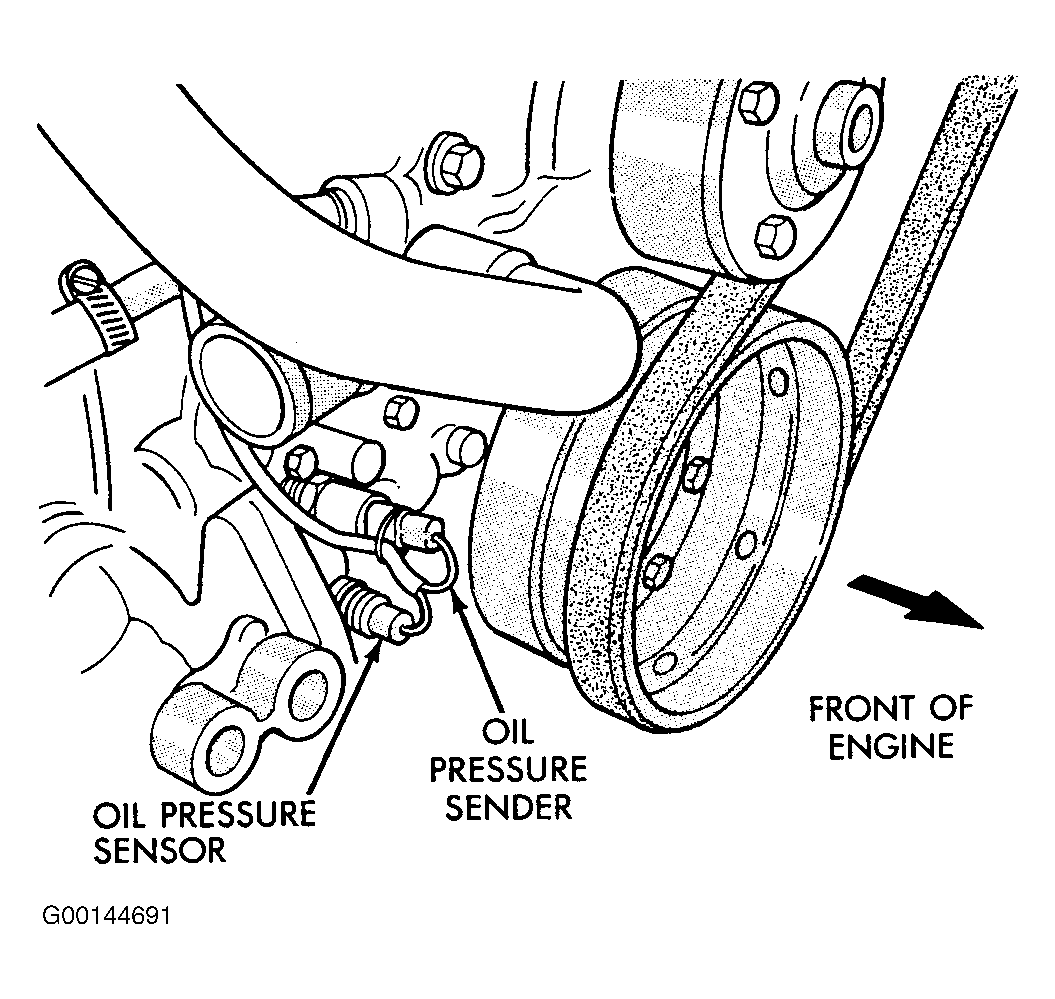

Fig 13: Locating Oil Pressure Sensor/Sending Unit

G00144691

Courtesy of CHRYSLER CORP.

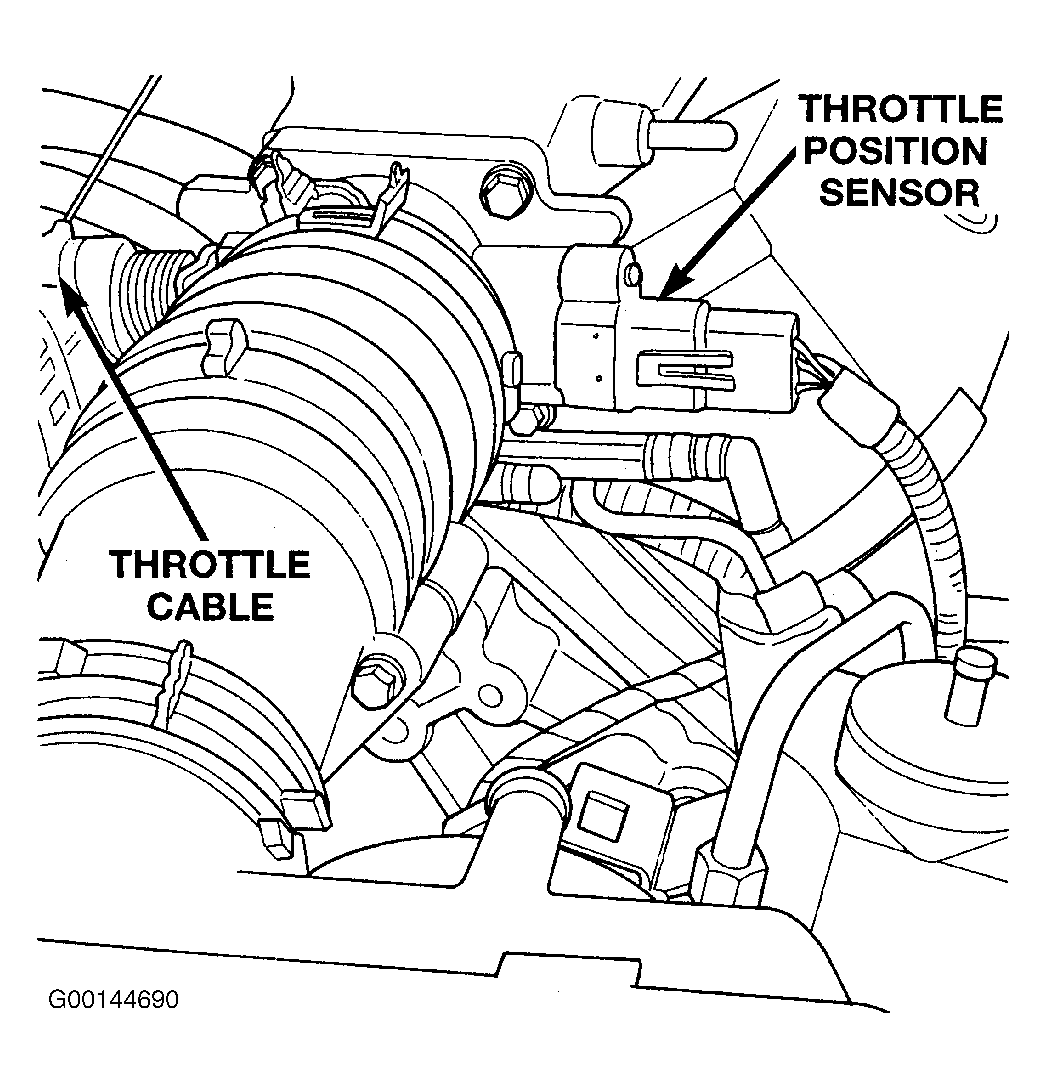

Fig 14: Locating Throttle Position Sensor

G00144690

Courtesy of CHRYSLER CORP.

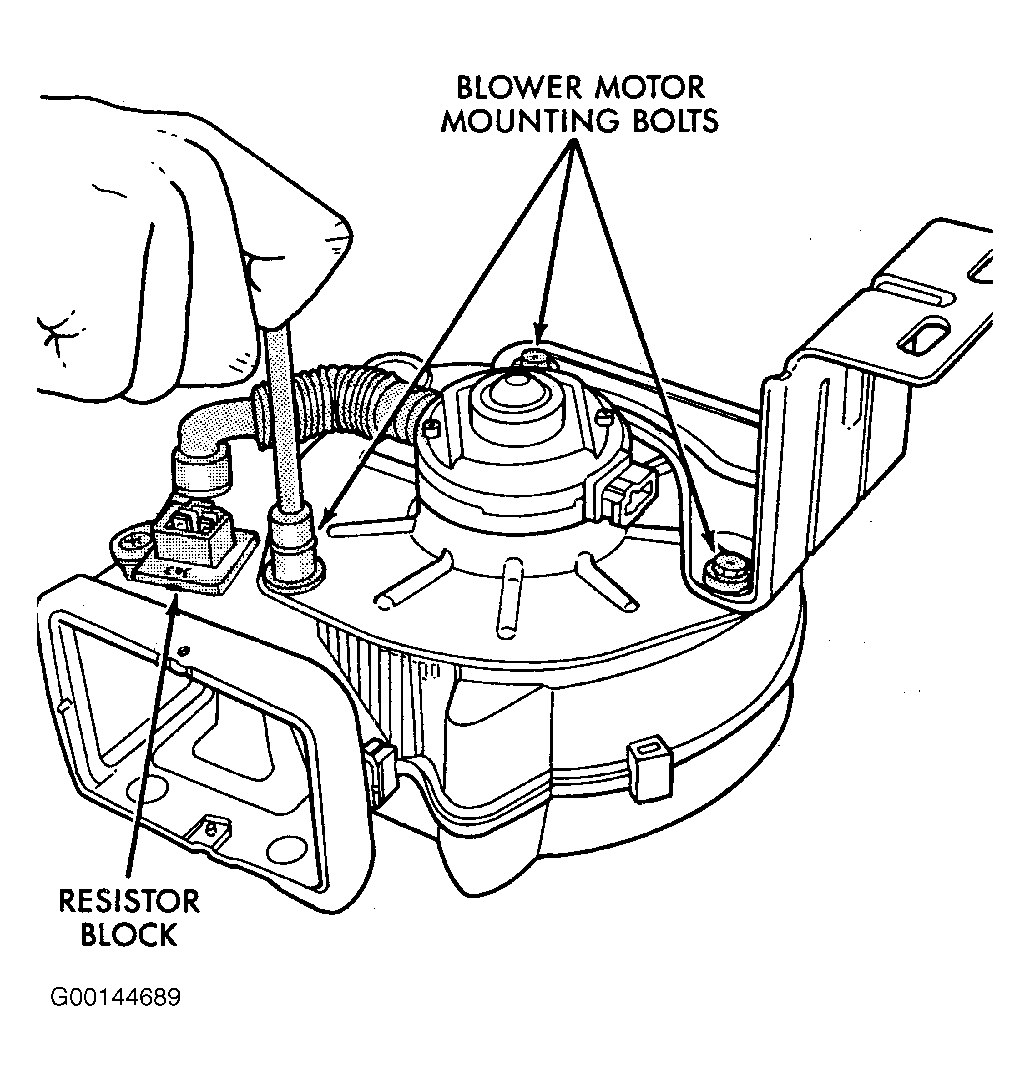

Fig 15: Locating Blower Motor

G00144689

Courtesy of CHRYSLER CORP.

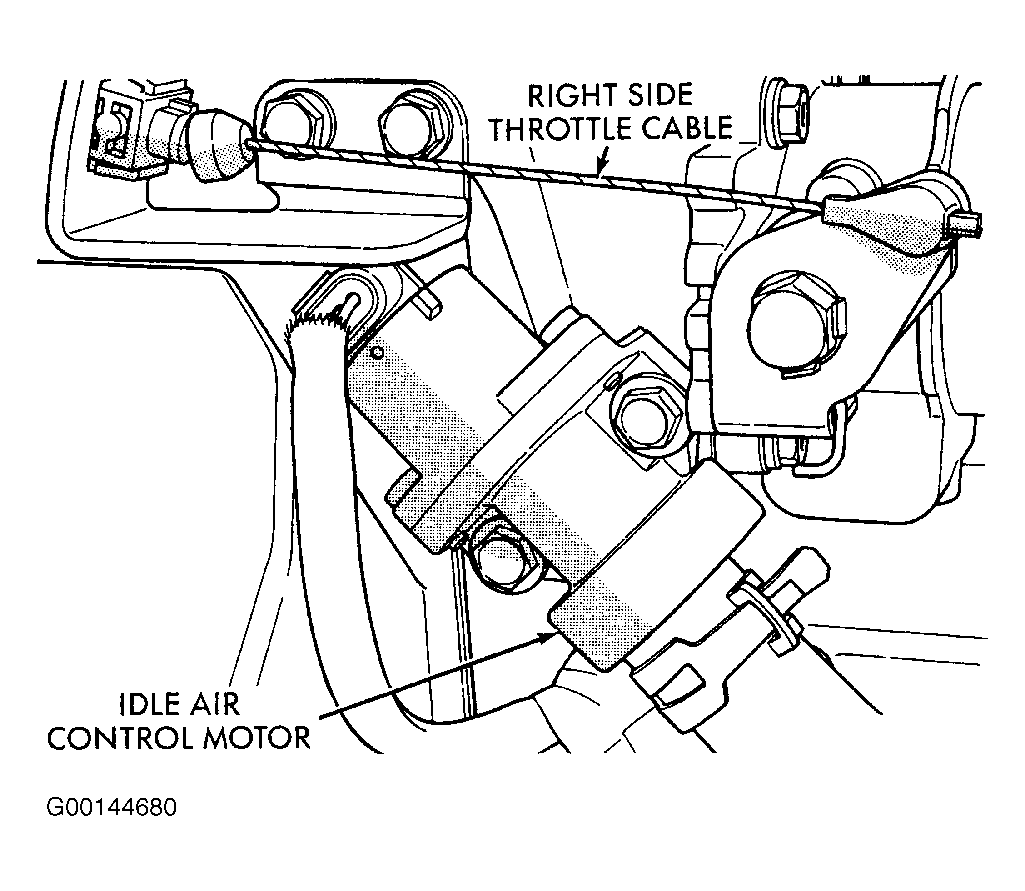

Fig 16: Locating Idle Air Control Motor

G00144680

Courtesy of CHRYSLER CORP.

Fig 17: Locating Wiper Motor

G00058300

Courtesy of DAIMLERCHRYSLER CORPORATION

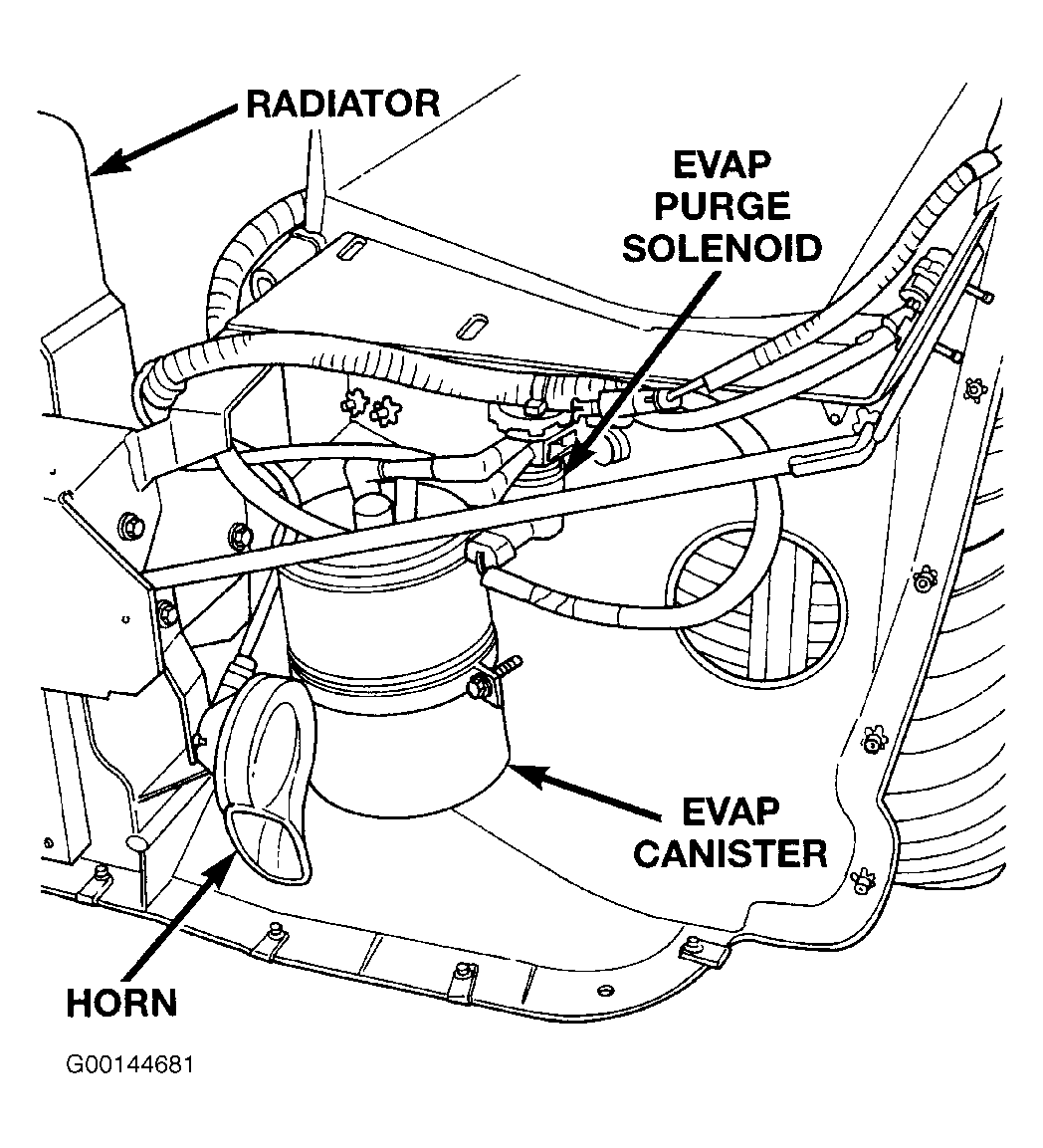

Fig 18: Locating EVAP Purge Solenoid

G00144681

Courtesy of CHRYSLER CORP.

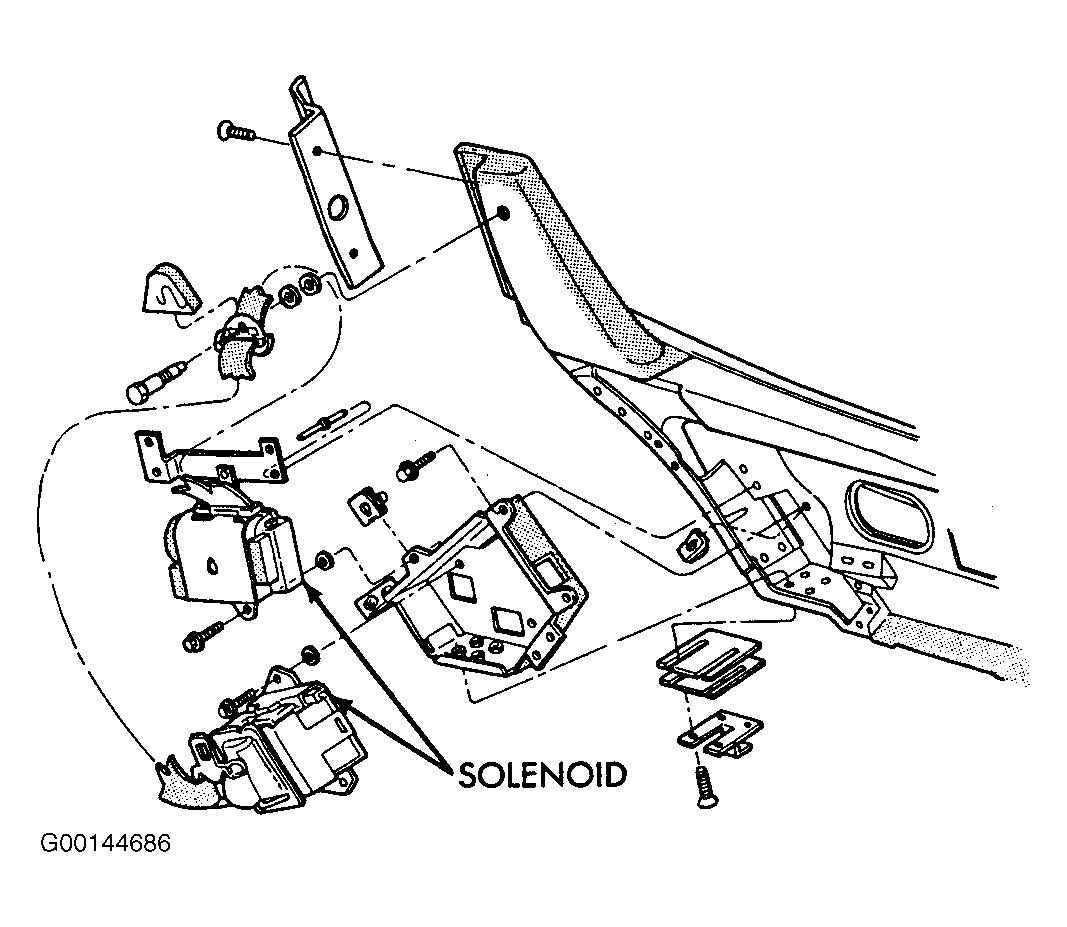

Fig 19: Locating Passive Restraint Solenoids

G00144686

Courtesy of CHRYSLER CORP.

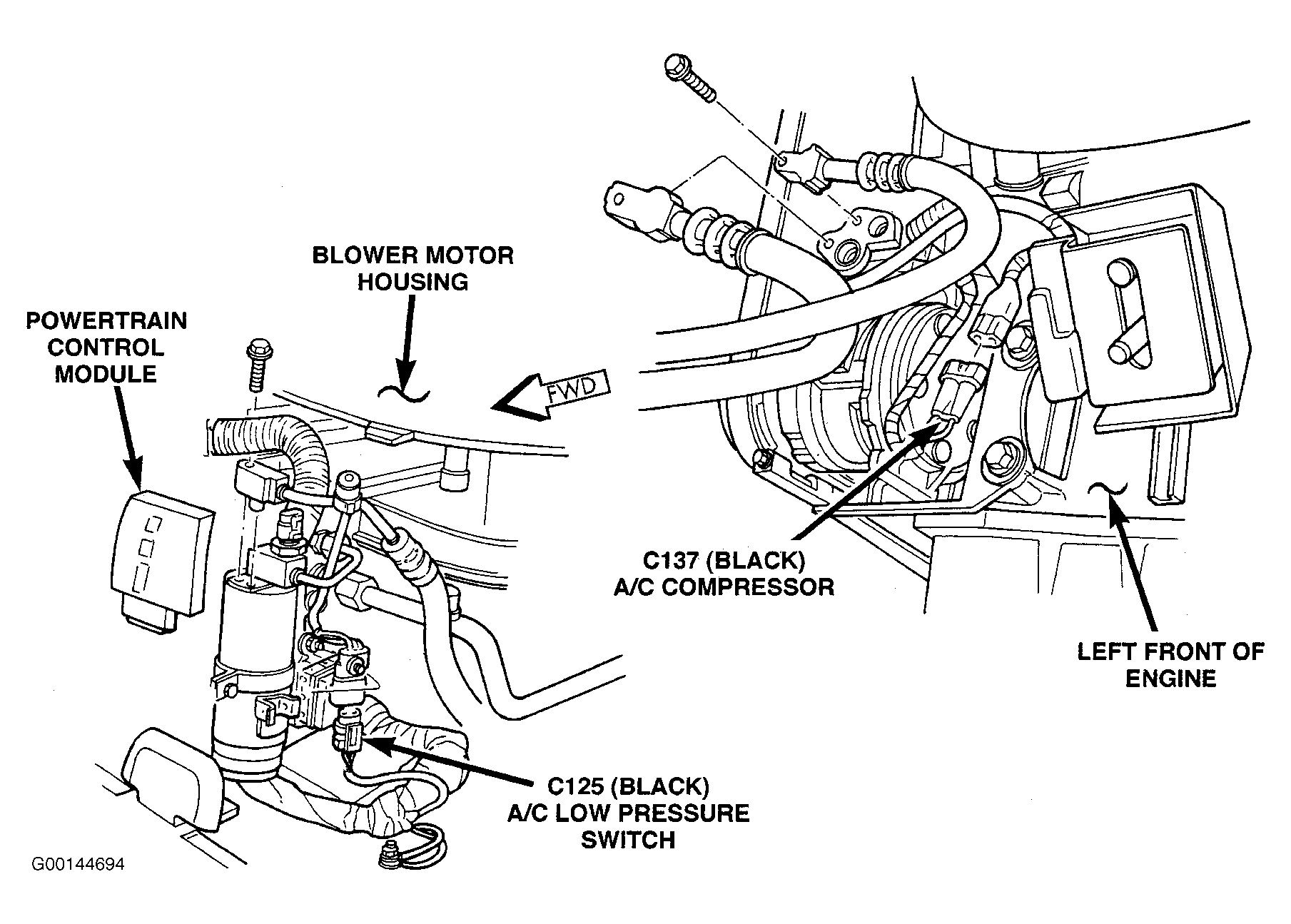

Fig 20: Locating A/C Low Pressure Switch

G00144694

Courtesy of CHRYSLER CORP.

Fig 21: Identifying Blower Motor Switch

G00058998

Courtesy of DAIMLERCHRYSLER CORPORATION

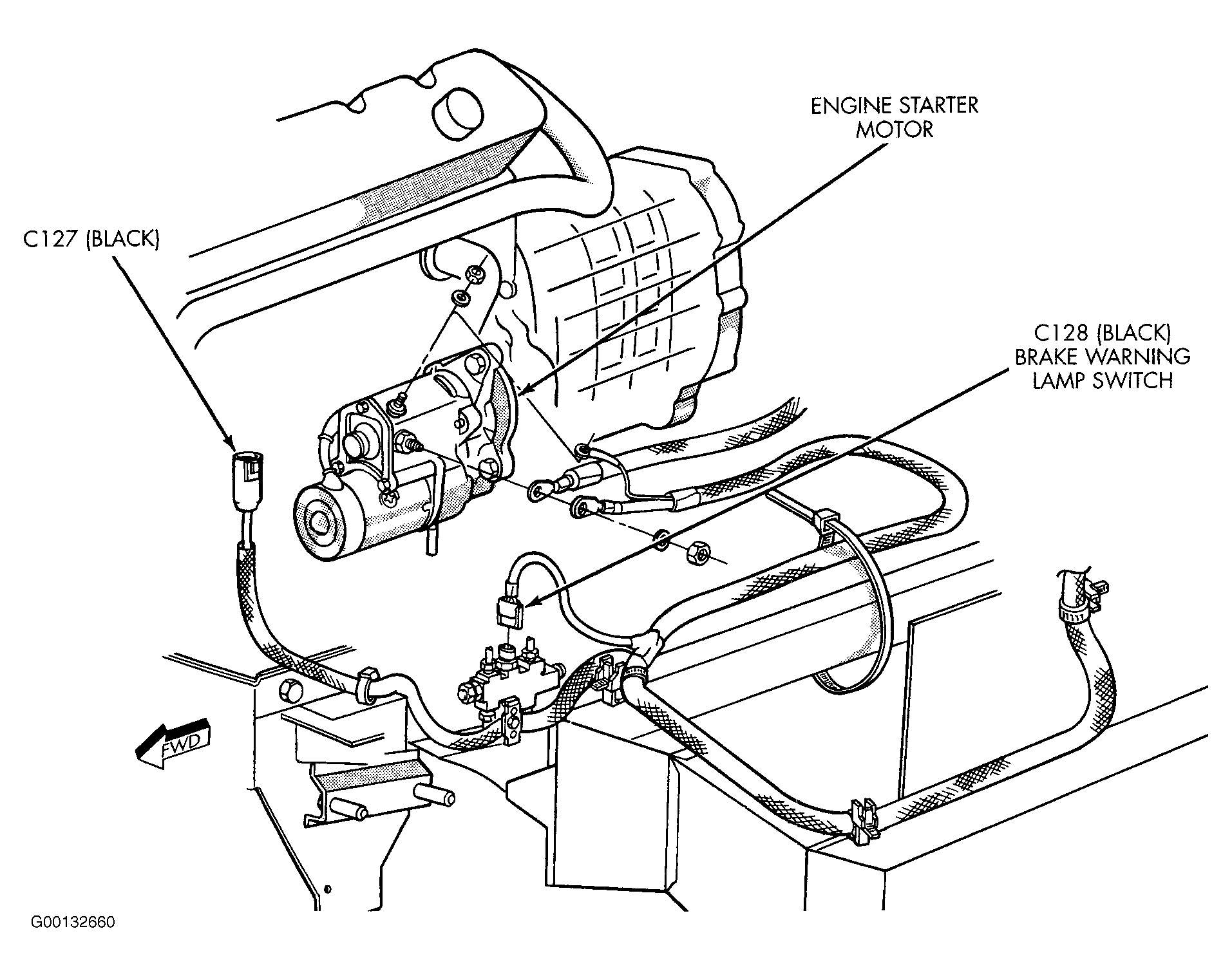

Fig 22: Locating Brake Warning Lamp Switch

G00132660

Courtesy of CHRYSLER CORP.

Fig 23: Locating Clutch Pedal Position Switch

G00057787

Courtesy of DAIMLERCHRYSLER CORPORATION

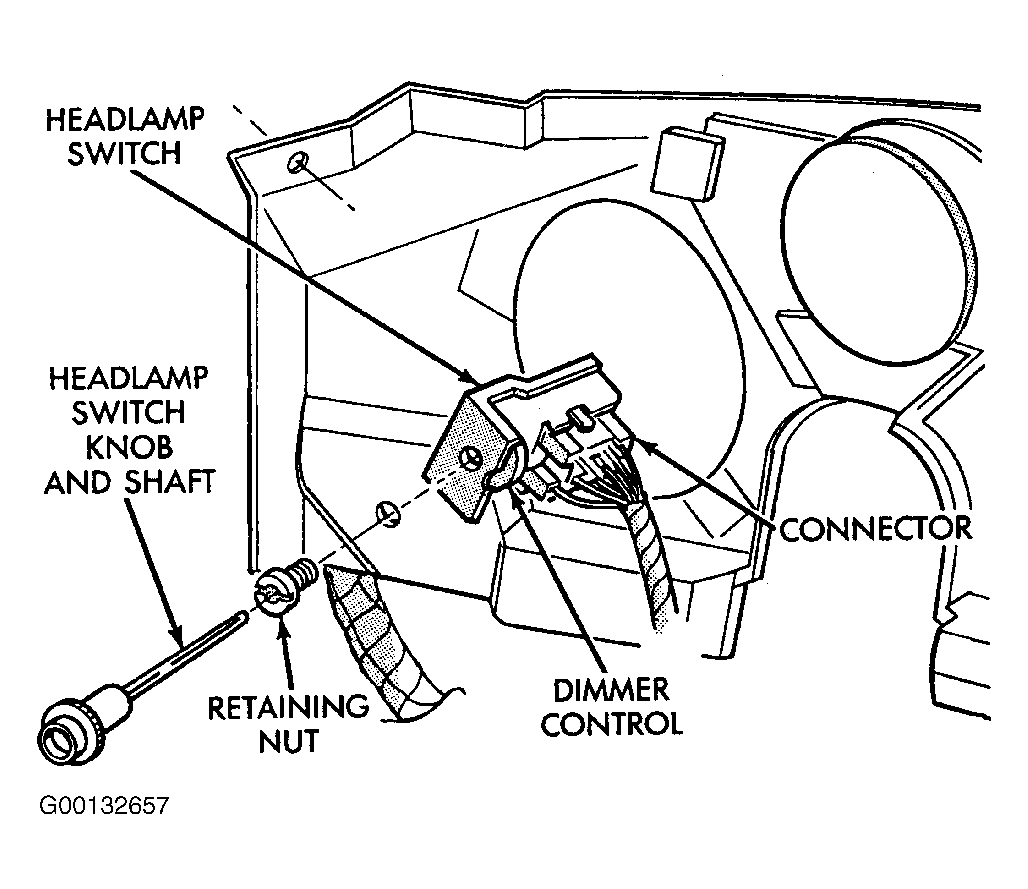

Fig 24: Locating Headlamp Switch

G00132657

Courtesy of CHRYSLER CORP.

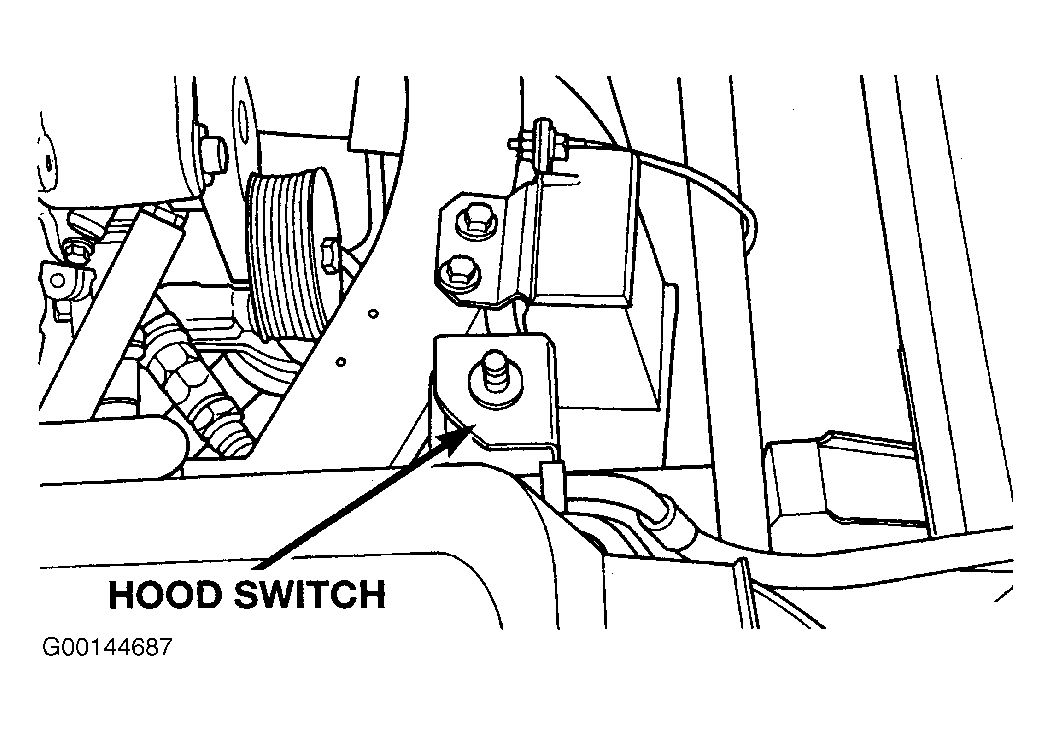

Fig 25: Locating Hood Switch

G00144687

Courtesy of CHRYSLER CORP.

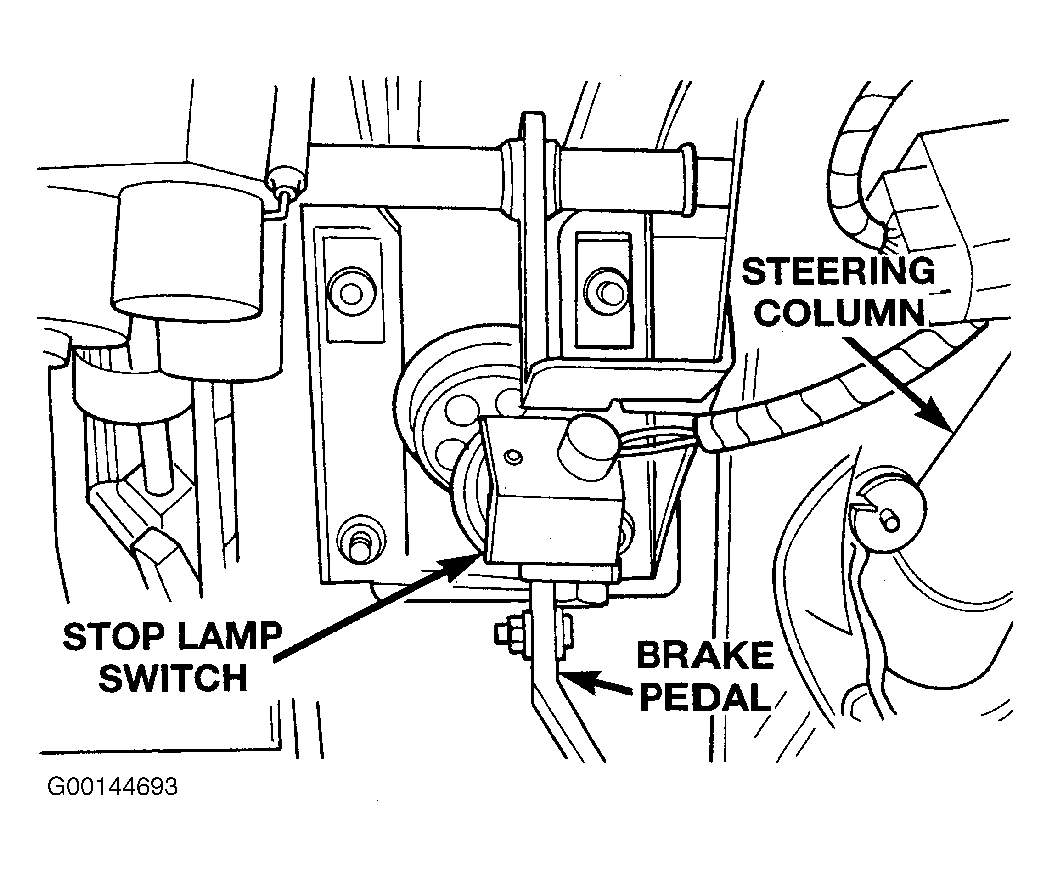

Fig 26: Locating Stop Lamp Switch

G00144693

Courtesy of CHRYSLER CORP.

Fig 27: Locating Data Link Connector

G00058342

Courtesy of DAIMLERCHRYSLER CORPORATION
