Trouble Shooting: Notes
NOTE:
Verify power lock system is operating properly before trouble shooting system. See appropriate KEYLESS ENTRY & POWER DOOR LOCKS article. Ensure all component terminals and ground connections are clean and tight. Repair or replace components and circuits as necessary.
KEYLESS ENTRY SYSTEM & POWER DOOR LOCKS - 1995
DOOR LOCKS - POWER & KEYLESS ENTRY SYSTEM - 1996

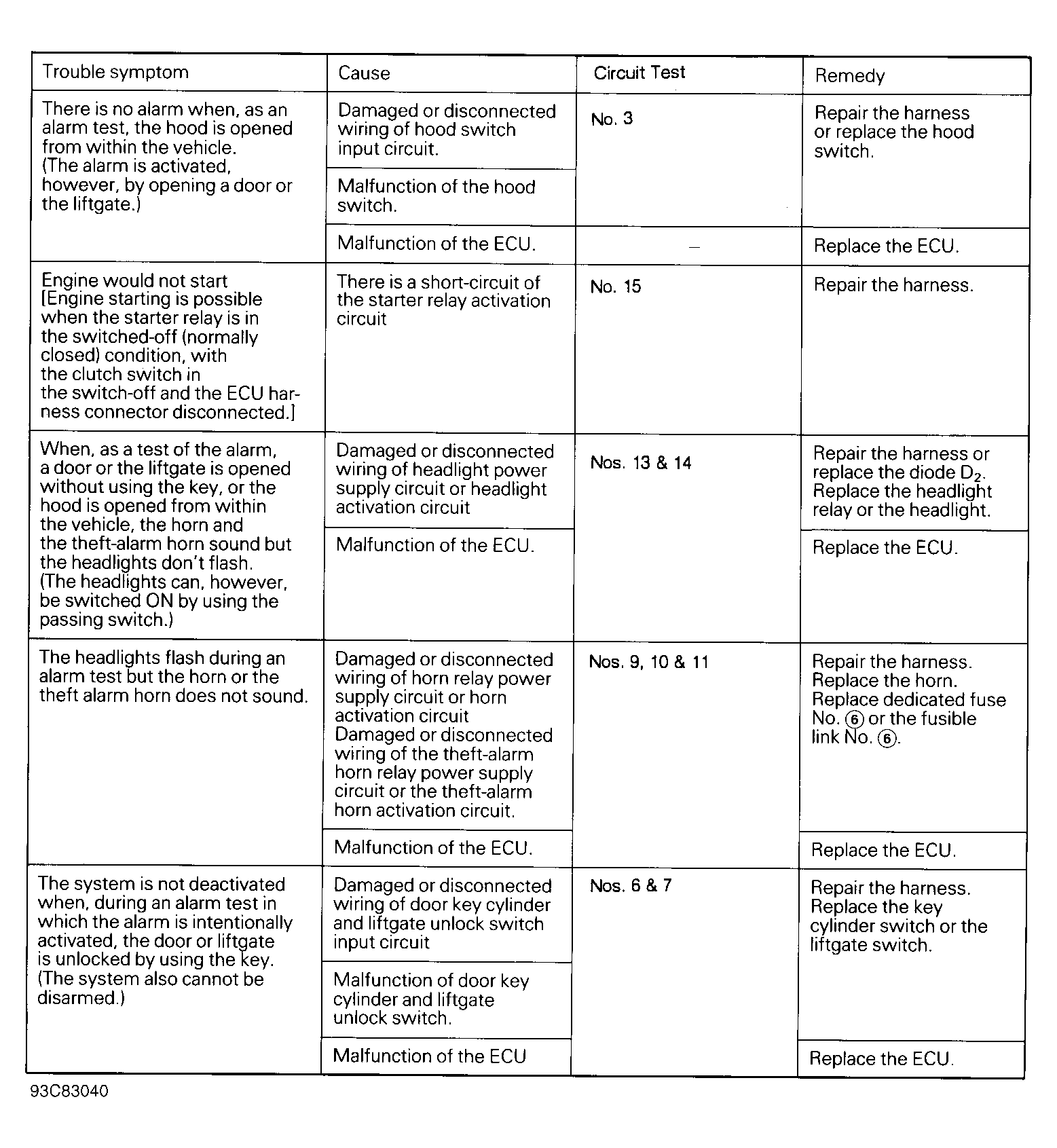

Trouble shooting anti-theft system is accomplished with diagnosis by symptom. Locate appropriate primary symptom under SYMPTOM CHARTS. See Figure -Figure . Refer to appropriate CIRCUIT TESTS under SYSTEM TESTS for diagnosing appropriate circuit.
