Fuse Panel Identification: Notes

Fuse block is located under instrument panel on driver's side. In event of a blown fuse, locate cause before replacing fuse. Spare fuses are contained in the fuse cover.

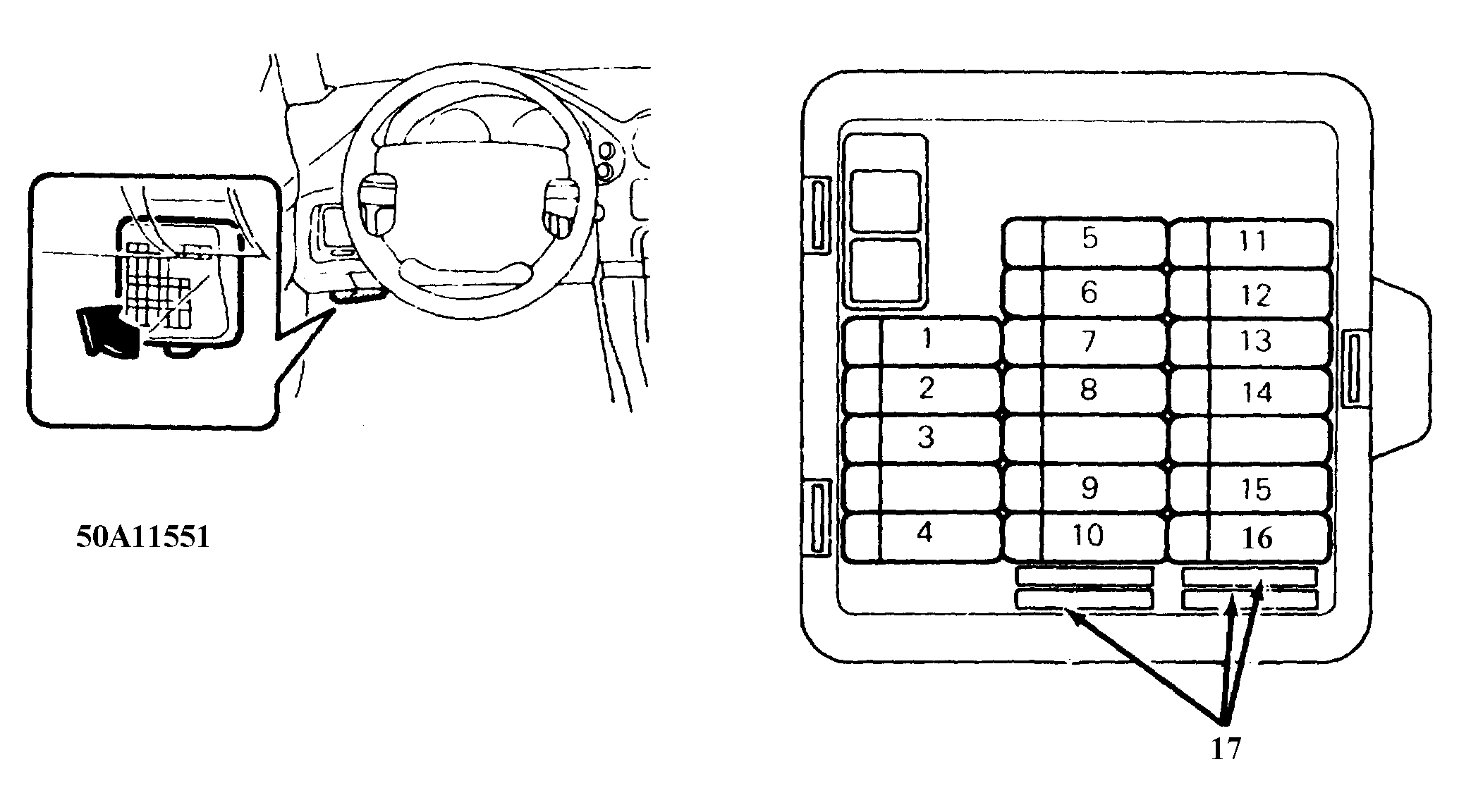

Fig 1: Fuse Block Identification (1991-92)
G50A11551Courtesy of CHRYSLER CORP.
