Slide Limit Switch

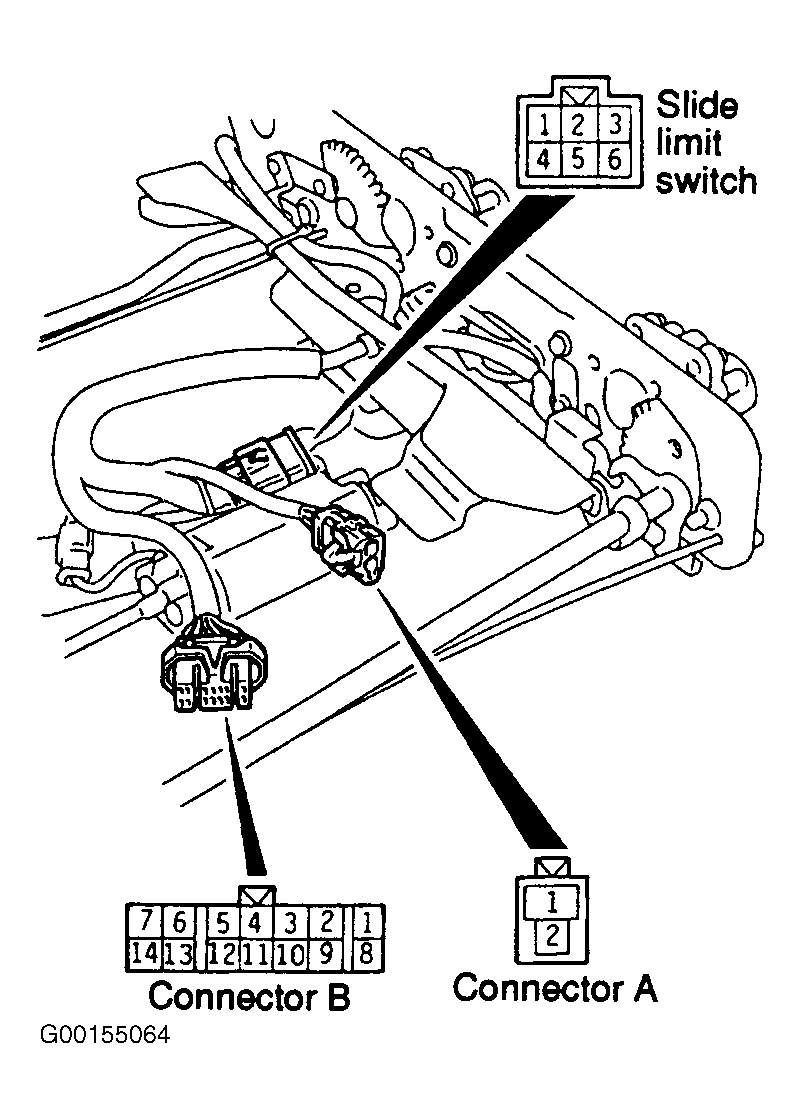

  1. Disconnect slide limit switch at the connector and connect an ohmmeter between the terminals. See Figure .

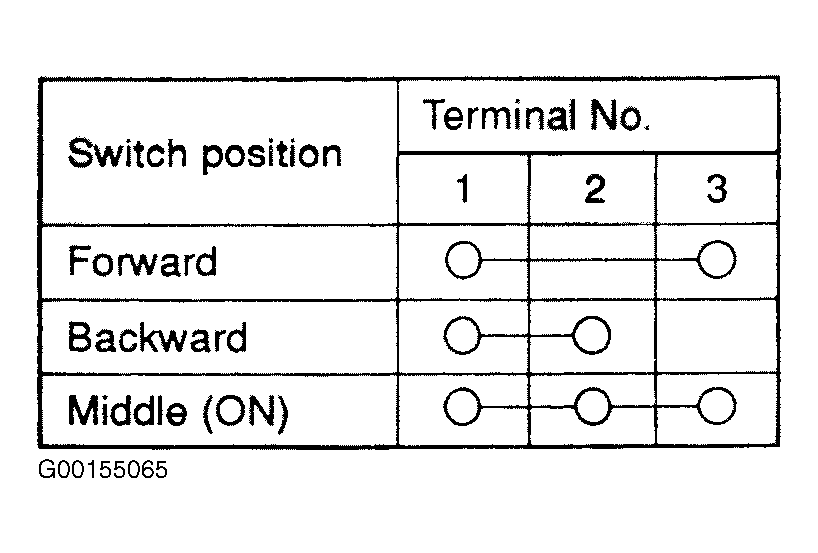

  2. Operate slide limit switch to check for continuity between the terminals. See Figure .
  3. If there is any malfunction, replace the power seat adjuster assembly.
