Power Seat Switch Inspection (Testing Continuity)
Power Seat Switch Inspection (Testing Continuity)
Operate the power seat switch to check continuity. See
Fig 1
.

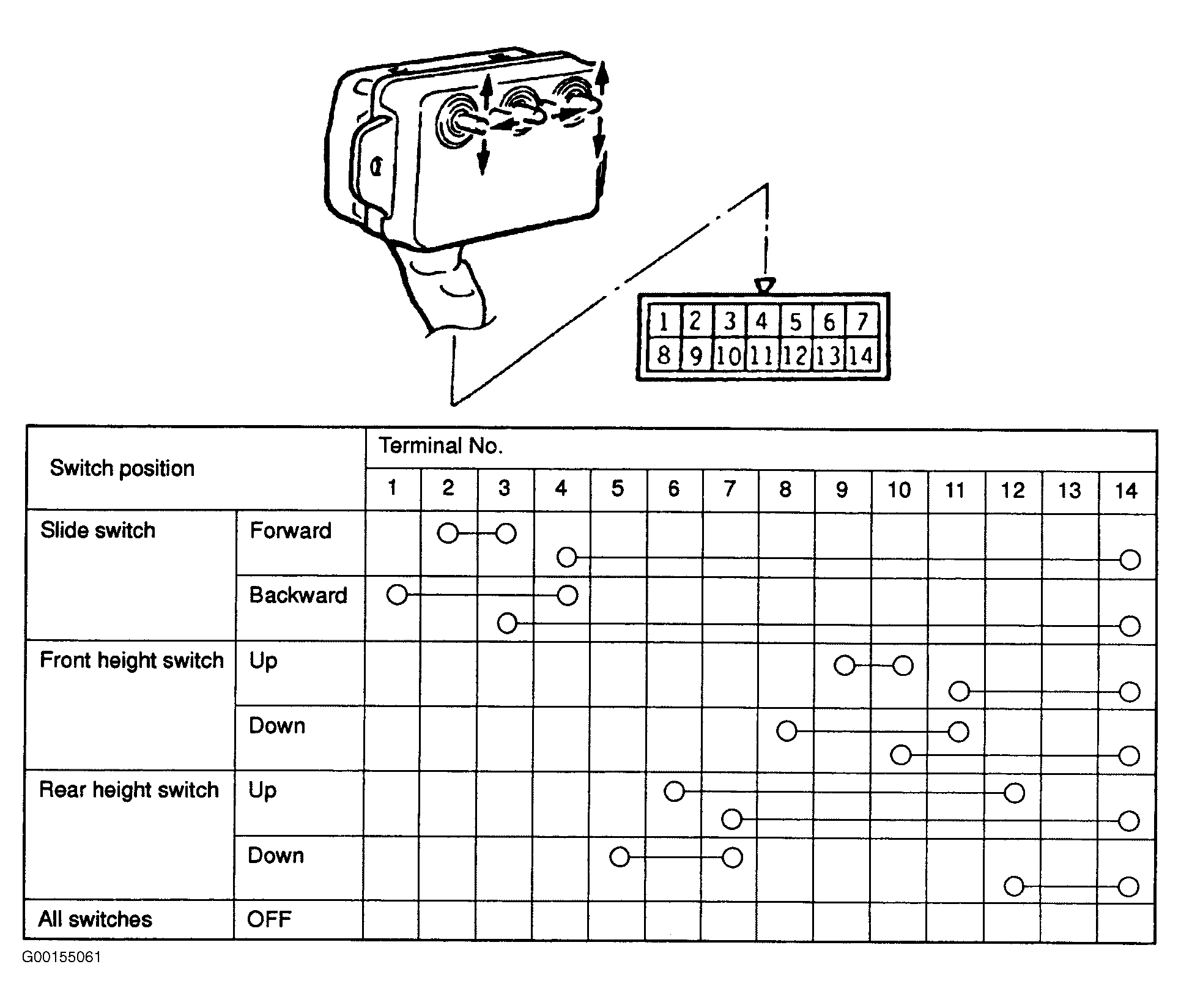

Fig 1: Testing Switch Continuity
Courtesy of CHRYSLER CORP.
