Circuit Tests: Amplifier

Disconnect the amplifier and inspect the connect on the wire harness side. See Fig 1 .

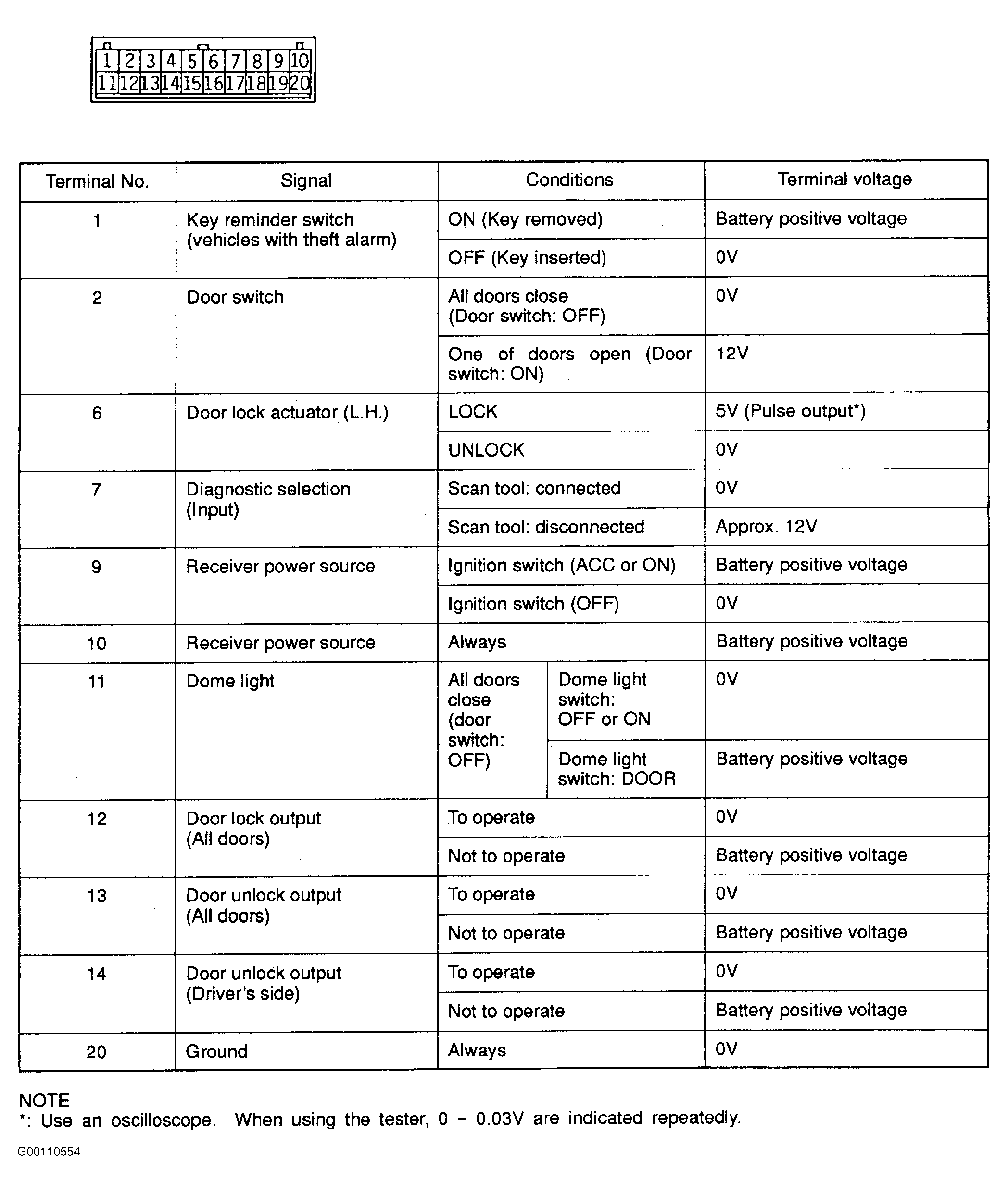

Fig 1: Identifying Amplifier Terminal Circuit Signals

G00110554

Courtesy of CHRYSLER CORP.
