NTC-8B: Checking Idle Air Control Motor

NOTE: Perform test NTC-8B Before Proceeding

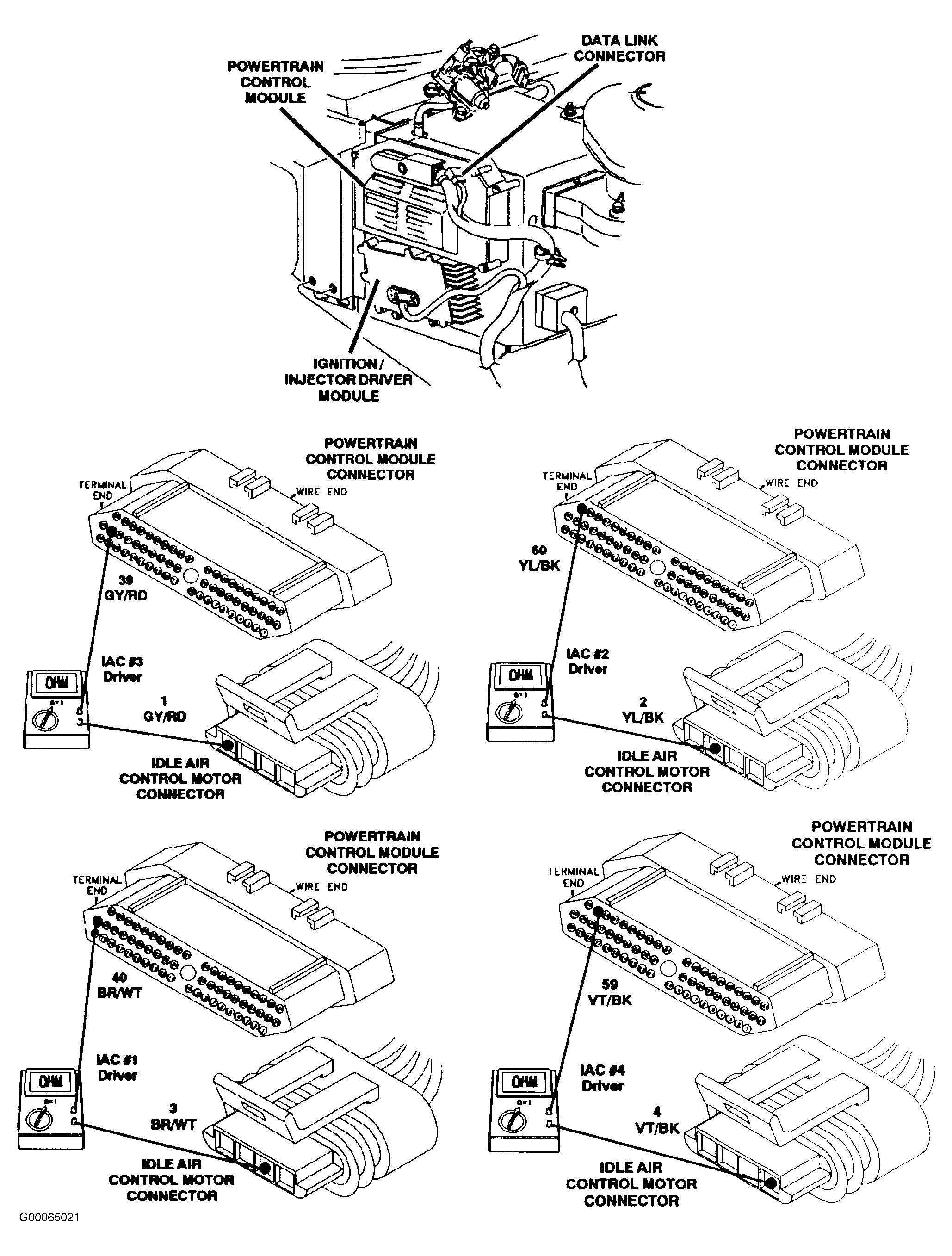

Fig 1: NTC-8B: Checking Idle Air Control Motor (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

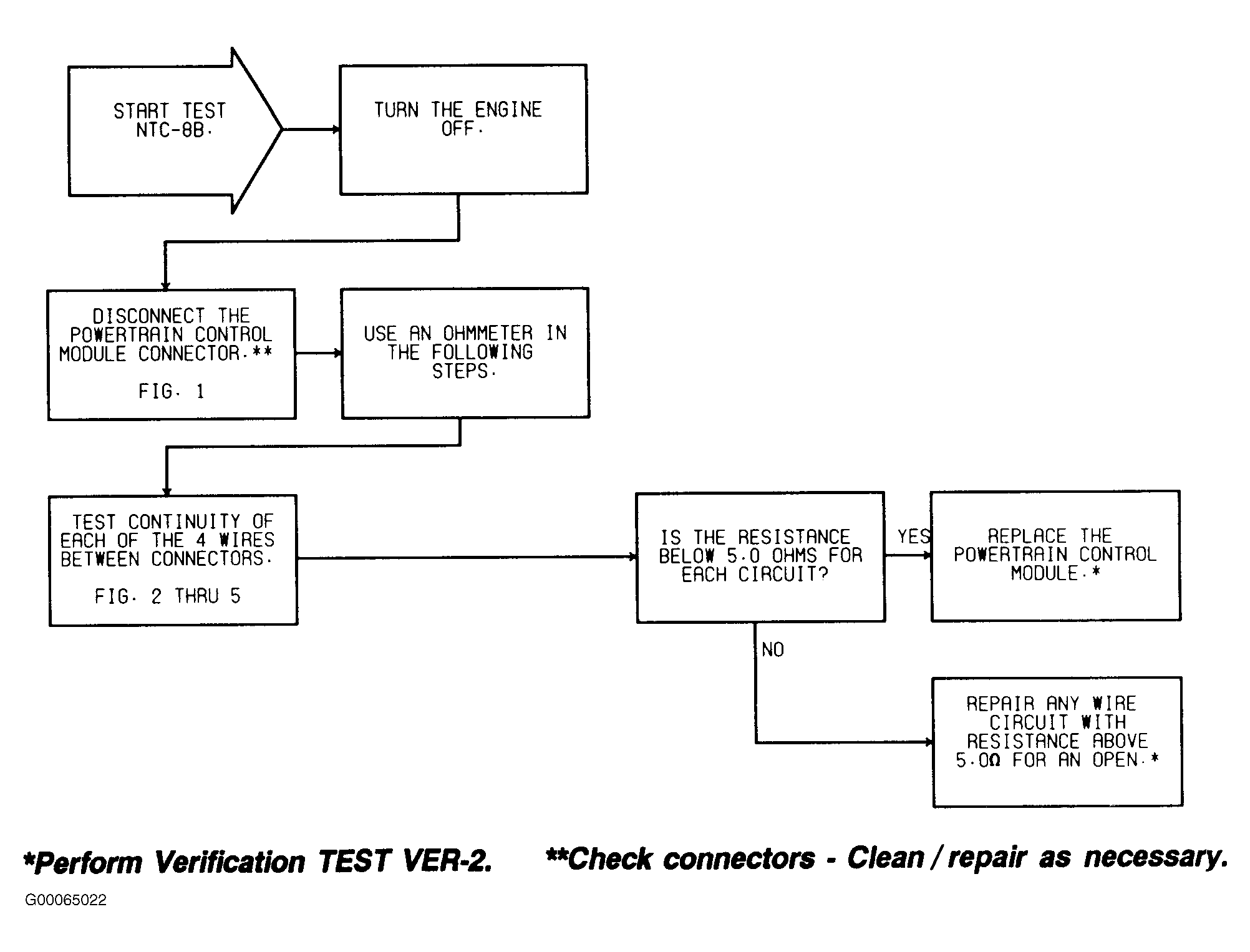

Fig 2: NTC-8B: Checking Idle Air Control Motor (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
