NTC-8A: Checking Idle Air Control Motor

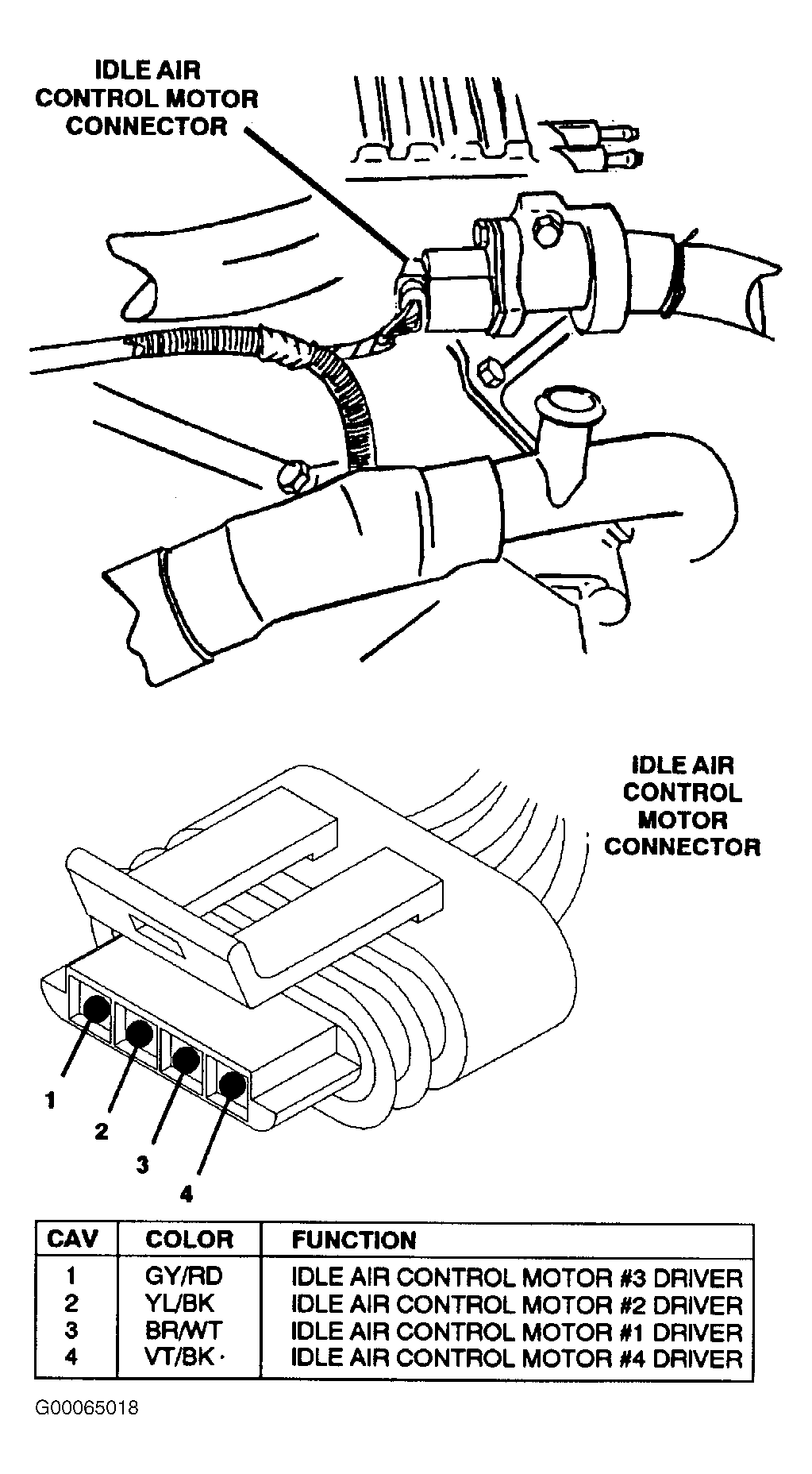

Fig 1: NTC-8A: Checking Idle Air Control Motor (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

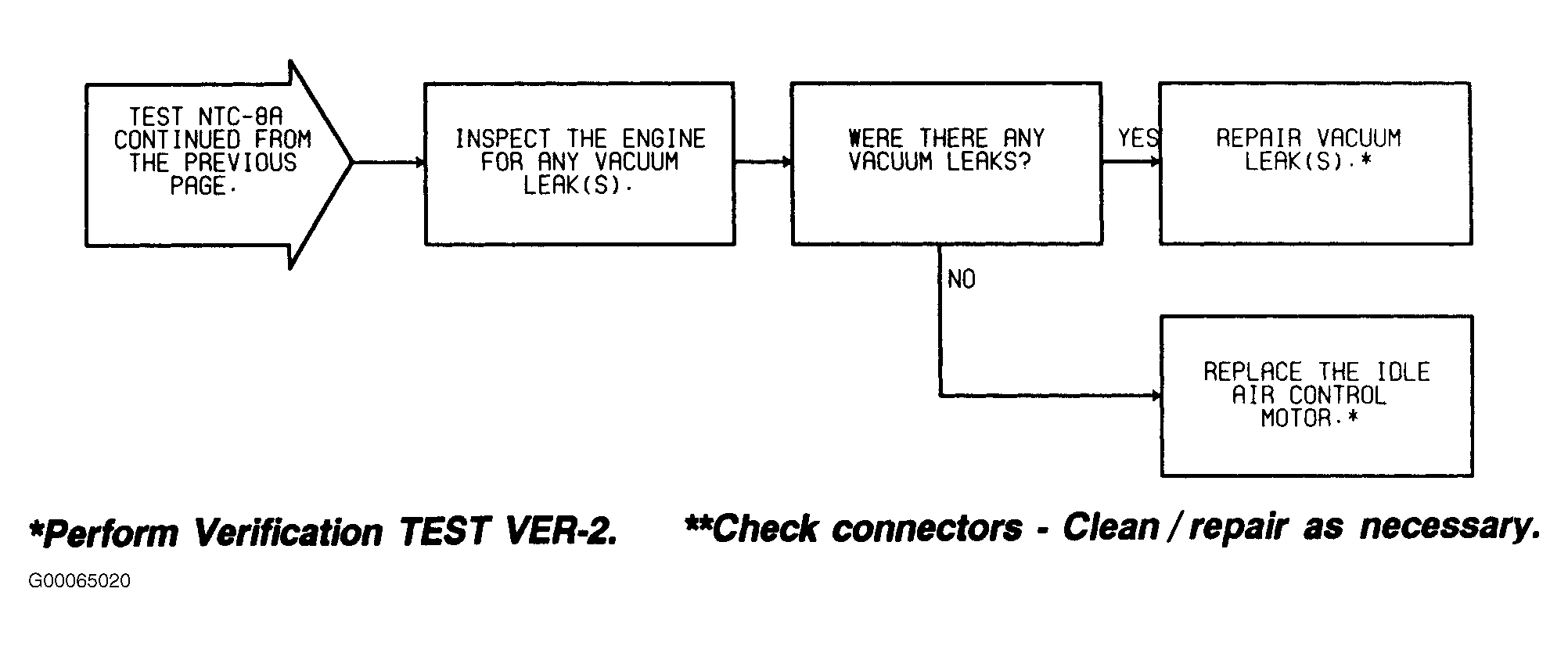

Fig 2: NTC-8A: Checking Idle Air Control Motor (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

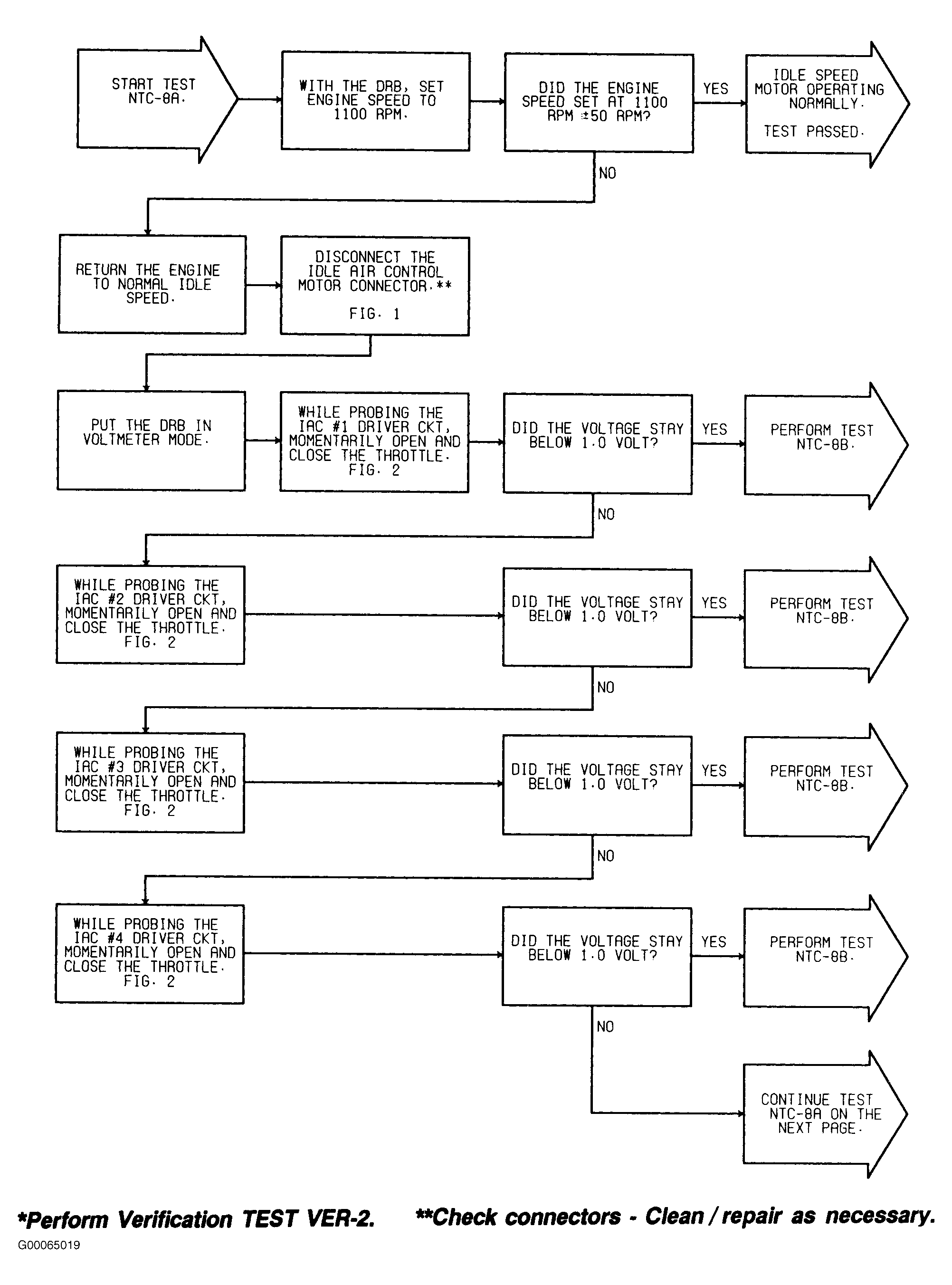

Fig 3: NTC-8A: Checking Idle Air Control Motor (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION
