NTC-11A: Checking Engine Vacuum

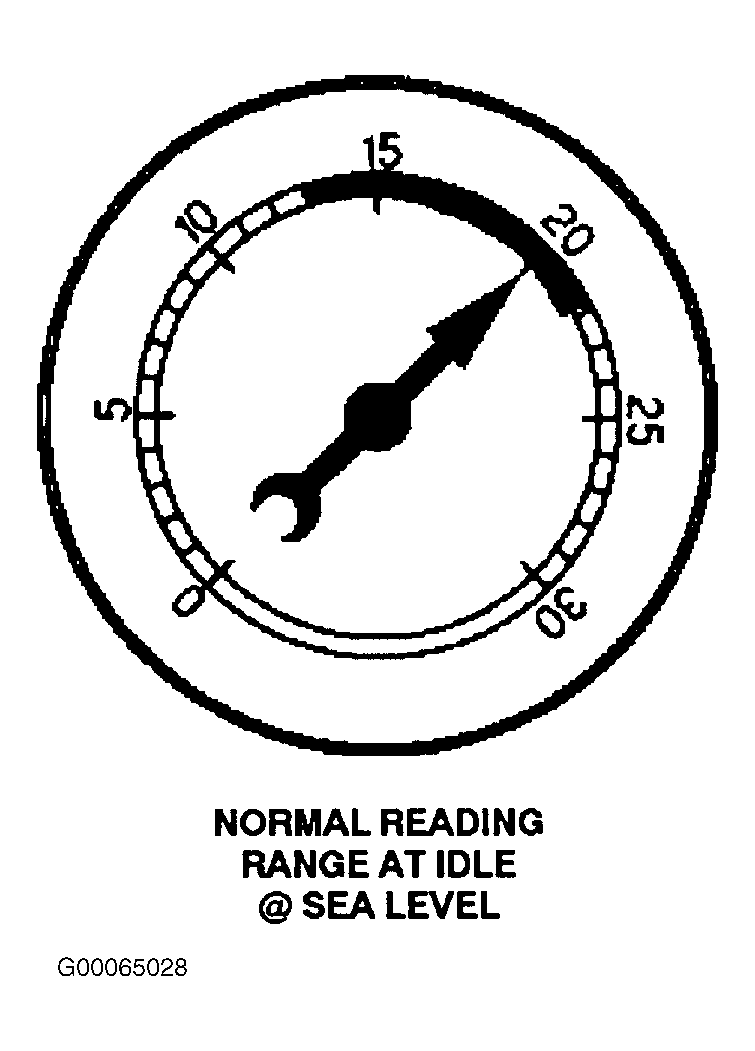

Fig 1: NTC-11A: Checking Engine Vacuum (1 Of 2)
G00065028Courtesy of DAIMLERCHRYSLER CORPORATION

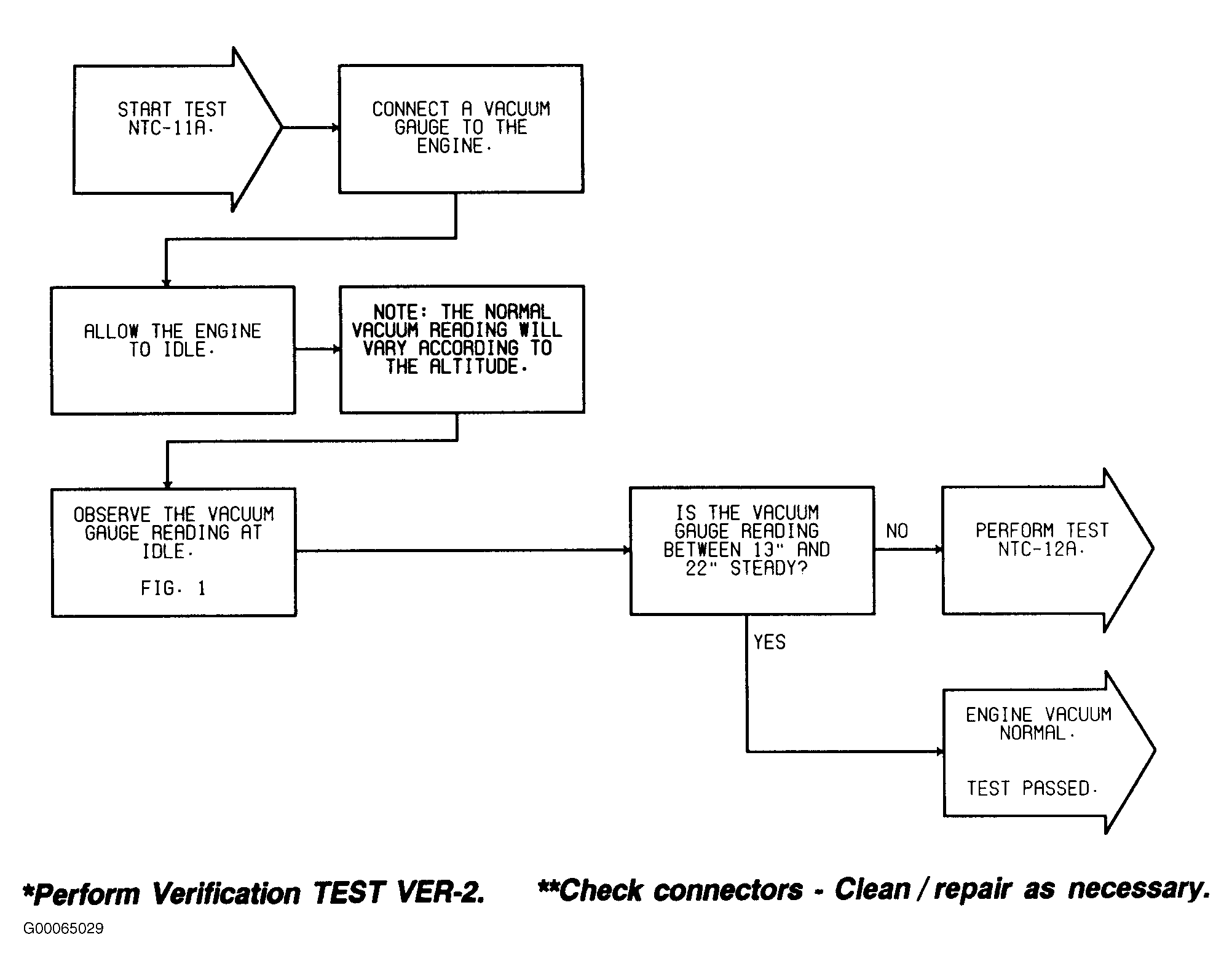

Fig 2: NTC-11A: Checking Engine Vacuum (2 Of 2)
G00065029Courtesy of DAIMLERCHRYSLER CORPORATION
