TC-9A: Right O2S Above Center (Rich)

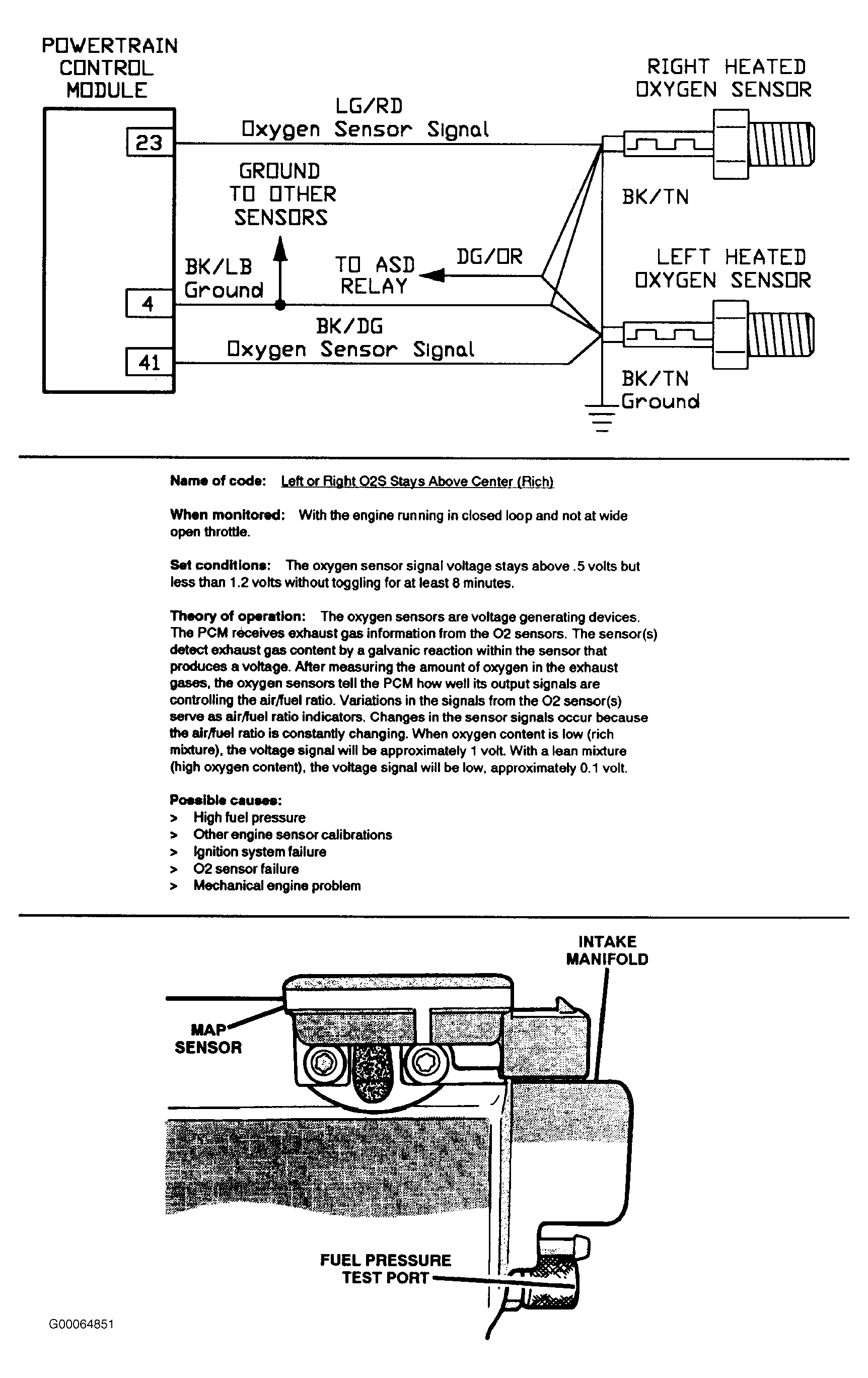

Fig 1: TC-9A: Right O2S Above Center (Rich) (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

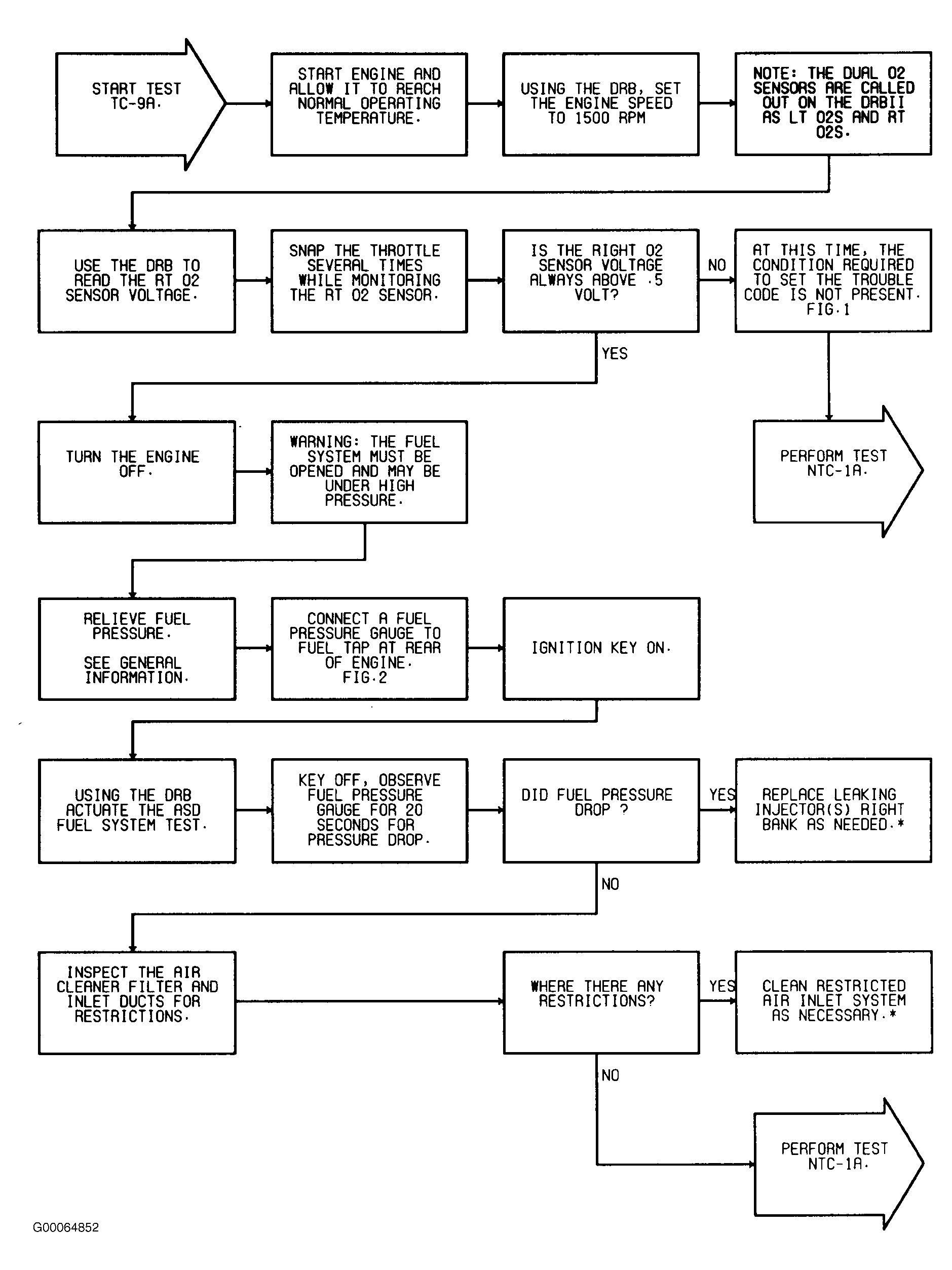

Fig 2: TC-9A: Right O2S Above Center (Rich) (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
