TC-40A: Idle Air Control Motor Circuits

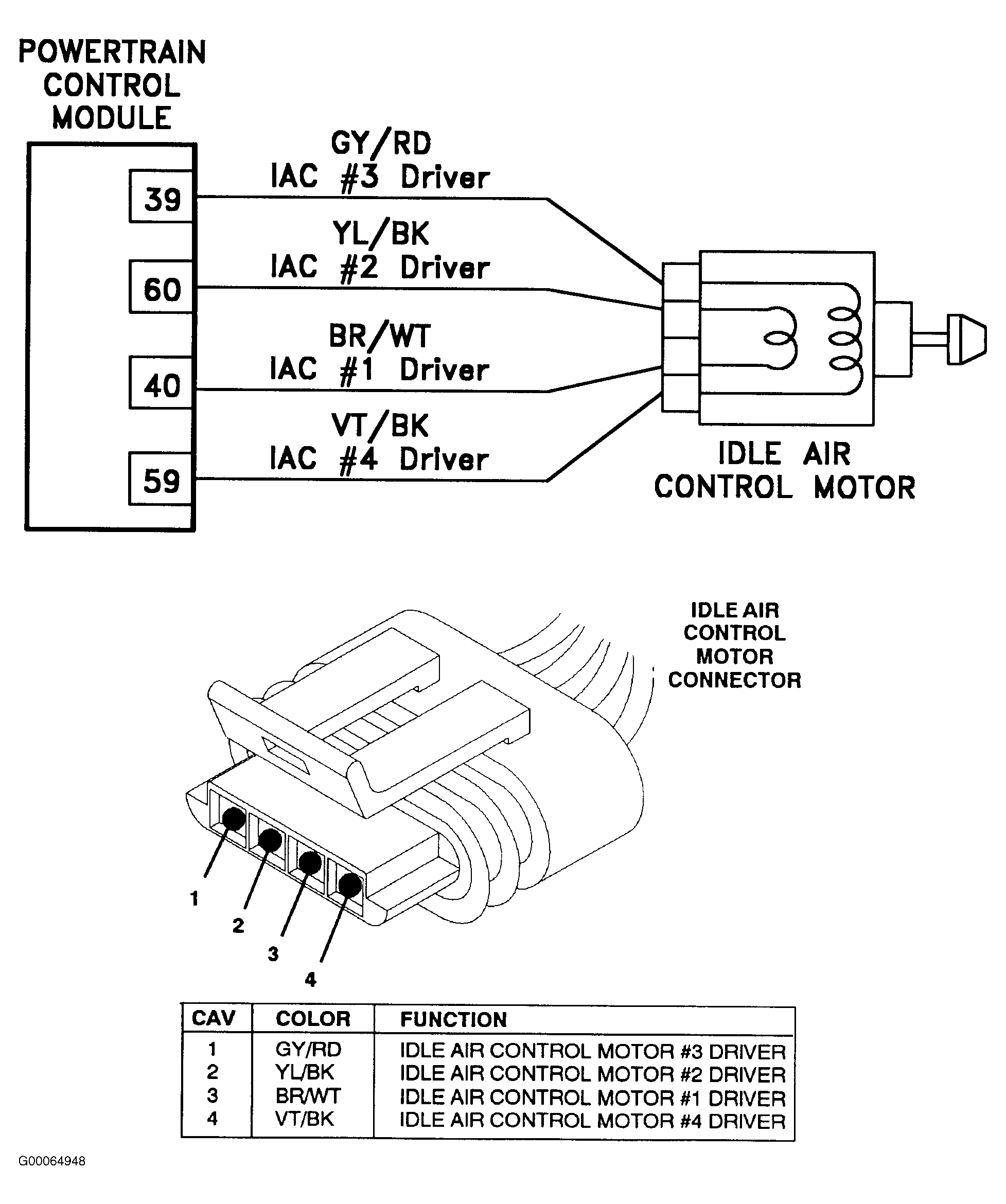

Fig 1: TC-40A: Idle Air Control Motor Circuits (1 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

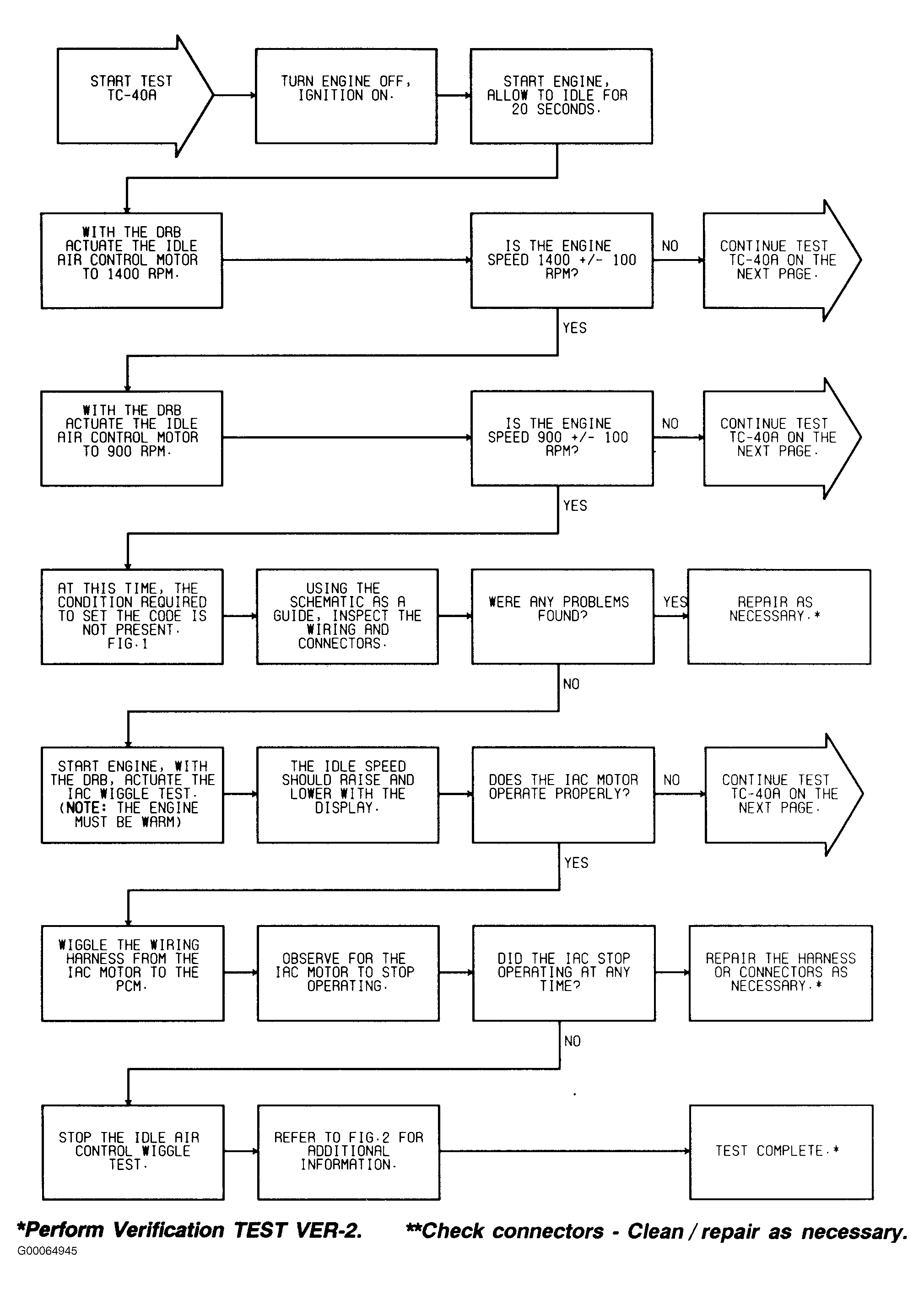

Fig 2: TC-40A: Idle Air Control Motor Circuits (2 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

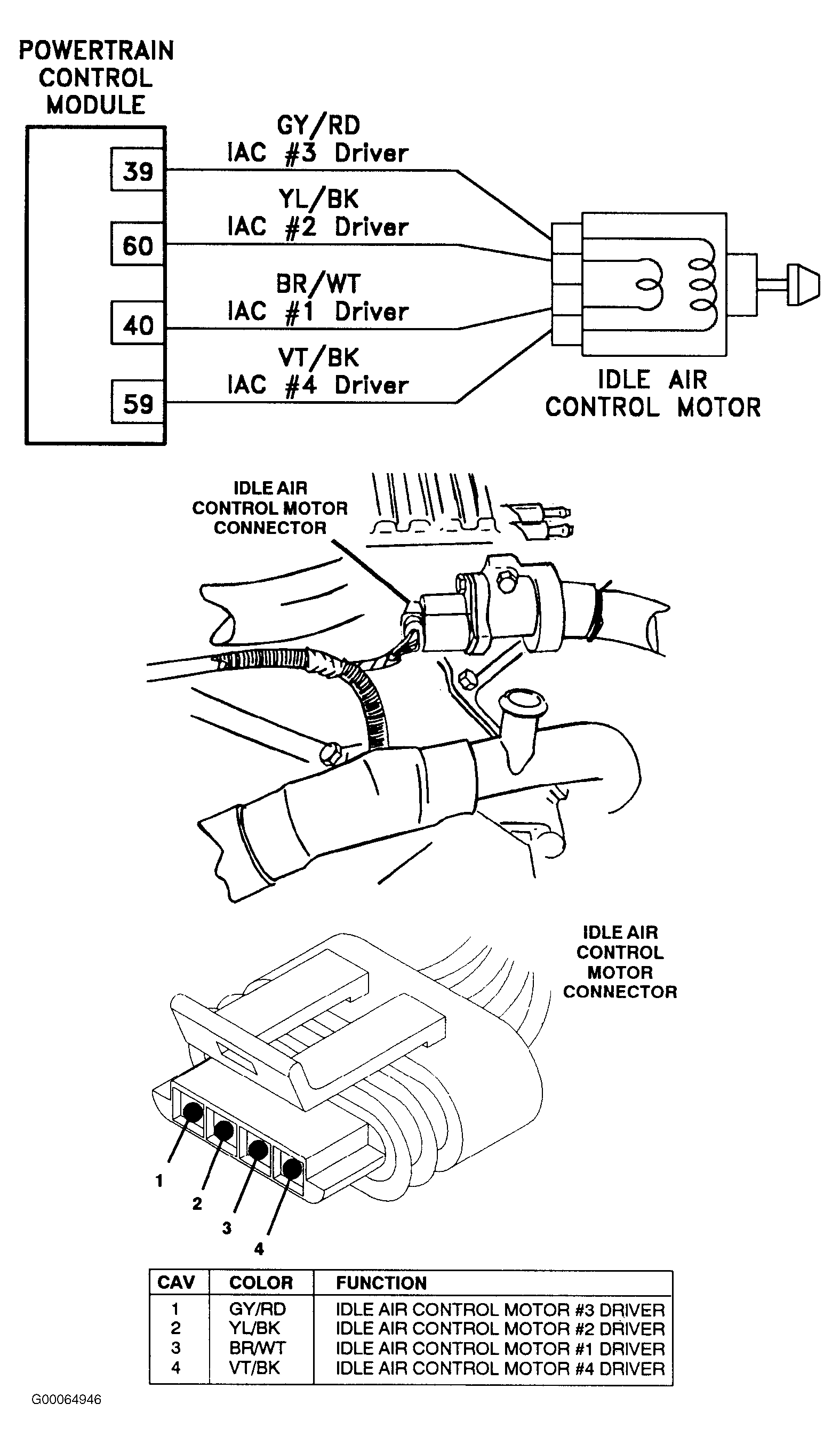

Fig 3: TC-40A: Idle Air Control Motor Circuits (3 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: TC-40A: Idle Air Control Motor Circuits (4 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

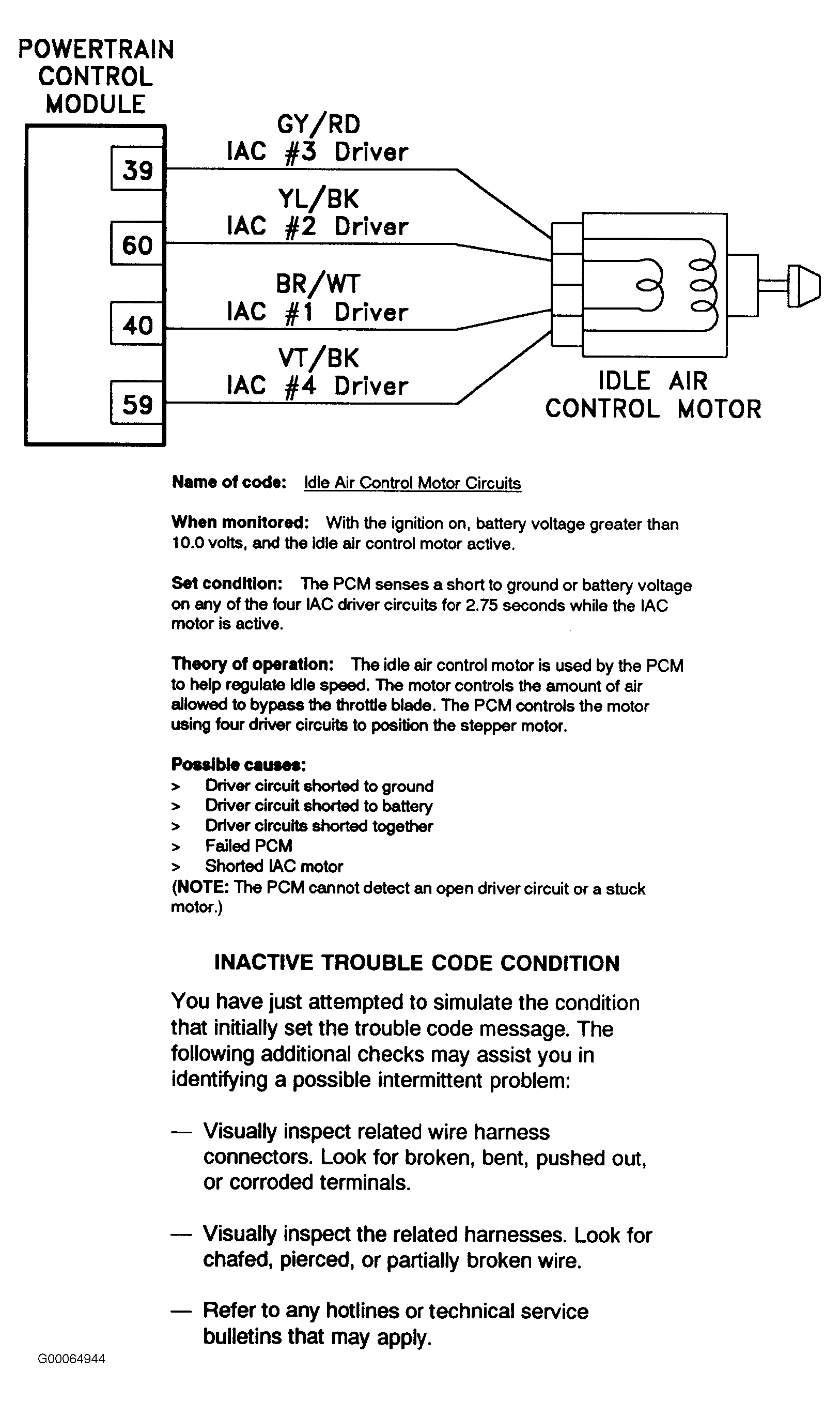

Fig 5: TC-40A: Idle Air Control Motor Circuits (5 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

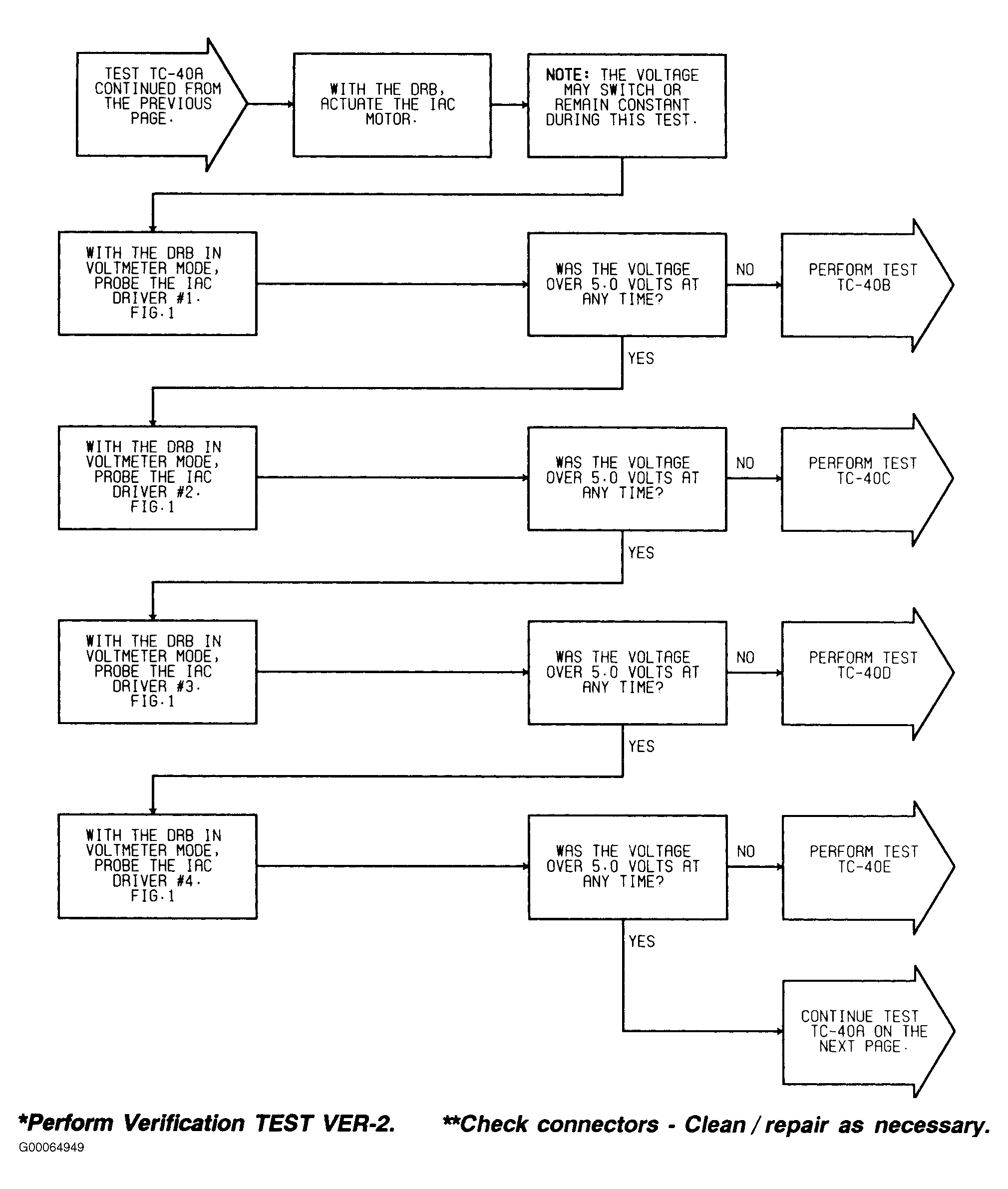

Fig 6: TC-40A: Idle Air Control Motor Circuits (6 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

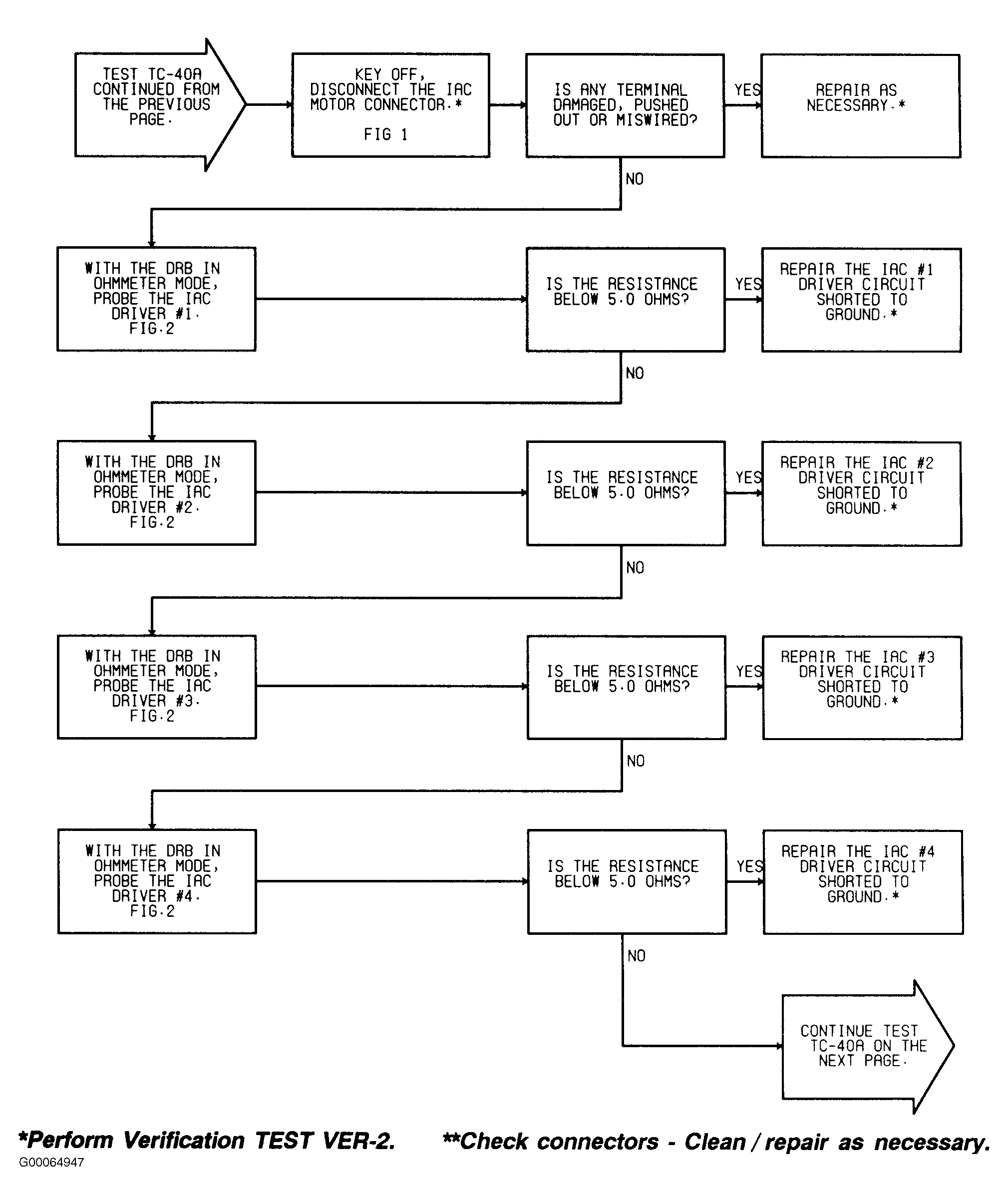

Fig 7: TC-40A: Idle Air Control Motor Circuits (7 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

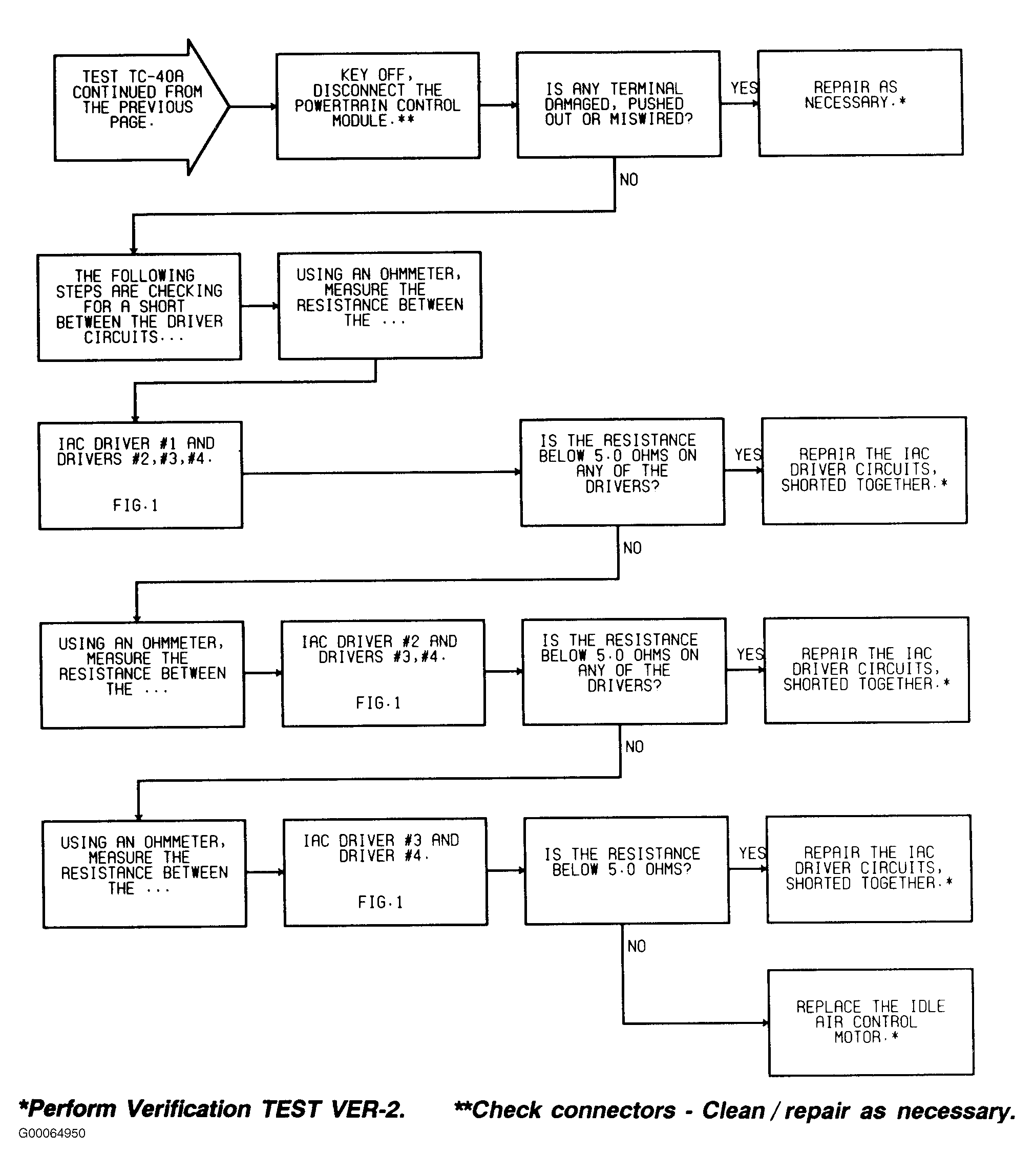

Fig 8: TC-40A: Idle Air Control Motor Circuits (8 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION
