Resistance Test

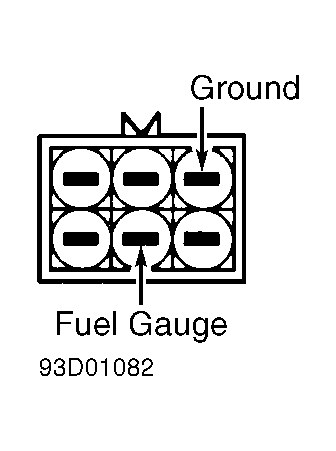

Remove fuel tank sending unit from fuel tank. Measure resistance between appropriate terminals with fuel float in FULL and EMPTY positions. See Figure. Compare resistance reading to FUEL TANK SENDING UNIT RESISTANCE SPECIFICATIONS . If resistance is not to specification, replace fuel tank sending unit.
