NTC-4A: Checking Coolant Sensor Calibration & Radiator Fan Operation

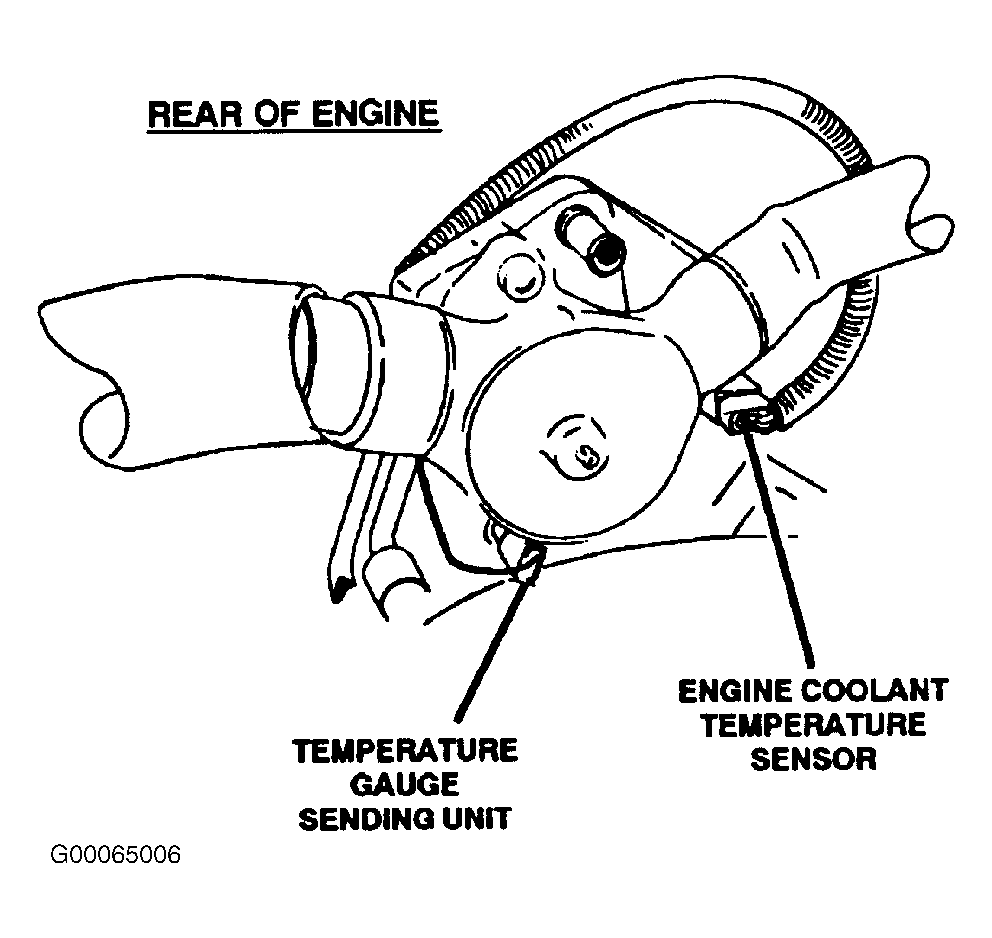

Fig 1: NTC-4A: Checking Coolant Sensor Calibration & Radiator Fan Operation (1 Of 2)
G00065006Courtesy of DAIMLERCHRYSLER CORPORATION

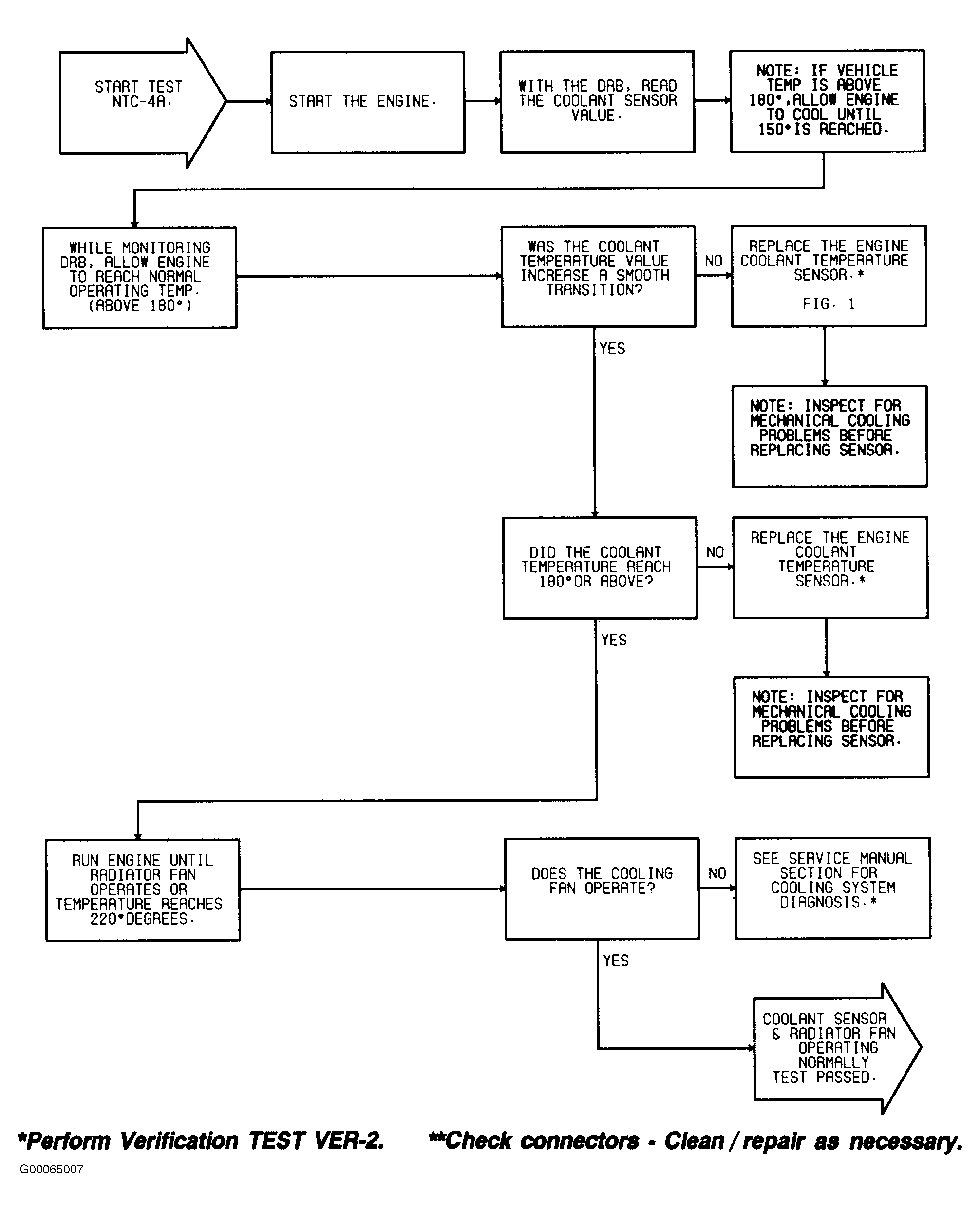

Fig 2: NTC-4A: Checking Coolant Sensor Calibration & Radiator Fan Operation (2 Of 2)
G00065007Courtesy of DAIMLERCHRYSLER CORPORATION
