TC-2B: No Crank Reference Signal At Pcm

NOTE: Perform Test TC-2A Before Proceeding

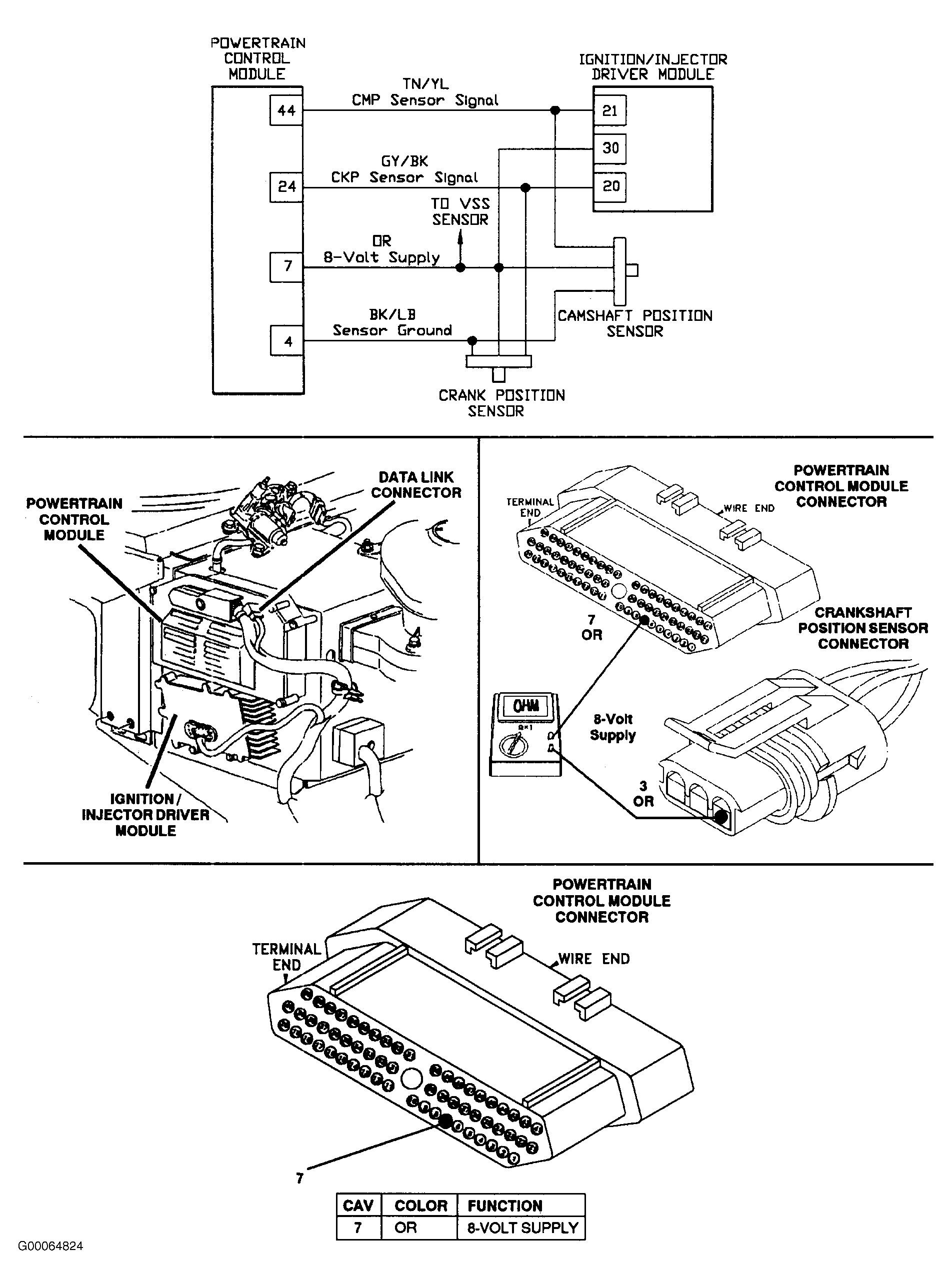

Fig 1: TC-2B: No Crank Reference Signal At PCM (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

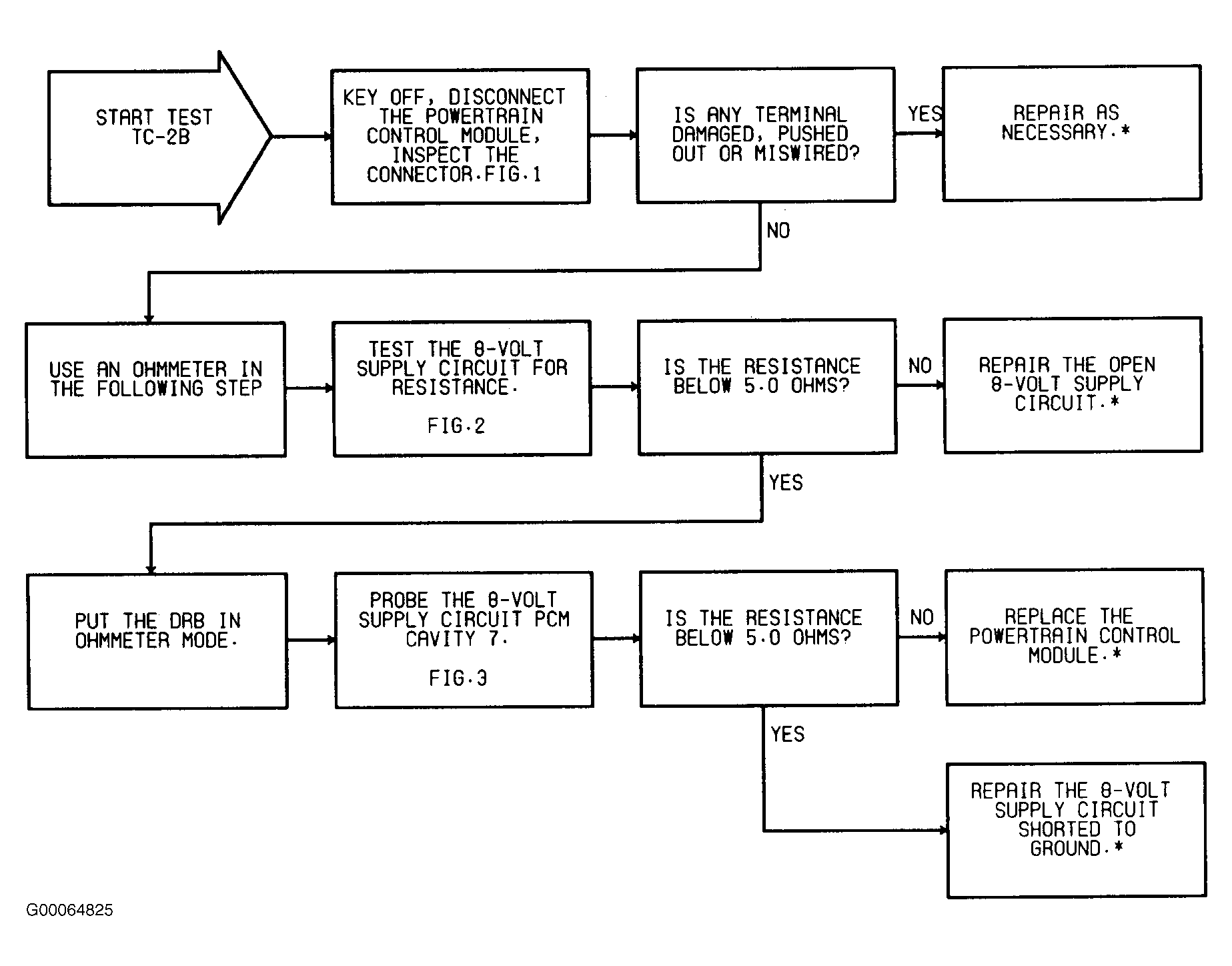

Fig 2: TC-2B: No Crank Reference Signal At PCM (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
