Visual Inspection: Notes

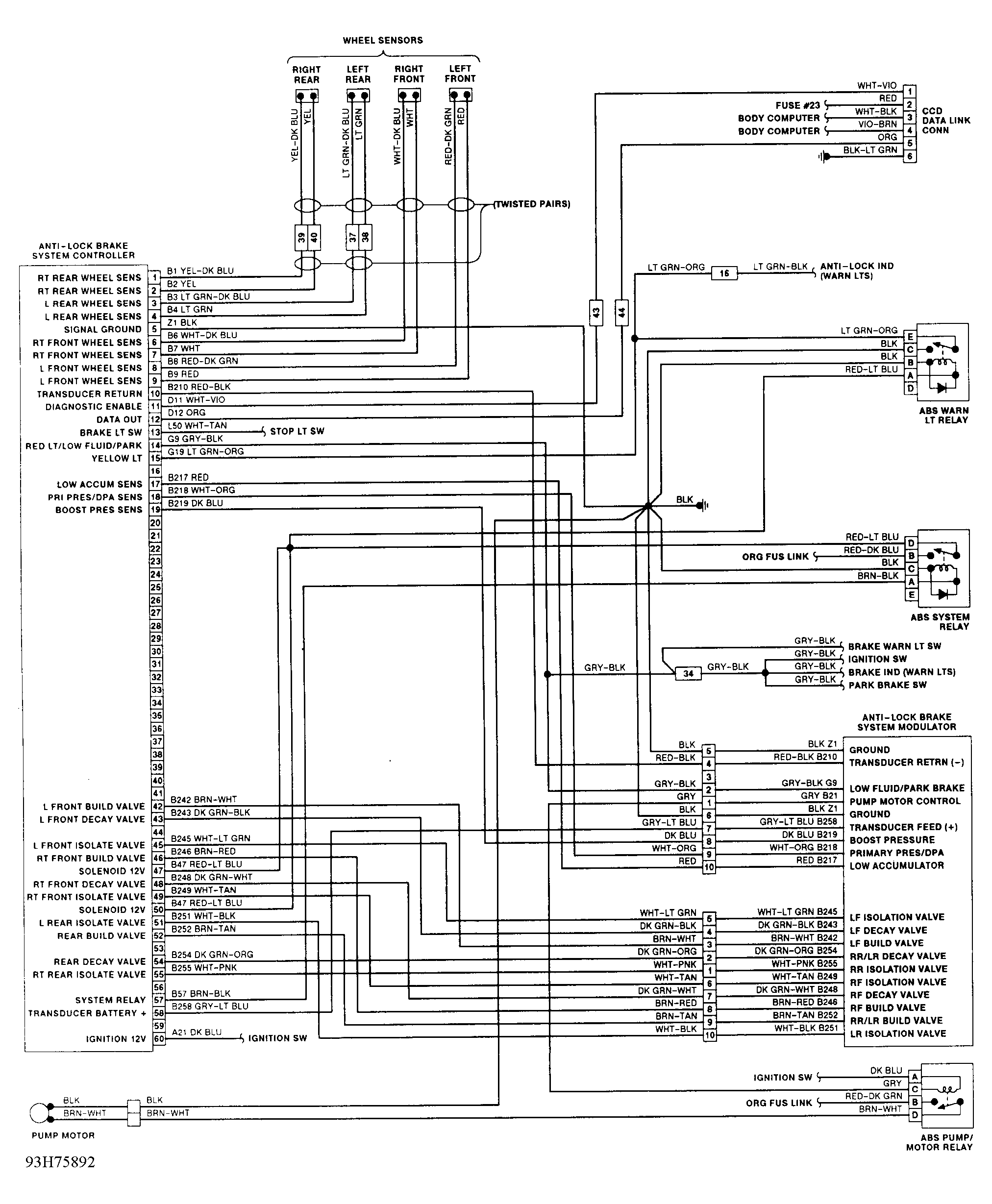

NOTE: For connector terminal identification, see CONNECTOR IDENTIFICATION DIRECTORY table. For wiring diagram, see Figure .
