NS-4: Testing Fuel Injector Circuit

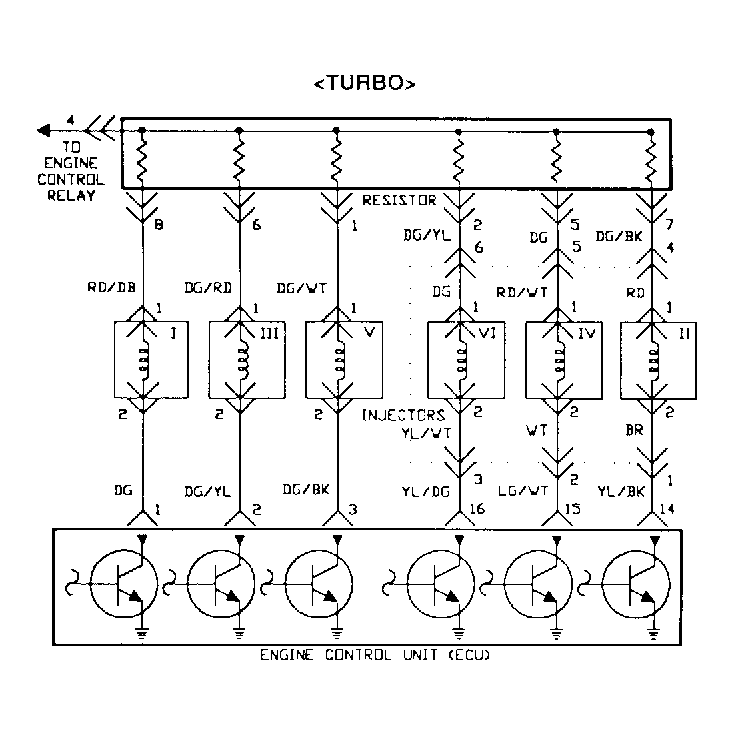

Fig 1: Test NS-4 Schematic (Turbo) (1 Of 2) Testing Fuel Injector Ckt.
G92F26430

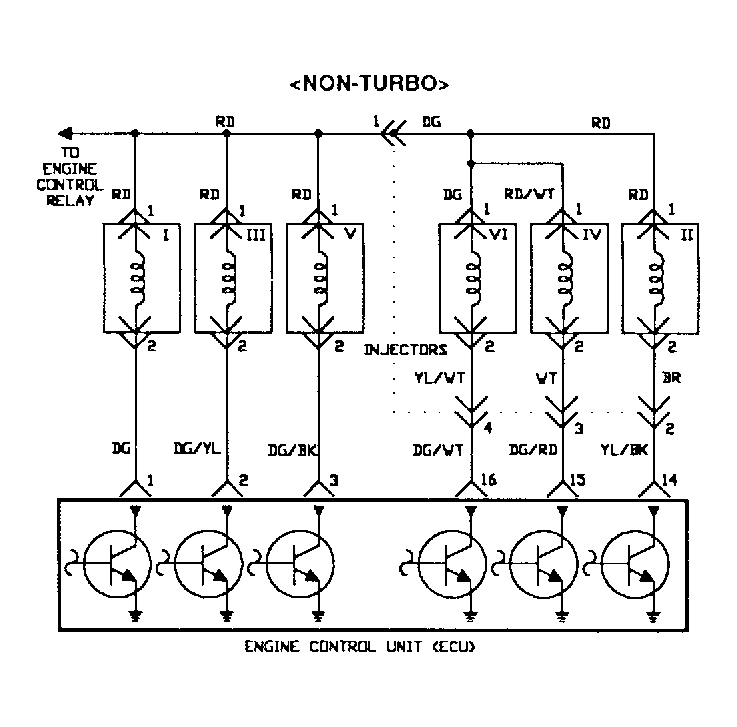

Fig 2: Test NS-4 Schematic (Non-Turbo) (1 Of 2) Testing Fuel Injector Ckt.
G92F26323

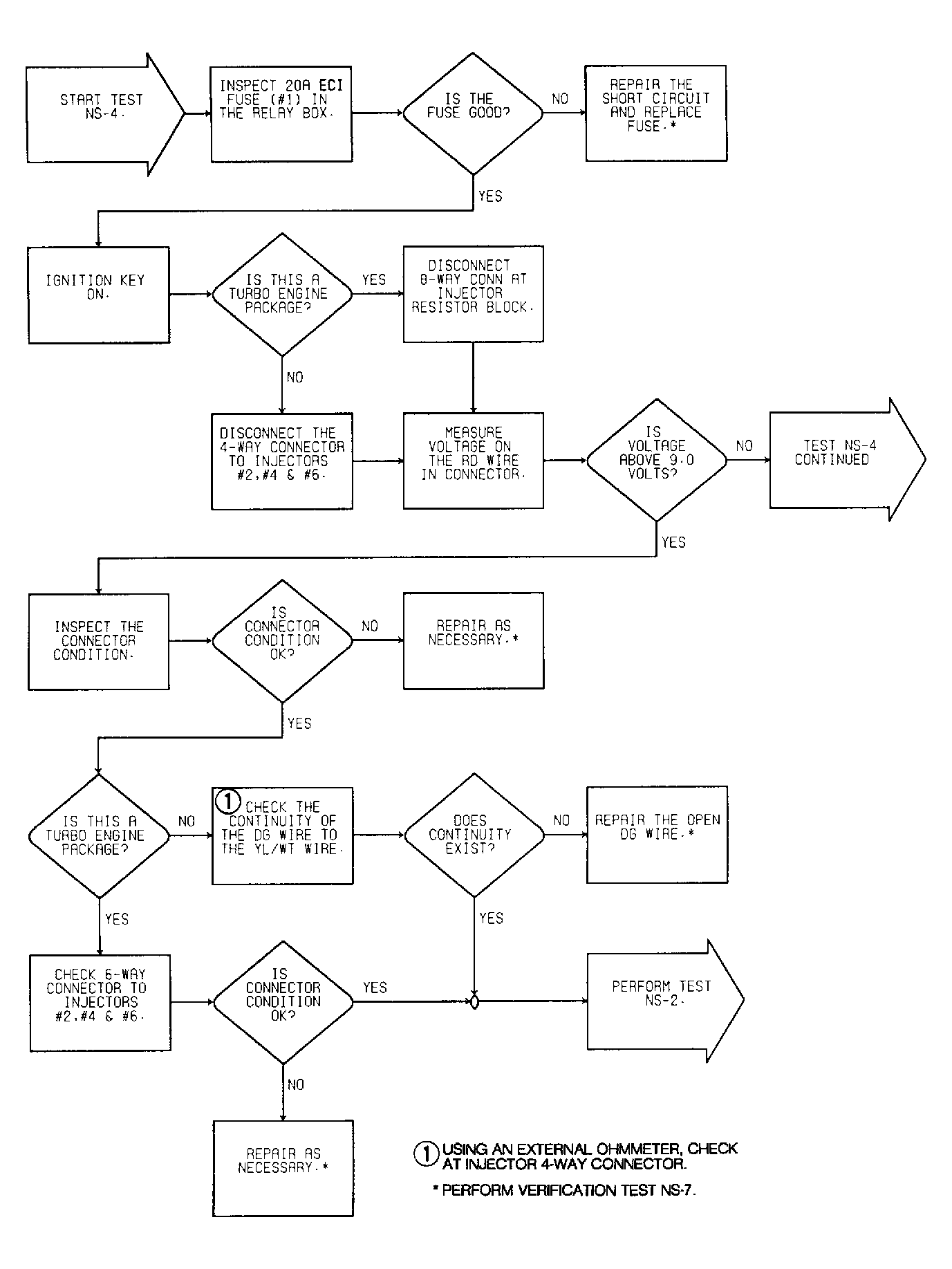

Fig 3: Test NS-4 Flow Chart (1 Of 2) Testing Fuel Injector Ckt.
G92G26324

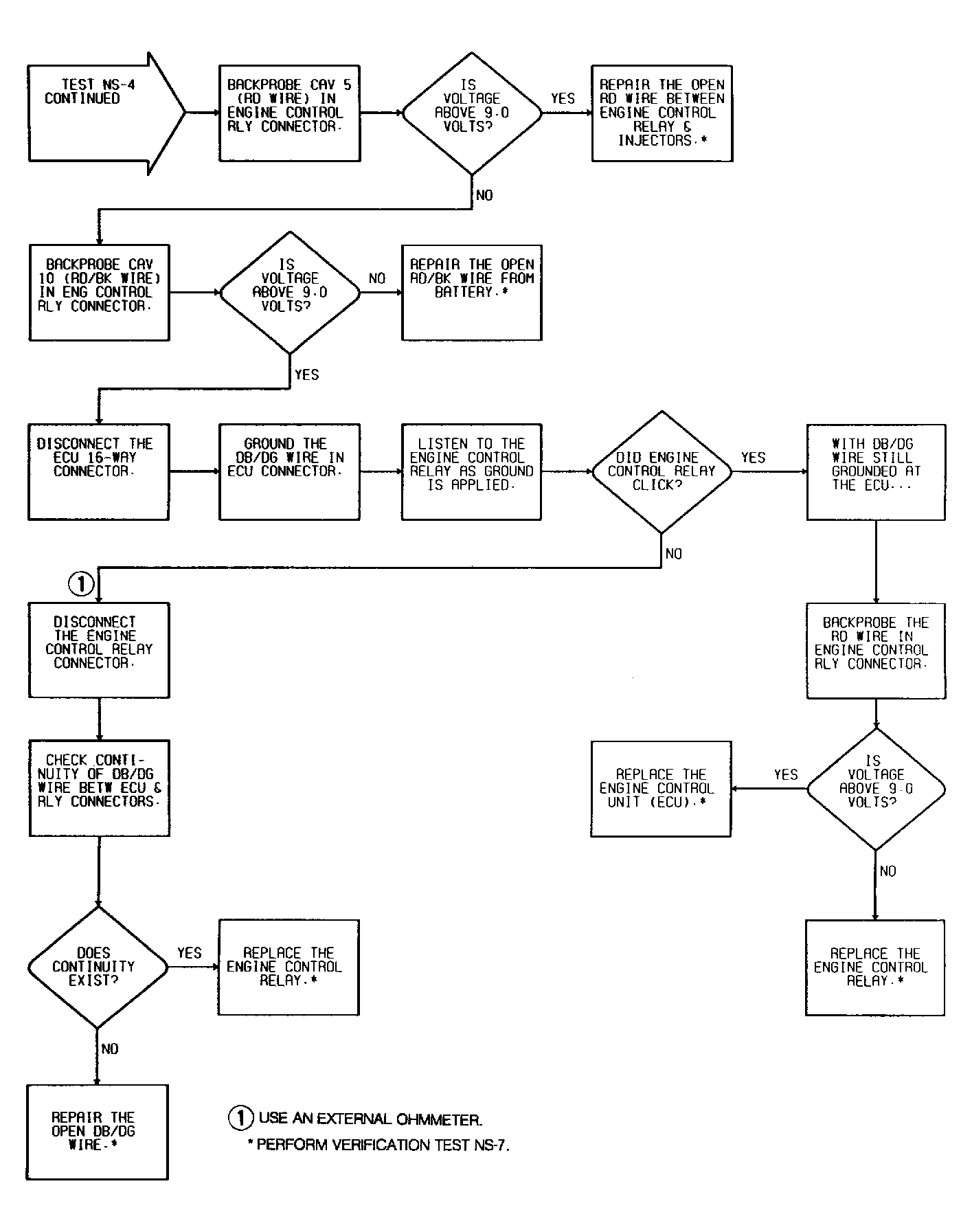

Fig 4: Test NS-4 Flow Chart (2 Of 2) Testing Fuel Injector Ckt.
G92H26325
