Control Units

CONTROL UNITS LOCATION

Component Location

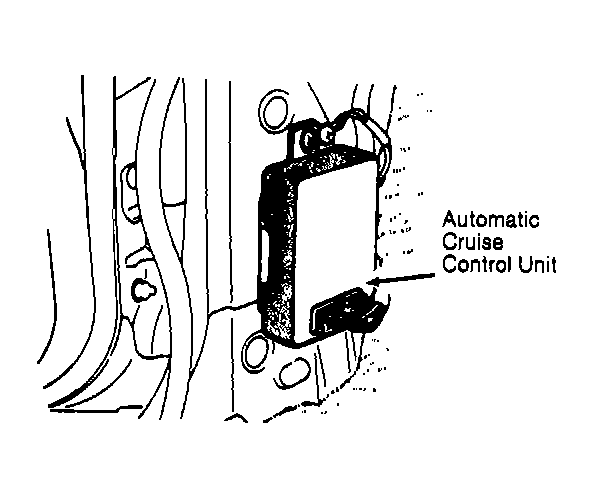

Automatic Cruise Control Unit Behind left kick panel. See Figure.
Electronic Control Unit (ECU) Behind right side of dash, above kick panel.
Rear ABS Control Unit Under center console.

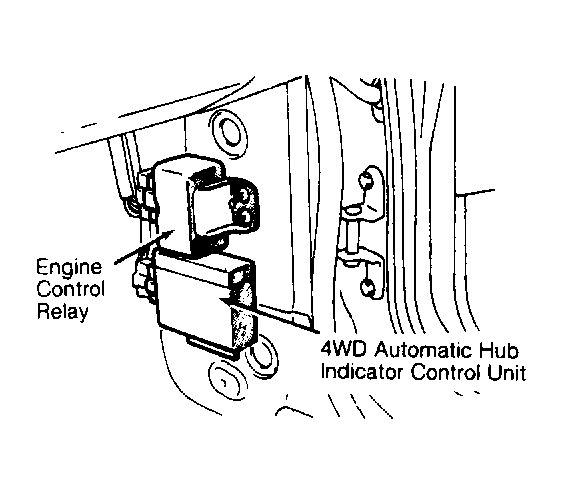

4WD Automatic Hub Indicator Control Unit Behind right side kick panel. See Figure.
