Stoplight Switch

Loosen lock nut, and adjust switch-to-pedal arm clearance to .02-.04" (.5-1.0 mm). Tighten lock nut. DO NOT  depress master cylinder push rod during stoplight switch adjustment.

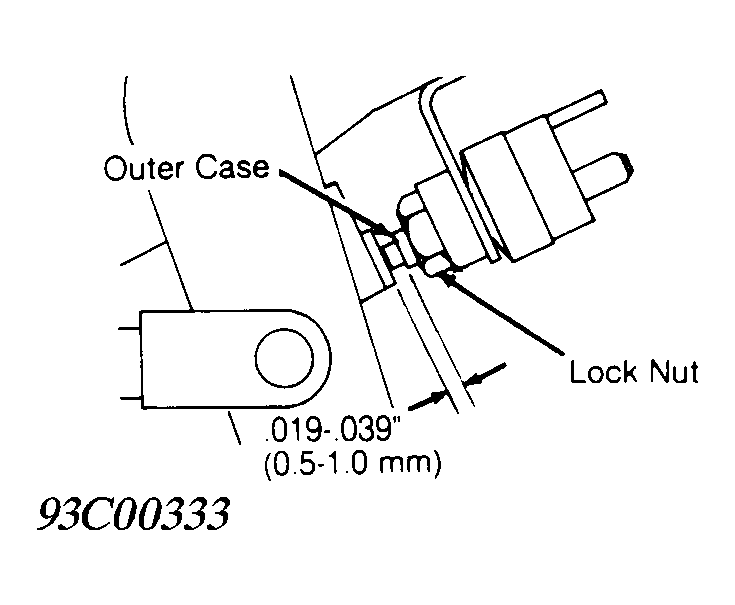

Fig 1: Adjusting Stoplight Switch
G93C00333Courtesy of CHRYSLER MOTORS
