Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See
Charge Temperature Sensor	Fig 1
Coolant Temperature Sensor	Fig 2
Crankshaft Position Sensor	Fig 3
Engine Diagnostic	Fig 4
Fuel Heater	Fig 5
Message Center Connector	Fig 6
Overdrive Override Switch	Fig 7
Overdrive Solenoid	Fig 8
Relays: A/C Clutch, Auto Shutdown	Fig 9
Single Board Engine Controller (SBEC)	Fig 10
Throttle Position Sensor (TPS)	Fig 11
Transmission Thermoswitch	Fig 2
Vehicle Speed Sensor	Fig 5
Water-In-Fuel Sensor	Fig 8

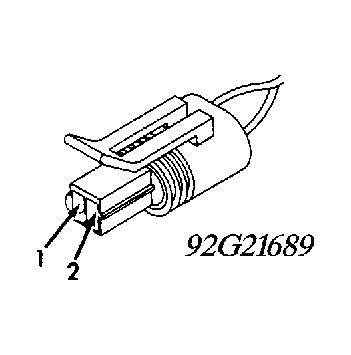

Fig 1: Charge Temperature Sensor Connector Terminal ID

G92G21689

Courtesy of CHRYSLER MOTORS.

Fig 2: Coolant Temp. Sensor & Trans. Thermoswitch Connector Terms.

G92E04769

Courtesy of CHRYSLER MOTORS.

Fig 3: Crankshaft Position Sensor Connector Terminal ID

G92G04770

Courtesy of CHRYSLER MOTORS.

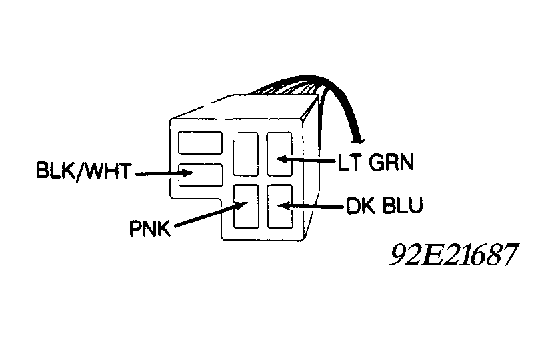

Fig 4: Engine Diagnostic Connector Terminal ID

G92E21687

Courtesy of CHRYSLER MOTORS.

Fig 5: Fuel Heater & Vehicle Speed Sensor Connector Terminal ID

G92A04772

Courtesy of CHRYSLER MOTORS.

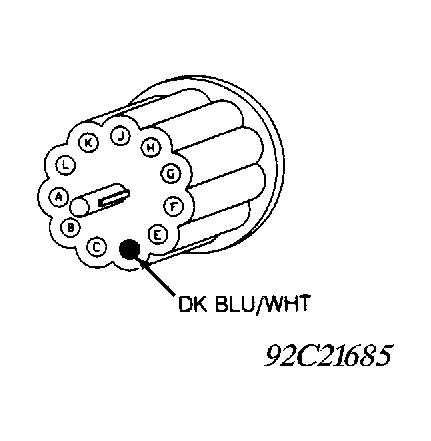

Fig 6: Message Center Connector Terminal ID

G92C21685

Courtesy of CHRYSLER MOTORS.

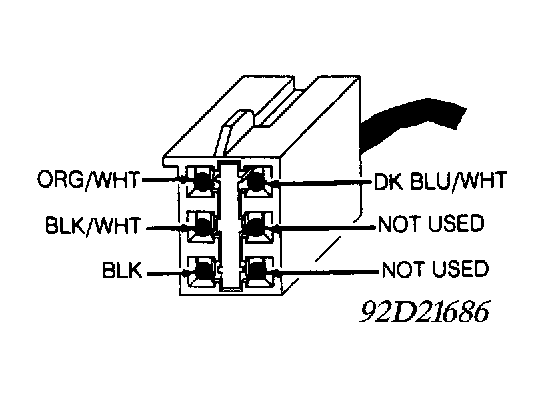

Fig 7: Overdrive Override Switch Connector Terminal ID

G92D21686

Courtesy of CHRYSLER MOTORS.

Fig 8: Overdrive Solenoid & Water-In-Fuel Sensor Connector Terms.

G92B04782

Courtesy of CHRYSLER MOTORS.

Fig 9: A/C Clutch & ASD Relay Connector Terminal ID

G92F04784

Courtesy of CHRYSLER MOTORS.

Fig 10: Single Board Engine Controller (SBEC) Connector Terminal ID

G92I04785

Courtesy of CHRYSLER MOTORS.

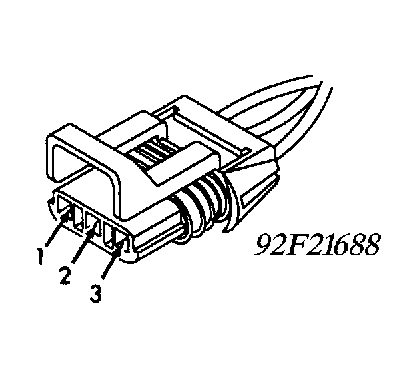

Fig 11: Throttle Position Sensor Connector Terminal ID

G92F21688

Courtesy of CHRYSLER MOTORS.
