Connector Identification
WARNING:
When battery is disconnected, vehicle computer and energy systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.
CONNECTOR IDENTIFICATION DIRECTORY
| Connector | See Figure | |
|---|---|---|
| Automatic Idle Speed (AIS) Motor | Fig 1 | |
| Coolant Temperature Sensor | Fig 2 | |
| Crank Position Sensor | Fig 3 | |
| Distance Sensor | Fig 4 | |
| Distributor Pick-Up | Fig 5 | |
| EGR Solenoid | Fig 6 | |
| Engine Controller | Fig 7 | |
| Engine Diagnostic | Fig 8 | |
| Fuel Injector | Fig 9 | |
| Ignition Coil | Fig 10 | |
| Manifold Absolute Pressure (MAP) Sensor | Fig 11 | |
| Oil Pressure Switch | Fig 12 | |
| Oxygen (O2) Sensor | Fig 13 | |
| Purge Solenoid | Fig 14 | |
| Relays | ||
| AB & AD Bodies: A/C Clutch, Auto Shutdown, Fuel Pump & Part Throttle Unlock Relays | Fig 15 | |

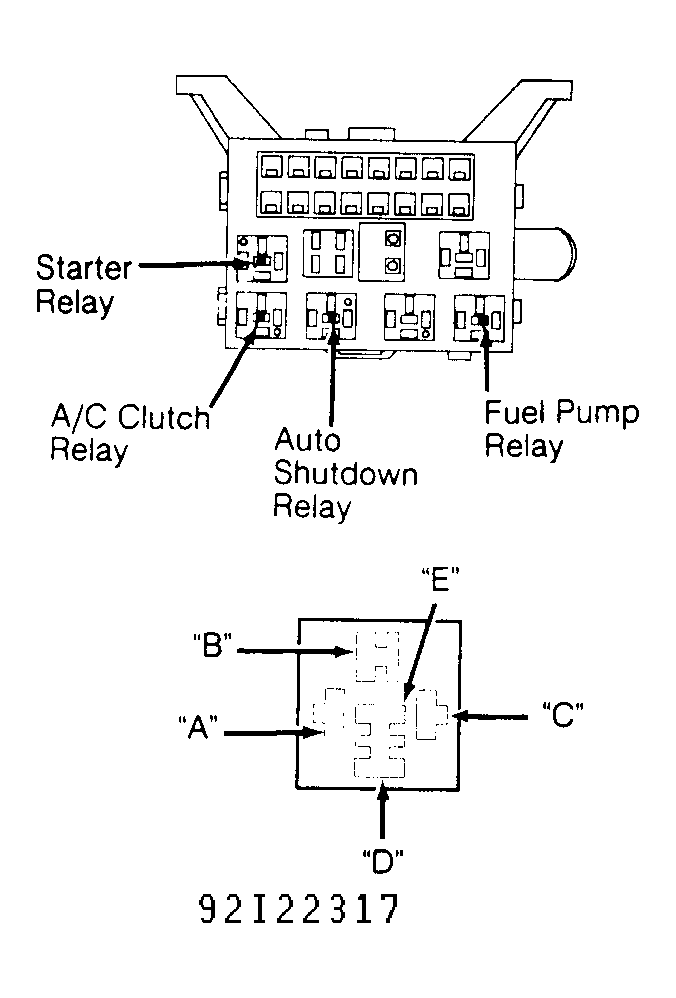

| AN Body: A/C Clutch, Auto Shutdown, Fuel Pump & Starter Relays | Fig 16 | |
| Throttle Body Charge Temperature Sensor | Fig 17 | |
| Throttle Position Sensor (TPS) | Fig 18 | |
