Belt Adjustment

A single serpentine drive belt is used. Proper belt tension is maintained by automatic belt tensioner. Ensure serpentine drive belt is properly routed. See Fig 1 .

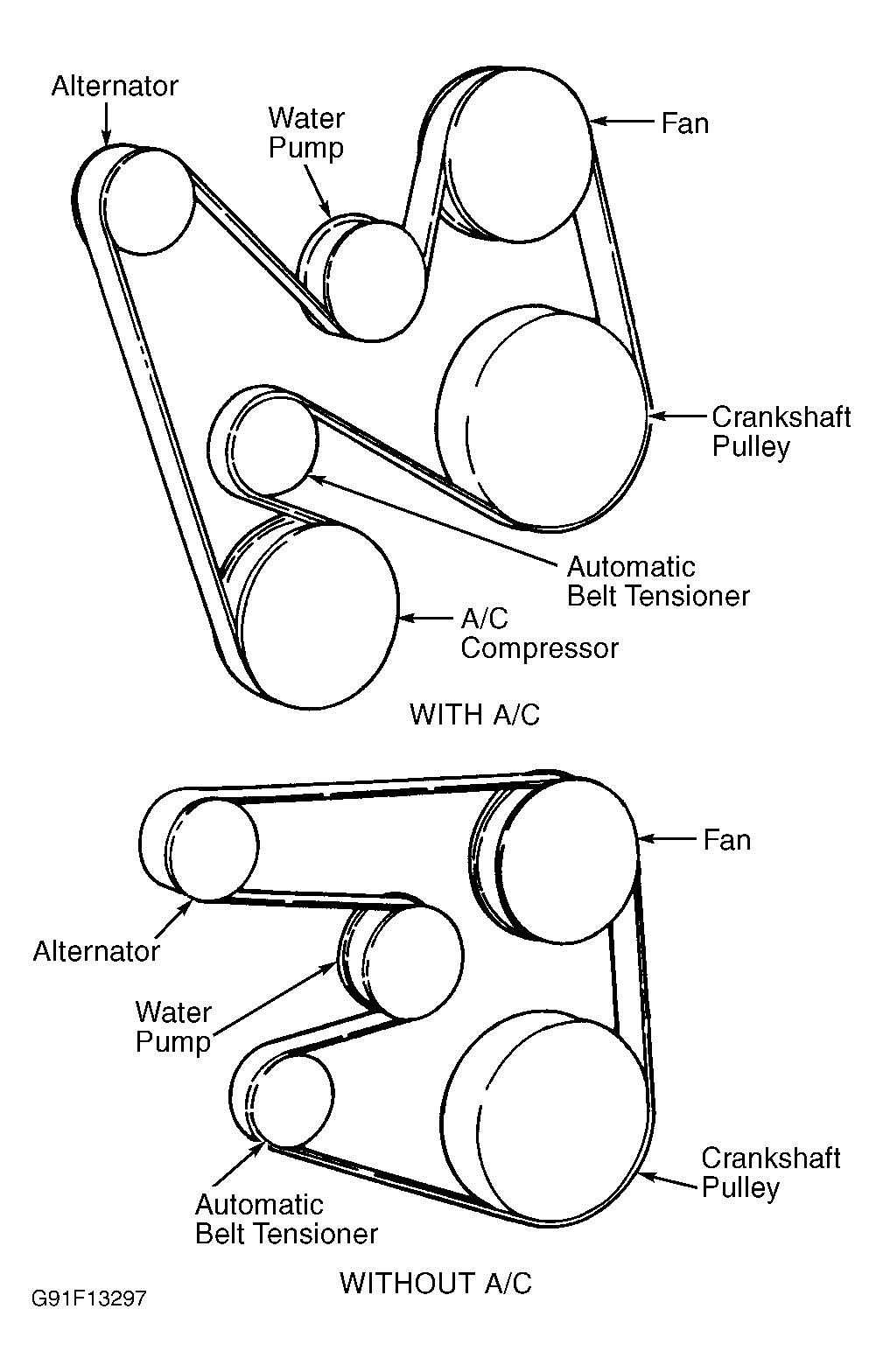

Fig 1: Routing Serpentine Drive Belt
G91F13297
