Circuit Test No. 2: Ignition Switch Input Circuits

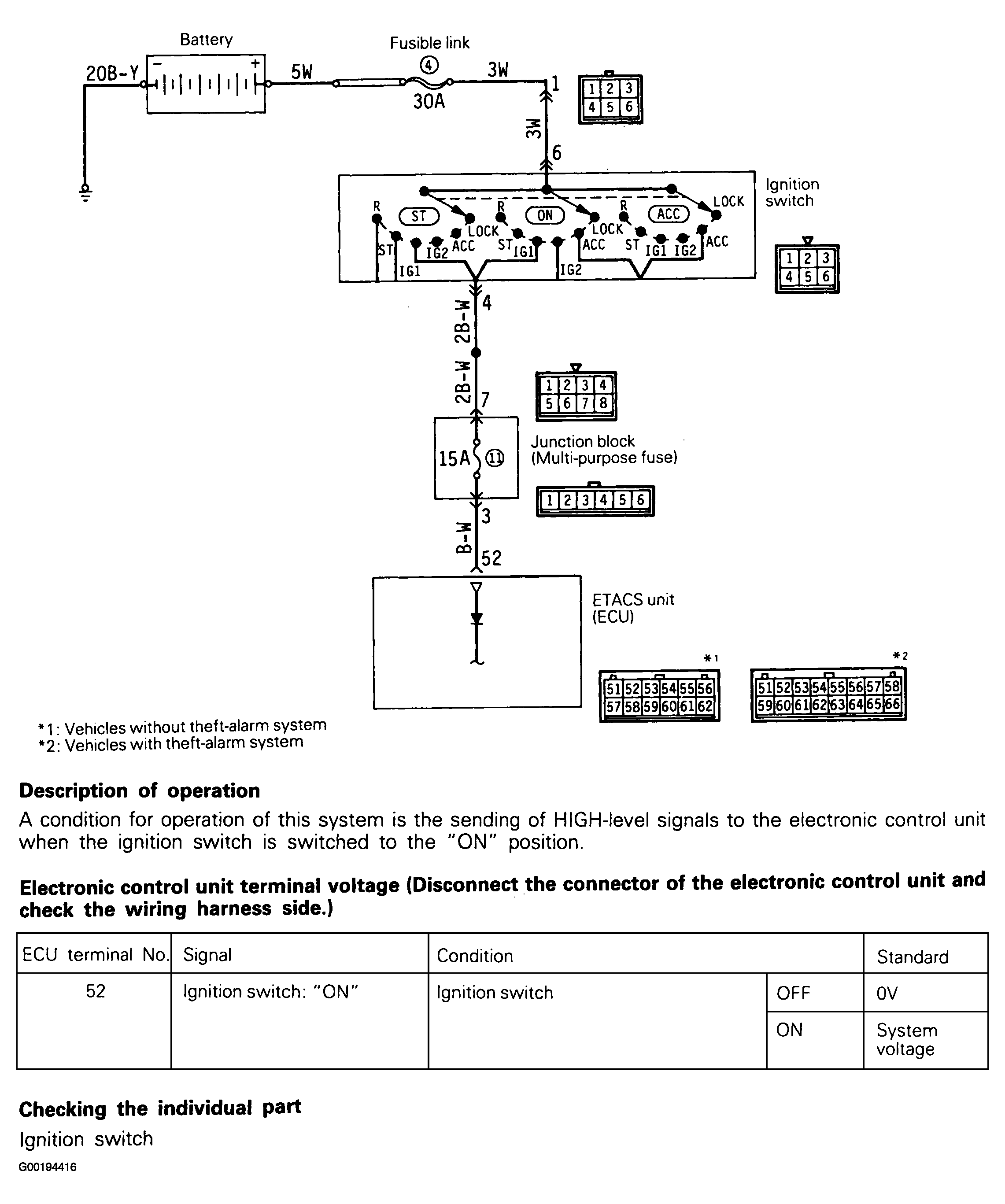

Fig 1: Circuit Test No. 2: Ignition Switch Input Ciruits

G00194416

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
