Connector Identification

Fig 1: Airflow Sensor Connector Terminal ID
G92G26449Courtesy of CHRYSLER MOTORS.
Fig 2: AIS Connector Terminal ID
G92A26450Courtesy of CHRYSLER MOTORS.
Fig 3: Crank Angle & TDC Connector Terminal ID
G92B26451Courtesy of CHRYSLER MOTORS.

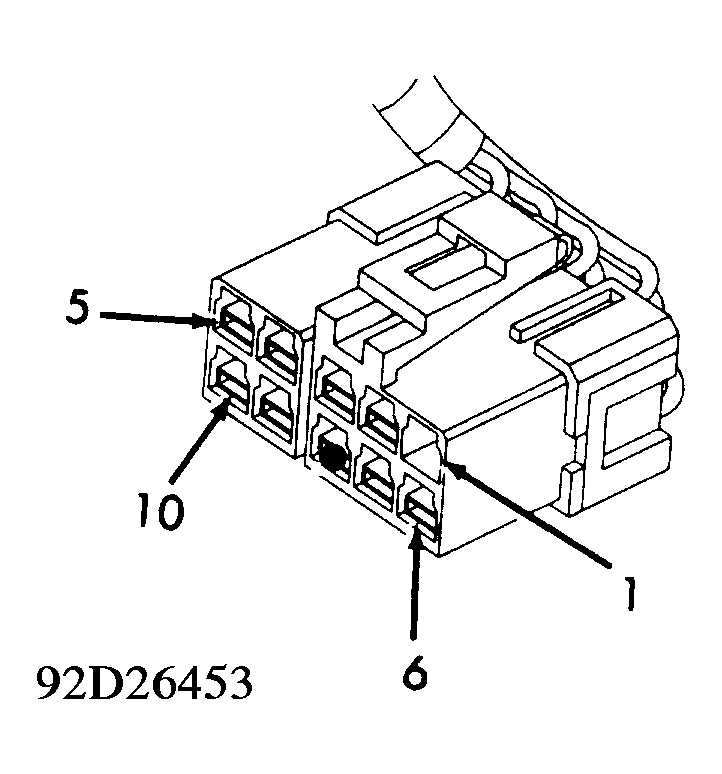

Fig 4: Engine Control Relay Connector Terminal ID
G92D26453Courtesy of CHRYSLER MOTORS.
Fig 5: ECU 10-Way Connector Terminal ID
G90B15363Courtesy of CHRYSLER MOTORS.
Fig 6: ECU 18-Way Connector Terminal ID
G90C15364Courtesy of CHRYSLER MOTORS.
Fig 7: ECU 24-Way Connector Terminal ID
G90D15365Courtesy of CHRYSLER MOTORS.
Fig 8: 8-Way Injector Connector Terminal ID
G92I26458Courtesy of CHRYSLER MOTORS.
Fig 9: Power Transistor Connector Terminal ID
G92C26460Courtesy of CHRYSLER MOTORS.
Fig 10: Throttle Position Sensor Connector Terminal ID
G92D26461Courtesy of CHRYSLER MOTORS.
