NS-2A: Testing Ignition Circuit
NS-2A: Testing Ignition Circuit
Fig 1: Test NS-2A Schematic Testing Ignition Circuit

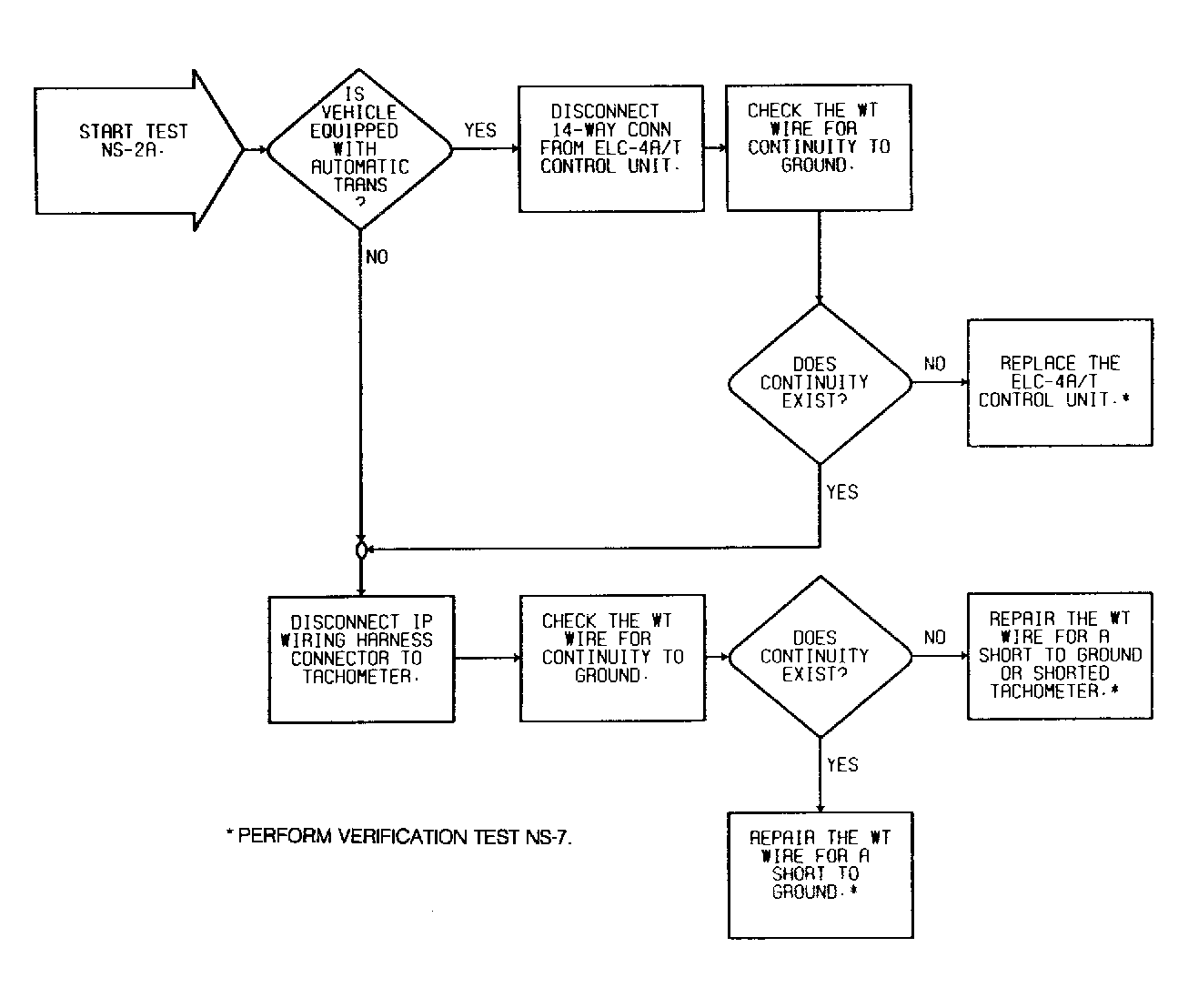

Fig 2: Test NS-2A Flow Chart Testing Ignition Circuit
