NS-2: Testing Ignition Circuit

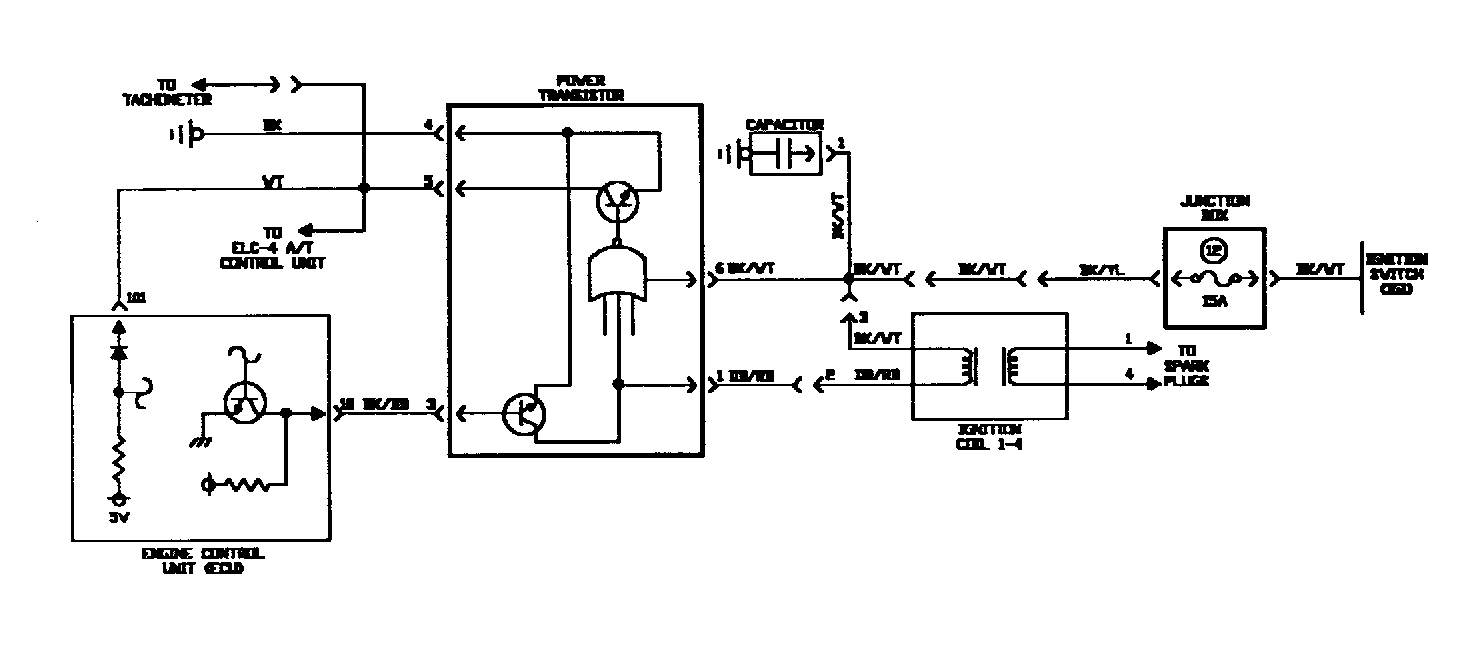

Fig 1: Test NS-2 Schematic Testing Ignition Circuit
G92E26314

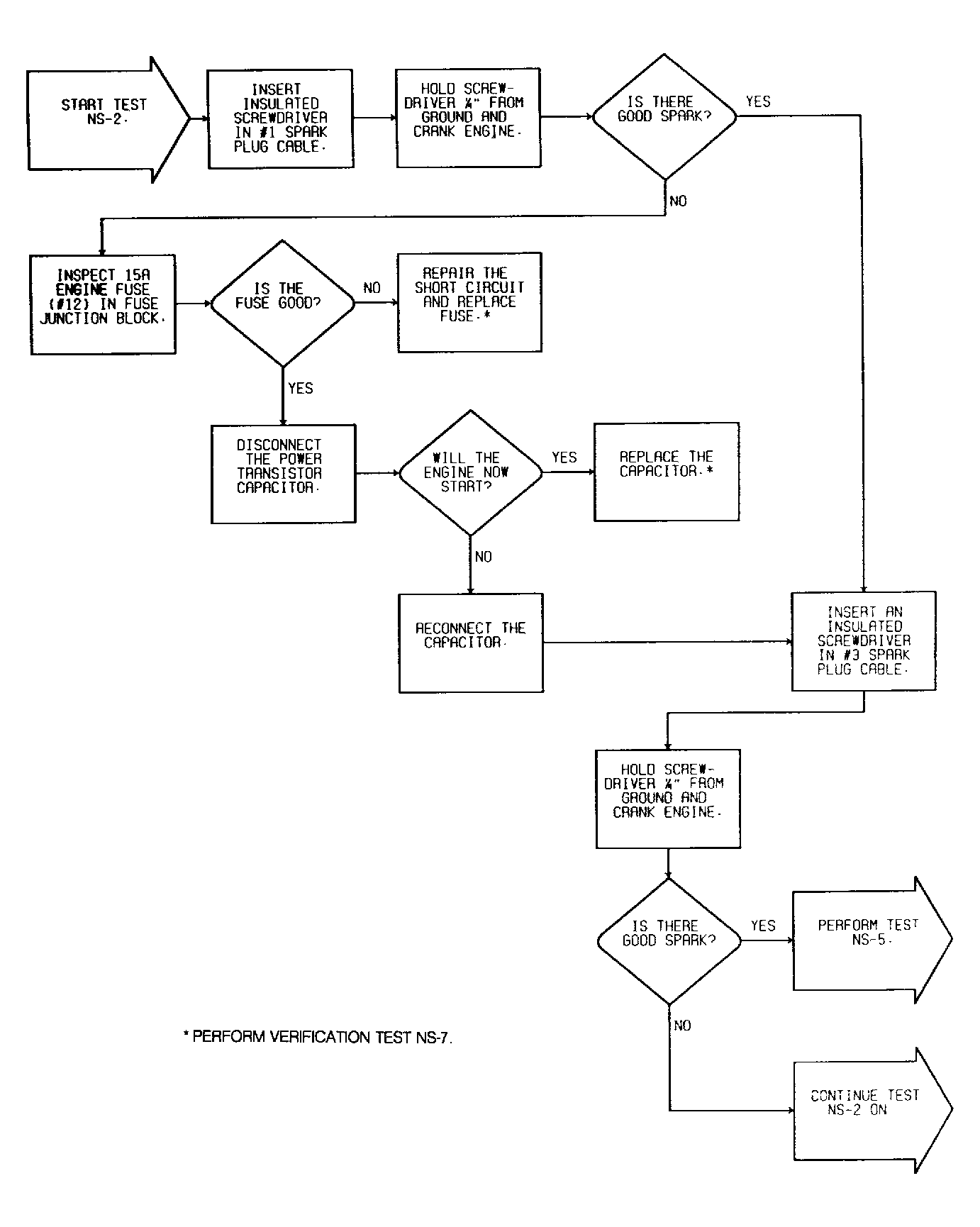

Fig 2: Test NS-2 Flow Chart (1 Of 4) Testing Ignition Circuit
G92F26315
Fig 3: Test NS-2 Flow Chart (2 Of 4) Testing Ignition Circuit
G92G26316

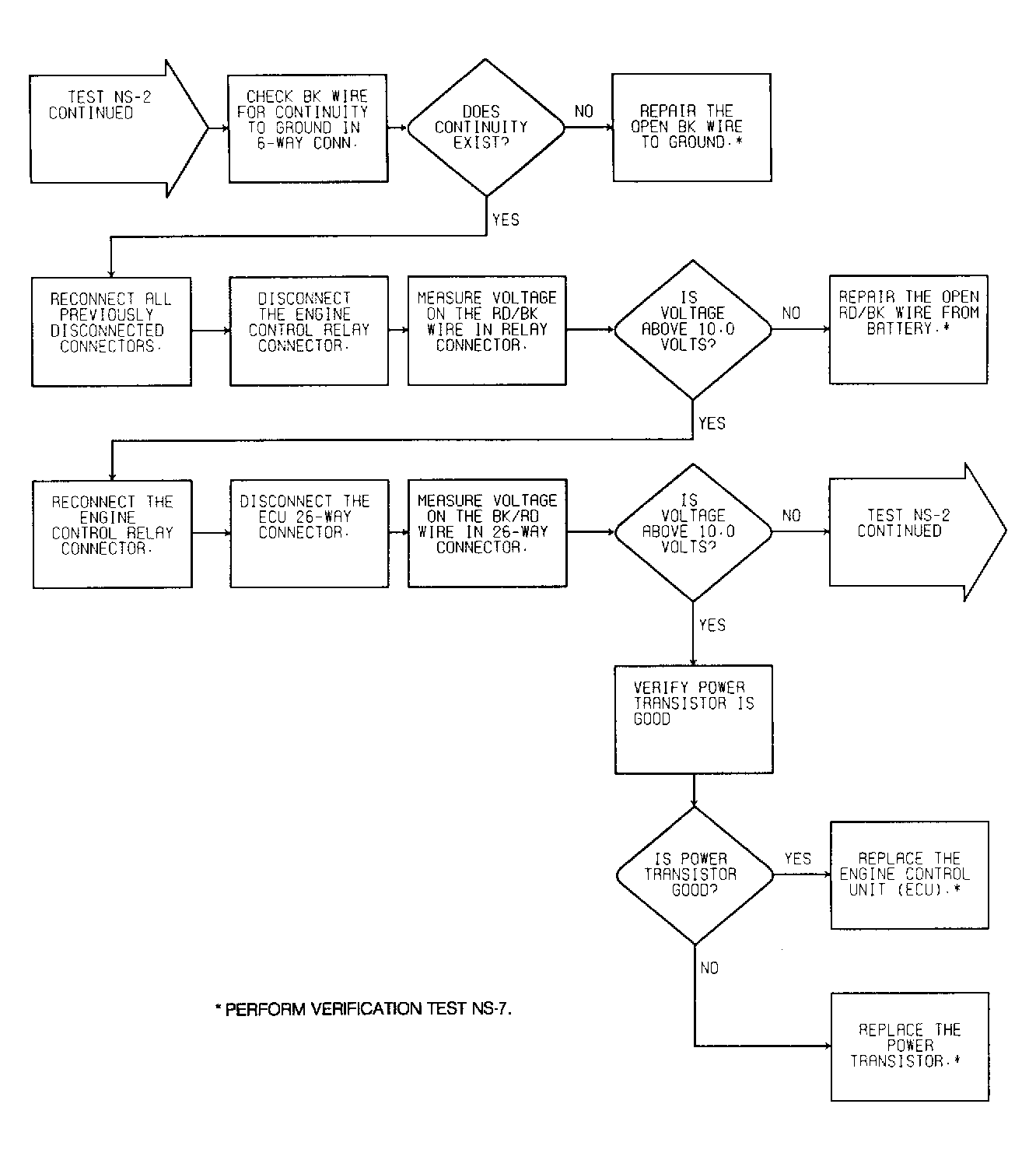

Fig 4: Test NS-2 Flow Chart (3 Of 4) Testing Ignition Circuit
G92H26317

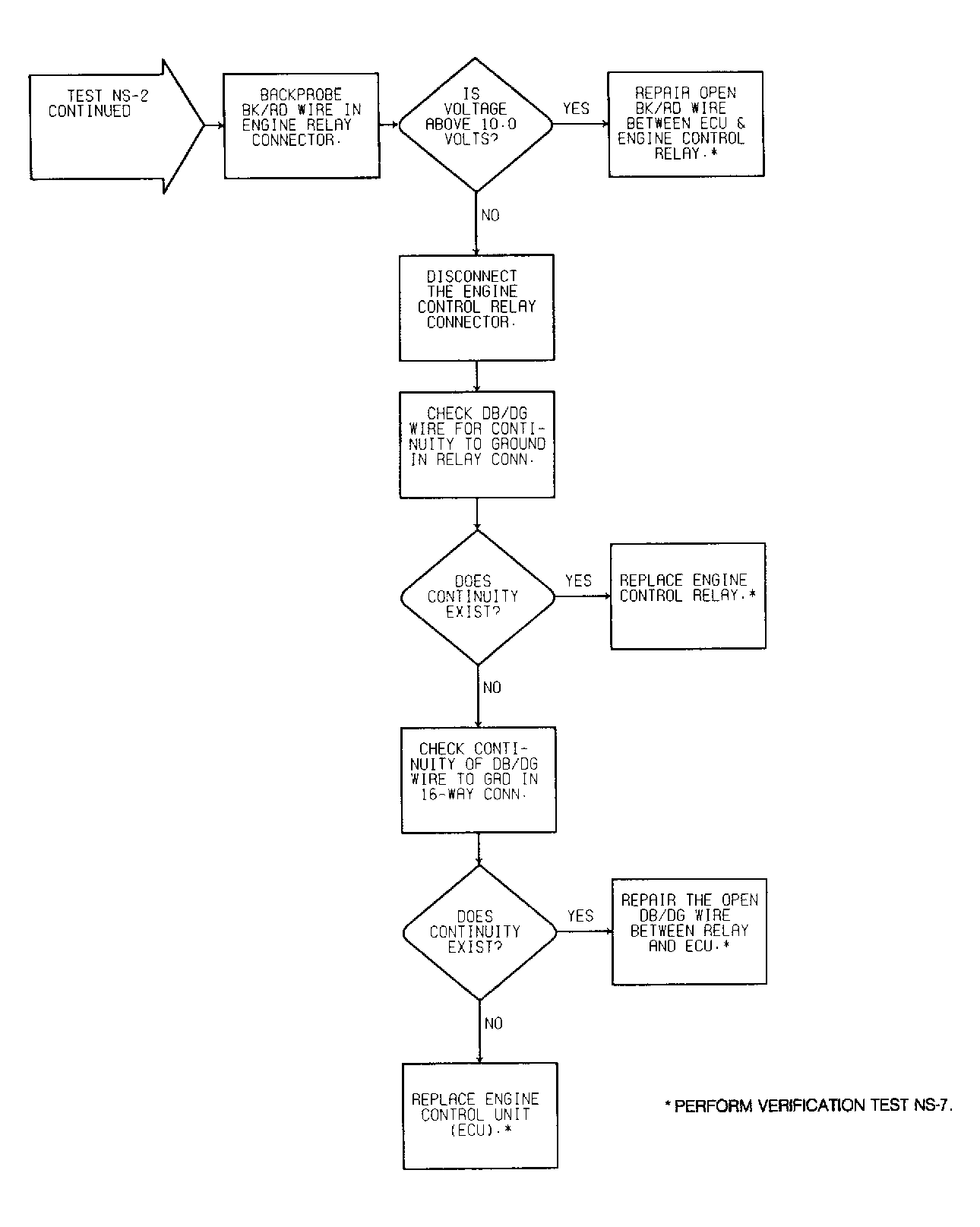

Fig 5: Test NS-2 Flow Chart (4 Of 4) Testing Ignition Circuit
G92I26318
