Power Window Relay

  1. Remove the knee protector assembly. Remove the power window relay from the indoor relay box. See Fig 1 .
  2. Apply battery voltage to terminal 1, and check for continuity when terminal 3 is grounded. See Fig 2 .

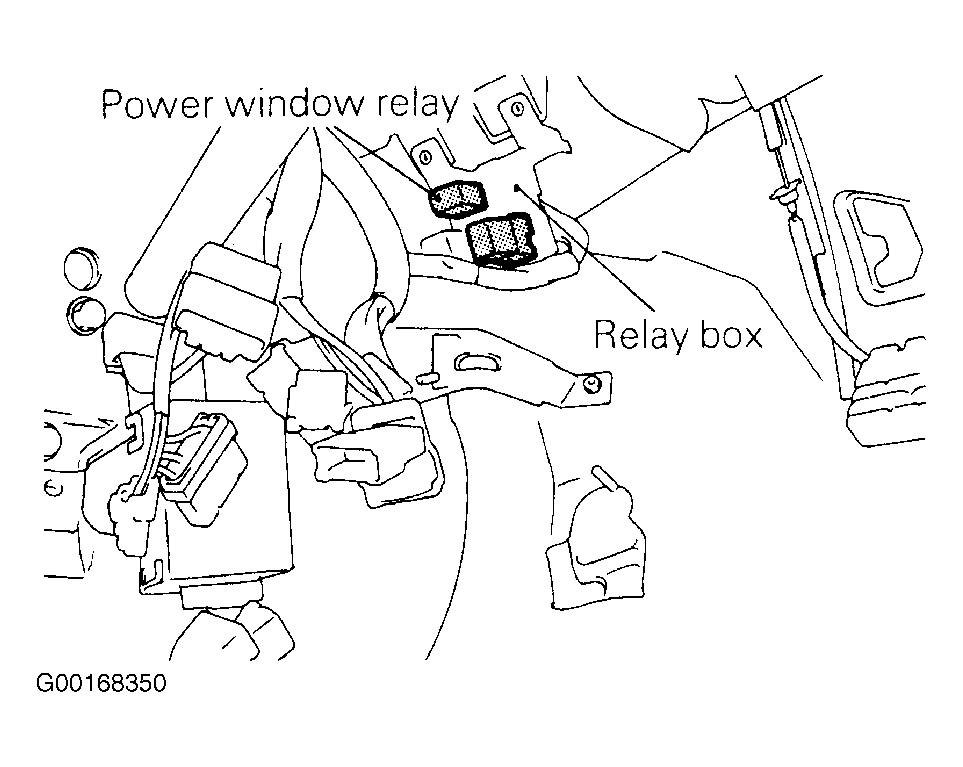

Fig 1: Removing Power Window Relay
G00168350Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

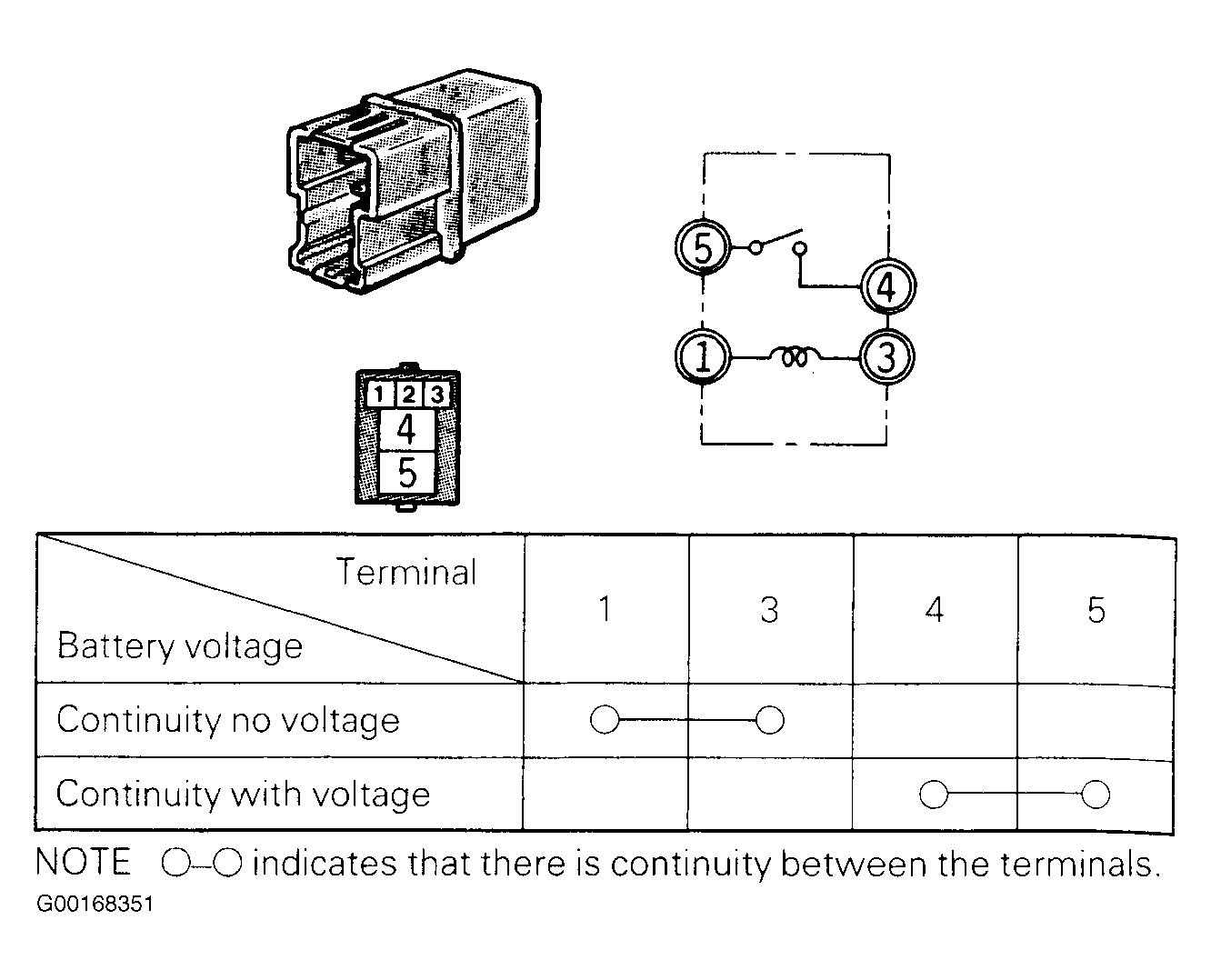

Fig 2: Testing Power Window Relay
G00168351Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
