Test 7: Diagnosing CCD Bus System

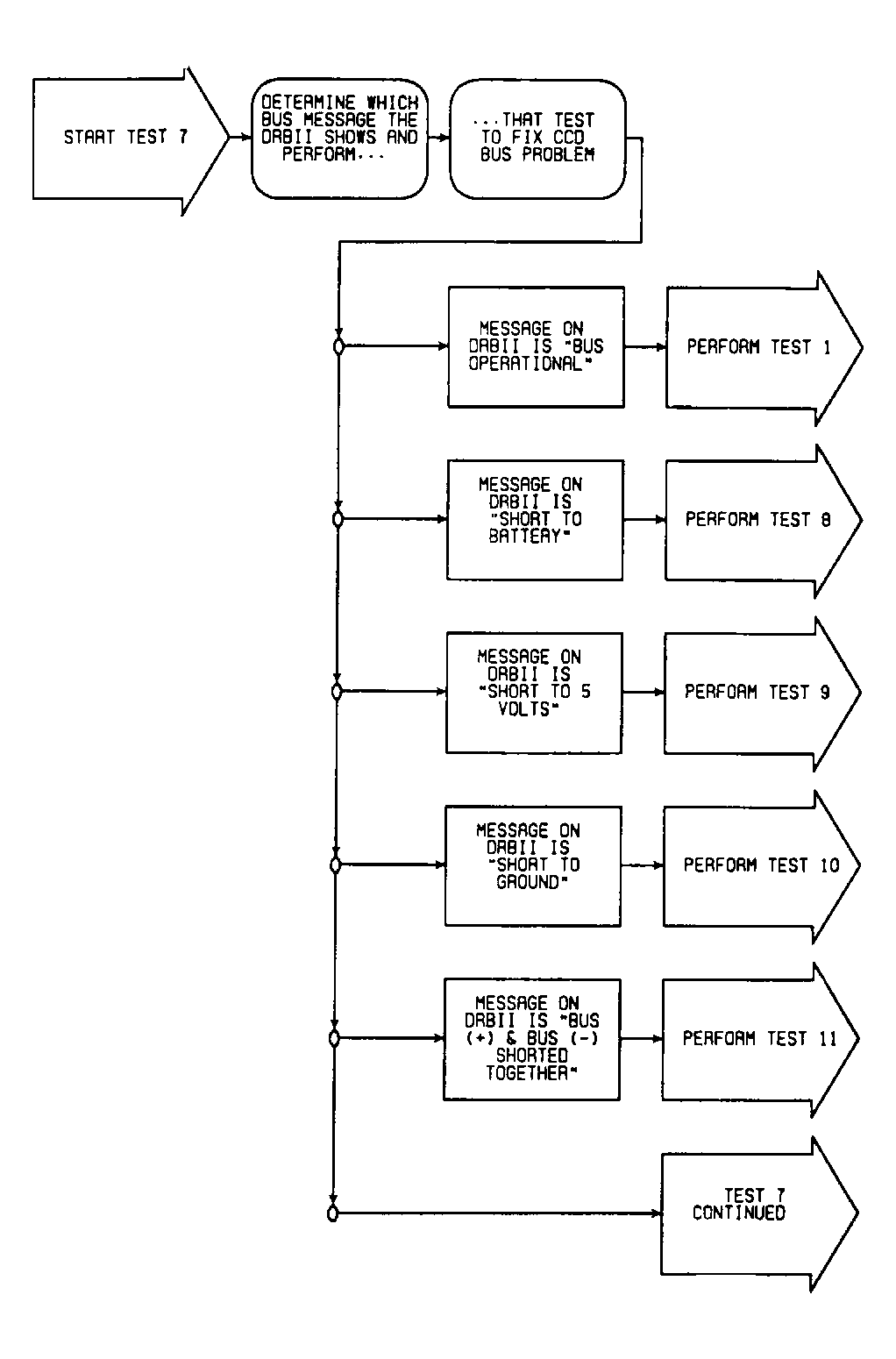

Fig 1: Test 7 Flow Chart (1 of 2)

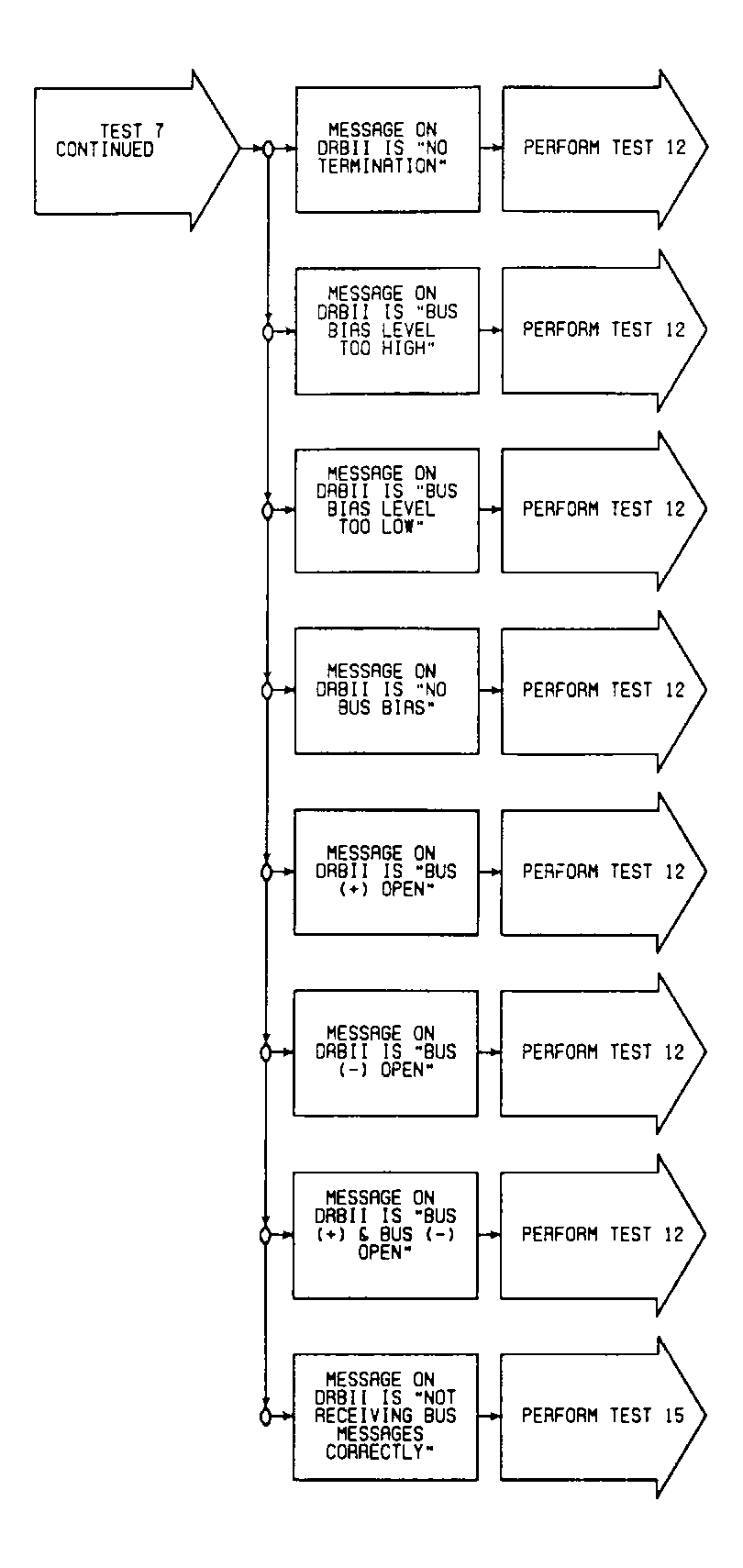

Fig 2: Test 7 Flow Chart (2 of 2)
