Dr41: Checking O2 Sensor & Heater Function

Fig 1: DR41: Circuit Diagram

G90E13817

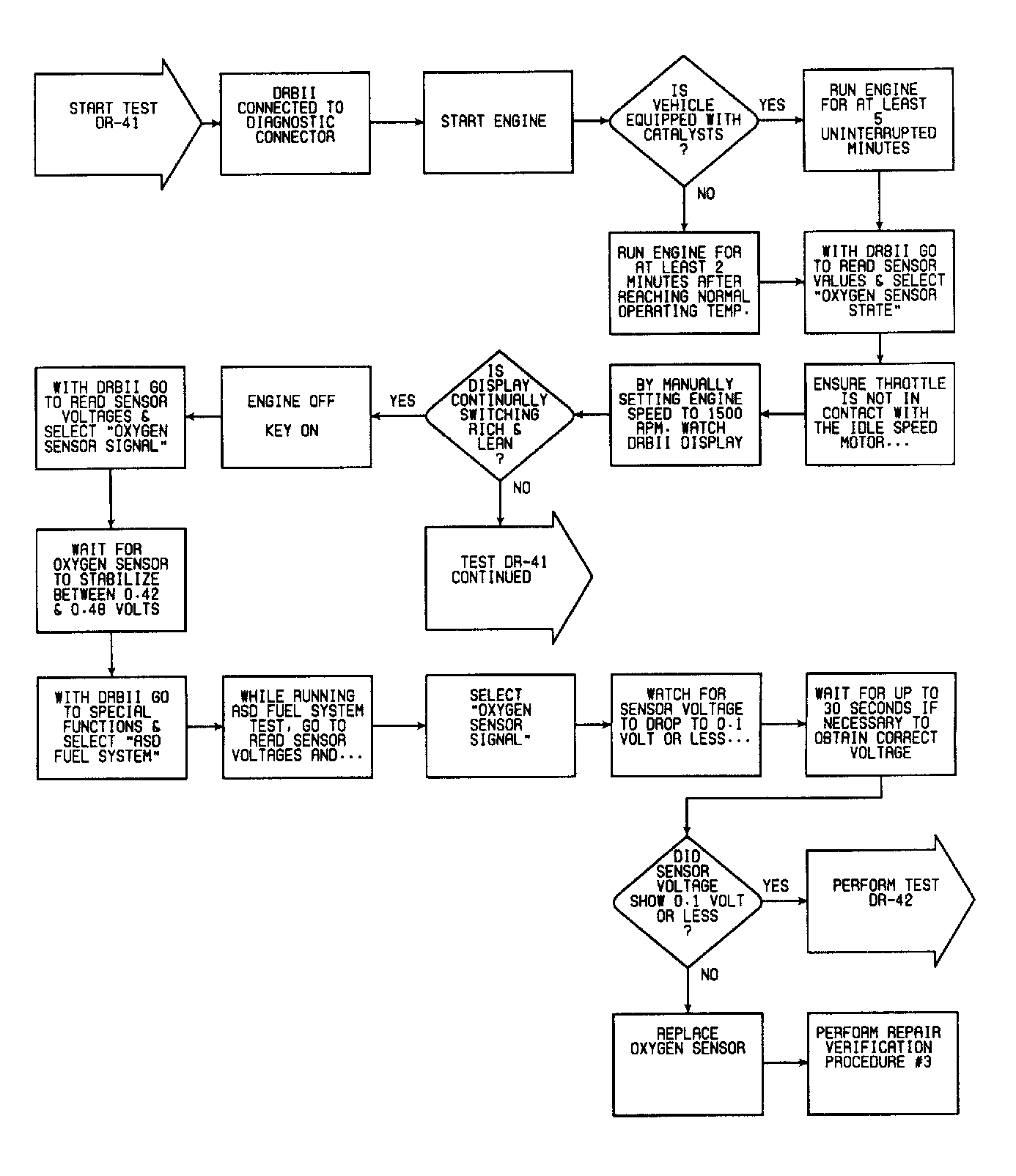

Fig 2: DR41: Flow Chart (1 of 2)

G90C13880

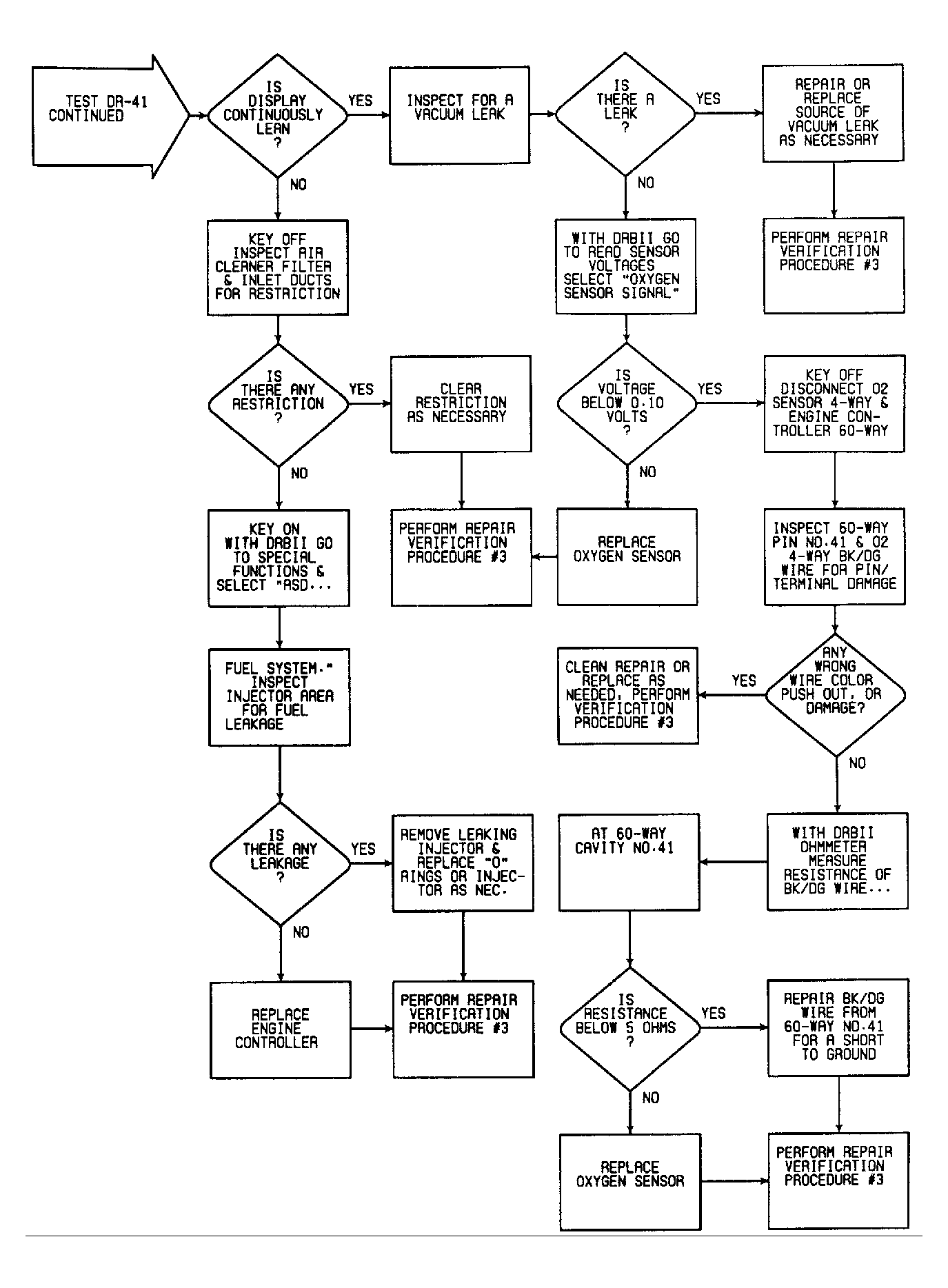

Fig 3: DR41: Flow Chart (2 of 2)

G90E13882
