Dodge and Ram
>>
1990
>>
Colt Base
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
Component Tests (Sedan)
>>
Power Window Switch
Power Window Switch

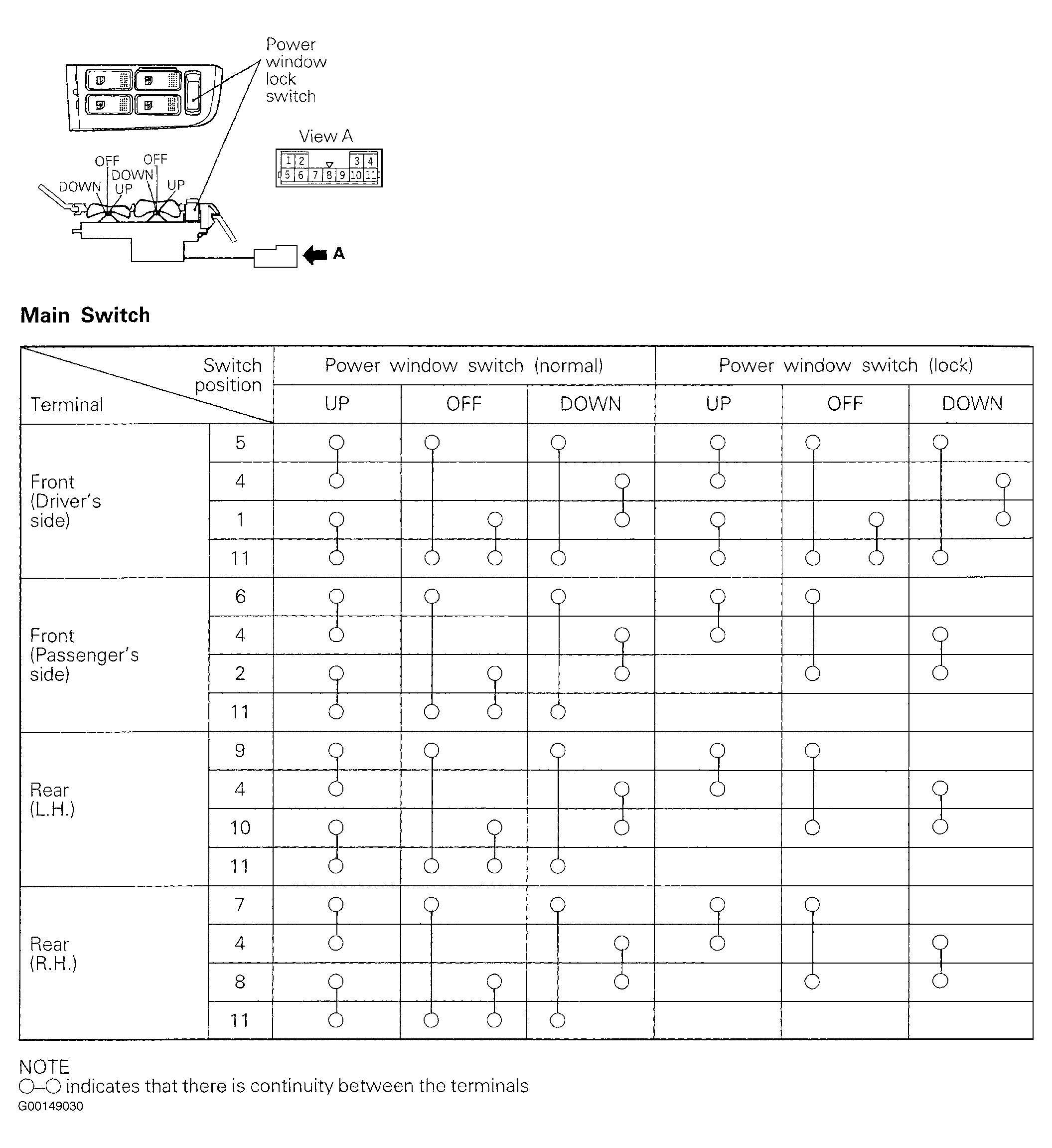

Fig 1: Power Window Main Switch Continuity Test
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
