Brush Holder Test

  1. When testing brushes and brush springs, ensure brushes move smoothly in brush holder. If brushes stick, replace brush holder assembly.
  2. Using an ohmmeter, touch one test lead to inner brush and other test lead to field terminal. If there is no continuity, replace brush assembly. Using an ohmmeter, touch one test lead to outer brush and other test lead to field terminal. If there is no continuity, replace brush assembly. See Fig 1.

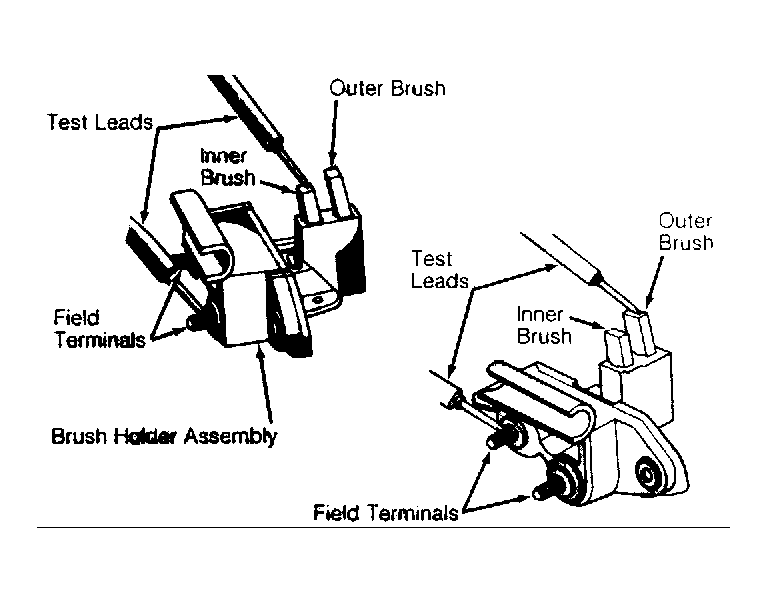

Fig 1: Testing Inner & Outer Brush Circuit
G117005Courtesy of CHRYSLER MOTORS.
