Test 59A - Bus Bias Level Too High

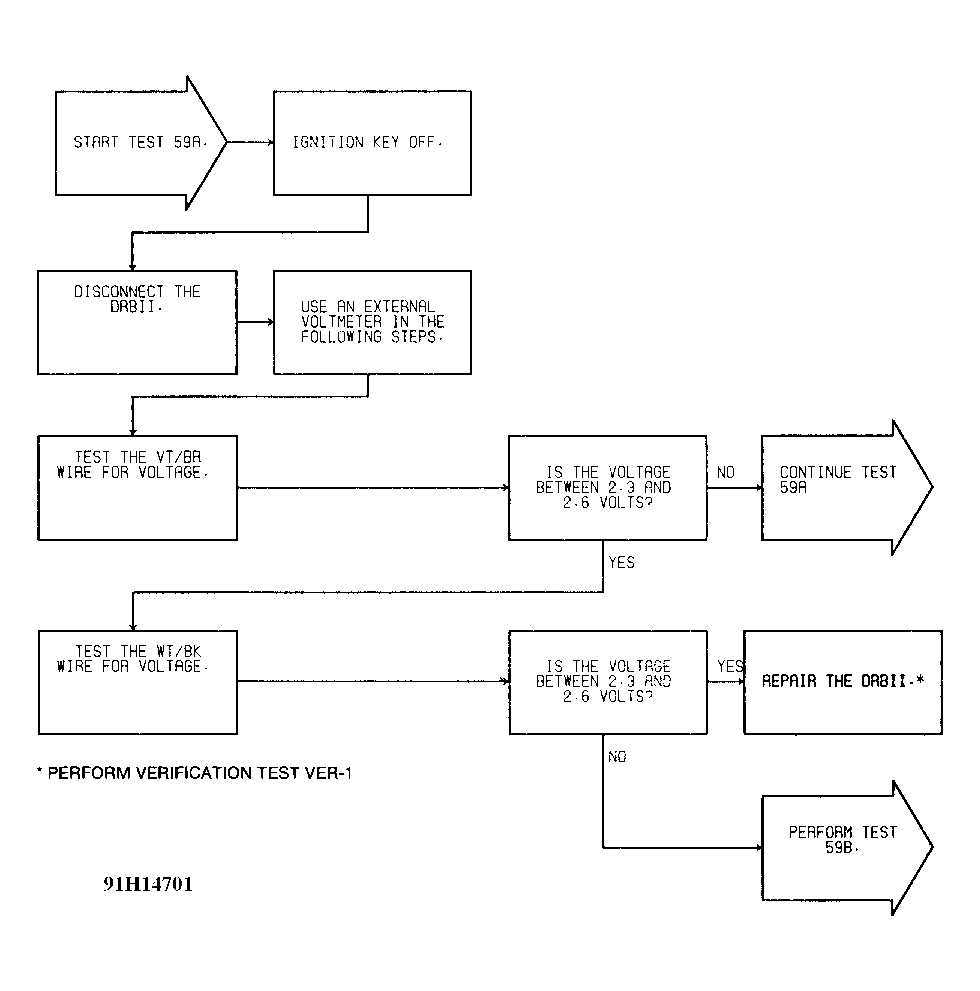

Fig 1: Test 59A (1 of 3) - Bus Bias Level Too High

G91H14701

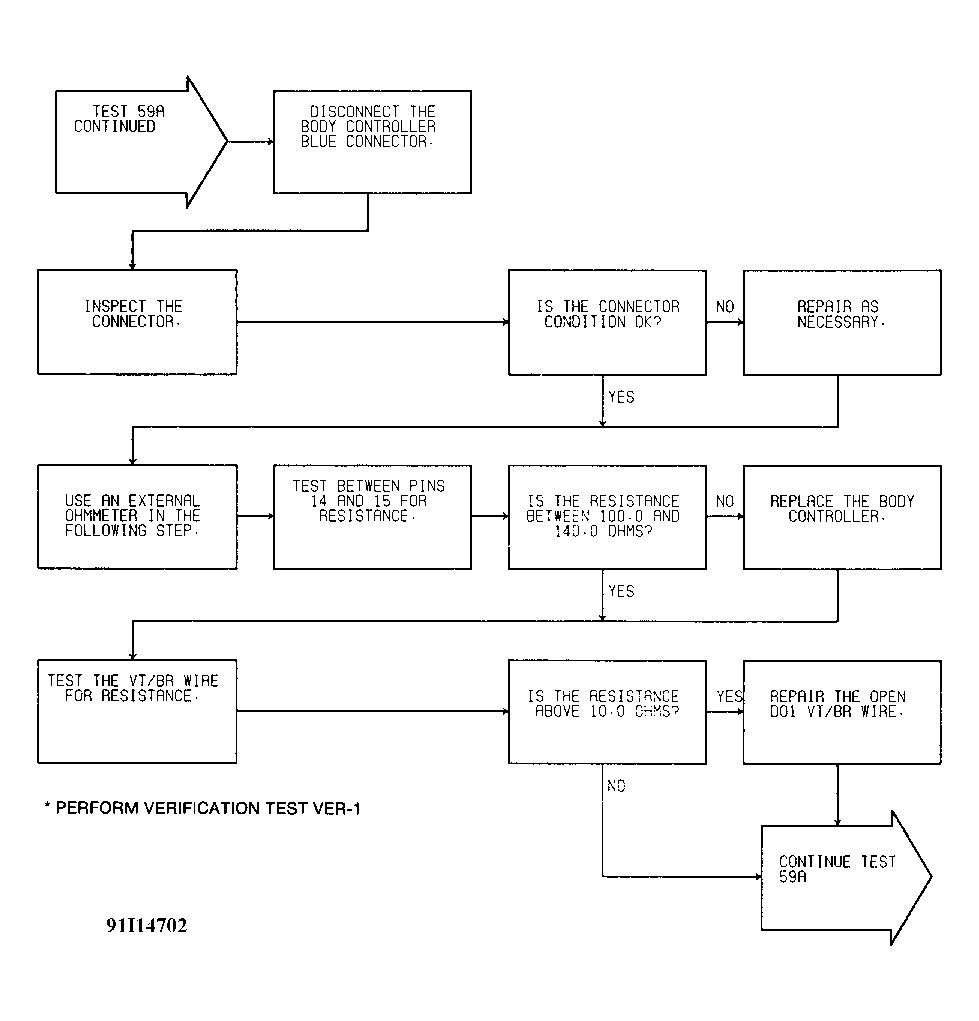

Fig 2: Test 59A (2 of 3) - Bus Bias Level Too High

G91I14702

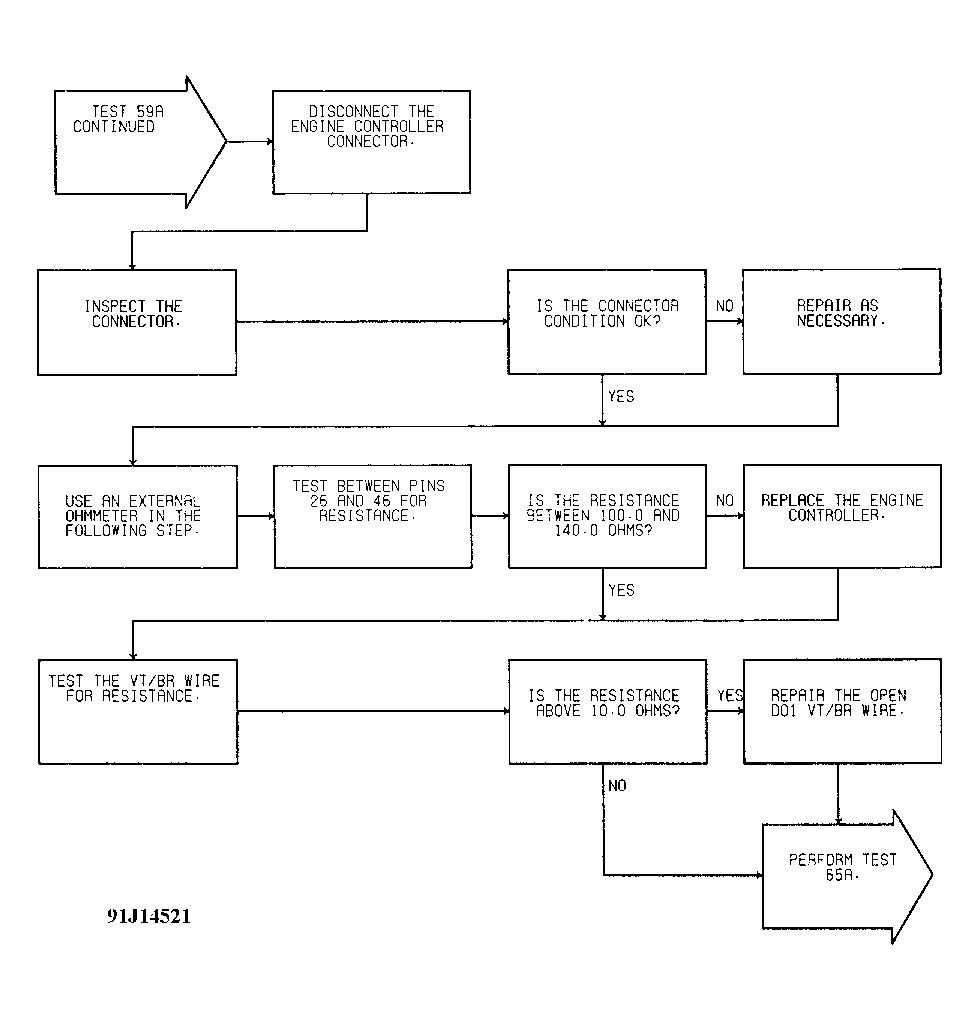

Fig 3: Test 59A (3 of 3) - Bus Bias Level Too High

G91J14521
