Dr-2 - Checking SMEC Controlled Components

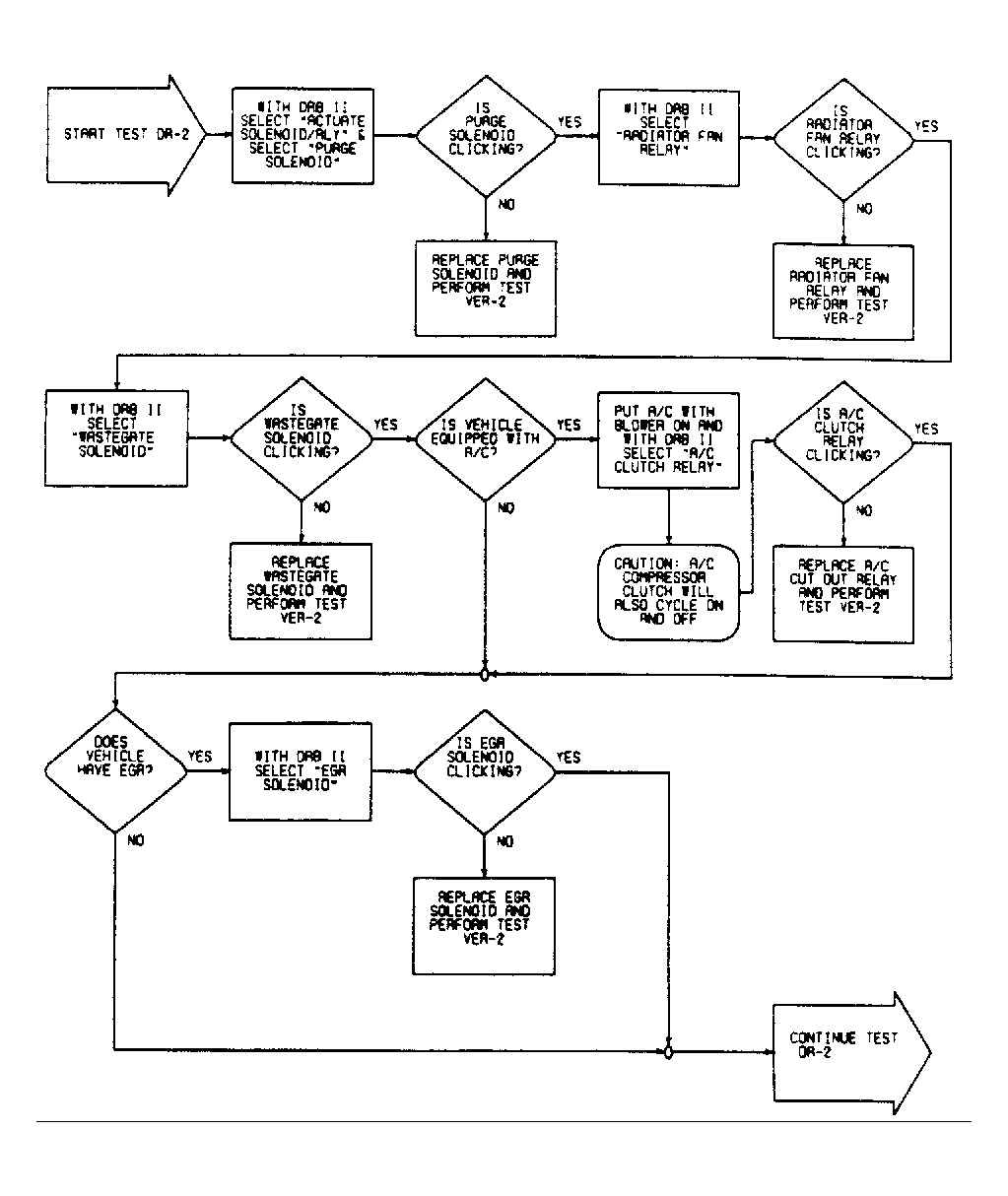

Fig 1: DR-2 Flow Chart (1 of 12), SMEC Controlled Components Check

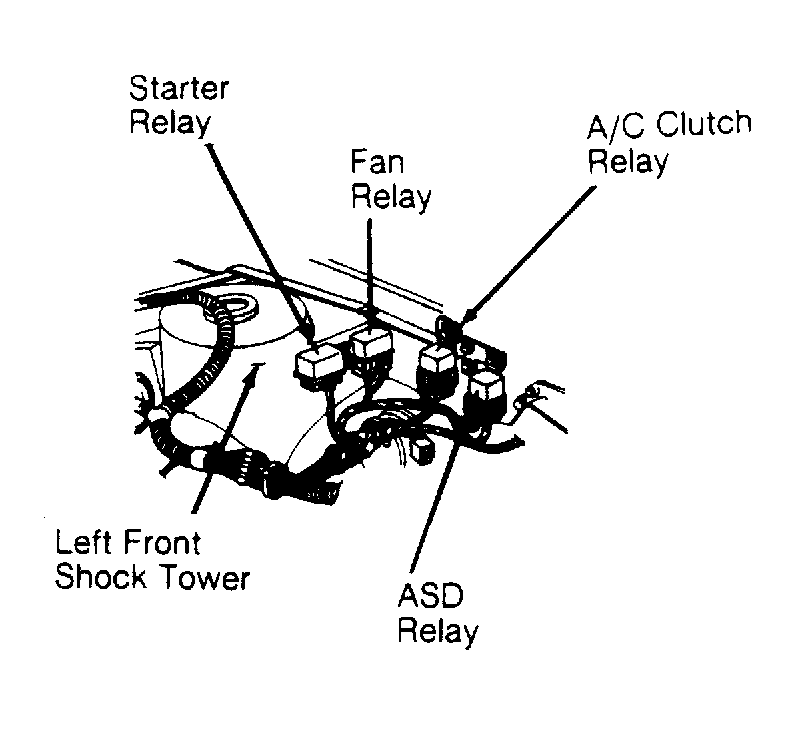

Fig 2: DR-2, Location of SMEC Controlled Relays

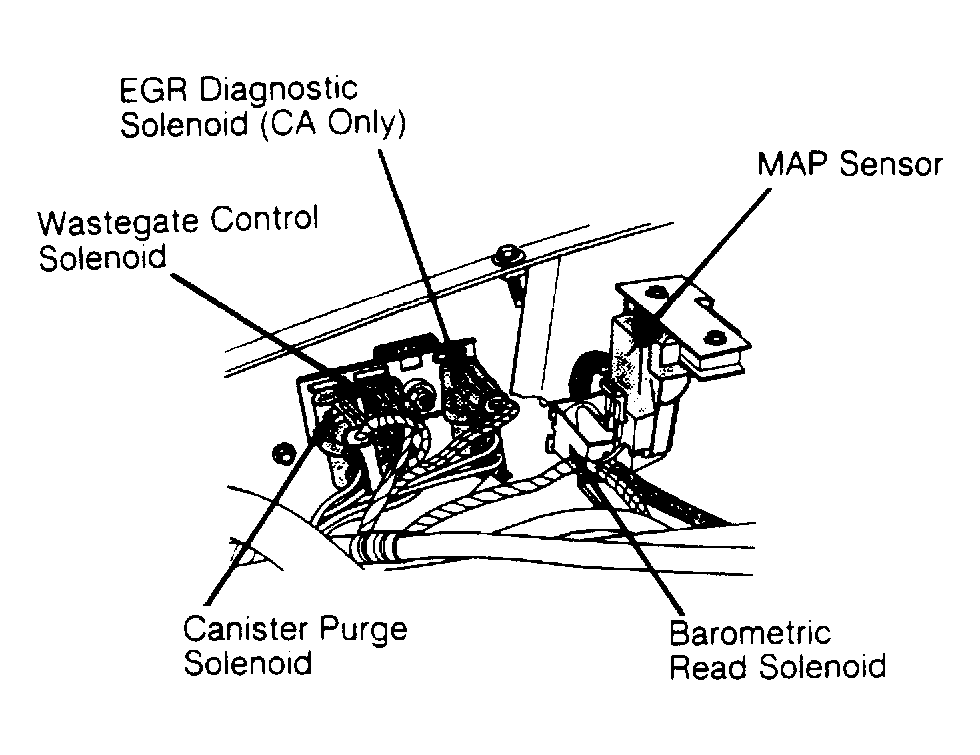

Fig 3: DR-2, Location of SMEC Controlled Solenoids & MAP Sensor

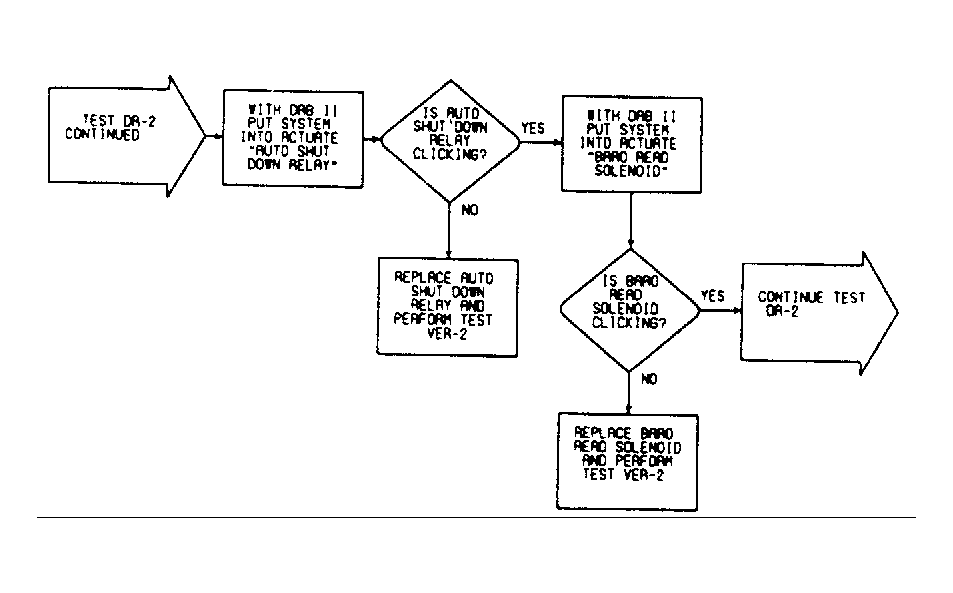

Fig 4: DR-2 Flow Chart (2 of 12), SMEC Controlled Components Check

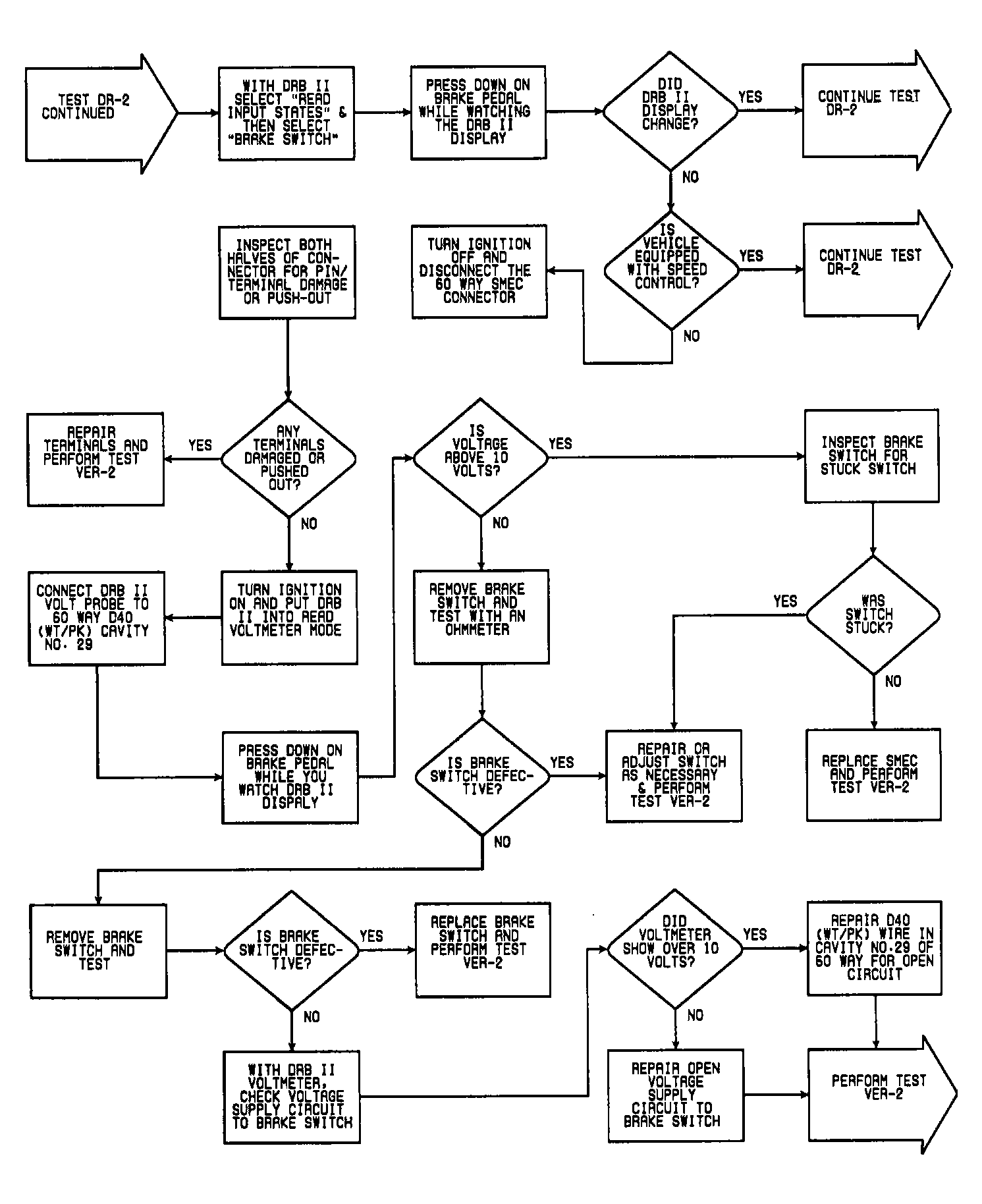

Fig 5: DR-2 Flow Chart (3 of 12), SMEC Controlled Components Check (Brake Switch Input Circuit)

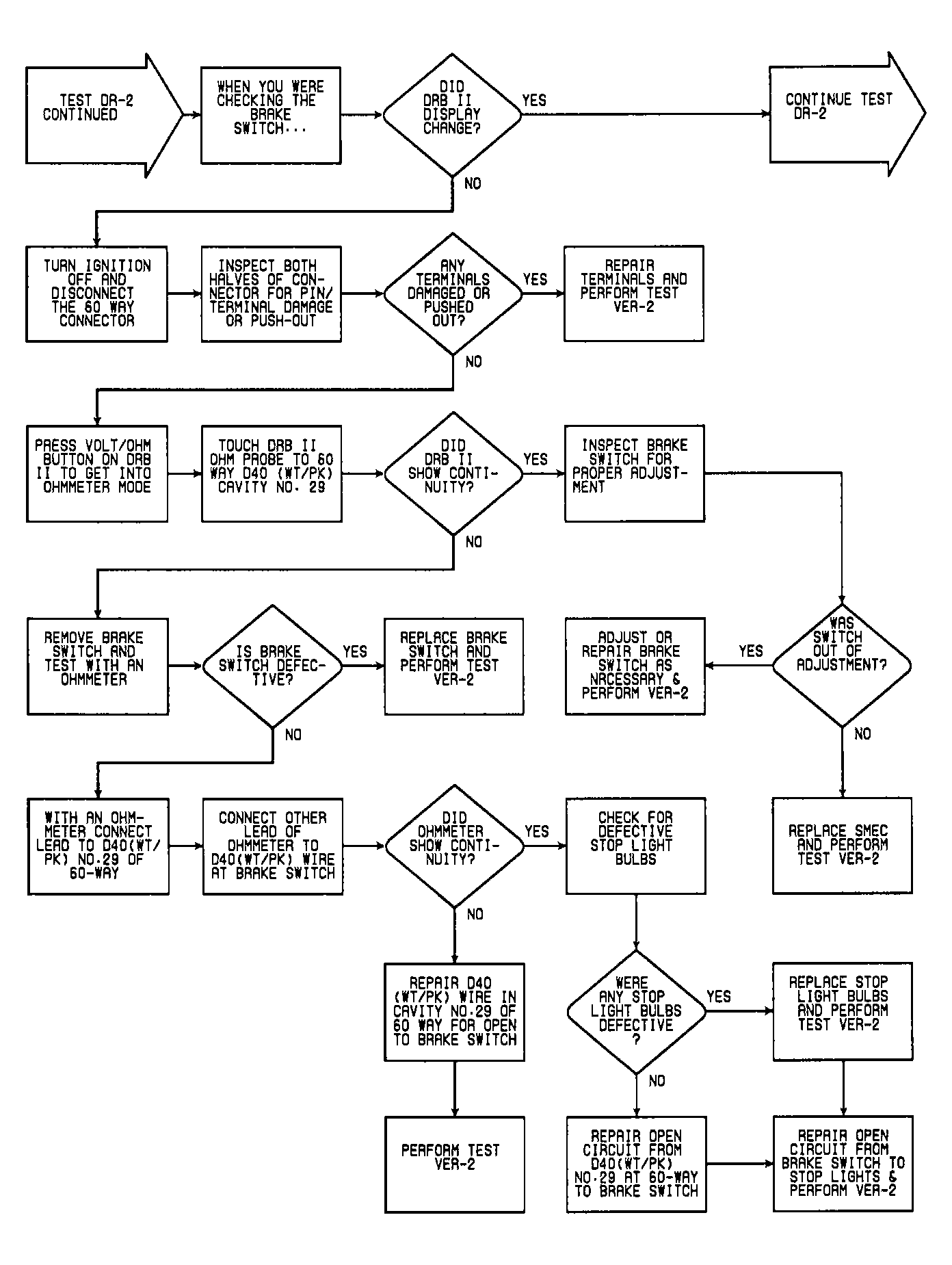

Fig 6: DR-2 Flow Chart (4 of 12), SMEC Controlled Components Check (Brake Switch Input Circuit)

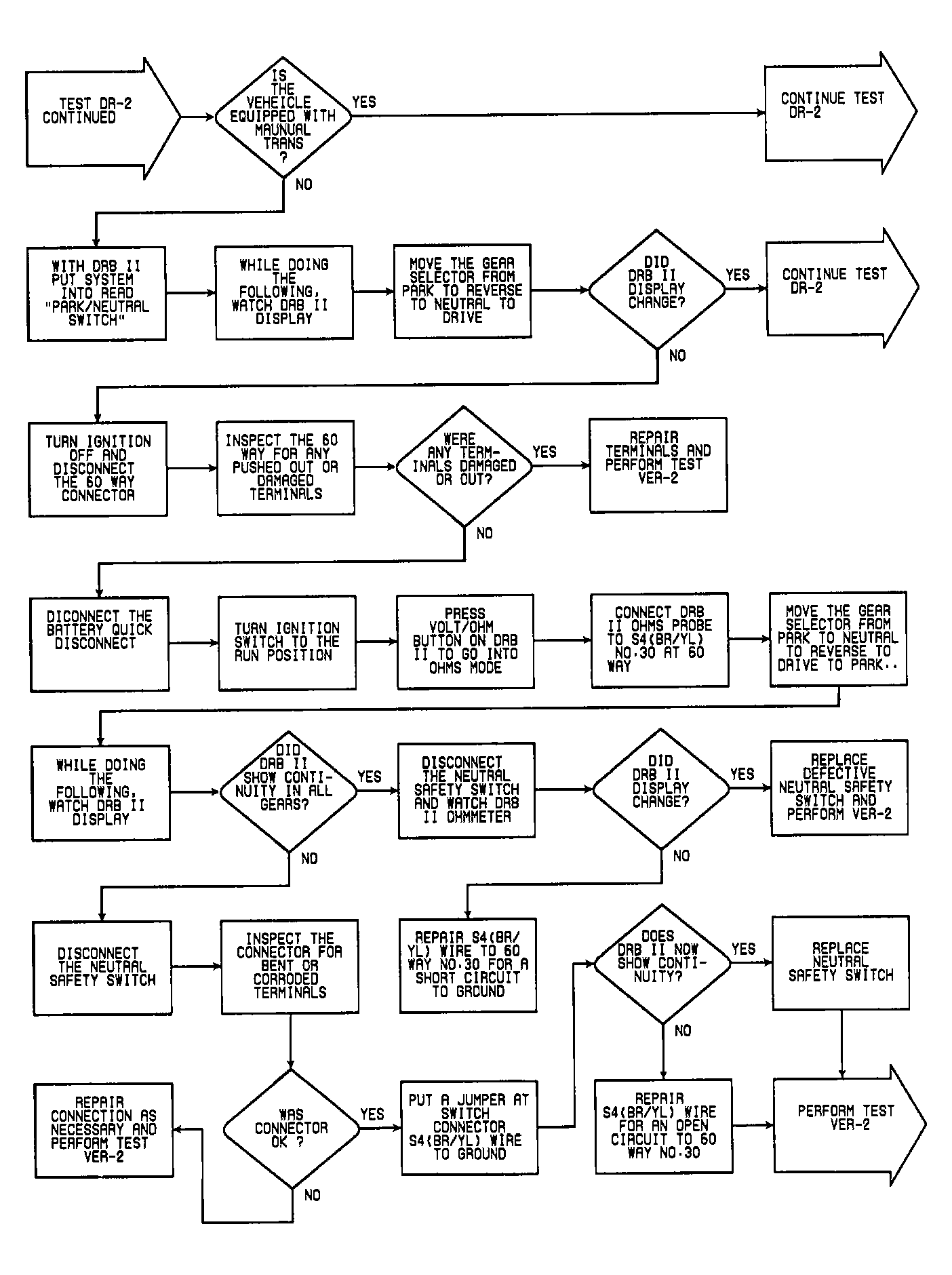

Fig 7: DR-2 Flow Chart (5 of 12), SMEC Controlled Components Check (Park/Neutral Switch input to SMEC)

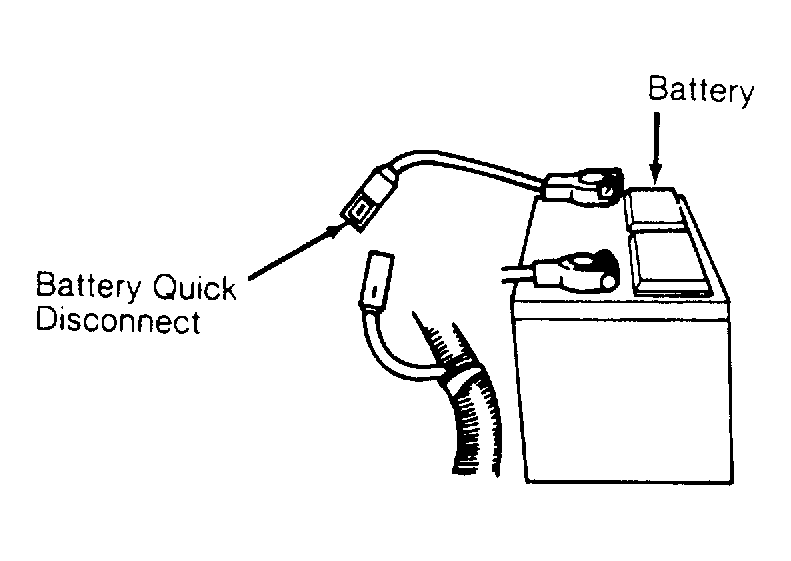

Fig 8: DR-2, Location of Battery Quick Disconnect Connector

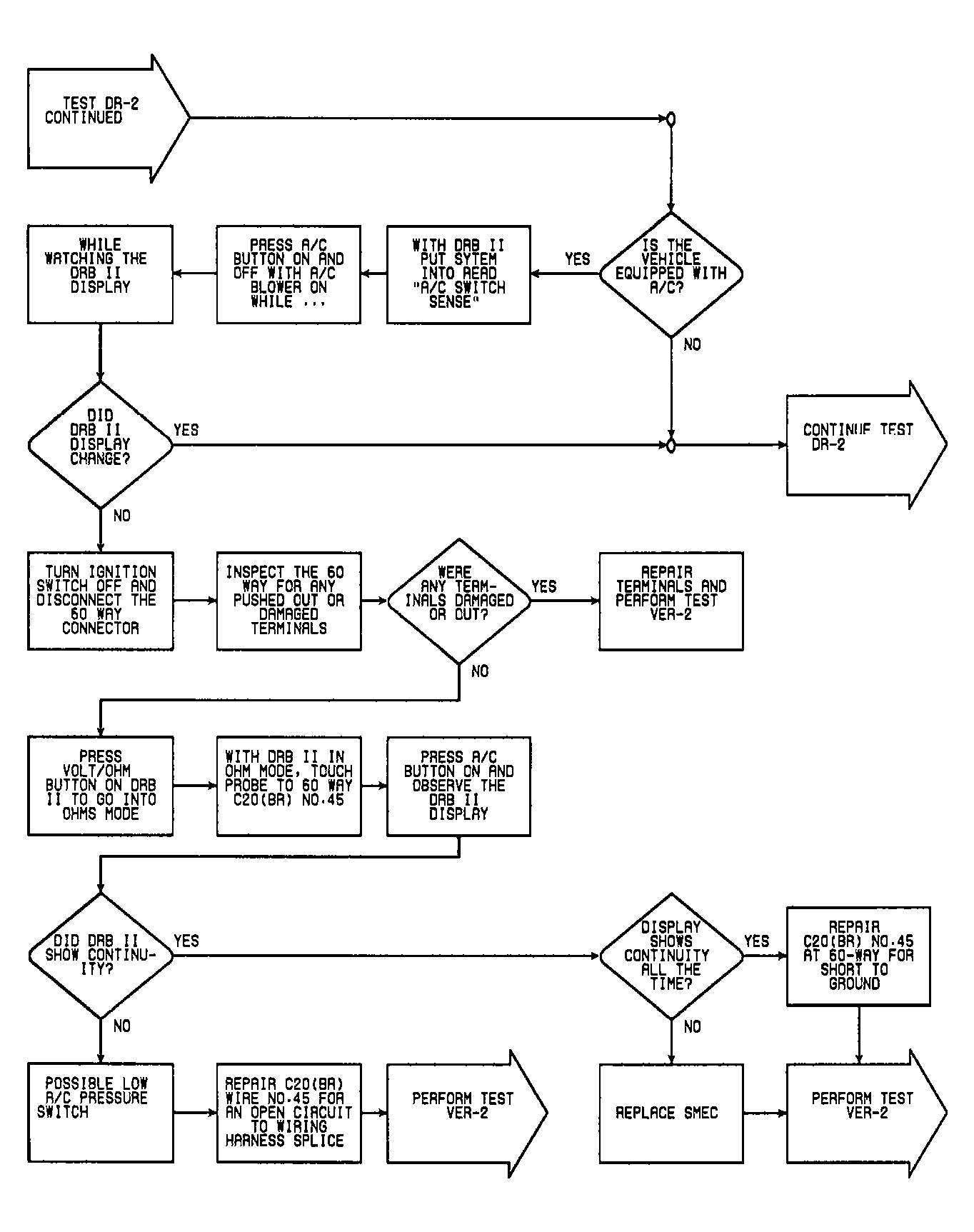

Fig 9: DR-2 Flow Chart (6 of 12), SMEC Controlled Components Check (A/C Push Button Switch input to SMEC)

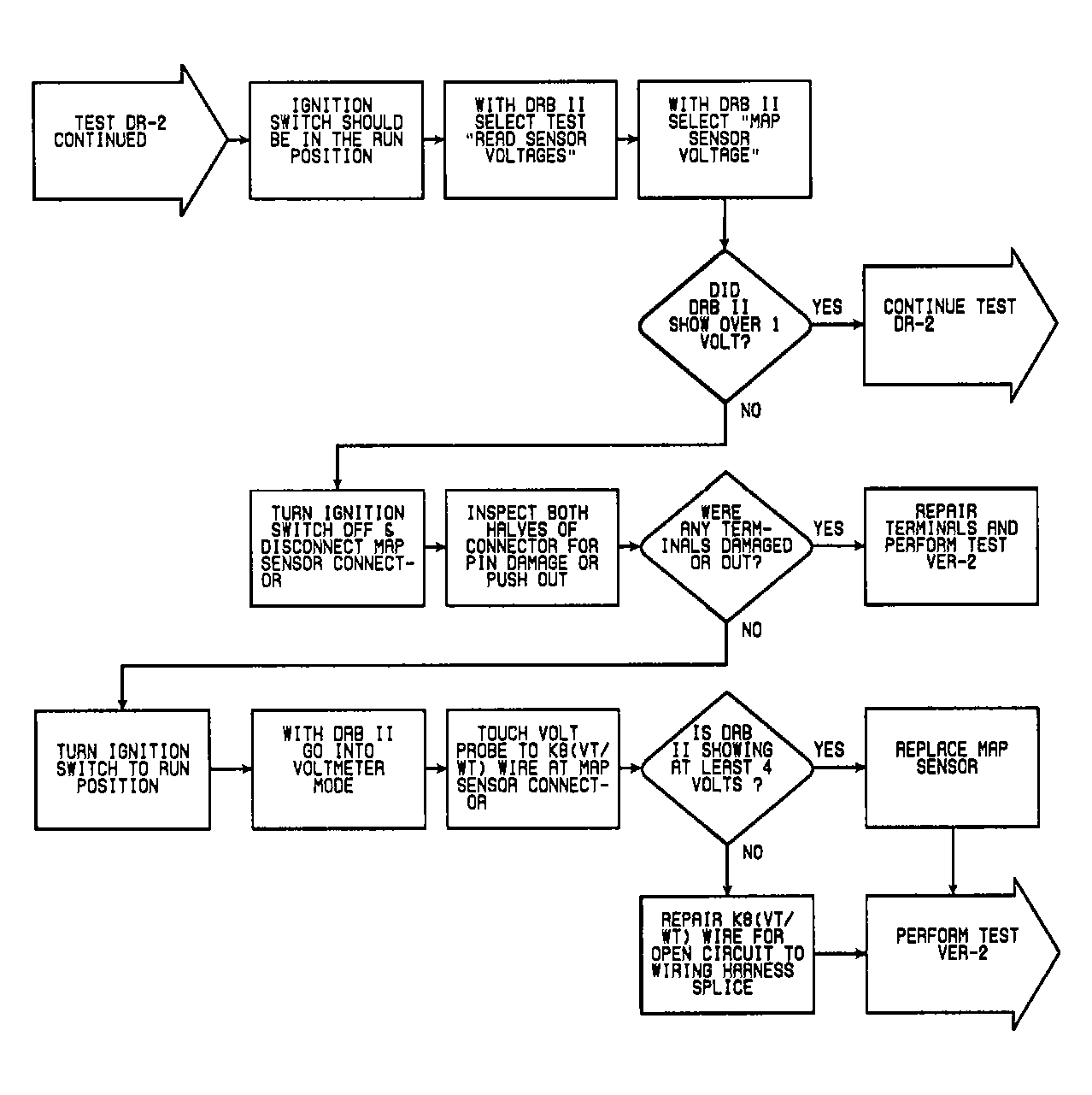

Fig 10: DR-2 Flow Chart (7 of 12), SMEC Controlled Components Check (5 Volt Supply to MAP Sensor)

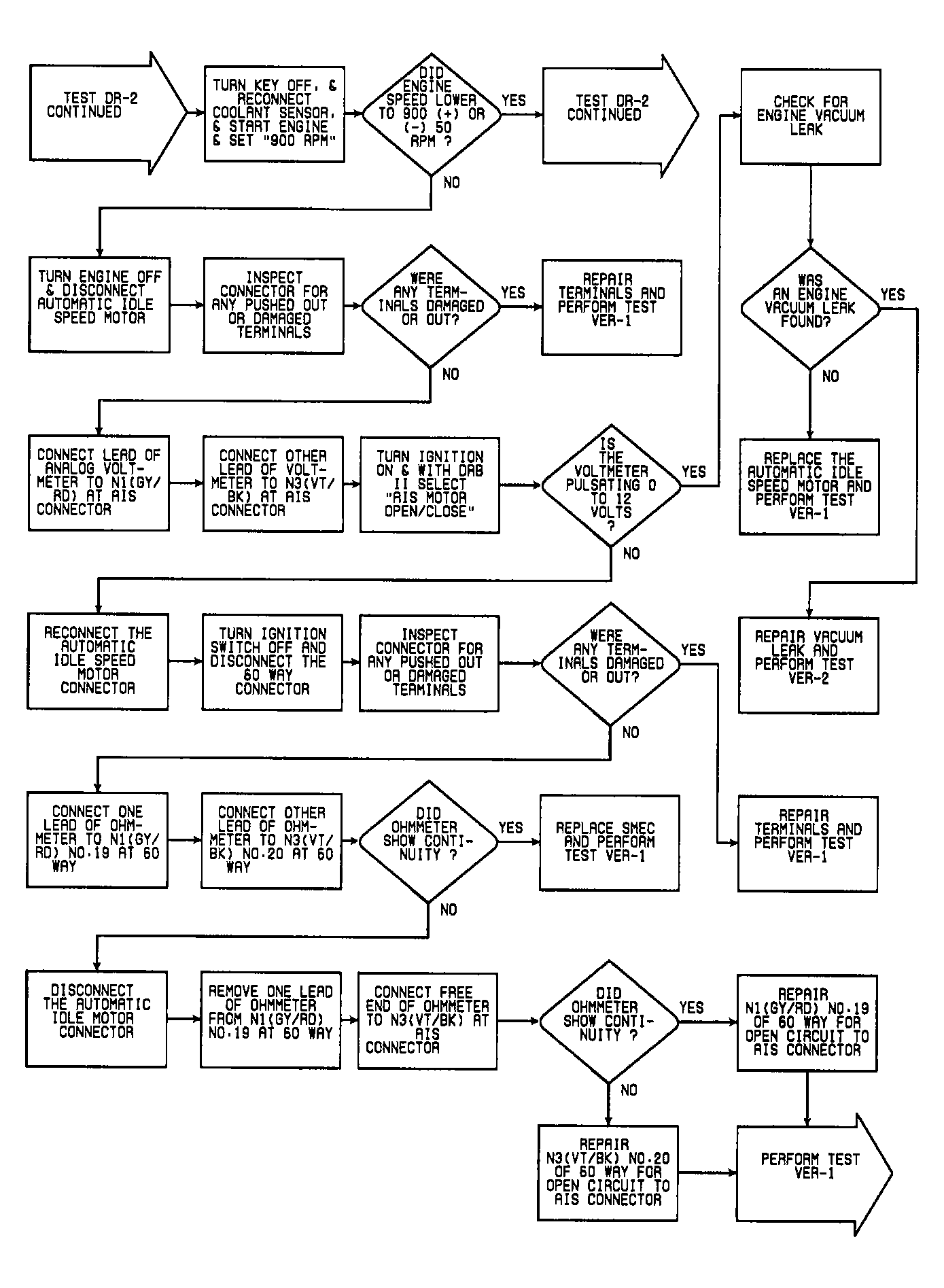

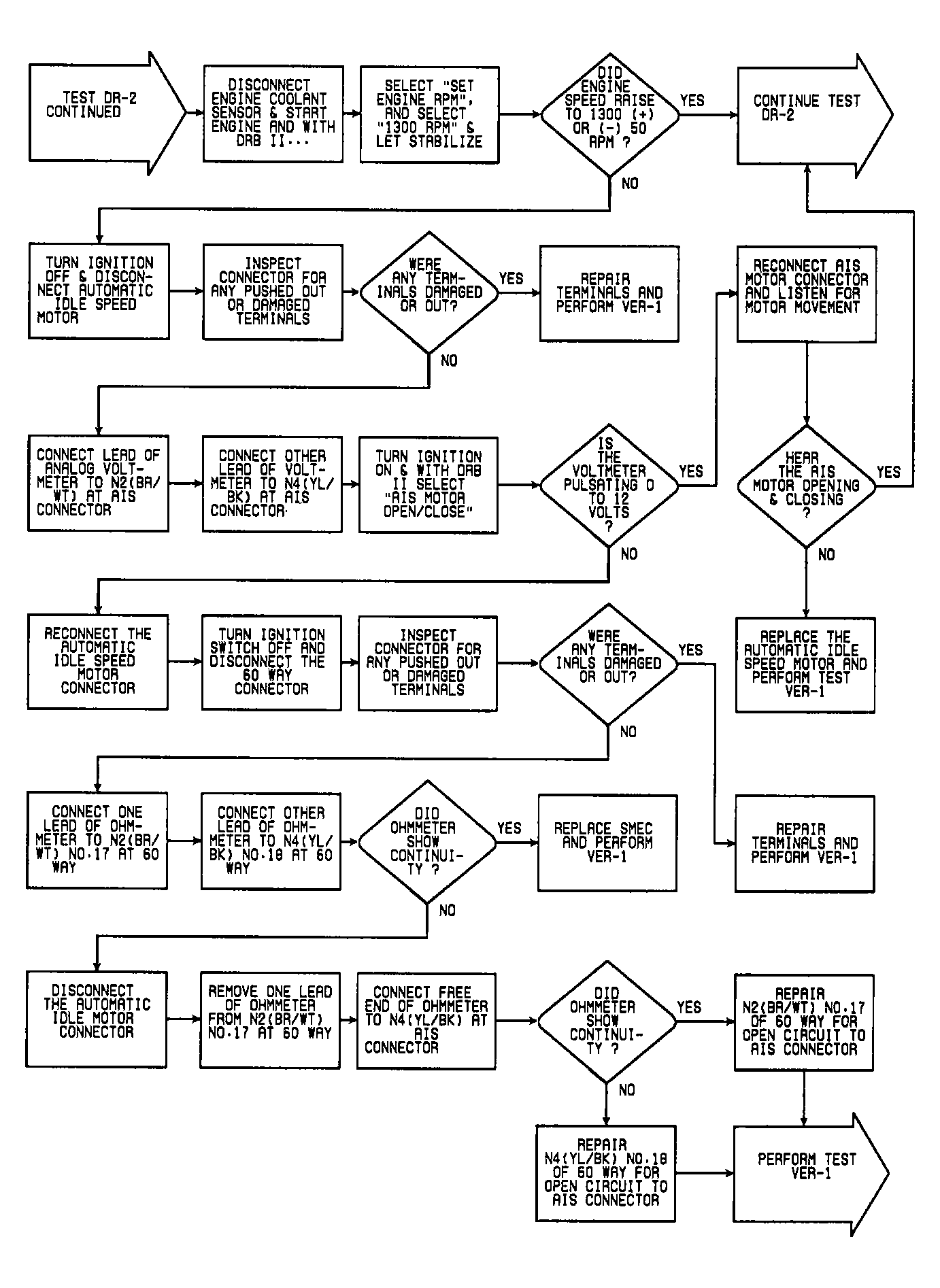

Fig 11: DR-2 Flow Chart (8 of 12), SMEC Controlled Components Check (AIS Motor Operation)

Fig 12: DR-2 Flow Chart (9 of 12), SMEC Controlled Components Check (AIS Motor Operation)

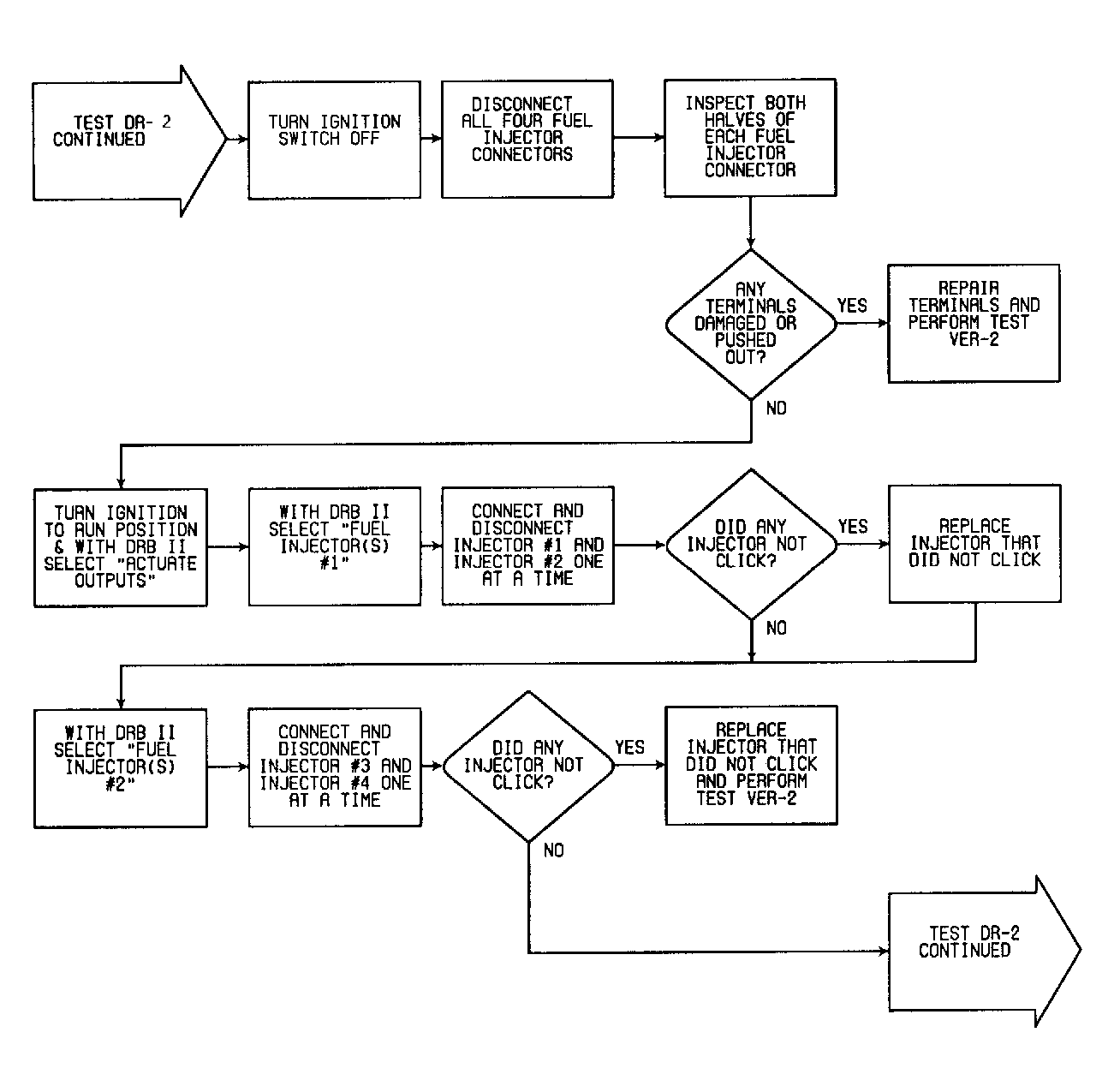

Fig 13: DR-2 Flow Chart (10 of 12), SMEC Controlled Components Check (Fuel Injectors)

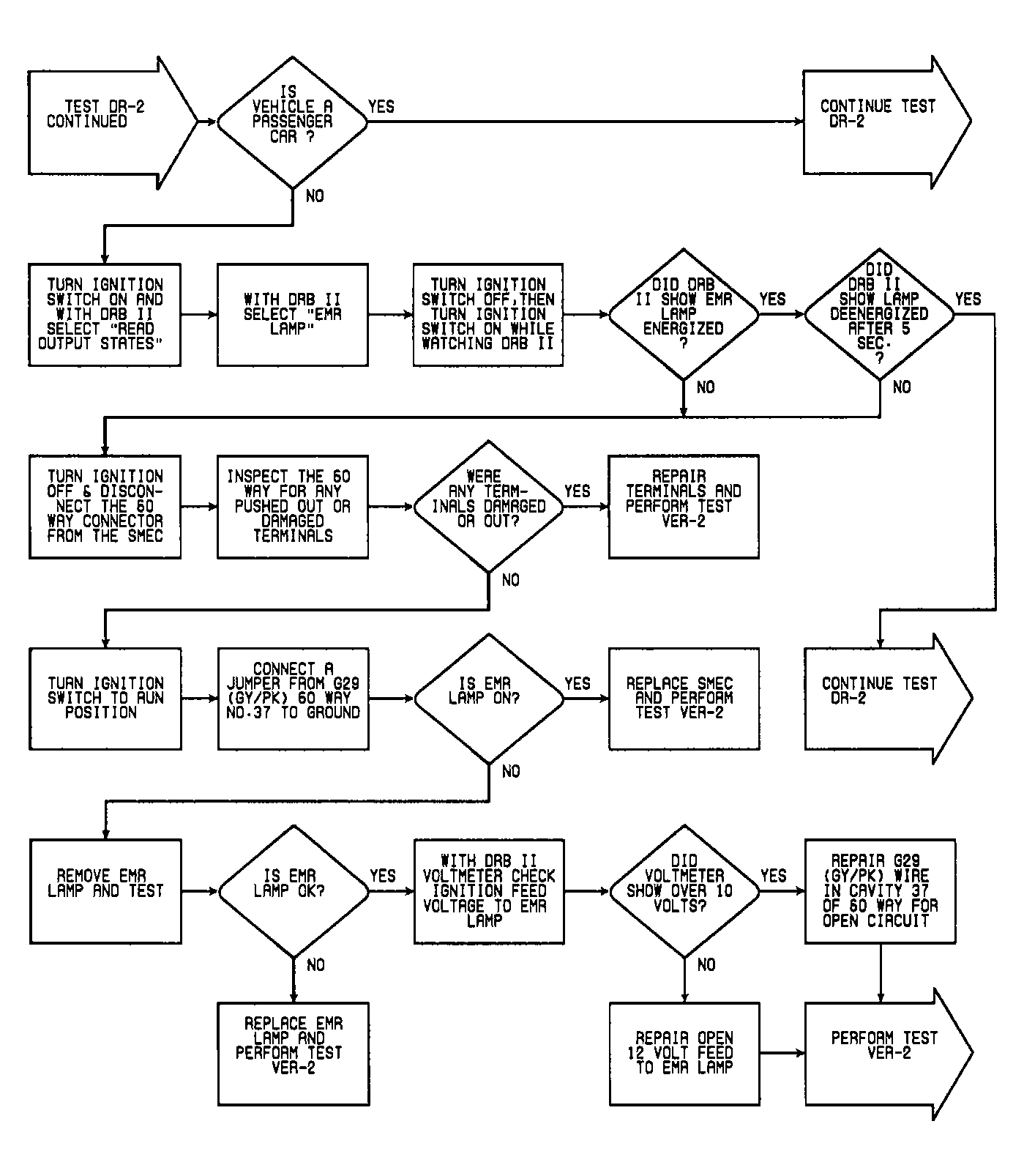

Fig 14: DR-2 Flow Chart (11 of 12), SMEC Controlled Components Check (Emissions Maintenance Reminder Light)

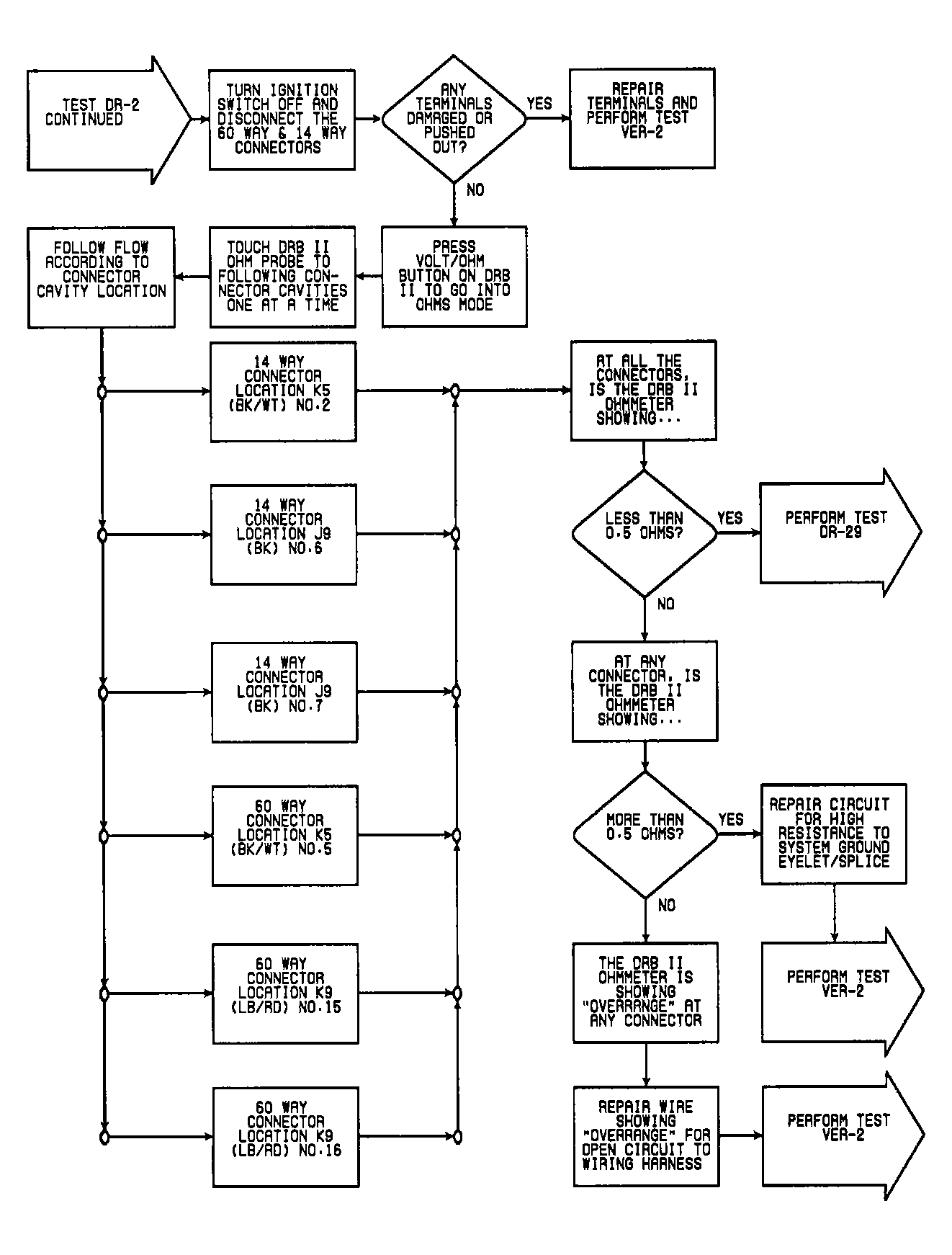

Fig 15: DR-2 Flow Chart (12 of 12), SMEC Controlled Components Check (SMEC Ground Circuits)

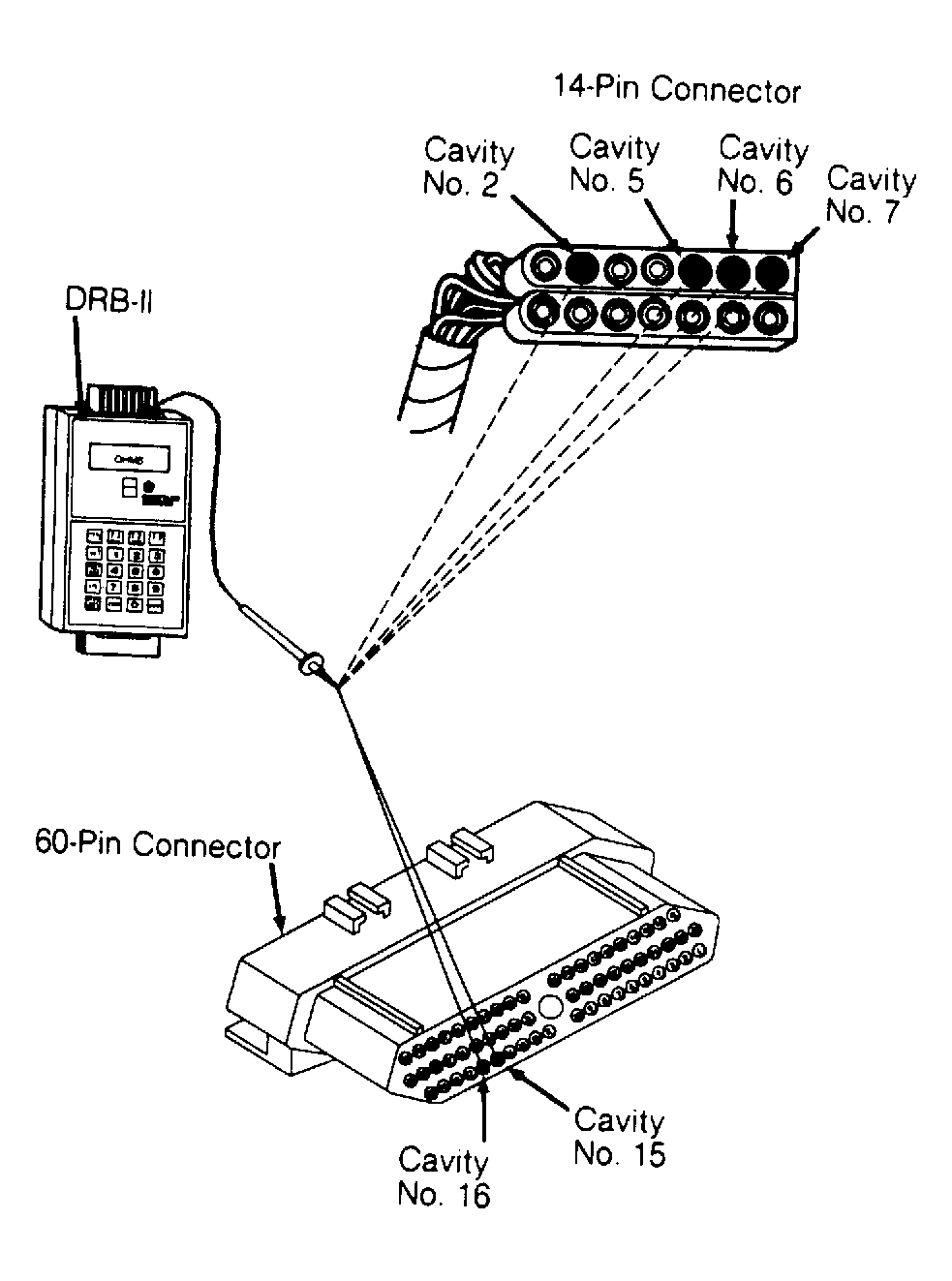

Fig 16: DR-2 Testing SMEC Controlled Components With DRB-II
