Dr-1 - Fault Code Check

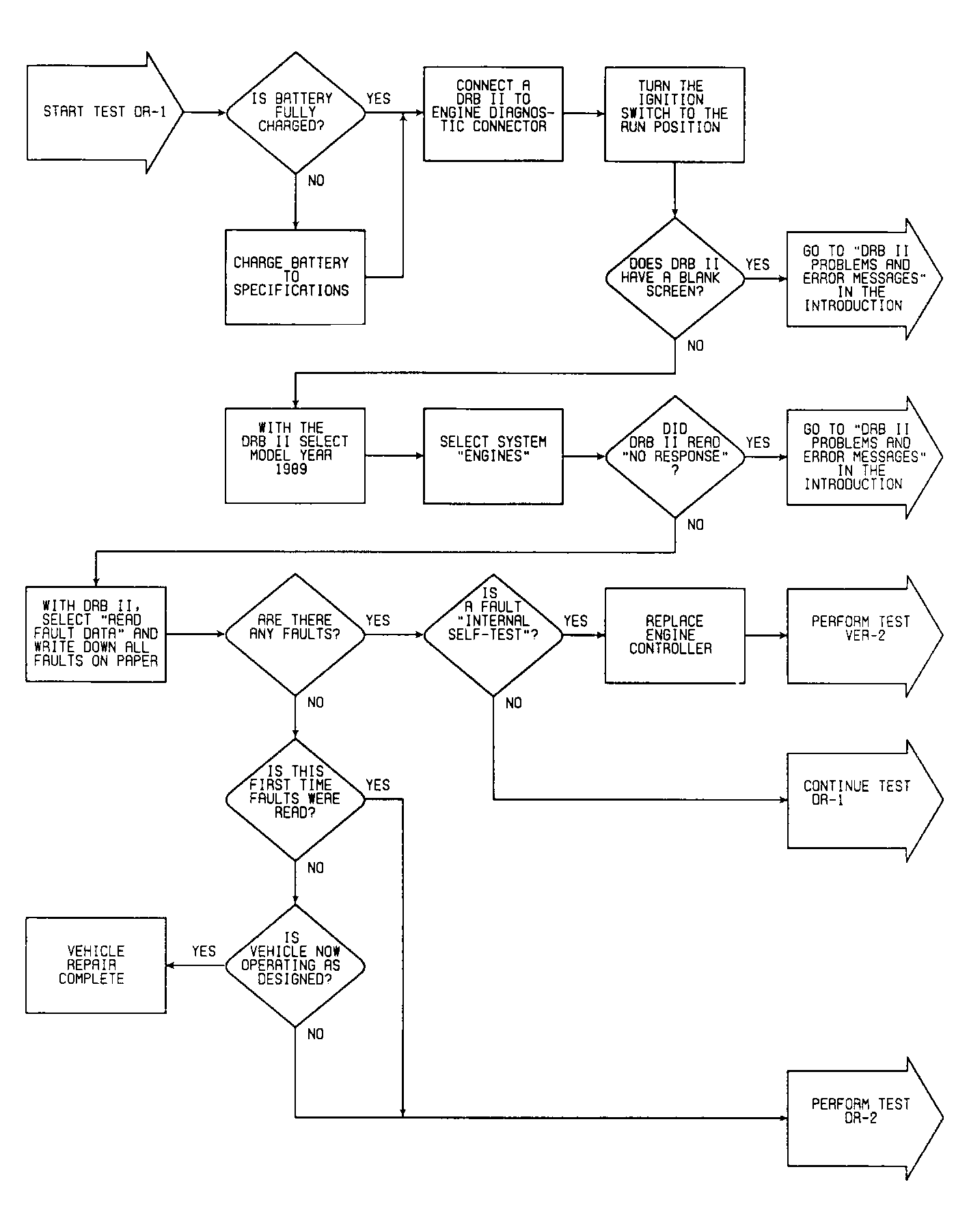

Fig 1: DR-1 Flow Chart (1 of 12), Checking System For Faults

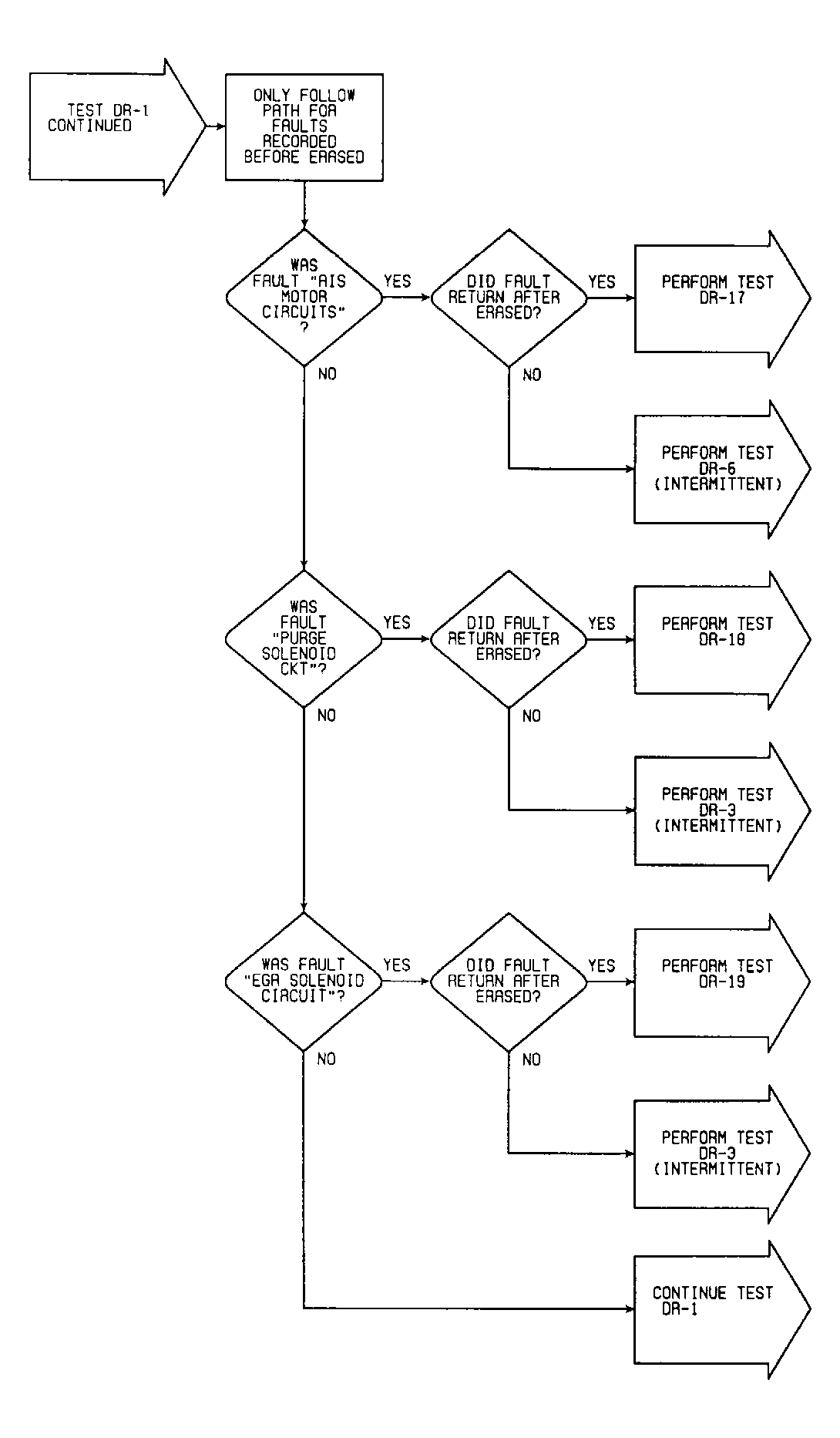

Fig 2: DR-1 Flow Chart (2 of 12), Checking System For Faults

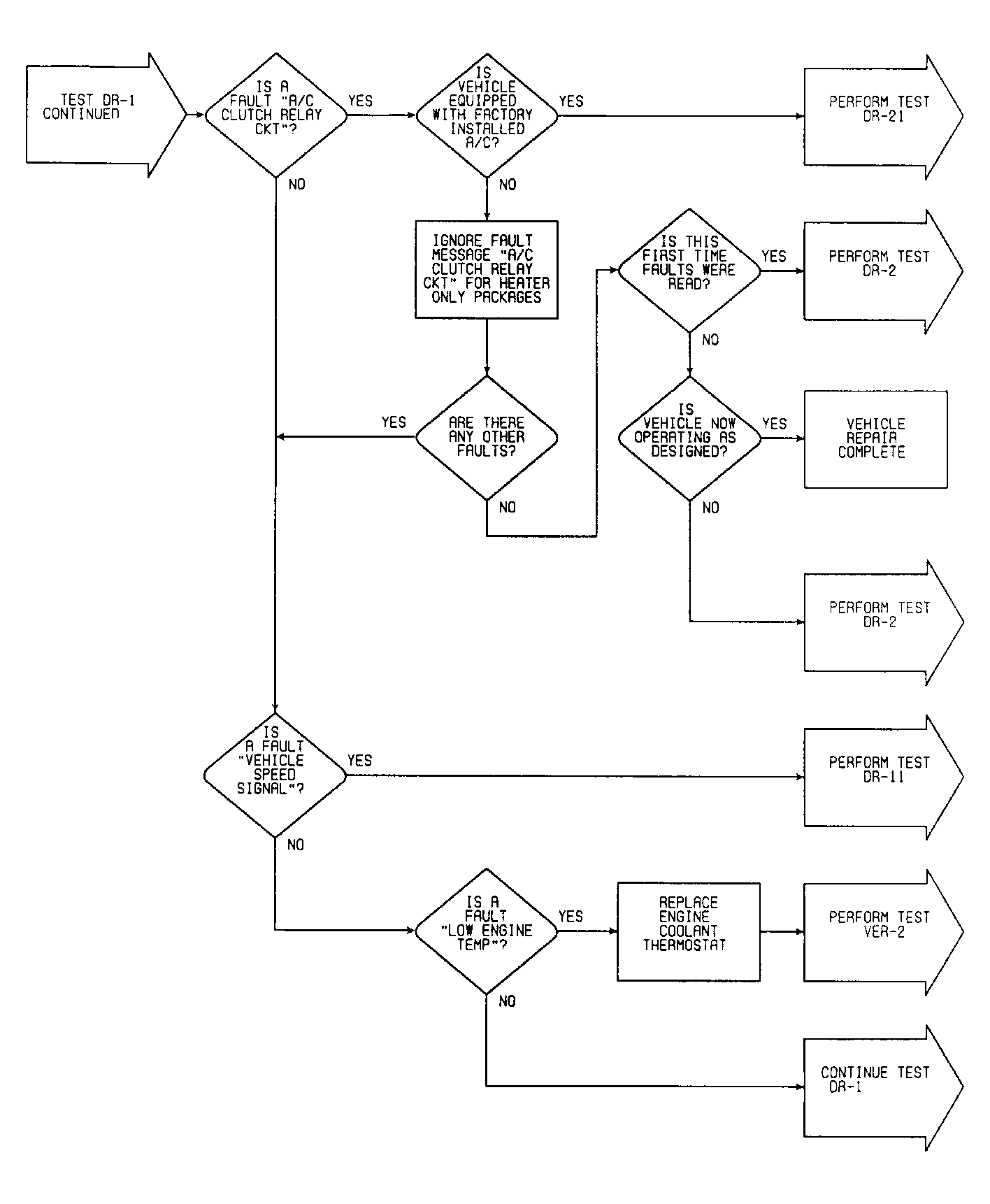

Fig 3: DR-1 Flow Chart (3 of 12), Checking System For Faults

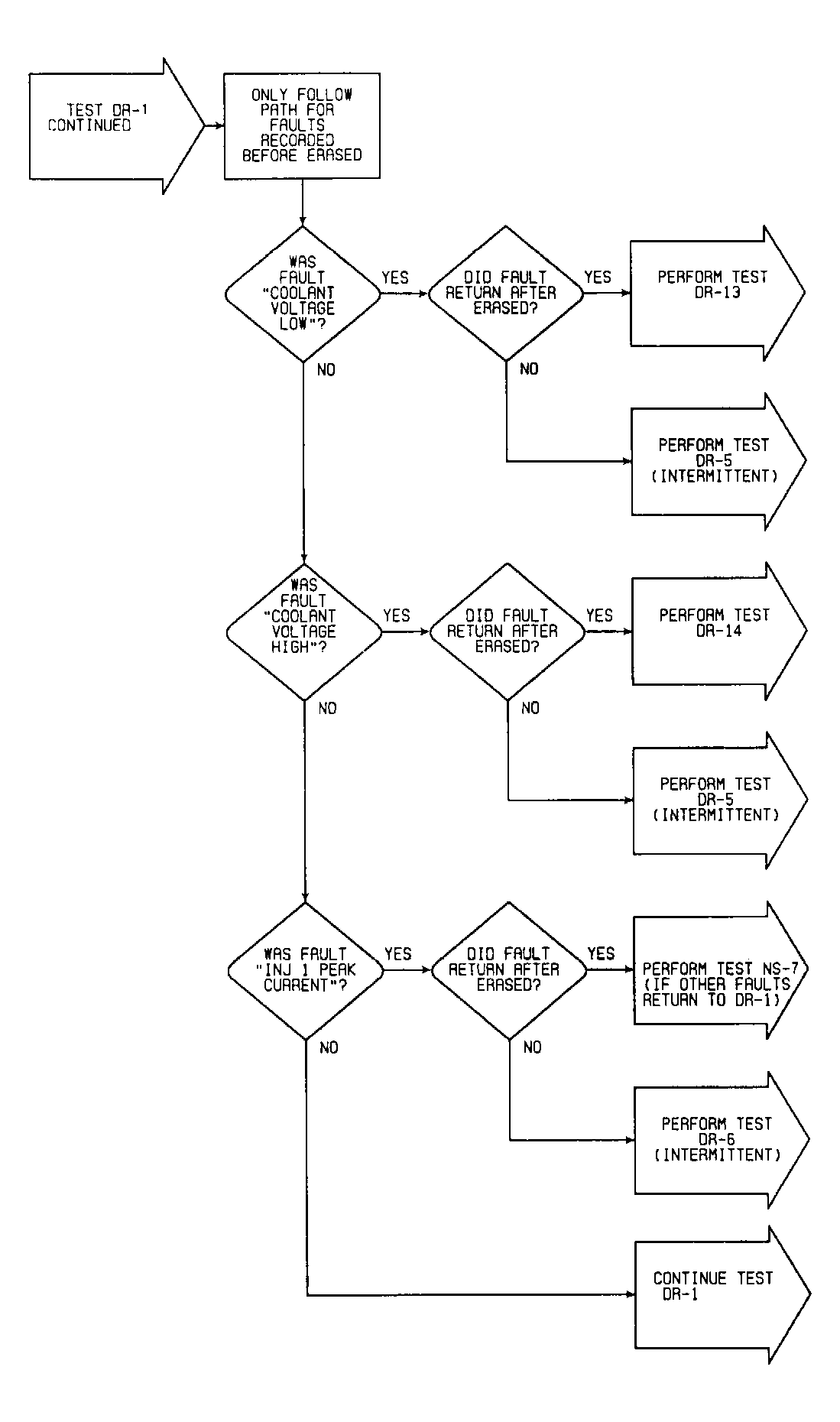

Fig 4: DR-1 Flow Chart (4 of 12), Checking System For Faults

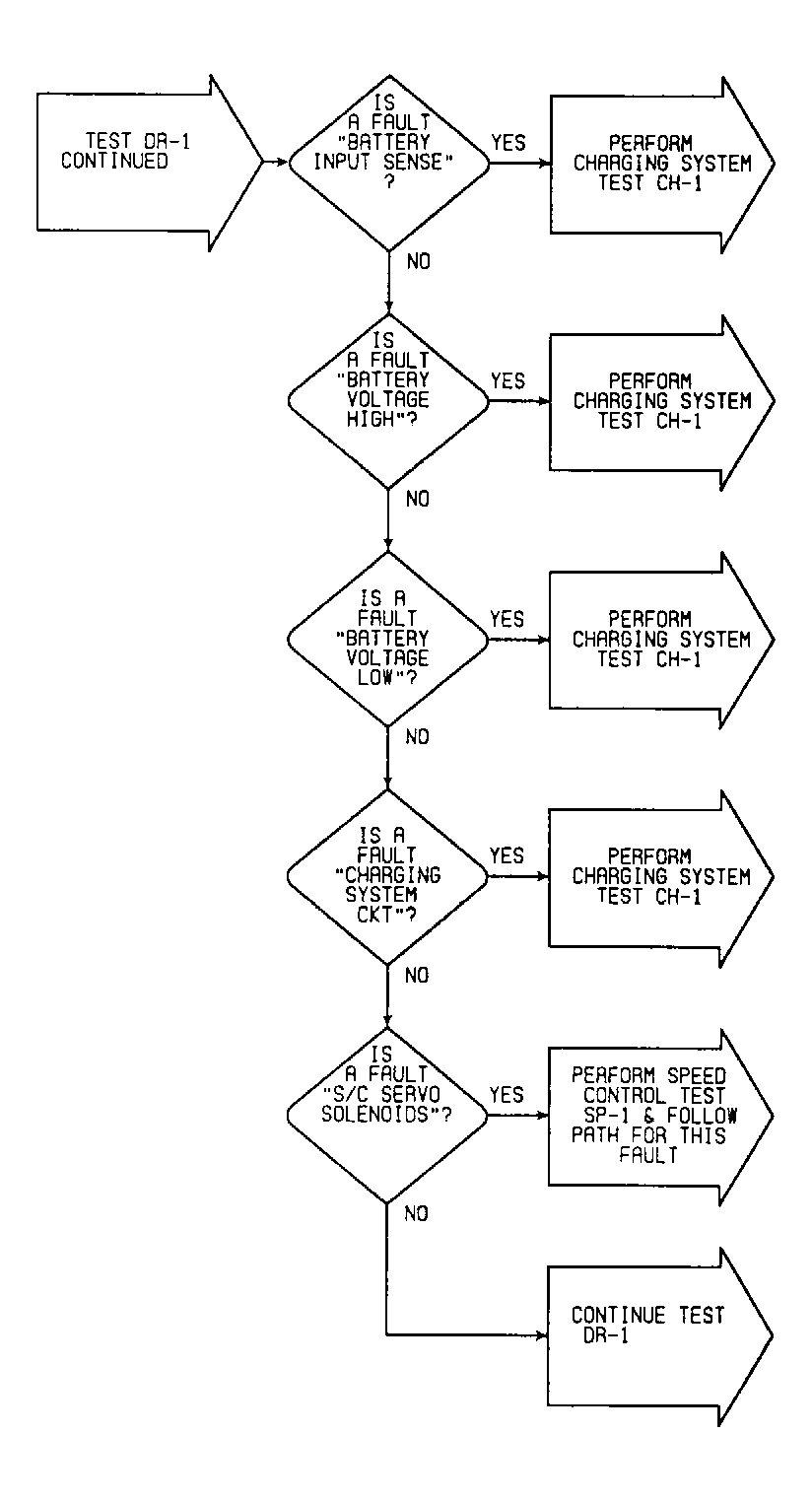

Fig 5: DR-1 Flow Chart (5 of 12), Checking System For Faults

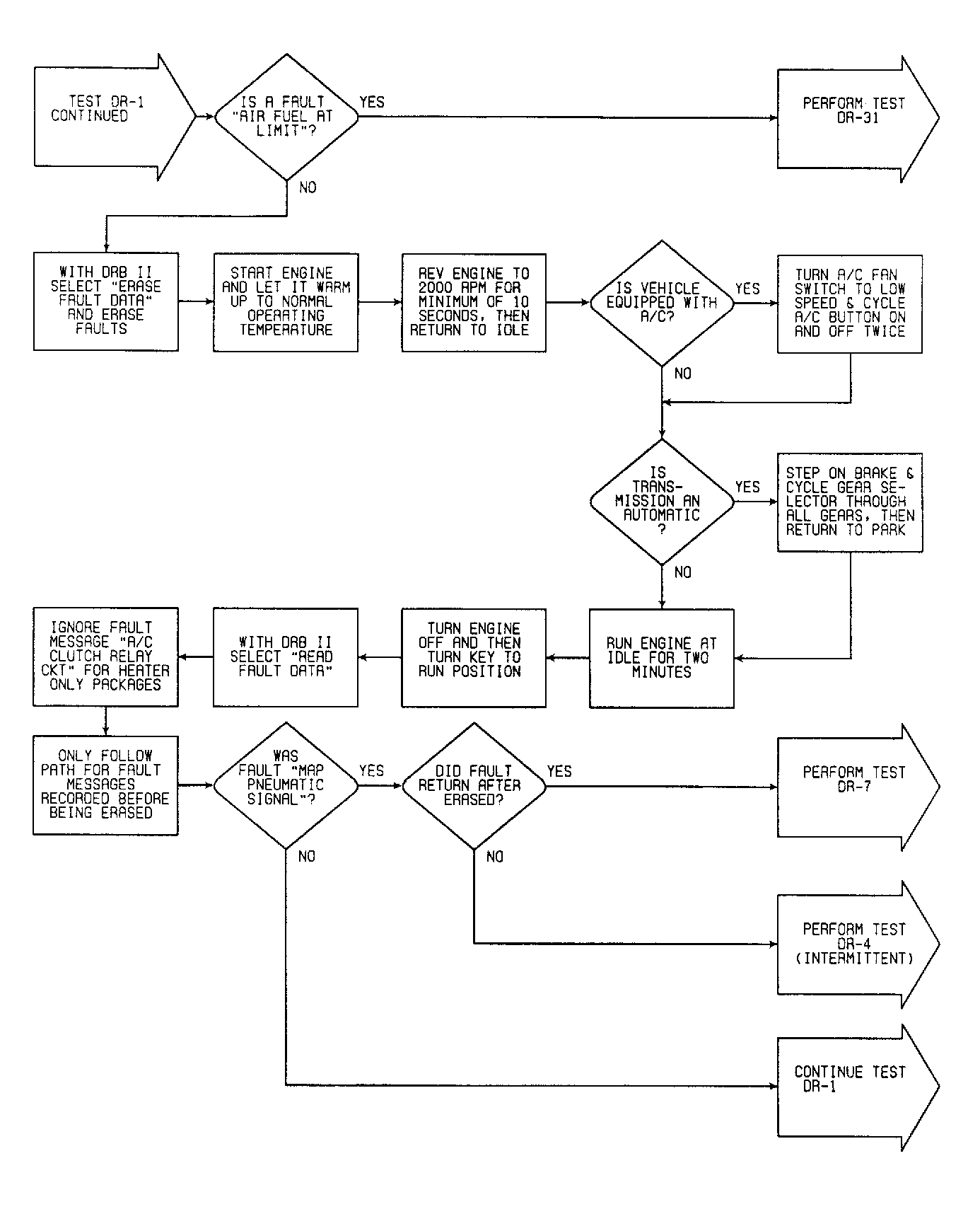

Fig 6: DR-1 Flow Chart (6 of 12), Checking System For Faults

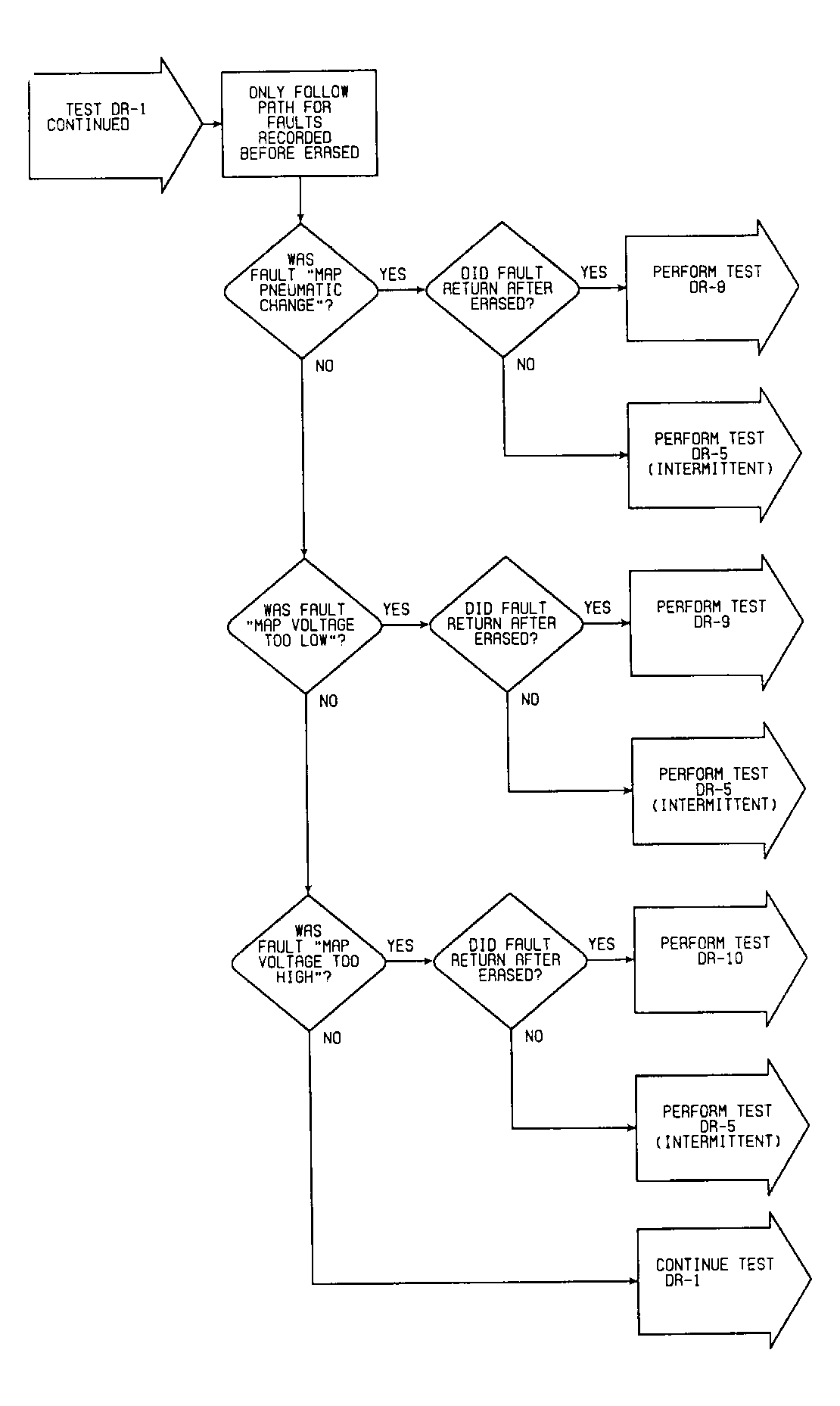

Fig 7: DR-1 Flow Chart (7 of 12), Checking System For Faults

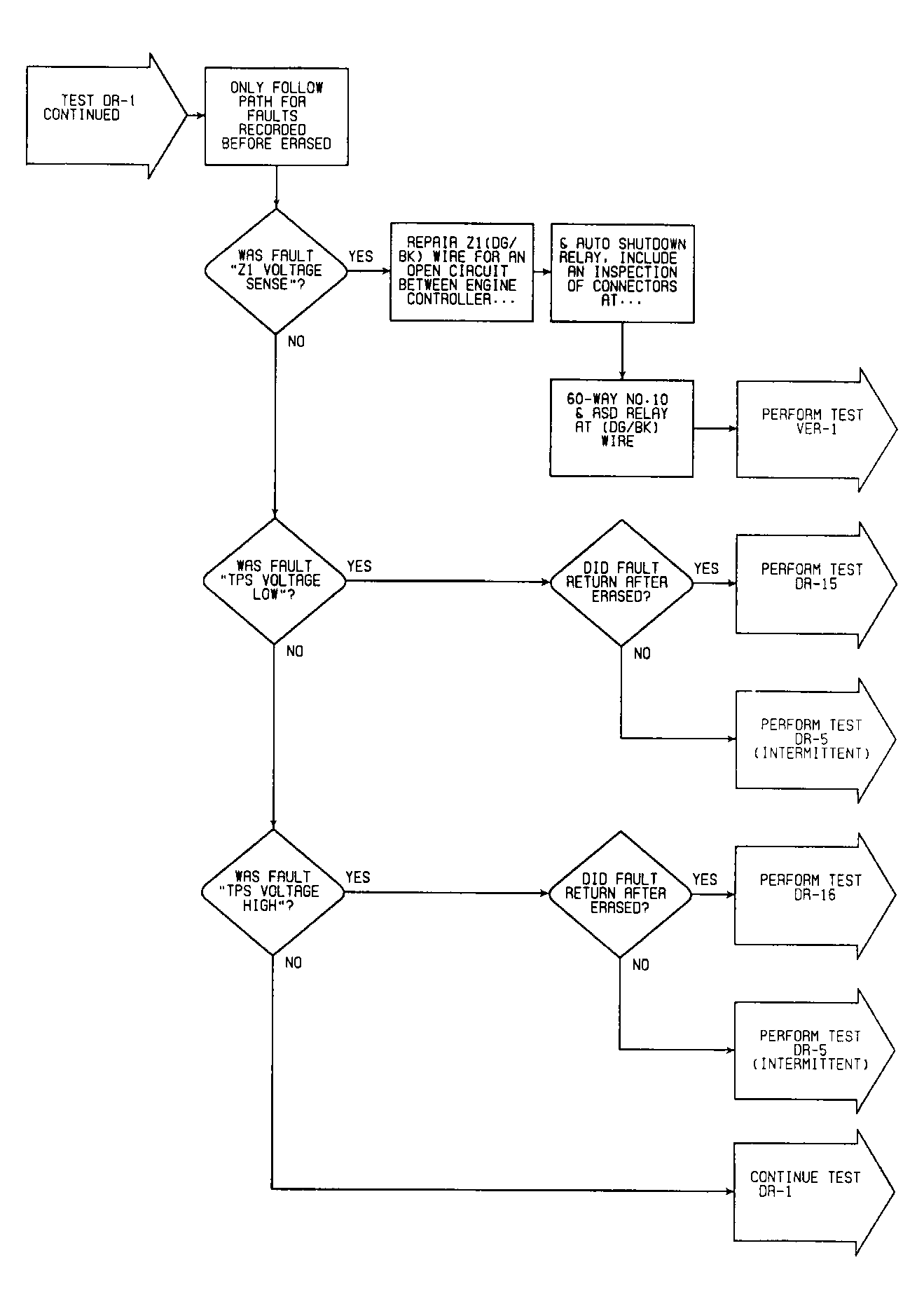

Fig 8: DR-1 Flow Chart (8 of 12), Checking System For Faults

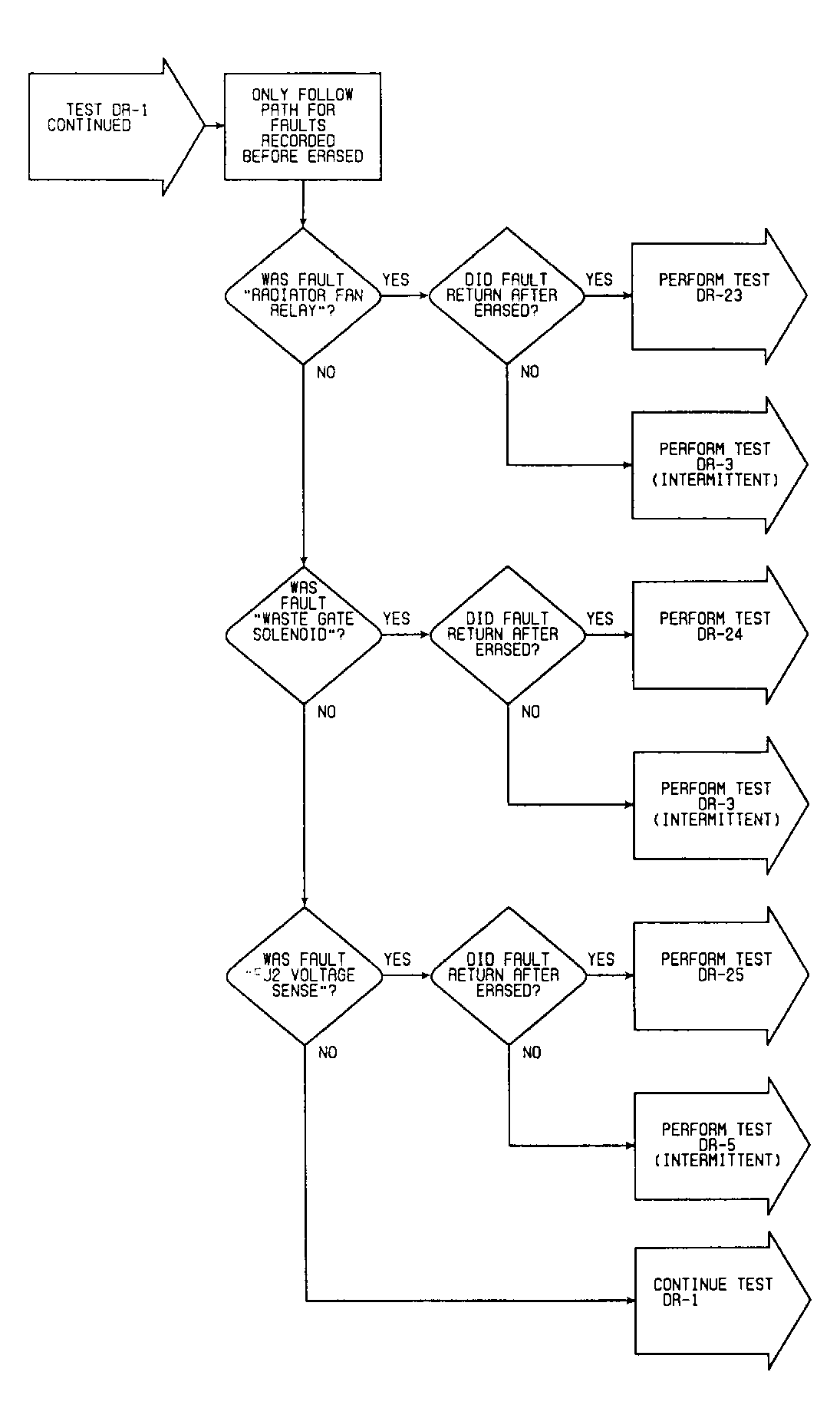

Fig 9: DR-1 Flow Chart (9 of 12), Checking System For Faults

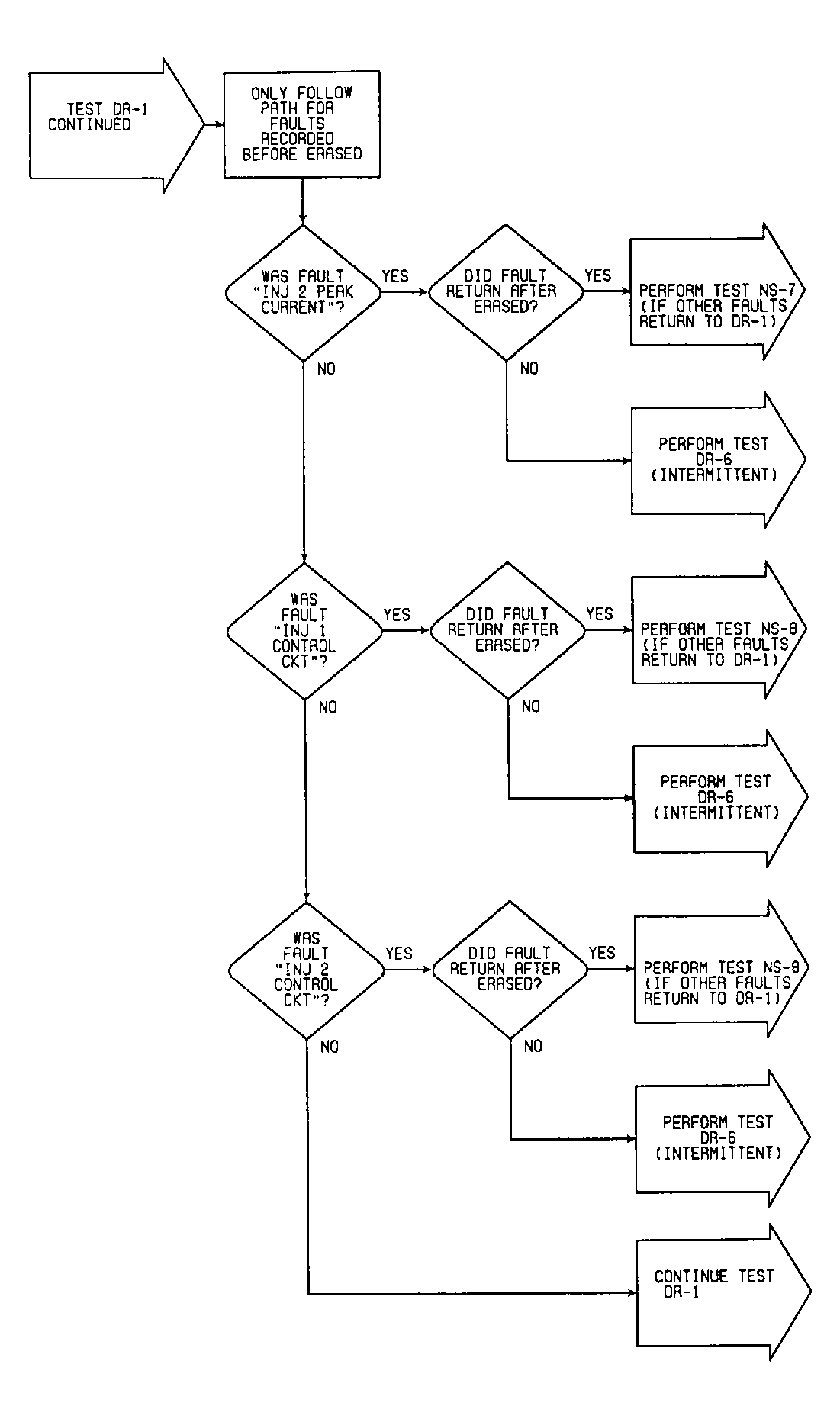

Fig 10: DR-1 Flow Chart (10 of 12), Checking System For Faults

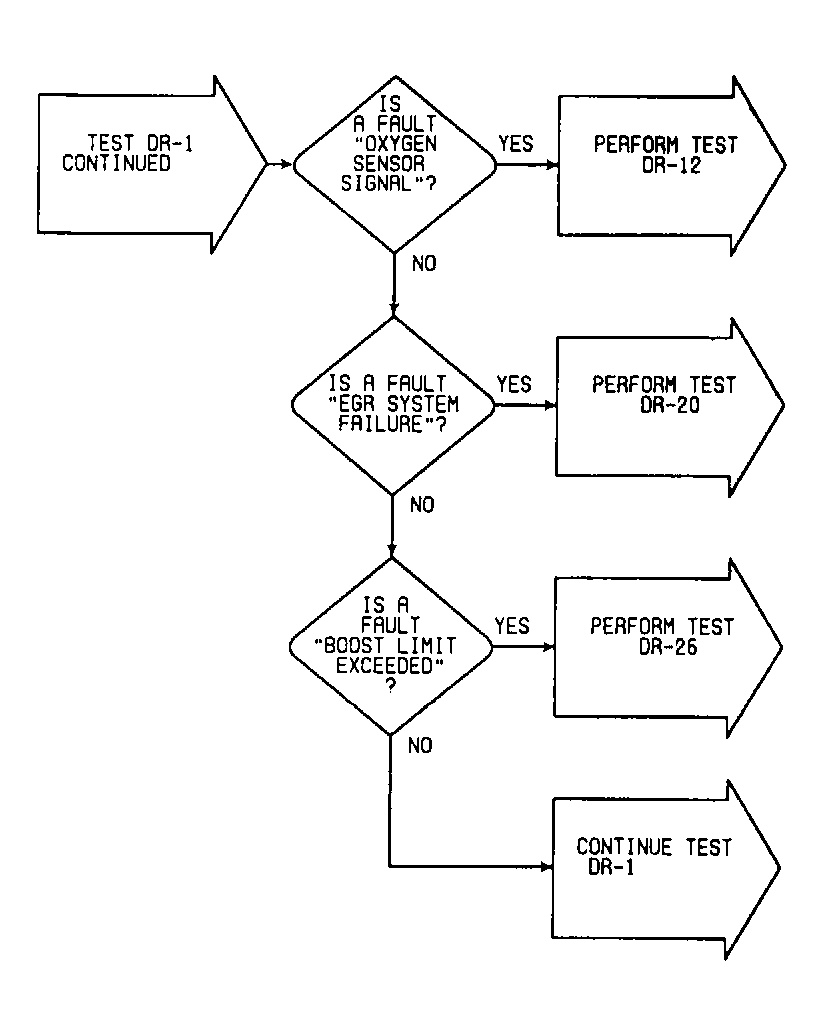

Fig 11: DR-1 Flow Chart (11 of 12), Checking System For Faults

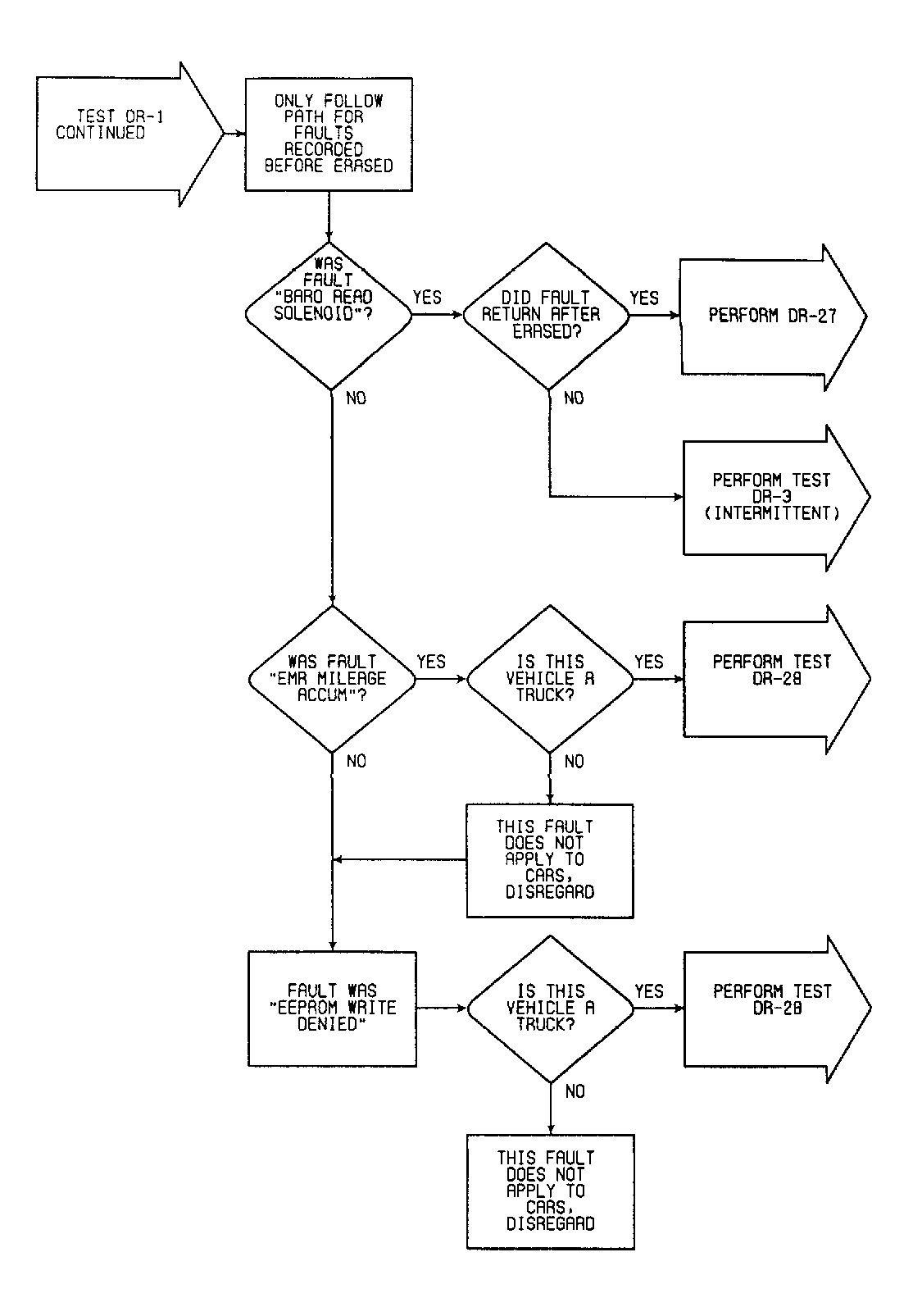

Fig 12: DR-1 Flow Chart (12 of 12), Checking System For Faults
