CH-5 - Intermittent Codes

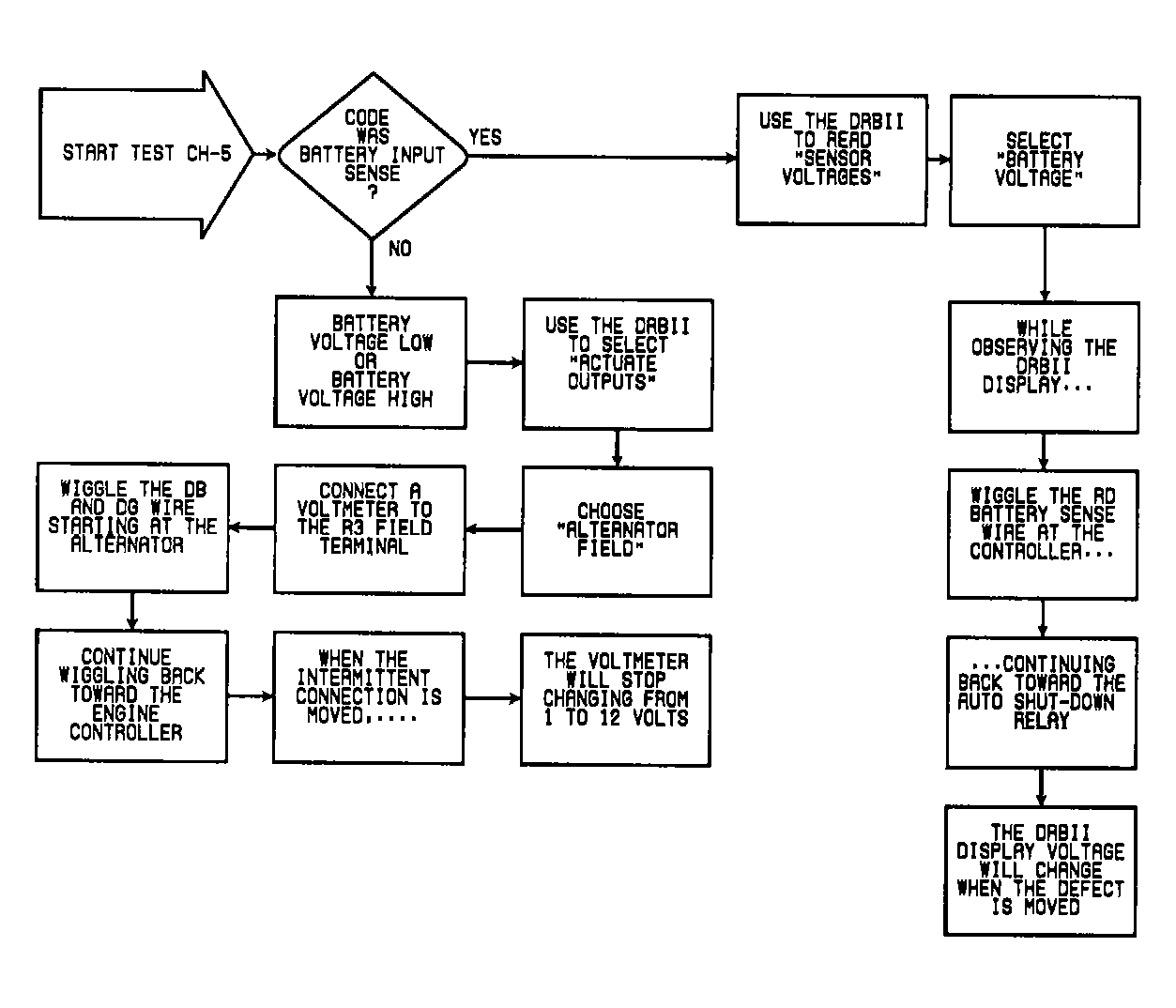

Fig 1: CH-5 Flow Chart, Intermittent Fault Codes

G107465

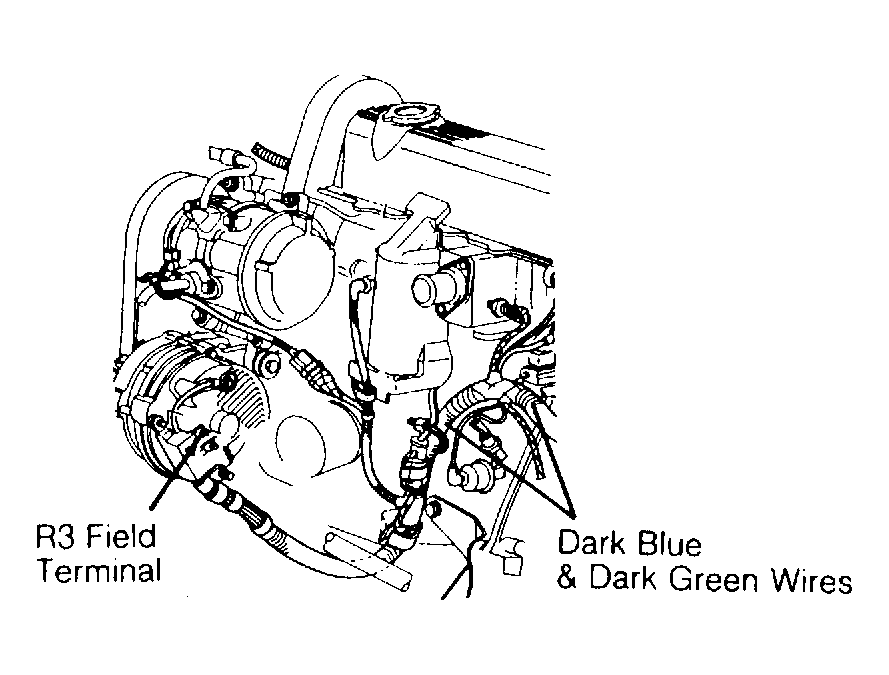

Fig 2: CH-5, Location of the "R3" Field Terminal

G107466
