Home >> Dodge and Ram >> 1989 >> Lancer Base, 2.2 D, Standard >> Repair and Diagnosis >> Engine Performance >> System >> 2.5L Turbo Tests W/Codes >> Speed Control Test Description >> SP-3 - Checking Speed Control Switch

SP-3 - Checking Speed Control Switch

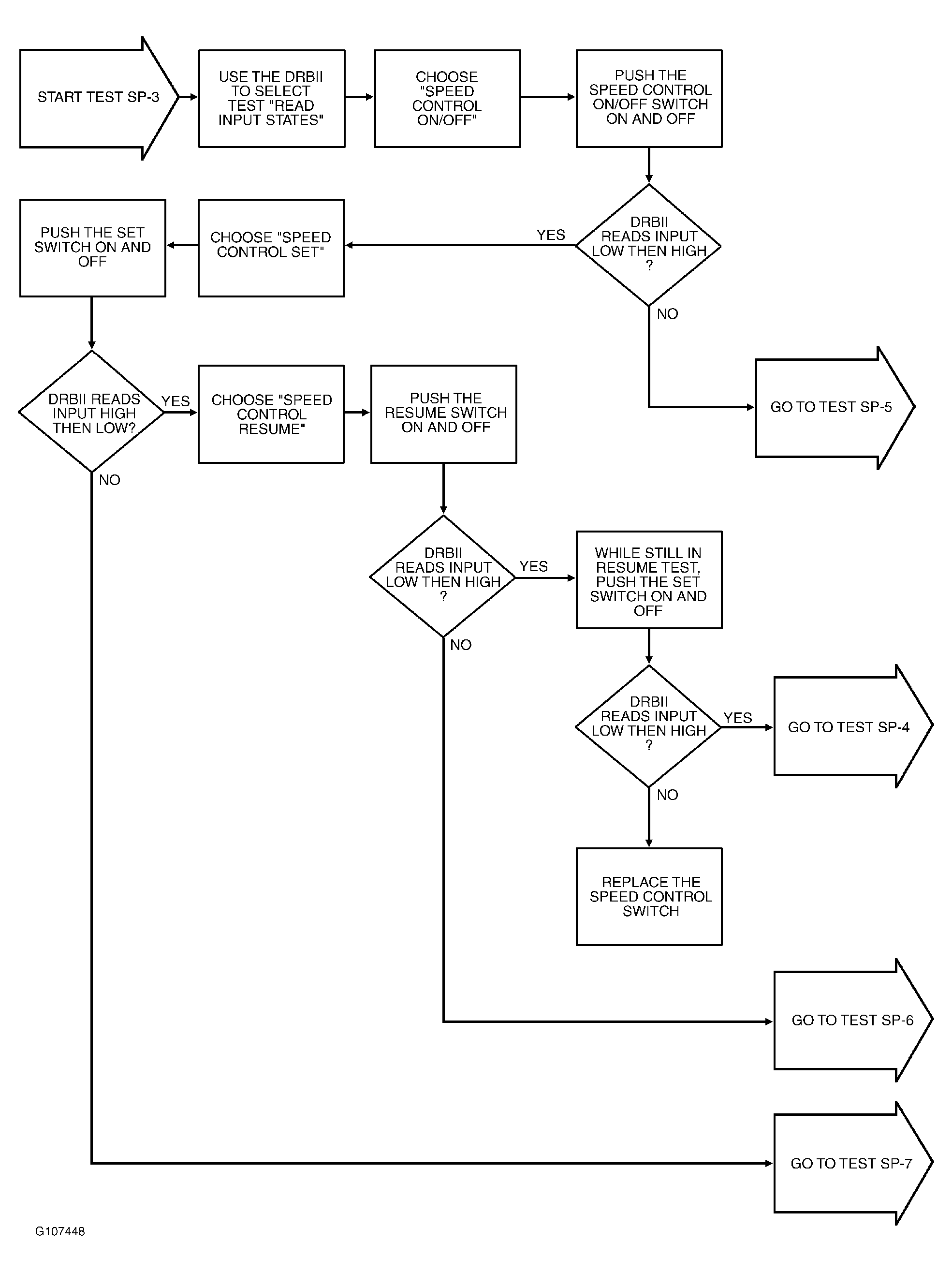

Fig 1: SP-3 Flow, Testing Speed Control Switch

G107448
