Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Air Bag System Diagnostic Module (ASDM) | Behind center console support. | |
| Chime Module (A & H Body) | Under dash, on right side of glove box. | |
| Chime Module (G & P Body) | Under dash, above glove box. | |
| ECAT Control Module (V6) | On right fender panel. See Figure . | |
| Gauge Alert Module (A Body) | On rear of instrument panel. | |
| Intermittent Wiper Control Module | ||
| A & H Body | On bracket, attached to steering column. | |

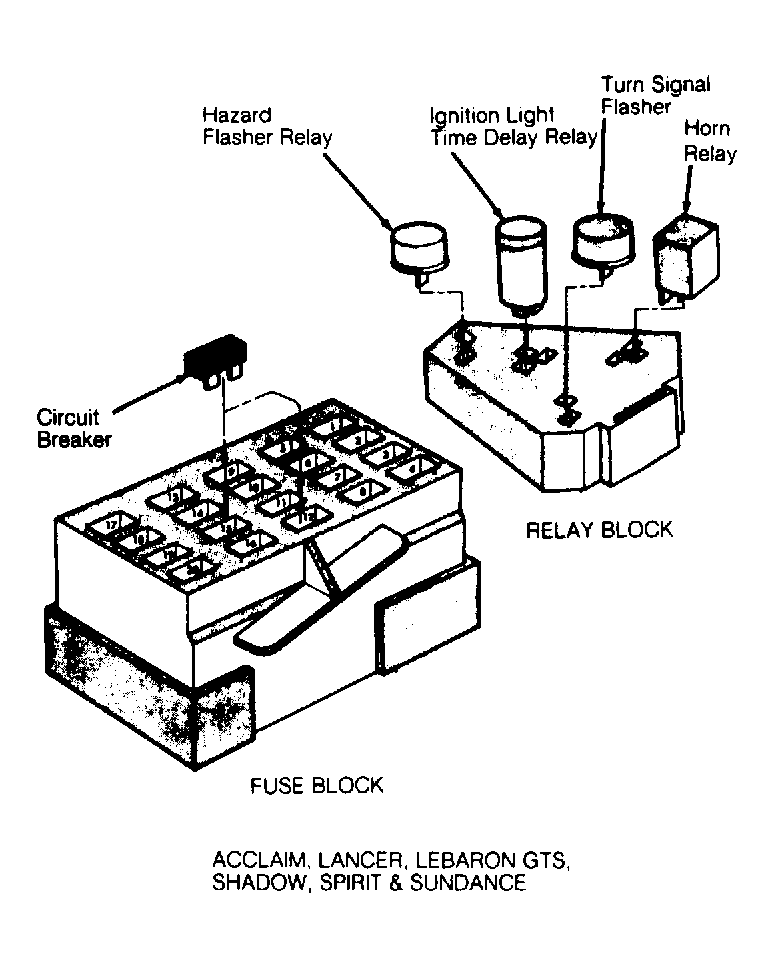

| G & K Body | On bracket, at fuse/relay block. | |
| P Body | On bracket, to right of steering column. | |
| Light Outage Module (A Body) | Behind right kick panel. | |
| Light Outage Module (H Body) | In luggage compartment, on left side. | |
| Mini-Trip Computer (A Body) | Under dash, above glove box. | |
| Rear Window Def. Controller | Under dash, above fuse block. | |
| Single Board Engine Controller | On left front fender panel. See Figure . | |

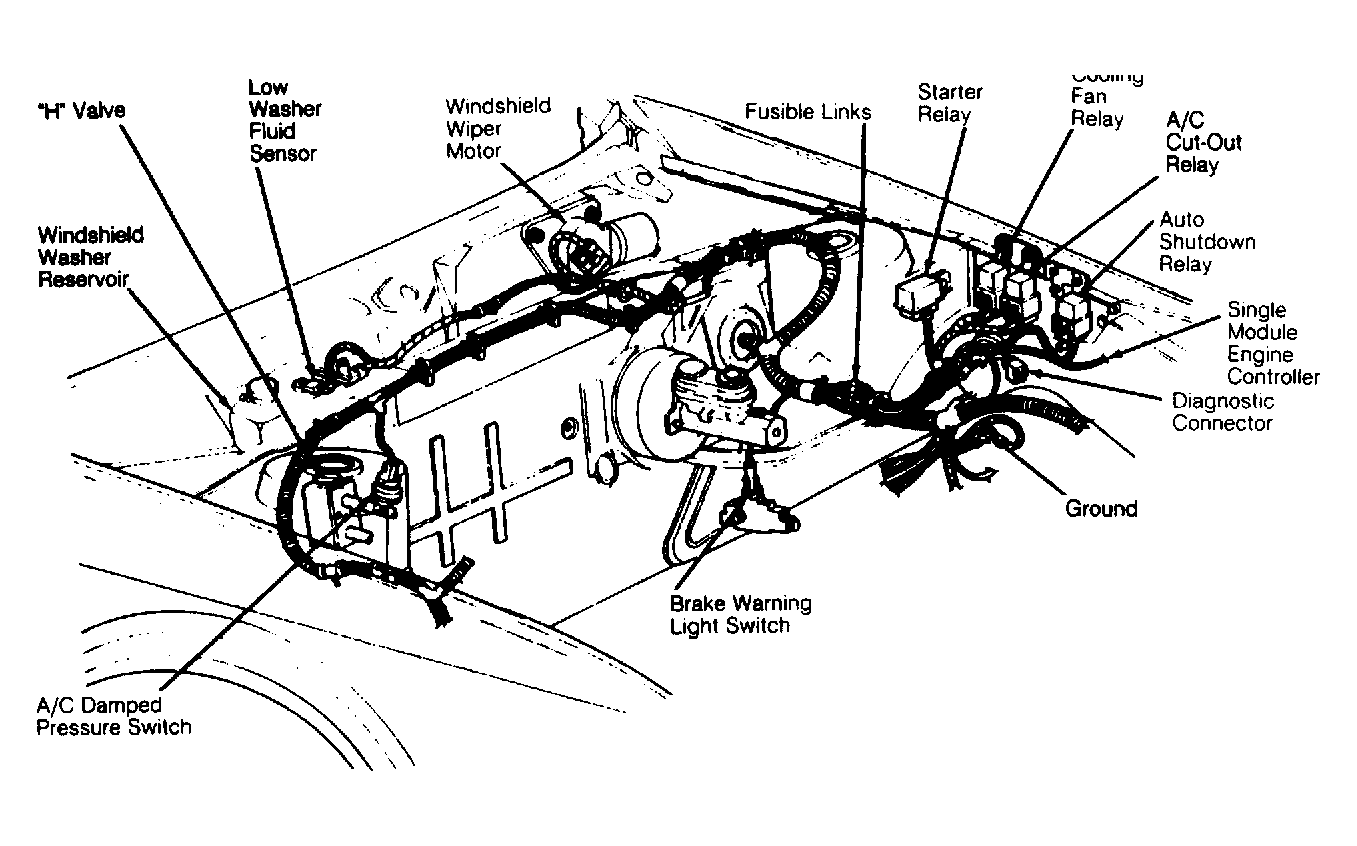

| Single Module Engine Controller | On left front fender panel. See Figure . | |
| Tachometer Module (A Body) | On rear of instrument panel. | |
