Speed Control Test
>>
SP-4 - Testing Brake Switch Circuit
SP-4 - Testing Brake Switch Circuit

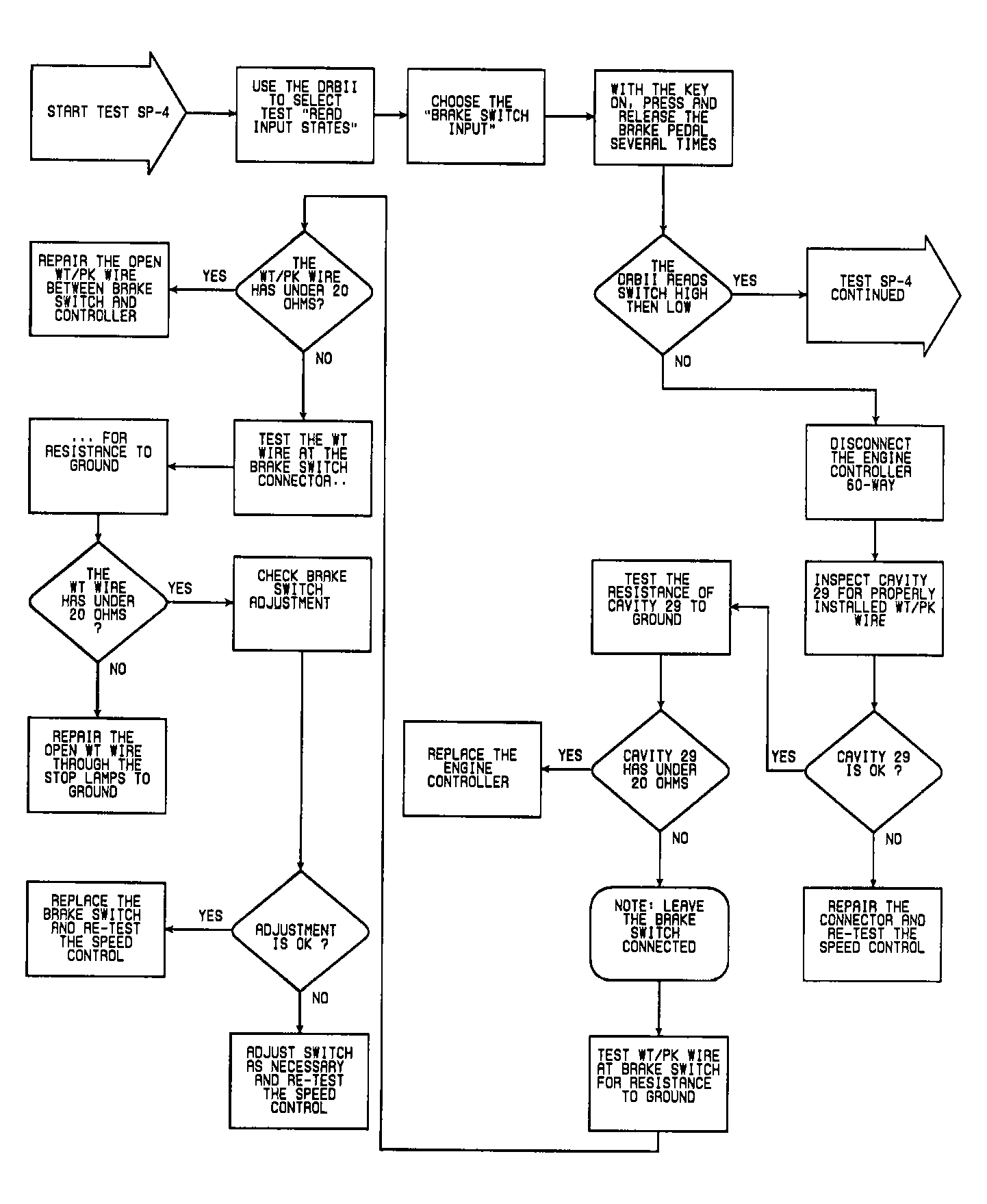

Fig 1: SP-4 - Testing Brake Switch Circuit (1 of 4)
