Dr-34 - Checking O2 Sensor Operation

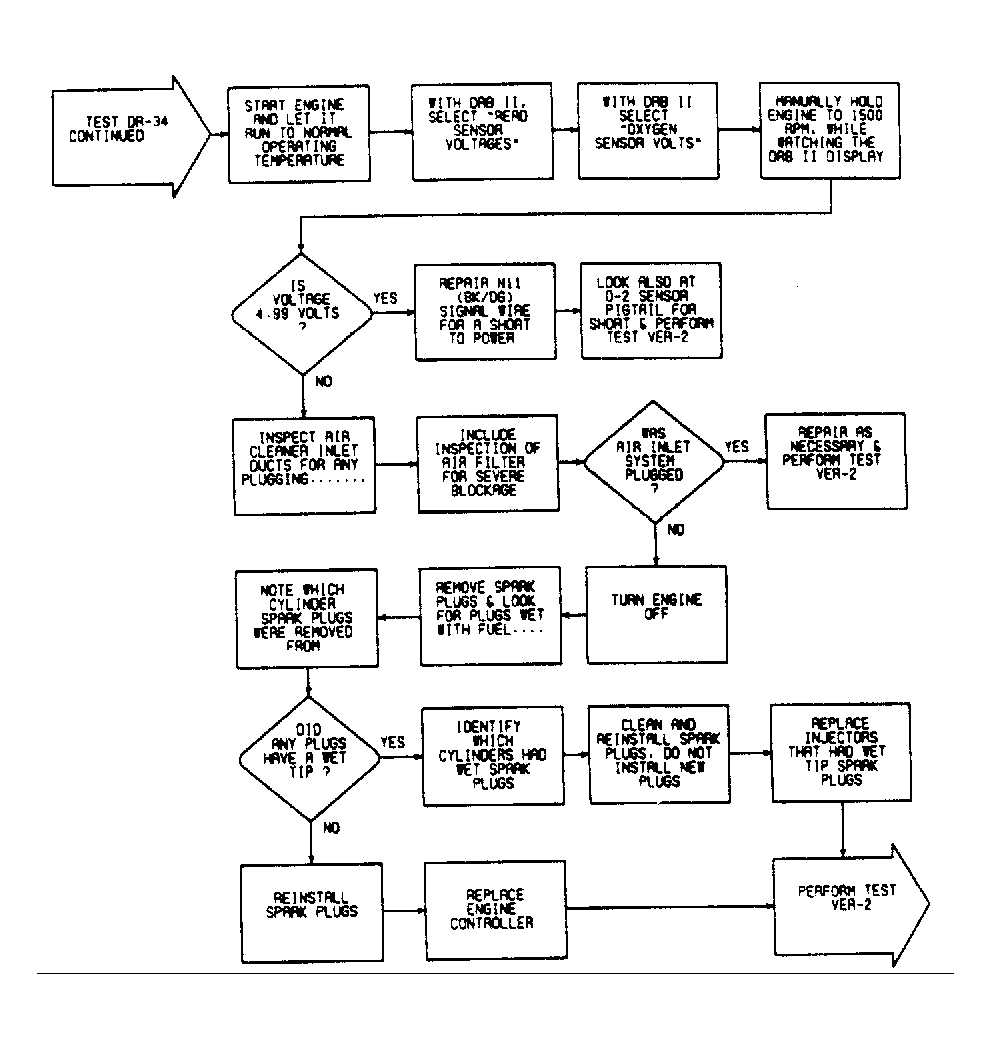

Fig 1: DR-34 - Checking Oxygen Sensor Operation (1 of 3)

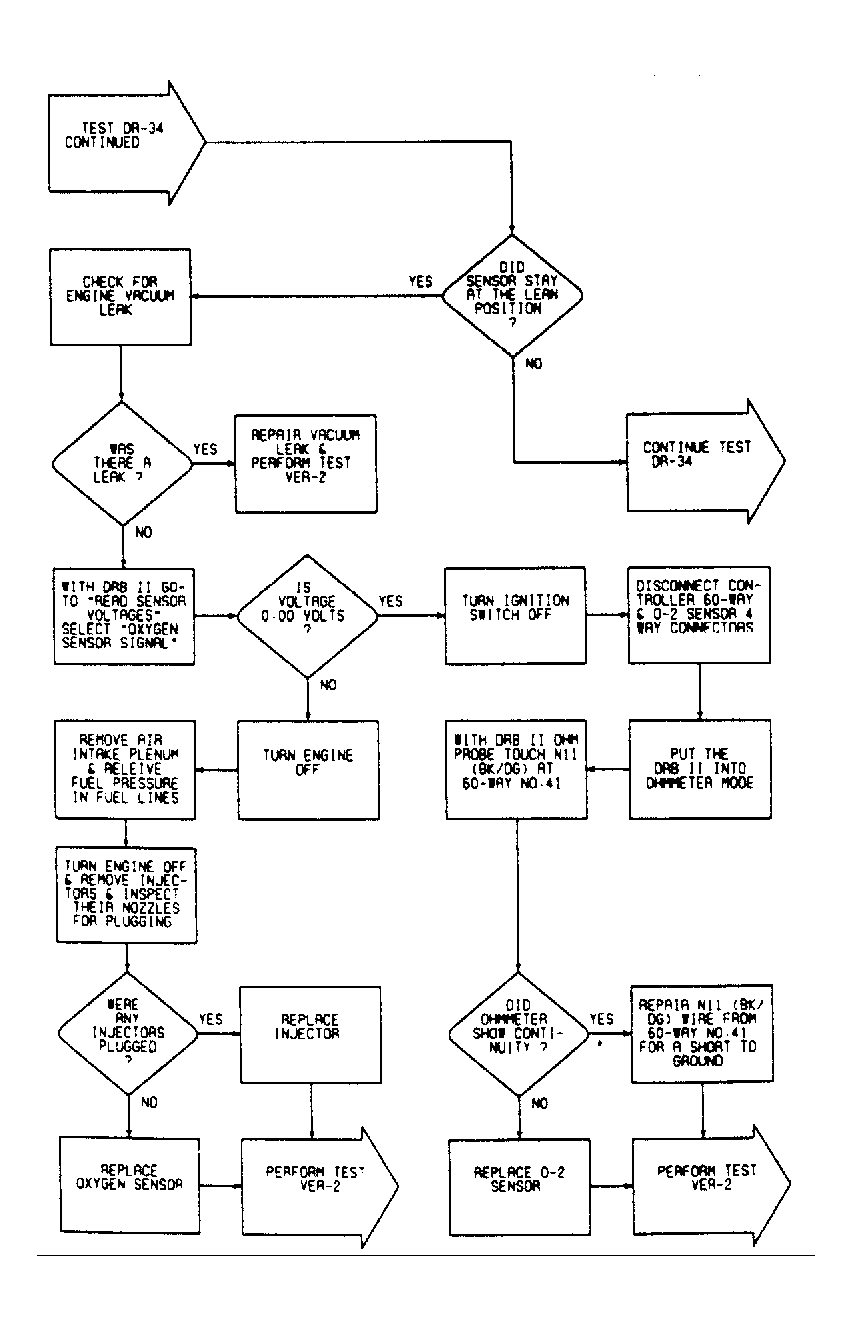

Fig 2: DR-34 - Checking Oxygen Sensor Operation (2 of 3)

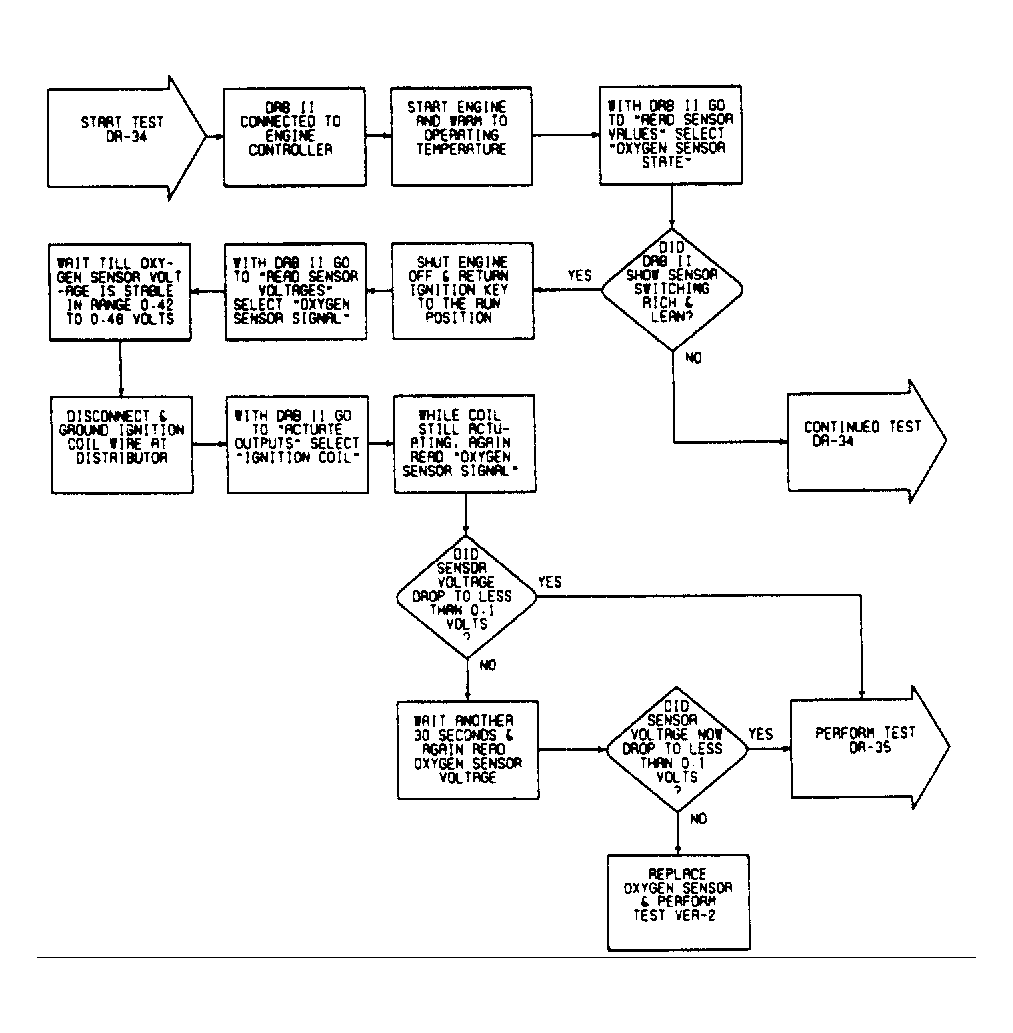

Fig 3: DR-34 - Checking Oxygen Sensor Operation (3 of 3)
