Wiring Diagrams

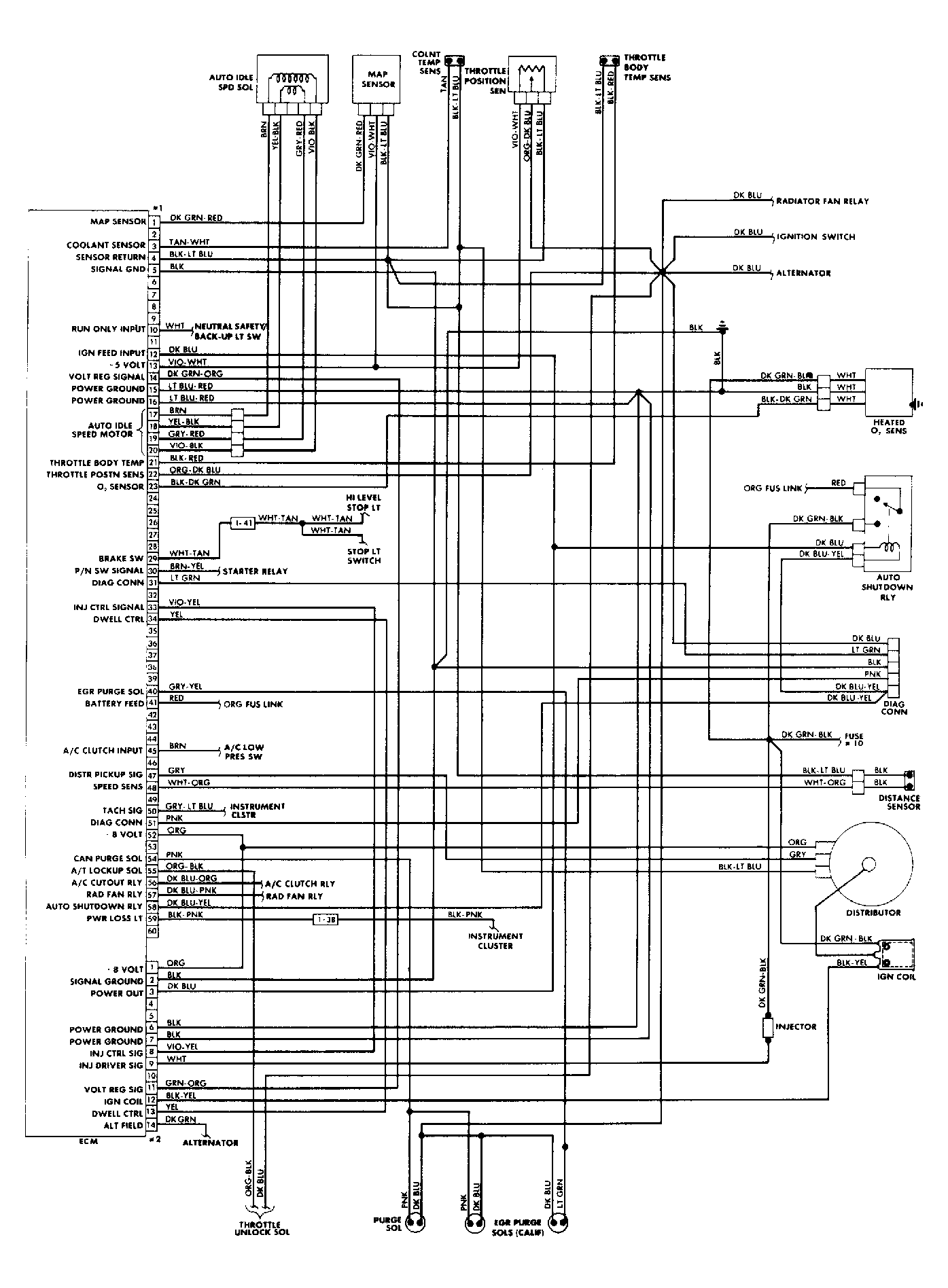

Fig 1: Engine Control System Wiring Diagram (Horizon & Omni)
G54560

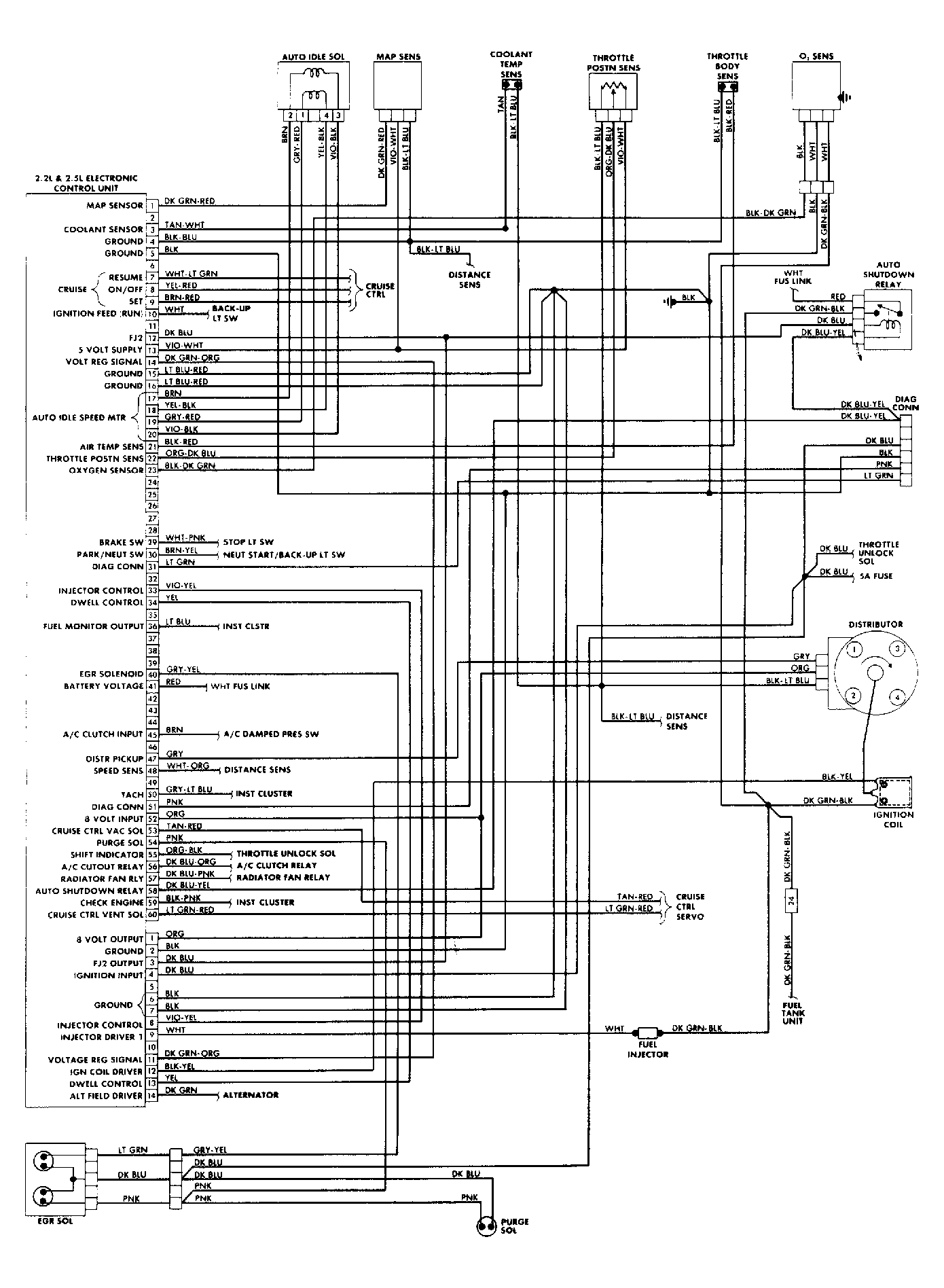

Fig 2: Engine Control System Wiring Diagram (Exc. Horizon & Omni)
G54561

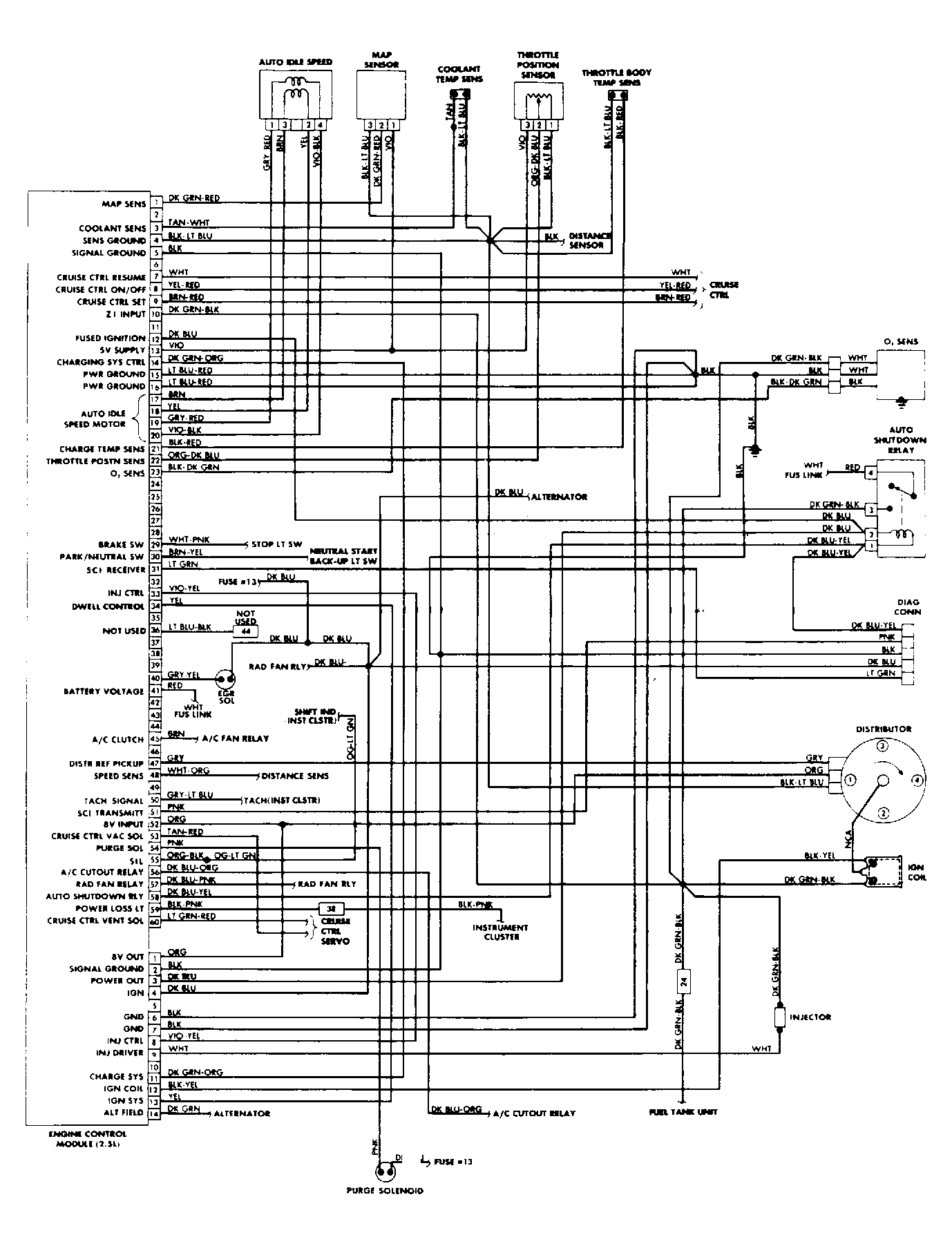

Fig 3: Engine Control System Wiring Diagram (2.5L Van/Wagon)
G54563
