NS2 - Fuel System Check

Remove air cleaner. Disconnect ignition coil wire from distributor cap and secure it to a good ground. Have an assistant crank engine while you observe fuel spray from injector. If there is a slow steady stream of fuel spraying from injector, go to NS3  . If there is no fuel spray from injector, go to NS9  . If injector is spraying an excessive amount of fuel, go to NS13  .

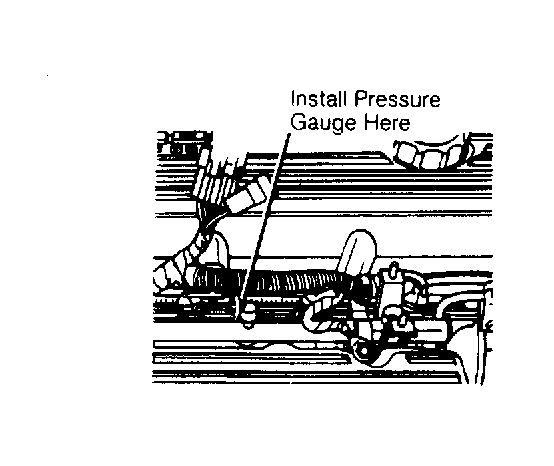

Fig 1: Fuel System Check
G55897
