NS14, Code 11 - Checking Distributor Pick-Up Harness

  1. Turn ignition off. Connect DRB II to engine harness connector. Disconnect Black distributor reference pick-up coil connector. Turn ignition switch to "RUN" position. Connect a jumper wire between distributor reference pick-up coil connector cavities No. 2 and No. 3. Make and break this connection several times. Put system in Diagnostic Test Mode. Record all codes.

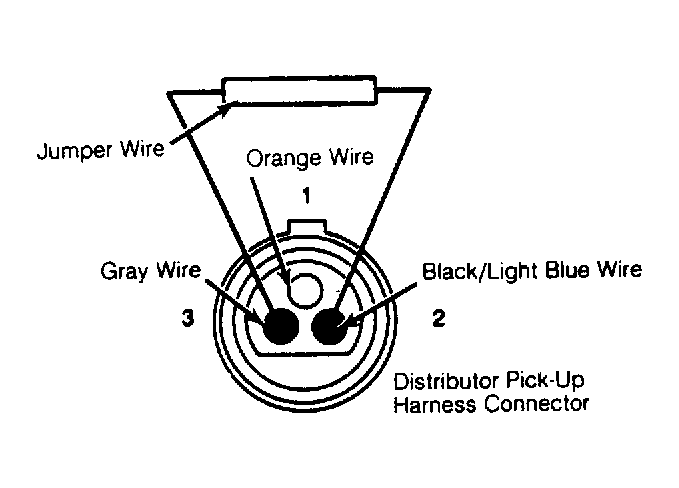

    Fig 1: Checking Distributor Pick-Up Harness (Turbo) "A"
    G55931
  2. If 88-11-12-54-55 is displayed, disregard code 54 and go to step 4). If 88-12-54-55 is displayed, disregard code 54. With distributor pick-up coil connector disconnected, connect voltmeter to distributor pick-up coil connector cavity No. 1 and ground.

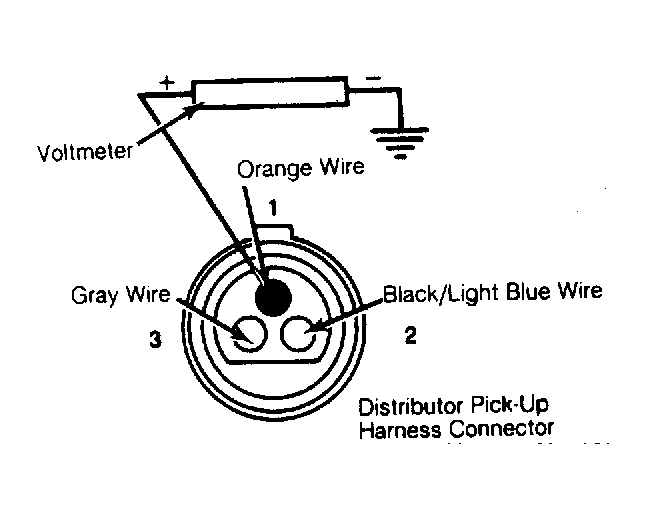

    Fig 2: Checking Distributor Pick-Up Harness (Turbo) "B"
    G55932
  3. If voltmeter reading is at least 7 volts, replace distributor reference pick-up. Before replacing pick-up, ensure distributor harness connector terminals are not spread apart causing a poor connection. Also ensure distributor rotor turns while cranking engine. If voltmeter reading is zero volts, repair Orange wire to connector cavity No. 1 for an open circuit to wiring harness splice.
  4. With ignition on, connect positive voltmeter lead to distributor connector cavity No. 3. Connect negative voltmeter lead to distributor connector cavity No. 2. If voltmeter reading is at least 4 volts, replace SMEC.

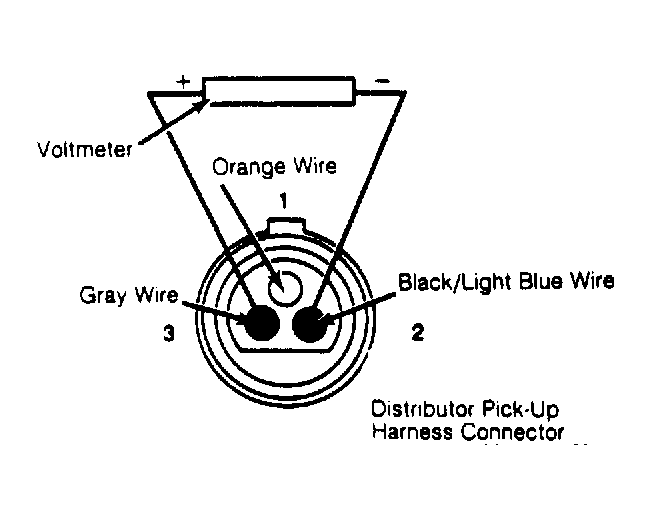

    Fig 3: Checking Distributor Pick-Up Harness (Turbo) "C"
    G55933
  5. If voltmeter reading is zero volts, connect positive voltmeter lead to distributor connector cavity No. 3. Connect negative voltmeter lead to a good engine ground. If voltmeter reading is at least 4 volts, repair Black/Light Blue wire in distributor connector cavity No. 2 for an open circuit to wiring harness splice.

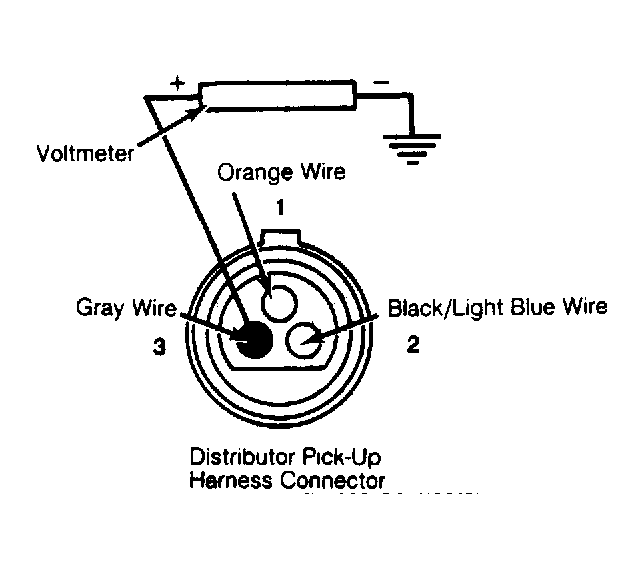

    Fig 4: Checking Distributor Pick-Up Harness (Turbo) "D"
    G55934
  6. If voltmeter reading is zero volts, turn ignition off. Disconnect 60-pin connector from SMEC. Connect an ohmmeter to distributor connector cavity No. 3 and 60-pin connector cavity No. 47. If there is no continuity, repair Gray wire to 60-pin connector cavity No. 47 or an open circuit to distributor connector.

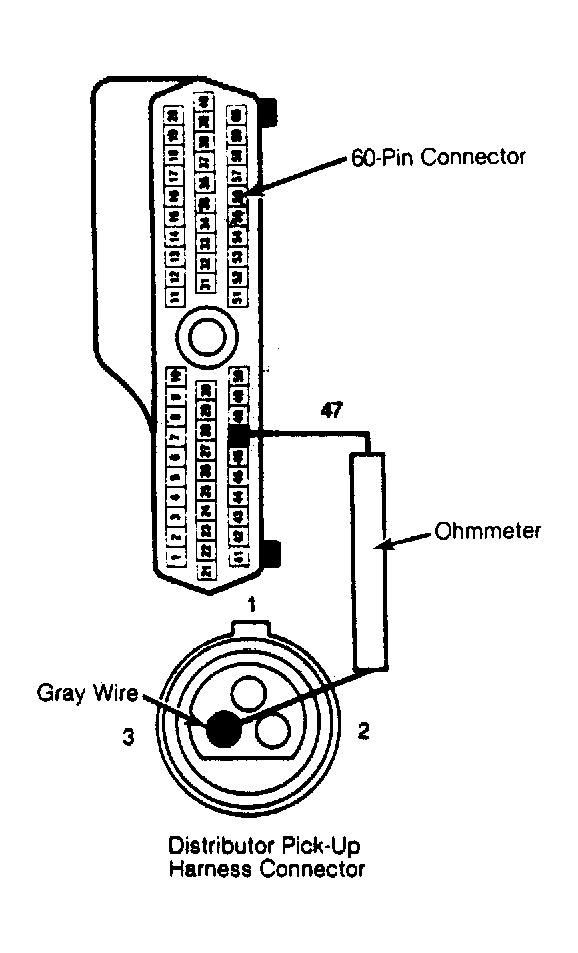

    Fig 5: Checking Distributor Pick-Up Harness (Turbo) "E"
    G55935
  7. If there is continuity, replace SMEC for a defective logic board. Before replacing SMEC, ensure terminal in connector cavity No. 47 is not damaged causing a poor connection.
