Removal & Installation

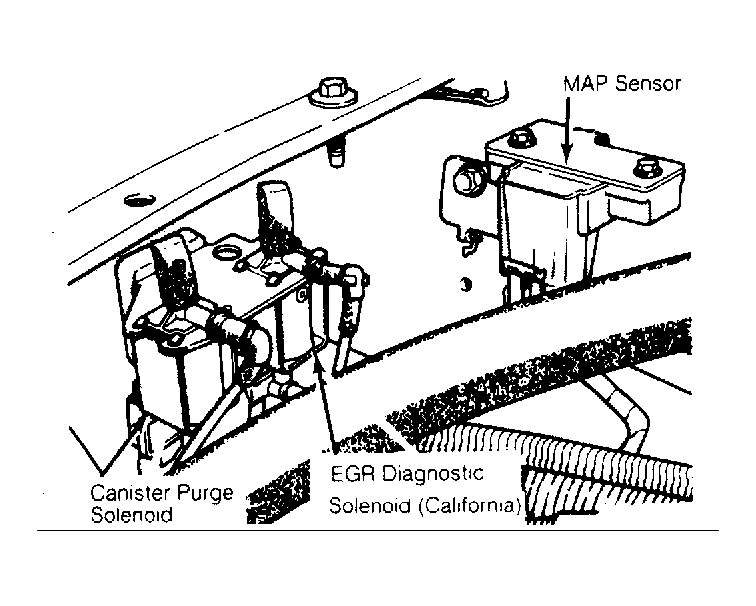

Remove vacuum hose. Remove mounting screws. Remove wiring harness. Remove sensor. See Figure . To install, reverse removal procedure.
