Vacuum Hose Diagram(S)

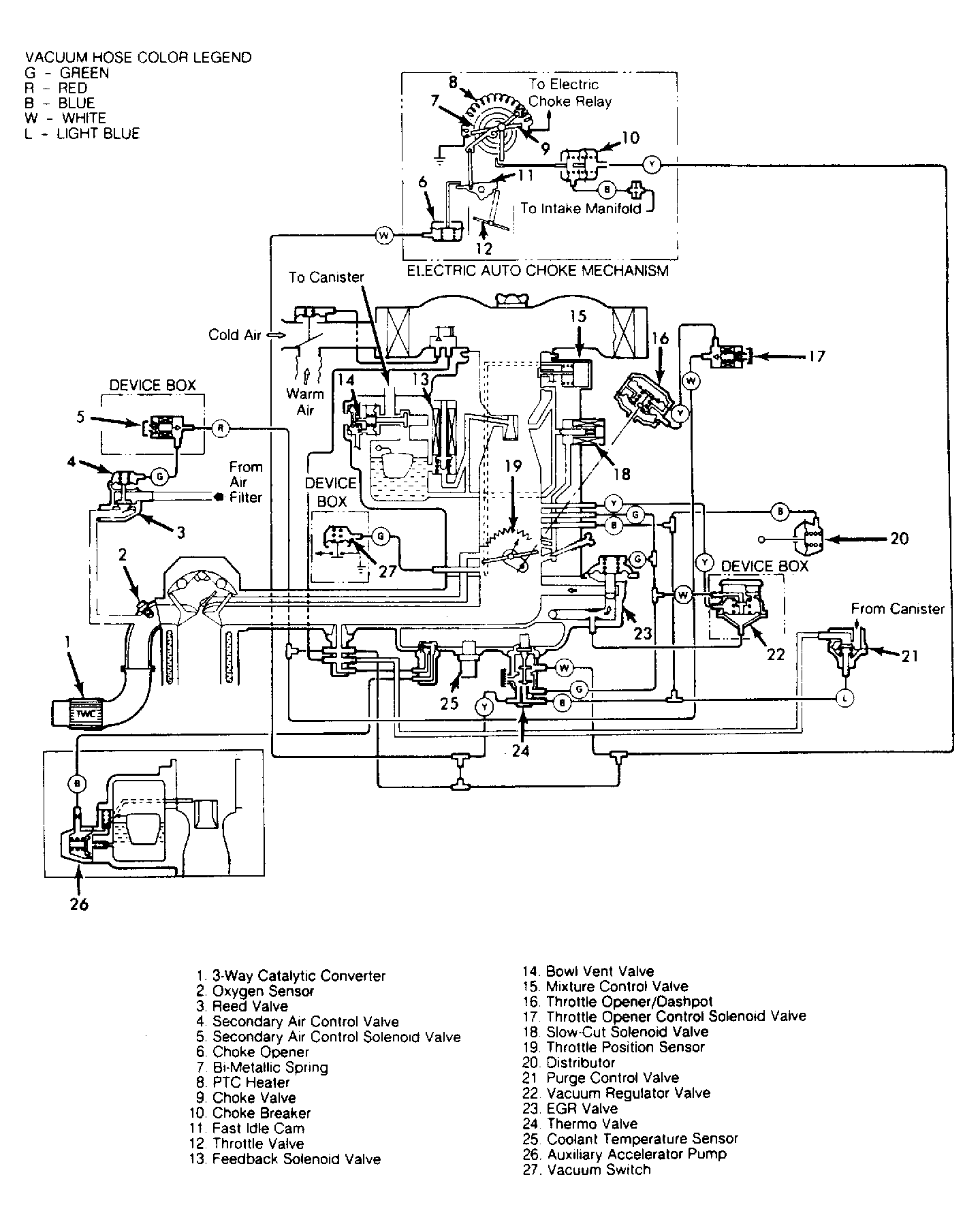

Fig 1: Vacuum Diagram (Raider & Ram-50 - Federal)
G61360

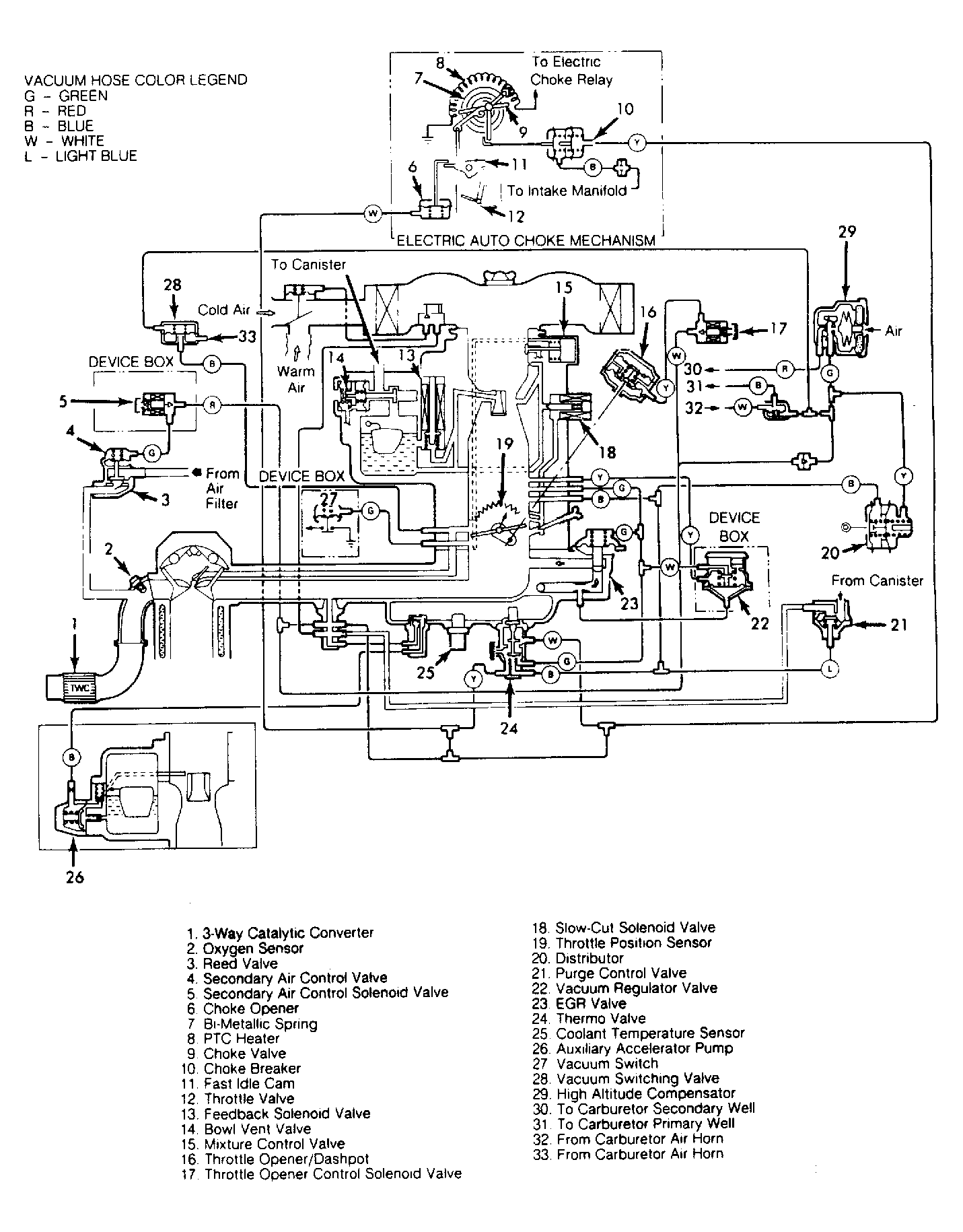

Fig 2: Vacuum Diagram (Raider & Ram-50 - Federal High Altitude)
G61361

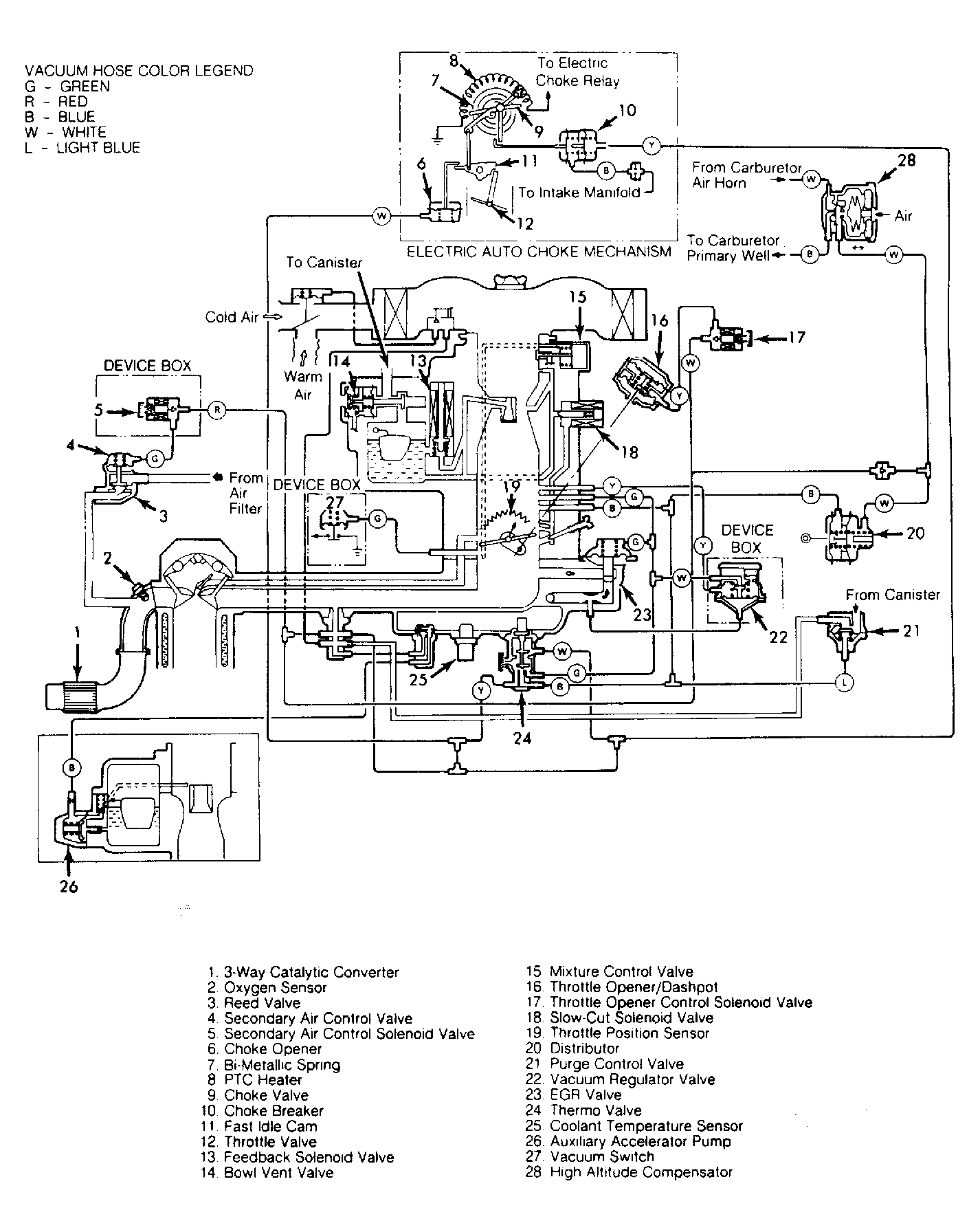

Fig 3: Vacuum Diagram (Raider & Ram-50 - California)
G61362

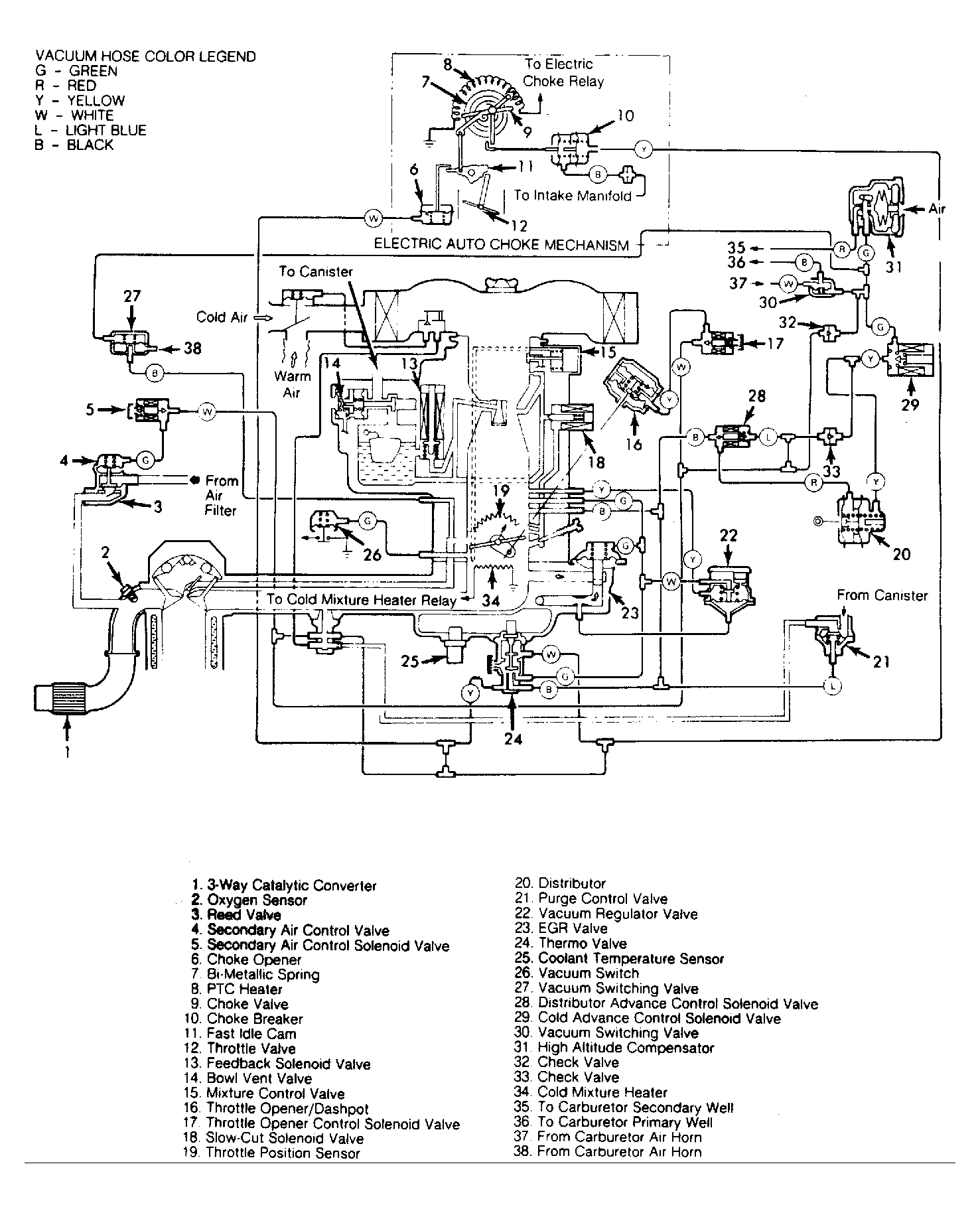

Fig 4: Vacuum Diagram (Colt - Federal)
G61363

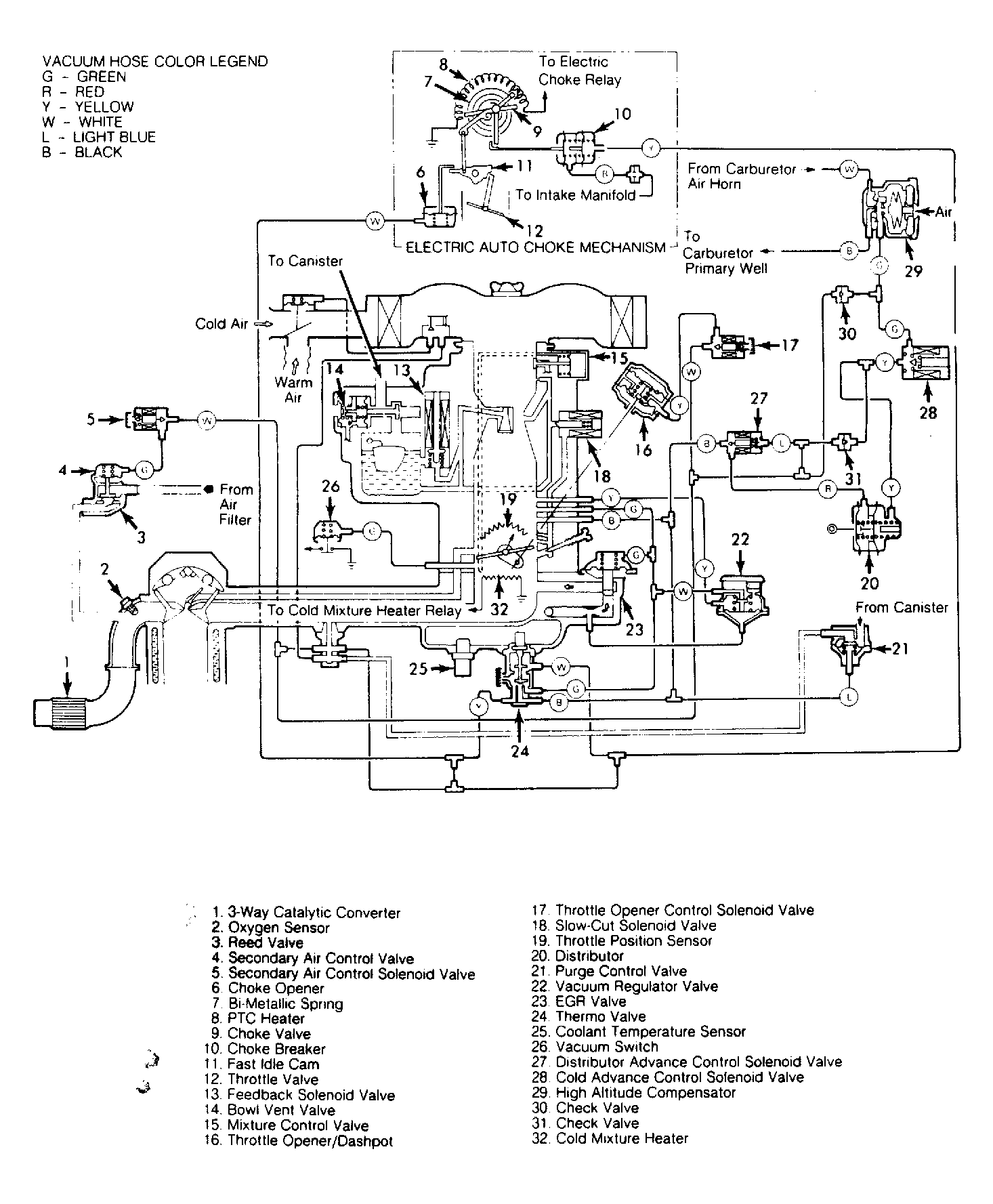

Fig 5: Vacuum Diagram (Colt - California)
G61364
