Drag Link: Installation

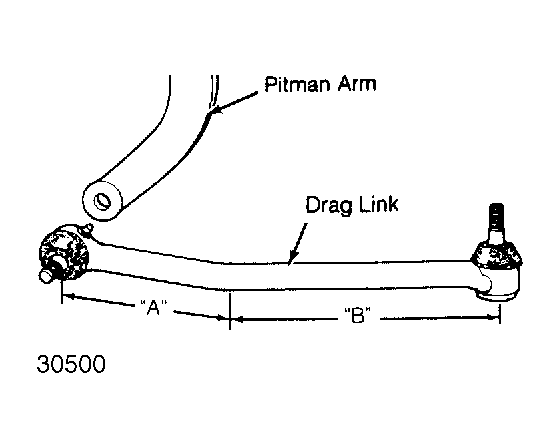

Drag link must be installed to steering knuckle arm with short half (distance "A") attached to knuckle arm. Distance "A" is measured from bend in drag link. See Fig 1. Install castle nuts. Tighten to 60 ft. lbs. (81 N.m). Install cotter pin.
