NS6 - Checking For Code 43

Connect diagnostic readout tool to engine harness connector. Erase fault codes. Crank engine for 5 seconds and turn ignition off. Place system in diagnostic mode and record all codes set. If no fault codes are set (88-12-55), go to NS7 - CHECKING COIL  . If code 43 (88-12-43  -55) is set, go to NS8 - CHECKING ENGINE CONTROL MODULE  .

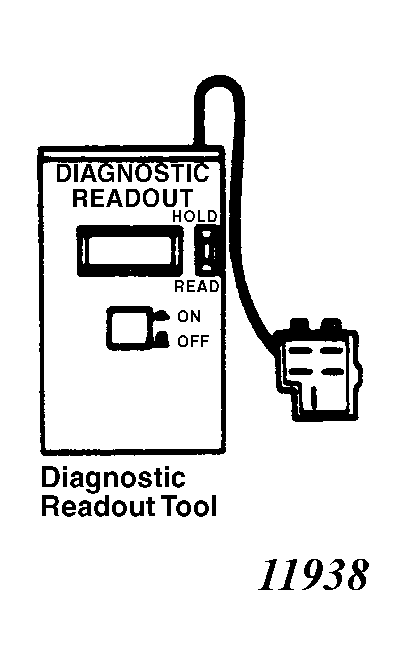

Fig 1: Diagnostic Readout Tool
G11938
